Palo Alto Networks Plugin Components: Extending Firewall and Panorama Capabilities

🔌 Introduction to PAN-OS and Panorama Plugins

Palo Alto Networks utilizes a modular plugin architecture to extend the core functionality of its PAN-OS firewalls and Panorama management platform. Plugins are software packages that can be installed on Panorama or, in some cases, directly on firewalls (like the VM-Series plugin) to enable new features, integrations with third-party systems, and enhanced operational capabilities. They serve as crucial bridges, allowing your Palo Alto Networks infrastructure to dynamically adapt and respond to changes in complex environments, especially in cloud and virtualized deployments.

Understanding plugins is essential for effective network security management and is a key area for the PCNSE certification, as they touch upon automation, cloud security, and centralized management concepts.

⚙️ Core Concepts of Plugin Operation

Plugins operate by interfacing with the PAN-OS/Panorama API and, where applicable, with external system APIs (e.g., cloud provider APIs, virtualization managers, SDN controllers). They often work in conjunction with features like Dynamic Address Groups (DAGs) to provide agile security policy enforcement.

• Integration Facilitators: Plugins act as connectors, enabling PAN-OS and Panorama to communicate with and gather information from diverse systems. For instance, the VM-Series plugin communicates with cloud provider APIs (AWS, Azure, GCP) to monitor virtual machine attributes.
• Dynamic Information Gathering: Many plugins are designed to collect dynamic information, such as IP addresses, tags, or security group memberships from external systems. This information is then used to populate DAGs. Example: The Panorama plugin for VMware vCenter polls vCenter for VM inventory and tags, which can then be used to define DAGs that automatically include all VMs with a specific tag.
• Feature Enablement: Some plugins unlock specific features or workflows. The Zero Touch Provisioning (ZTP) plugin, for example, enables automated onboarding of new firewalls, drastically reducing manual setup.
• Centralized Management Focus: Most plugins are managed via Panorama, providing a single point of control for installing, upgrading, and monitoring plugin status across your deployment.

🛠️ Plugin Management: Installation, Upgrades, and Compatibility

Effective plugin management is vital for maintaining a stable and secure environment. This primarily takes place on Panorama.

Key Management Tasks:

• Discovery and Download: Panorama can fetch a list of available plugins directly from the Palo Alto Networks update server (requires internet connectivity for Panorama). You can then select and download plugins. Path: Panorama > Plugins. Example: To install the latest CloudConnector plugin, an administrator would navigate to this section, check for new plugin versions, and initiate the download.
• Installation: Once downloaded, plugins can be installed. The installation process typically involves uploading the plugin package (if downloaded manually) or selecting it from the downloaded list and clicking "Install." Example: After downloading the "Panorama Plugin for VMware vCenter," the administrator clicks "Install" to activate its functionality on Panorama.
• Version Compatibility: This is a critical aspect. Plugin versions are tightly coupled with specific PAN-OS and Panorama software versions. Always consult the Palo Alto Networks compatibility matrix before installing or upgrading plugins. Example: Before upgrading Panorama to version 10.2, verify that all installed plugins have compatible versions for Panorama 10.2. If not, the plugins may need to be upgraded first, or the Panorama upgrade might be blocked or lead to issues.
  PCNSE/PCNSA Exam Note: Compatibility between plugin versions, PAN-OS versions (for firewalls), and Panorama versions is a frequent source of exam questions. Always check the official compatibility matrix.
• Upgrading Plugins: Similar to installation, upgrades involve downloading the new version and installing it. Some plugin upgrades might require a Panorama software restart or have specific pre-requisites. Example: If a new version of the ZTP plugin offers enhanced features, it can be upgraded through the Panorama > Plugins interface. The release notes for the plugin should be reviewed for any specific upgrade instructions.
• Removing Plugins: If a plugin is no longer needed, it can be removed. This typically involves selecting the plugin and clicking "Uninstall" or "Delete."

Diagram: General Plugin Installation/Upgrade Workflow on Panorama.

🧩 Common Plugins and Their In-Depth Functions

Below are details on some of the most commonly encountered plugins, their use cases, and PCNSE-relevant considerations.

1. VM-Series Plugin

• Primary Function: Enables the VM-Series virtual firewall to integrate deeply with its underlying cloud platform (AWS, Azure, GCP, VMware NSX, Cisco ACI). This plugin is installed directly on the VM-Series firewall , not on Panorama.
• Key Capabilities:
  • Dynamic Address Groups (DAGs): The plugin monitors metadata or tags associated with virtual machines in the cloud (e.g., AWS EC2 tags, Azure VM tags, GCP labels). It translates these tags into IP addresses, which then populate DAGs on the VM-Series firewall. This allows security policies to be written based on tags rather than static IP addresses. Example: A policy can state "Allow traffic from 'Application:Webserver_Tier' to 'Application:Database_Tier'". As VMs are spun up or down and tagged appropriately, the VM-Series plugin automatically updates the DAGs, ensuring the policy applies correctly without manual intervention.
  • High Availability (HA) Integration: Facilitates HA failover in cloud environments by updating cloud networking constructs (e.g., route tables in AWS/Azure/GCP) during a failover event. This ensures traffic is correctly redirected to the newly active VM-Series firewall.
  • Cloud API Interaction: Uses cloud provider APIs to gather information and enact changes. This requires appropriate permissions (e.g., IAM roles in AWS, Managed Identities/Service Principals in Azure, Service Accounts in GCP).
  • Licensing Updates: Can assist with dynamic license updates and capacity management in some cloud marketplace deployments.
• PCNSE Focus: Understand how the VM-Series plugin enables infrastructure-as-code principles for security. Be familiar with the concept of IP-Tag mapping and its role in DAGs. Know that the plugin needs permissions to interact with the cloud provider's API.

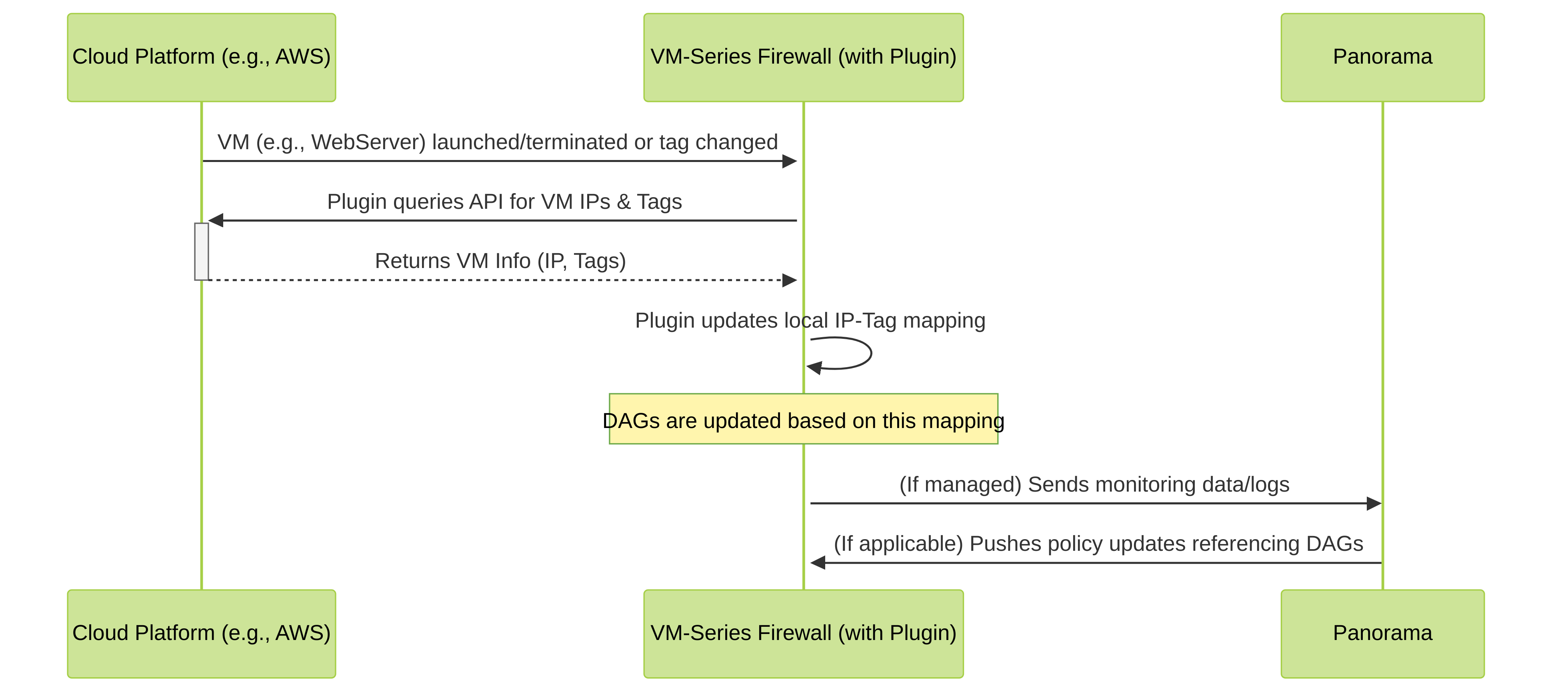

Diagram: VM-Series Plugin interaction with a Cloud Platform for Dynamic Address Groups.

2. Panorama Plugin for VMware vCenter

• Primary Function: Enables Panorama to connect to and monitor VMware vCenter servers. This allows for the creation of DAGs based on VMware VM attributes.
• Key Capabilities:
  • VM Monitoring: Panorama polls vCenter for information about virtual machines, including their IP addresses, names, operating systems, and vSphere tags.
  • Dynamic Address Groups (DAGs): This collected information is used to populate DAGs on Panorama, which are then pushed to managed firewalls. This allows security policies to be applied dynamically to VMs based on their vCenter attributes. Example: An administrator creates a vSphere tag "PCI-Scope-VM". The Panorama plugin for vCenter retrieves all VMs with this tag. A DAG on Panorama, "VMware-PCI-VMs," is populated with their IP addresses. Security policies on firewalls can then use this DAG to apply specific security controls to all PCI-scope VMs.
  • Consistent Policy Enforcement: Ensures that security policies remain consistent and automatically adapt as VMs are created, deleted, or modified within the vSphere environment.
• PCNSE Focus: Understand that this plugin resides on Panorama and facilitates integration with on-premises or private cloud VMware environments. Know its role in populating DAGs based on VM attributes from vCenter.

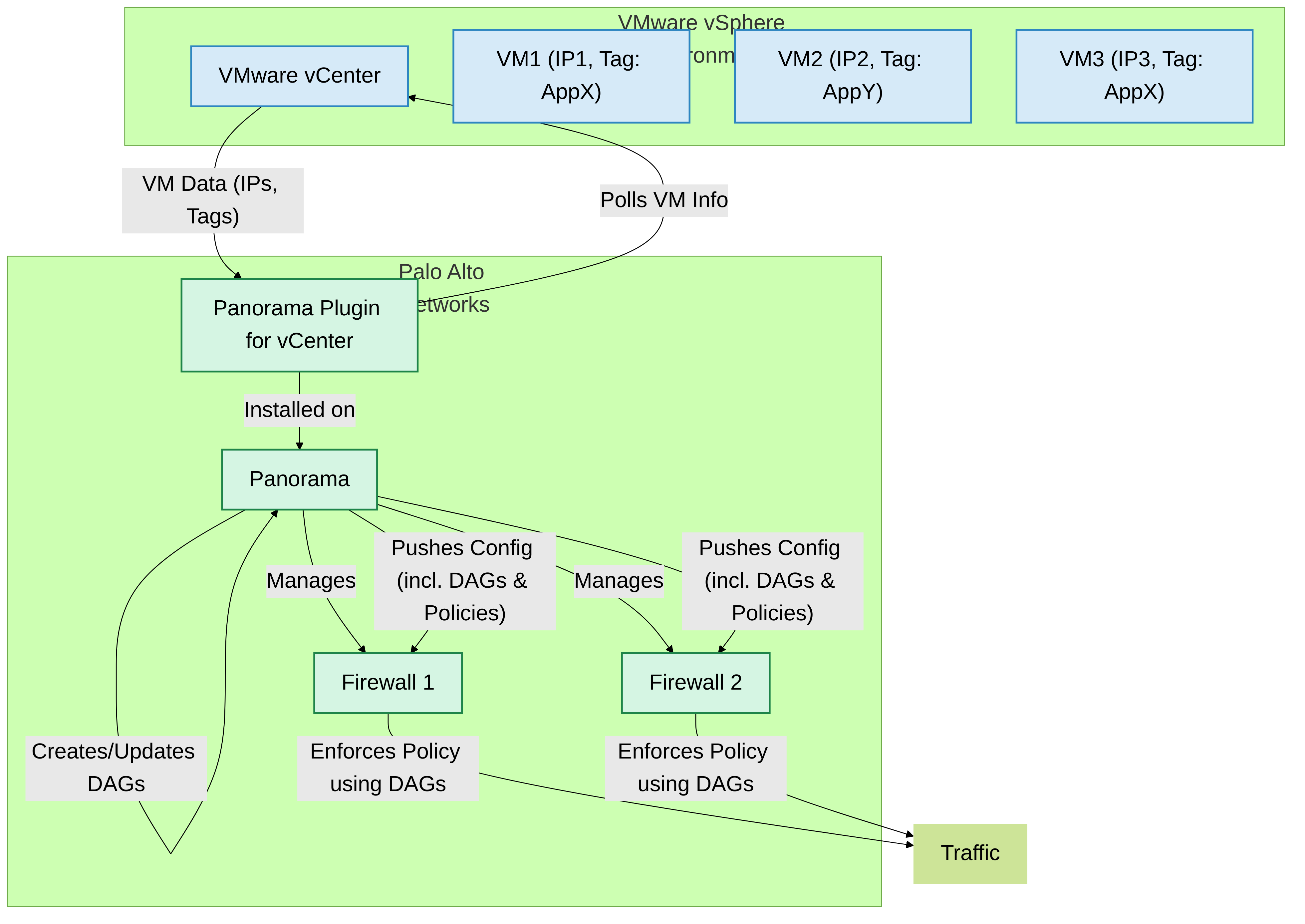

Diagram: Panorama Plugin for VMware vCenter enabling Dynamic Address Groups.

3. Panorama Plugin for Cisco ACI

• Primary Function: Integrates Panorama with Cisco Application Centric Infrastructure (ACI) for enhanced visibility and policy automation within the ACI fabric.
• Key Capabilities:
  • Endpoint Monitoring: Monitors End Point Groups (EPGs) in the ACI fabric. Information about endpoints (IP addresses, MAC addresses) within EPGs is collected.
  • Dynamic Address Groups (DAGs): Uses the collected EPG information to populate DAGs in Panorama. This allows security policies on Palo Alto Networks firewalls (often service-chained into the ACI fabric) to be based on ACI EPGs. Example: An ACI EPG named "Web-Servers-EPG" is defined. The Panorama plugin for Cisco ACI learns the IP addresses of all endpoints in this EPG. A DAG "ACI-Web-Servers" is created on Panorama and populated with these IPs. Firewall policies can then use "ACI-Web-Servers" as a source or destination.
  • Policy Consistency: Helps maintain consistent security policy enforcement as applications and endpoints are deployed or moved within the ACI fabric.
• PCNSE Focus: Know that this plugin helps bridge the gap between Cisco ACI's network segmentation (EPGs) and Palo Alto Networks' security policies (DAGs). Useful in environments leveraging ACI for software-defined networking.

4. Panorama Plugin for Cisco TrustSec

• Primary Function: Integrates Panorama with Cisco Identity Services Engine (ISE) to leverage Security Group Tags (SGTs) for dynamic policy enforcement.
• Key Capabilities:
  • SGT-to-IP Mapping: Panorama, via this plugin, subscribes to SGT-to-IP mapping updates from Cisco ISE (typically via pxGrid).
  • Dynamic Address Groups (DAGs): Populates DAGs based on these SGTs. This means policies can be written using SGTs as criteria, providing identity-based access control. Example: Cisco ISE assigns an SGT "Employees_SGT" to users who authenticate successfully. The Panorama plugin for Cisco TrustSec learns the IP addresses of devices associated with "Employees_SGT". A DAG "TrustSec-Employees" is populated. Firewall policies can then grant access based on membership in this DAG.
  • User and Device Context: Enhances security policy granularity by incorporating user and device context provided by Cisco ISE and TrustSec.
• PCNSE Focus: Understand its role in integrating with Cisco ISE for SGT-based policies. This is a key plugin for environments using Cisco TrustSec for network segmentation and access control.

5. Panorama CloudConnector Plugin

• Primary Function: A versatile plugin that facilitates Panorama's integration with various Palo Alto Networks cloud-delivered security services and cloud environments. Its functionality has evolved over versions.
• Key Capabilities (can vary by version):
  • Cloud Services Onboarding: Assists in connecting Panorama to services like Prisma Access and Cloud NGFW for AWS, simplifying the initial setup and configuration.
  • Cloud Logging Integration: May facilitate easier configuration for sending logs from Panorama or managed firewalls to cloud-based logging services (e.g., Cortex Data Lake).
  • Policy Analyzer for Cloud NGFW: In conjunction with Cloud NGFW for AWS, this plugin enables the policy analyzer feature in Panorama, allowing for "what-if" analysis of security rule changes before deployment. Example: Before deploying a new rule for Cloud NGFW, an administrator can use the policy analyzer (powered by the CloudConnector plugin) to see which existing rules might be shadowed or made redundant by the new rule, or what traffic flows might be inadvertently affected.
  • Telemetry and Service Updates: Can be involved in fetching updates or telemetry data for various cloud services managed through Panorama.
• PCNSE Focus: Recognize CloudConnector as a key enabler for Panorama's interaction with Palo Alto Networks' own cloud services. Its role in policy optimization and cloud service integration is important.

6. Zero Touch Provisioning (ZTP) Plugin

• Primary Function: Enables automated, "zero-touch" deployment of new Palo Alto Networks firewalls (both physical and virtual). This plugin runs on Panorama.
• Key Capabilities:
  • Automated Onboarding: A new firewall, upon its first boot and connection to the network, can automatically discover and connect to the ZTP service (hosted by Palo Alto Networks or on Panorama).
  • Configuration Delivery: The ZTP plugin on Panorama, when a new firewall (identified by its serial number) connects, pushes a pre-defined bootstrap configuration (including PAN-OS version, licenses, Panorama settings, and initial device group/template stack association) to the firewall. Example: For a large retail chain opening new stores, new firewalls shipped to stores can simply be cabled up. Upon power-on, they obtain an IP via DHCP, discover the ZTP service (using DHCP option 43 or DNS), and the ZTP plugin on the central Panorama pushes the appropriate store-specific configuration. This eliminates the need for on-site IT for initial setup.
  • Scalability: Massively simplifies deployment for large numbers of firewalls, reducing deployment time and potential for human error.
  • Requires Pre-Staging: The firewall's serial number must be registered in the ZTP service/Panorama and associated with a configuration bundle.
• PCNSE Focus: Understand the ZTP workflow: discovery (DHCP/DNS), authentication (serial number), configuration push. Know the benefits for rapid deployment and operational efficiency.

Diagram: Simplified Zero Touch Provisioning (ZTP) Workflow.

💡 Best Practices for Plugin Management

• Stay Informed: Regularly check for new plugin releases and read the release notes. Palo Alto Networks frequently updates plugins to add features, fix bugs, and maintain compatibility.
• Verify Compatibility: Always consult the official Palo Alto Networks Compatibility Matrix before installing or upgrading plugins, PAN-OS, or Panorama software. This is the most common source of plugin-related issues. Example: Before upgrading Panorama from 10.1.x to 10.2.x, ensure all installed plugins (like vCenter, ACI, CloudConnector) have versions certified for Panorama 10.2.x.
• Test in a Lab (If Possible): For critical plugins or major upgrades, test the new plugin version in a non-production environment first.
• Backup Panorama: Before installing or upgrading significant plugins, take a backup of your Panorama configuration.
• Install Only Necessary Plugins: To reduce complexity and potential attack surface, only install plugins that are actively used and required for your environment.
• Monitor Plugin Health: Periodically check the status of installed plugins in Panorama (Panorama > Plugins) to ensure they are operating correctly. Review relevant logs if issues are suspected. Example: If DAGs based on vCenter tags are not updating, check the status of the vCenter plugin on Panorama and review system logs on Panorama for any errors related to vCenter connectivity or polling.

🔍 Troubleshooting Common Plugin Issues

• Compatibility Mismatches:
  • Symptom: Plugin fails to install, or functions erratically after installation/upgrade. Panorama or firewall may show errors related to the plugin.
  • Solution: Verify PAN-OS/Panorama and plugin versions against the compatibility matrix. Downgrade/upgrade plugin or PAN-OS/Panorama as necessary to achieve a compatible set.
• Connectivity Problems (for plugins interacting with external systems):
  • Symptom: VM-Series plugin not updating DAGs; vCenter plugin shows disconnected; ACI/TrustSec plugin not receiving updates.
  • Solution:
    • Verify network connectivity between Panorama/firewall and the external system (e.g., vCenter, ISE, Cloud Provider API endpoints). Check firewalls, routing, DNS.
    • Ensure correct credentials and permissions are configured for the plugin to access the external system (e.g., vCenter service account, IAM roles for VM-Series plugin).
    Example: If the VM-Series plugin on an AWS instance cannot update DAGs, check if the EC2 instance has the correct IAM role attached with permissions to describe instances and network interfaces. Also verify security group rules allow outbound HTTPS to AWS APIs.
• Panorama Not Downloading Plugin List/Plugins:
  • Symptom: Panorama > Plugins shows "Failed to retrieve plugin information" or downloads fail.
  • Solution:
    • Verify Panorama has internet connectivity, specifically to Palo Alto Networks update servers (updates.paloaltonetworks.com). Check DNS resolution and firewall policies allowing this traffic.
    • Ensure Panorama's software update schedule and settings are correctly configured.
• Plugin Service Not Running:
  • Symptom: Features dependent on the plugin are not working. Plugin status might show as "disabled" or "error."
  • Solution:
    • Try restarting the specific plugin process if possible (some plugins might allow this, or a Panorama service restart might be needed).
    • Check system logs on Panorama (or firewall for VM-Series plugin) for error messages related to the plugin failing to start.
    • Ensure sufficient system resources (CPU, memory) on Panorama.
    Example: If the ZTP plugin is not functioning, check Panorama's system logs for messages like "ztpd failed to start" and investigate resource utilization.
• Licensing Issues:
  • Symptom: Some plugin functionalities might be disabled or limited if associated licenses are missing or expired (more relevant for features enabled by plugins rather than the plugin itself, but can be related). The VM-Series plugin can also interact with cloud licensing.
  • Solution: Verify all necessary licenses are active on Panorama and managed firewalls. For VM-Series, ensure it can communicate with the licensing server or that cloud marketplace subscription is active.
