Palo Alto Networks Zero Touch Provisioning (ZTP) - A Deep Dive for PCNSE

🔧 What is ZTP?

Zero Touch Provisioning (ZTP) is a streamlined method for deploying and configuring Palo Alto Networks firewalls without requiring manual, on-site intervention. New firewalls, shipped in a factory default state, can automatically download and install the necessary operating system (PAN-OS), security updates, and configurations upon initial power-on. This automated process significantly reduces deployment time and effort, making it ideal for large-scale deployments and distributed environments.

⚙️ How ZTP Works on Palo Alto Networks Appliances

The ZTP process relies on a series of coordinated steps:

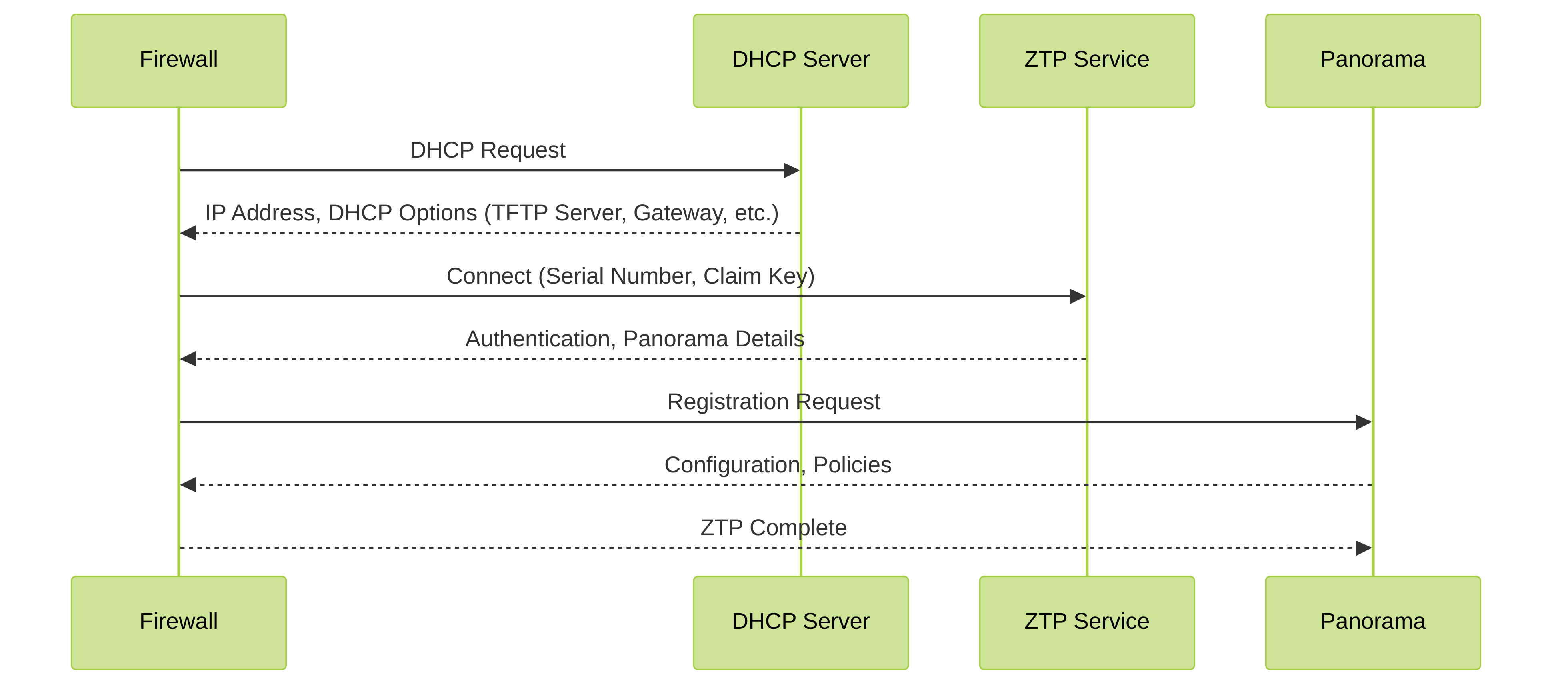

ZTP Sequence Diagram

1. Power-on and DHCP: The firewall boots up and requests an IP address from a DHCP server. Critically, the DHCP server must be configured to provide the IP address of the ZTP service in option 43 and, if the ZTP service is on a different subnet, the default gateway.
2. Contacting the ZTP Service: Using the information received from DHCP, the firewall connects to the Palo Alto Networks ZTP service. The firewall identifies itself using its serial number and claim key.
3. Authentication and Panorama Information: The ZTP service authenticates the firewall using the provided credentials. Once authenticated, the ZTP service provides the firewall with the necessary information to connect to its designated Panorama management server.
4. Connecting to Panorama: The firewall now establishes a connection with Panorama.
5. Configuration Download and Installation: Panorama pushes the pre-defined configuration, including device group assignments, security policies, and any necessary updates, to the firewall. This completes the automated configuration.

✅ Benefits of ZTP

• Rapid Deployment: Significantly accelerates the deployment process, minimizing manual configuration time.
• Configuration Consistency: Eliminates configuration inconsistencies caused by human error, ensuring standardized security policies across all devices.
• Reduced Operational Costs: Decreases the need for on-site personnel and reduces overall deployment expenses.
• Scalability: Facilitates large-scale deployments and simplifies the management of a growing number of firewalls.
• Improved Security: By enforcing consistent security policies through automation, ZTP enhances the overall security posture.

⚠️ Caveats and Considerations

• Network Dependency: ZTP relies on DHCP and connectivity to the internet (or a dedicated ZTP server). Environments without DHCP or with restricted internet access require additional configuration and planning, such as setting up a local DHCP server and using an internal ZTP server.
• Factory Default State: ZTP is designed for new firewalls in their factory default state. Pre-configured or used firewalls must be reset to factory defaults before using ZTP.
• Template and Device Group Changes: After initial ZTP deployment, changes to device group assignments or applied templates may require careful consideration and, in some cases, manual intervention on the firewall.
• Claim Key Security: The claim key is sensitive information. Treat it like a password and protect it accordingly.
• Licensing: Ensure that the appropriate licenses are added to the firewall in Panorama after ZTP to activate all required features.

🛠️ Administrator Steps for Zero Touch Provisioning (ZTP)

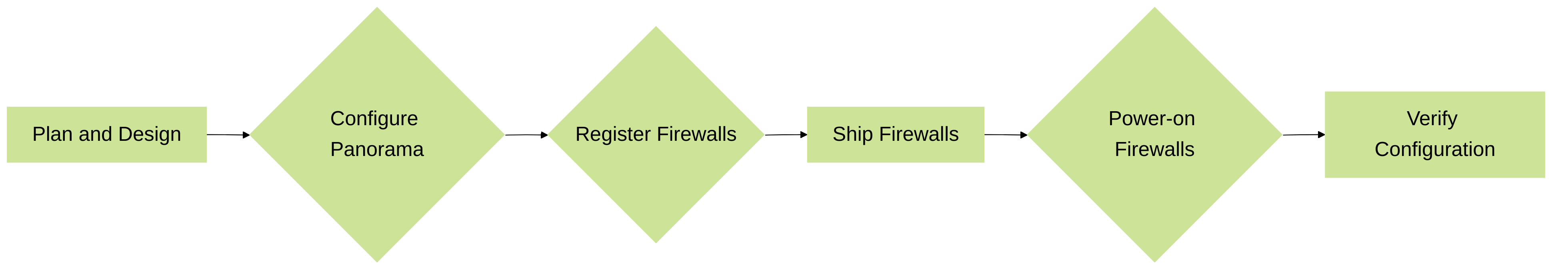

ZTP Administrator Workflow

1. Plan and Design: Define your network requirements (DHCP, internet access), determine the desired firewall configurations (device groups, templates), and gather the necessary firewall information (serial numbers, claim keys).
2. Configure Panorama: Install the latest ZTP plugin on Panorama. Ensure Panorama is reachable from the internet (or your internal network, if using a private ZTP setup) on the required ports (TCP 3978, TCP 28443). Register Panorama with the Palo Alto Networks ZTP service (or set up your own internal ZTP server).
3. Register Firewalls: Add the firewalls to Panorama using their serial numbers and claim keys within the ZTP section (Panorama > ZTP > Devices). Assign the firewalls to their respective device groups and apply the desired templates.
4. Ship Firewalls: Ship the firewalls to their deployment locations.
5. Power-on Firewalls: Connect the firewalls to the network and power them on. The ZTP process will automatically begin.
6. Verify Configuration: Once the firewalls are online, verify their configurations in Panorama. Check that they are correctly assigned to their device groups, have the correct templates applied, and are receiving updates as expected. Verify licenses are applied.

🔑 Understanding the Claim Key in Zero Touch Provisioning (ZTP)

The claim key is an 8-digit numeric code that uniquely identifies a ZTP-capable firewall. It serves as an authentication token during the ZTP process, allowing the firewall to securely register with Panorama or Strata Cloud Manager. The claim key links the physical device with its intended configuration in Panorama, ensuring that the correct policies and settings are applied during automated deployment.

📍 Locating the Claim Key

The claim key can be found on a sticker:

• On the back of the firewall
• On the firewall's box

📝 Using the Claim Key

The claim key is entered into Panorama along with the firewall’s serial number when registering the device for ZTP. This securely associates the firewall with the correct configuration profile in Panorama, enabling automated provisioning upon power-on.

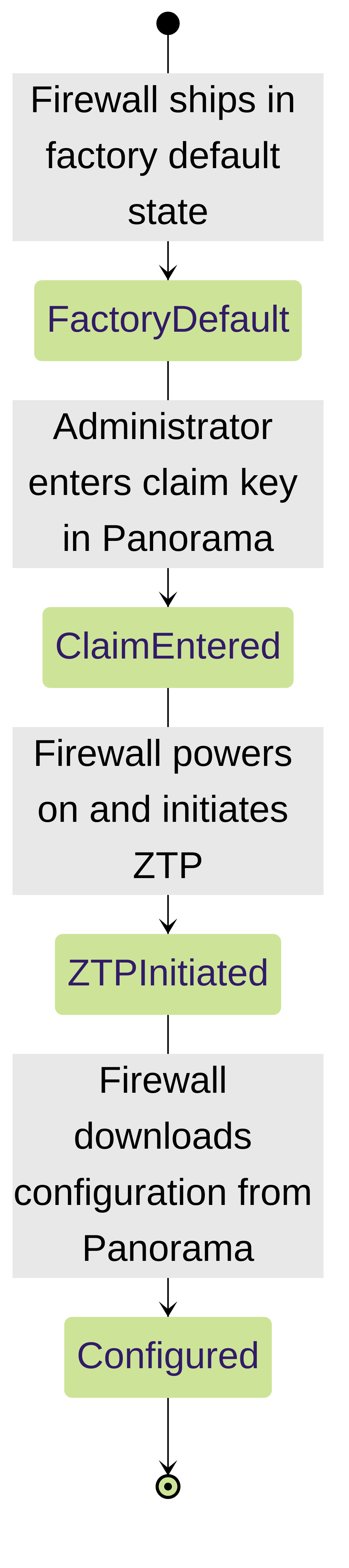

Firewall State Diagram during ZTP

🤔 Troubleshooting ZTP Issues

Troubleshooting ZTP requires a methodical approach. Here's a breakdown of common issues and how to address them:

ZTP Troubleshooting Flowchart

• Firewall Not Contacting ZTP Service:
  • Verify DHCP option 43 is correctly configured to point to the ZTP service IP address.
  • Confirm the firewall has network connectivity and can reach the DHCP server and the IP address specified in option 43. Use the `test dns` and `test ping` commands from the firewall CLI to check network connectivity.
  • Ensure the firewall is in factory default state.
  • Double-check that the correct serial number and claim key are used in Panorama.
• Firewall Not Receiving Configuration from Panorama:
  • Verify the firewall can connect to Panorama on the required ports. Test connectivity from the firewall CLI using `test tcp <Panorama IP> <port number>`. Check firewall security rules.
  • Confirm the firewall is correctly assigned to a device group and template in Panorama.
  • Check Panorama logs for any error messages related to the firewall's ZTP process.
• Firewall Reporting an Invalid Claim Key:
  • Verify the claim key's characters were entered correctly (case sensitive). Check to ensure the claim key belongs to the associated serial number of the device.
  • If accidentally used, contact Palo Alto Networks support to get a new claim key assigned to your firewall.
