Introduction: The Synergy of Authentication Policy and User-ID

In the Palo Alto Networks security platform, identifying users and controlling their access to resources are fundamental to a robust security posture. **Authentication Policy** and **User-ID™ technology** work in tandem to achieve this. Authentication Policy actively challenges users for credentials, while User-ID passively maps IP addresses to usernames. The information gleaned from both, particularly authentication timestamps, is critical for maintaining consistent security enforcement, especially in distributed network environments. This guide delves into the intricacies of Palo Alto Networks Authentication Policy, the mechanisms of User-ID data redistribution (including authentication timestamps), their configuration, and their significance for the PCNSE certification.

CRITICAL (Palo Alto Networks): Understanding the distinction and interplay between Authentication Policy (active challenge) and User-ID (passive mapping, but can consume active auth data) is crucial. Authentication Policy generates authentication timestamps which User-ID can then redistribute.

Deep Dive: Palo Alto Networks Authentication Policy

Authentication Policy in PAN-OS™ allows administrators to define rules that require users to authenticate before accessing specific network resources or applications. This is an active authentication mechanism, distinct from the passive IP-to-user mapping provided by User-ID.

Key Components of an Authentication Policy Rule:

Authentication Enforcement Object:

This is a critical part of the Authentication Policy. It defines:

PCNSE/PCNSA Exam Note (Palo Alto Networks): Be prepared to differentiate between the Authentication Policy's "Authentication Timeout" and the "Timeout (min)" setting within an Authentication Profile. The Authentication Policy timeout dictates the validity of the authentication granted by that specific policy rule. The Authentication Profile timeout contributes to the overall User-ID mapping lifetime.

How Authentication Policy Generates Timestamps:

When a user's traffic matches an Authentication Policy rule and they successfully authenticate via the specified Authentication Enforcement object (e.g., Captive Portal), PAN-OS creates an "authentication record" or "authentication entry." This entry includes:

This authentication timestamp is vital. It signifies that, for the duration of the configured timeout, the firewall considers this user authenticated for the purpose of this policy. If User-ID redistribution is configured, this timestamp (along with the IP-user mapping) can be shared with other Palo Alto Networks firewalls.

Configuring Authentication Policy in PAN-OS:

Navigation: Policies > Authentication

  1. Click "Add" to create a new rule.
  2. Fill in the general details (Name, Tags, Description).
  3. Specify Source and Destination criteria (Zones, Addresses).
  4. Under "User," specify `any`, `known-user`, or specific users/groups. Often, `any` is used to challenge unauthenticated users.
  5. Specify Services and Applications if needed.
  6. Under "Actions," set Action to `Authentication Enforcement`.
  7. Select or create an "Authentication Enforcement" object.
    • If creating new: Objects > Authentication > Authentication Enforcement .
    • Define Type (e.g., Web Form).
    • Select an Authentication Profile (e.g., one pointing to LDAP). Objects > Authentication > Authentication Profile .
    • Set Authentication Timeout.
  8. Commit changes.
! Example: CLI representation of an Authentication Policy (conceptual)
! Actual CLI configuration involves setting objects and then referencing them in rules.

! Configure Authentication Profile (LDAP)
set authentication profile MyLDAPProfile type ldap server-profile MyLDAPServerProfile login-attribute sAMAccountName timeout 90
set authentication profile MyLDAPProfile allow-list [ group-A group-B ]

! Configure Authentication Enforcement Object
set authentication enforcement MyCaptivePortalAuth type web-form authentication-profile MyLDAPProfile auth-timeout 60 redirect-host firewall.company.com

! Configure Authentication Policy Rule
set rulebase authentication rules AuthRuleToCorpWeb
  set from [ trust ]
  set to [ untrust ]
  set source [ any ]
  set destination [ CorpWebServer_IP ]
  set service [ service-http service-https ]
  set hip-profiles [ any ]
  set source-user [ any ]
  set action authentication-enforcement MyCaptivePortalAuth
Gotcha! (Palo Alto Networks): Authentication Policy rules are evaluated top-down, like Security Policy rules. The first rule matched is applied. Ensure your Authentication Policy rules are ordered correctly to achieve the desired behavior. For example, a broad "allow" or "no-auth" rule placed too high can prevent more specific authentication challenges.

User-ID™ Technology: The Foundation for Identity-Based Policies

User-ID is the Palo Alto Networks technology that enables the firewall to identify users and associate their network activity with their usernames, regardless of the device or IP address they use. This information is then used in policies (Security, QoS, Decryption, Authentication) and for logging/reporting.

Key User-ID Information Sources:

Once User-ID maps an IP address to a user, this mapping has a timeout. The default User-ID timeout is typically 45 minutes of inactivity, but this is configurable.

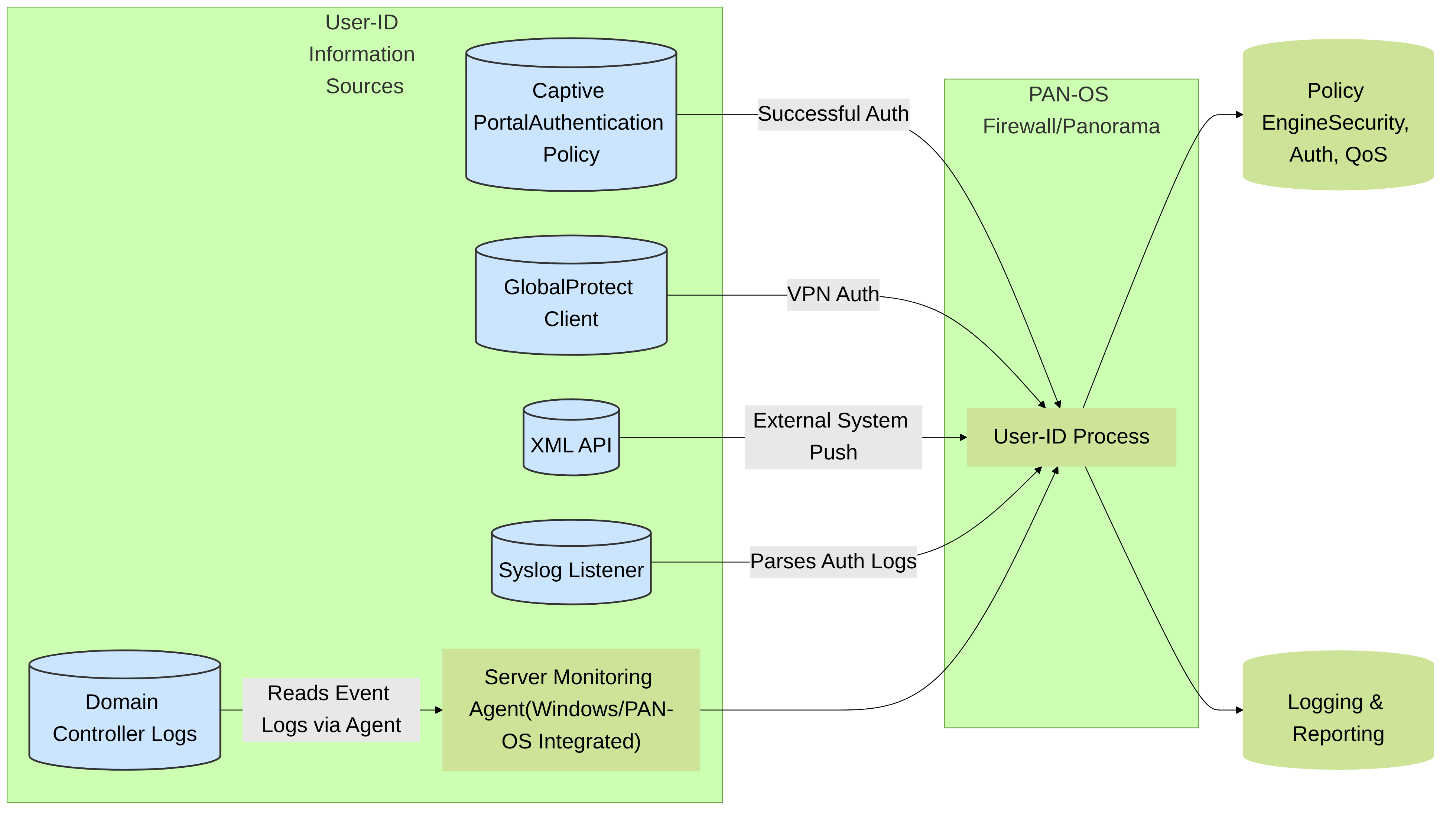

Palo Alto Networks User-ID information sources. The User-ID process on the firewall or Panorama collects mappings from various sources, including active authentication via Captive Portal, to enforce user-based policies.

Palo Alto Networks User-ID information sources. The User-ID process on the firewall or Panorama collects mappings from various sources, including active authentication via Captive Portal, to enforce user-based policies.

The Crucial Role of Data Redistribution in Distributed Environments

In networks with multiple Palo Alto Networks firewalls, ensuring consistent user identification and authentication status across all enforcement points is paramount. If a user authenticates on Firewall A, they should ideally not be re-challenged immediately when their traffic traverses Firewall B for a different resource, assuming their session is still valid. This is where User-ID data redistribution comes into play.

What Data is Redistributed?

Why Redistribute?

CRITICAL (Palo Alto Networks): Authentication timestamps are a specific type of data that can be redistributed. When Firewall A authenticates a user via Captive Portal and generates an auth timestamp with a 60-minute timeout, redistributing this means Firewall B will know this user is "good" for that remaining time, potentially skipping its own Captive Portal challenge.

Mechanisms for Redistribution:

Palo Alto Networks provides several ways to redistribute User-ID data:

  1. Panorama™ Network and Security Management:
    • Panorama can act as a central hub for User-ID information. Firewalls and User-ID Agents can send their mappings to Panorama.
    • Panorama then redistributes this consolidated information to all managed firewalls that are configured to receive it.
    • This is a common approach for large-scale deployments.
  2. Firewall-to-Firewall Redistribution (User-ID Agent on PAN-OS):
    • A PAN-OS firewall can be configured as a User-ID agent itself (an "integrated User-ID agent").
    • One or more firewalls can be designated as "collectors" or "redistribution points."
    • Other firewalls are configured as "clients" to receive User-ID information from these redistribution points.
    • This typically requires configuring User-ID service on an interface and potentially service routes if the User-ID traffic needs to traverse different routing instances or secure fabric.
  3. Windows-based User-ID Agent:
    • The traditional Windows User-ID agent can also redistribute mappings to multiple firewalls. You configure the firewalls to connect to this agent.
    • In larger environments, you might have multiple agents, and they can also share information amongst themselves or via Panorama.

Focus on Authentication Timestamp Redistribution:

When an Authentication Policy rule on Firewall A successfully authenticates a user, it creates an authentication entry with a timestamp and timeout. If Firewall A is configured to redistribute User-ID data (including authentication state) to Firewall B:

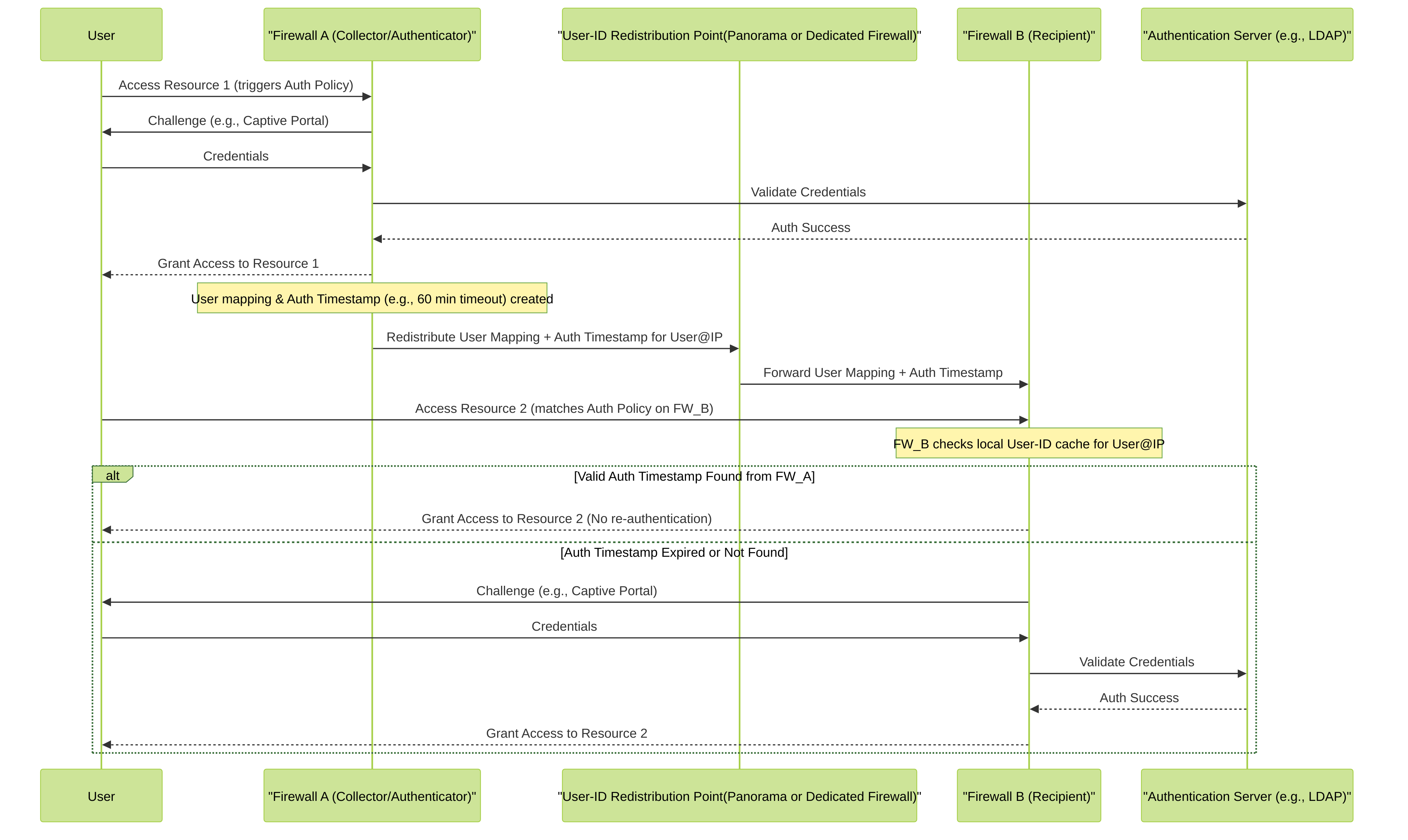

Sequence diagram illustrating authentication timestamp redistribution. User authenticates on Firewall A, which then redistributes the authentication information via a User-ID Redistribution Point (like Panorama or another firewall) to Firewall B. Firewall B can then leverage this information to avoid re-authenticating the user if the timestamp is still valid.

Sequence diagram illustrating authentication timestamp redistribution. User authenticates on Firewall A, which then redistributes the authentication information via a User-ID Redistribution Point (like Panorama or another firewall) to Firewall B. Firewall B can then leverage this information to avoid re-authenticating the user if the timestamp is still valid.

Configuring User-ID Data Redistribution

Configuration varies slightly depending on whether you're using Panorama or direct firewall-to-firewall redistribution. The core concepts involve defining sources of User-ID information and destinations for redistribution.

Scenario 1: Using Panorama for Redistribution

  1. Configure Firewalls/User-ID Agents to send to Panorama:
    • On each firewall ( Device > User Identification > User-ID Agents ), add Panorama as a User-ID agent.
    • If using Windows User-ID agents, configure them to send mappings to Panorama.
  2. Configure Panorama to collect and redistribute:
    • In Panorama ( Panorama > Collector Groups ), define collector groups and add Log Collectors.
    • Ensure User-ID data is being forwarded from Log Collectors to Panorama's management plane ( Panorama > Managed Collectors ).
    • In Panorama ( Panorama > User-ID > User-ID Agents ), verify Panorama is listed or configure it to act as a source for redistribution if needed (less common, usually it just aggregates and redistributes what it receives).
  3. Configure Managed Firewalls to receive from Panorama:
    • This is often implicit. When firewalls are managed by Panorama and Panorama has User-ID data, it distributes this as part of its configuration pushes and updates to the firewalls within the same Collector Group context.
    • Specifically for redistribution settings ( Panorama > User-ID > User-ID Redistribution ), you can define how Panorama shares information among different Collector Groups or with external entities.
PCNSE/PCNSA Exam Note (Palo Alto Networks): Panorama simplifies User-ID redistribution in large environments by acting as a central aggregation and distribution point. Understand the flow: Agents/Firewalls -> Log Collectors -> Panorama -> Managed Firewalls.

Scenario 2: Firewall-to-Firewall Redistribution (PAN-OS Integrated User-ID Agent)

Let's say Firewall-A is the collector/source and Firewall-B is the recipient.

  1. On Firewall-A (Source/Redistribution Server):
    • Enable User-ID on the relevant interface(s) that will communicate with Firewall-B: Network > Interfaces > [Interface Name] > Advanced > User-ID (ensure "Enable User-ID" is checked under Service).
    • Configure Firewall-A to act as a User-ID Agent Server: Device > User Identification > User-ID Agents . While it's collecting, it also needs to be able to serve this data. No specific "server" mode is set here, rather, clients connect to it. Ensure the necessary service (typically `paloalto-userid-agent` on TCP/5007) is allowed through security policies if firewalls are in different zones.
    • Ensure Firewall-A is collecting User-ID information (e.g., via Server Monitoring, Captive Portal, etc.).
  2. On Firewall-B (Recipient/Client):
    • Configure Firewall-B to connect to Firewall-A as a User-ID Agent: Device > User Identification > User-ID Agents .
    • Click "Add."
    • Enter a Name.
    • For "Host/IP Address," enter the IP address of Firewall-A's interface that is enabled for User-ID service.
    • The default Port is 5007.
    • Commit changes on both firewalls.
  3. Verify Communication:
    • On Firewall-B: Use CLI command show user user-id-agent state all . You should see the connection to Firewall-A as "connected."
    • On Firewall-A: You might see connection logs or status indicating Firewall-B is connected, though the client-side verification is more direct.
Gotcha! (Palo Alto Networks): For firewall-to-firewall User-ID redistribution, ensure there's network connectivity between the designated interfaces on the User-ID port (TCP/5007 by default). Security policies must allow this traffic. If the firewalls are in different VRs, service routes might be needed for the User-ID agent traffic to reach the correct interface/VR.
! CLI command on Firewall-B (recipient) to check User-ID Agent connection status:
admin@Firewall-B> show user user-id-agent state all

Agent: UID-Agent-FW-A (vsys: vsys1) Host: 192.168.1.253:5007
    Version                        : 1
    num of connection tried        : 1
    num of connection succeeded    : 1
    num of connection failed       : 0
    last connect tried time        : xxxx
    last connect succeeded time    : xxxx
    last connect failed time       :
    last disconnect time           :
    Status                         : connected      <-- Look for this!
    num of ip                          : 150
    num of group                       : 20
    num of host                        : 0
    num of hip                           : 0
    is_primary                     : no
    group_include_list             :
    group_exclude_list             :

Filtering Redistributed Data:

In some scenarios, you may not want to redistribute all User-ID information. PAN-OS allows filtering:

Decision tree for user authentication flow with timestamp redistribution between Palo Alto Networks firewalls (FW1 and FW2). This illustrates how a valid redistributed authentication timestamp can prevent re-authentication on a second firewall.

Decision tree for user authentication flow with timestamp redistribution between Palo Alto Networks firewalls (FW1 and FW2). This illustrates how a valid redistributed authentication timestamp can prevent re-authentication on a second firewall.

Interaction of Timeouts and Redistribution

Understanding how different timeouts interact is crucial for predictable behavior, especially when redistribution is involved.

Key Timeouts in Play:

  1. Authentication Policy Authentication Timeout: Set in the Authentication Enforcement object. This is the lifetime of the authentication grant from *that specific policy*. This is the primary timeout whose associated timestamp is redistributed for authentication state sharing.
  2. Authentication Profile Timeout: Set within the Authentication Profile itself (e.g., LDAP, RADIUS server profile). This contributes to the User-ID mapping lifetime for users authenticated via this profile. If an Authentication Policy uses an Auth Profile with a 30-min timeout, and the Auth Policy itself has a 60-min timeout, the User-ID mapping based purely on the Auth Profile might expire sooner, but the *authentication grant* from the Auth Policy could still be valid. Redistribution primarily concerns the Authentication Policy's grant.
  3. User-ID Timeout (Global or per VSYS): ( Device > User Identification > Setup > User Identification Timeout Settings or Device > Virtual Systems > [vsys] > Setup > User-ID Timeout ). This is the inactivity timeout for general IP-to-user mappings in the User-ID table. If a user is inactive for this period, their IP-user mapping might be removed, *unless* an active authentication timestamp from an Authentication Policy keeps it alive.
  4. Captive Portal Session Timeout: Can be configured for the Captive Portal itself. Typically aligns with or is influenced by the Authentication Policy timeout.
  5. Idle Timeout (Authentication Policy): An optional timeout in the Authentication Enforcement object that can log out a user due to inactivity, separate from the main Authentication Timeout.
PCNSE/PCNSA Exam Note (Palo Alto Networks): The Authentication Policy's "Authentication Timeout" is the most directly relevant timeout for redistributed authentication state. When Firewall B receives an authentication timestamp, it's this timeout (relative to the original authentication time) that determines its validity for skipping re-authentication.
Timeout Type Configured Location Primary Purpose Impact on Redistribution
Authentication Policy Auth Timeout Authentication Enforcement Object Duration of the specific authentication grant by the policy. Key data for redistribution. Determines how long other firewalls honor this authentication.
Authentication Profile Timeout Authentication Profile (e.g., LDAP, RADIUS) Lifetime of User-ID mapping from this specific auth method. Contributes to the overall User-ID mapping, but the Auth Policy timeout is more direct for auth state.
User-ID Timeout (Global/VSYS) Device > User Identification > Setup / VSYS Setup General inactivity timeout for IP-user mappings in User-ID. An active, redistributed auth timestamp can override this, keeping the mapping "fresh" beyond the User-ID inactivity timeout.
Idle Timeout (Auth Policy) Authentication Enforcement Object Logs out user from the specific auth session due to inactivity. If triggered, invalidates the auth grant, which would affect redistributed state.

When Firewall B receives a redistributed authentication timestamp for User X from Firewall A, it knows User X authenticated at Time T and the grant is valid for Duration D (from Firewall A's Auth Policy). Firewall B will honor this until Time T+D, provided its own policies don't mandate a different action (e.g., requiring step-up authentication).

Troubleshooting Authentication and Redistribution

Effective troubleshooting requires understanding the data flow and using PAN-OS tools.

Common Issues and Troubleshooting Steps:

Gotcha! (Palo Alto Networks): When troubleshooting User-ID redistribution, always verify layer 3 connectivity and that the User-ID service (TCP/5007) is permitted by Security Policies between the involved firewalls or between firewalls and Panorama/User-ID Agents. Service routes can also be a common point of misconfiguration if not set up for User-ID traffic.

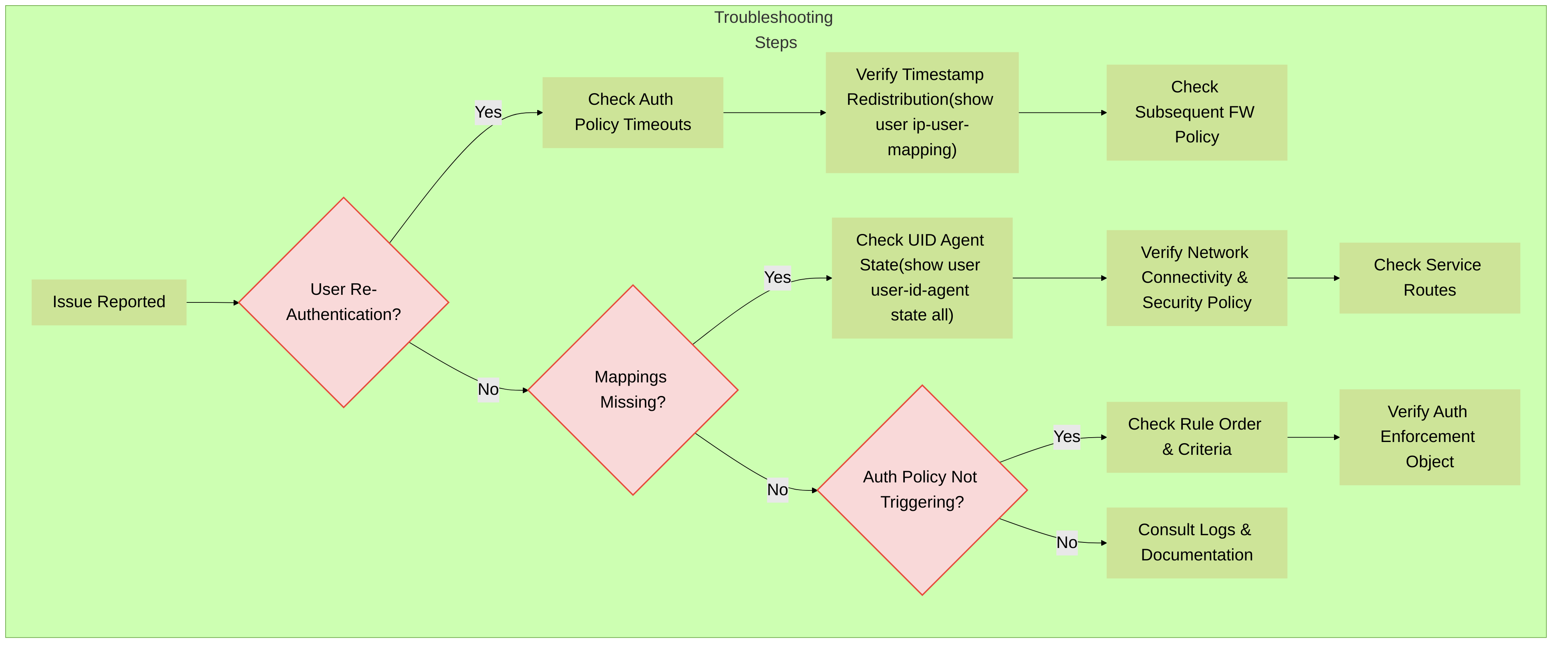

A simplified troubleshooting flowchart for common Palo Alto Networks Authentication Policy and User-ID redistribution issues.

A simplified troubleshooting flowchart for common Palo Alto Networks Authentication Policy and User-ID redistribution issues.

Best Practices for Authentication Policy and Data Redistribution

CRITICAL (Palo Alto Networks): User-ID is a foundational technology. Incorrect configuration or failure in redistribution can lead to policy bypass (if policies rely on user identity but the user is unknown) or poor user experience (frequent authentication challenges).

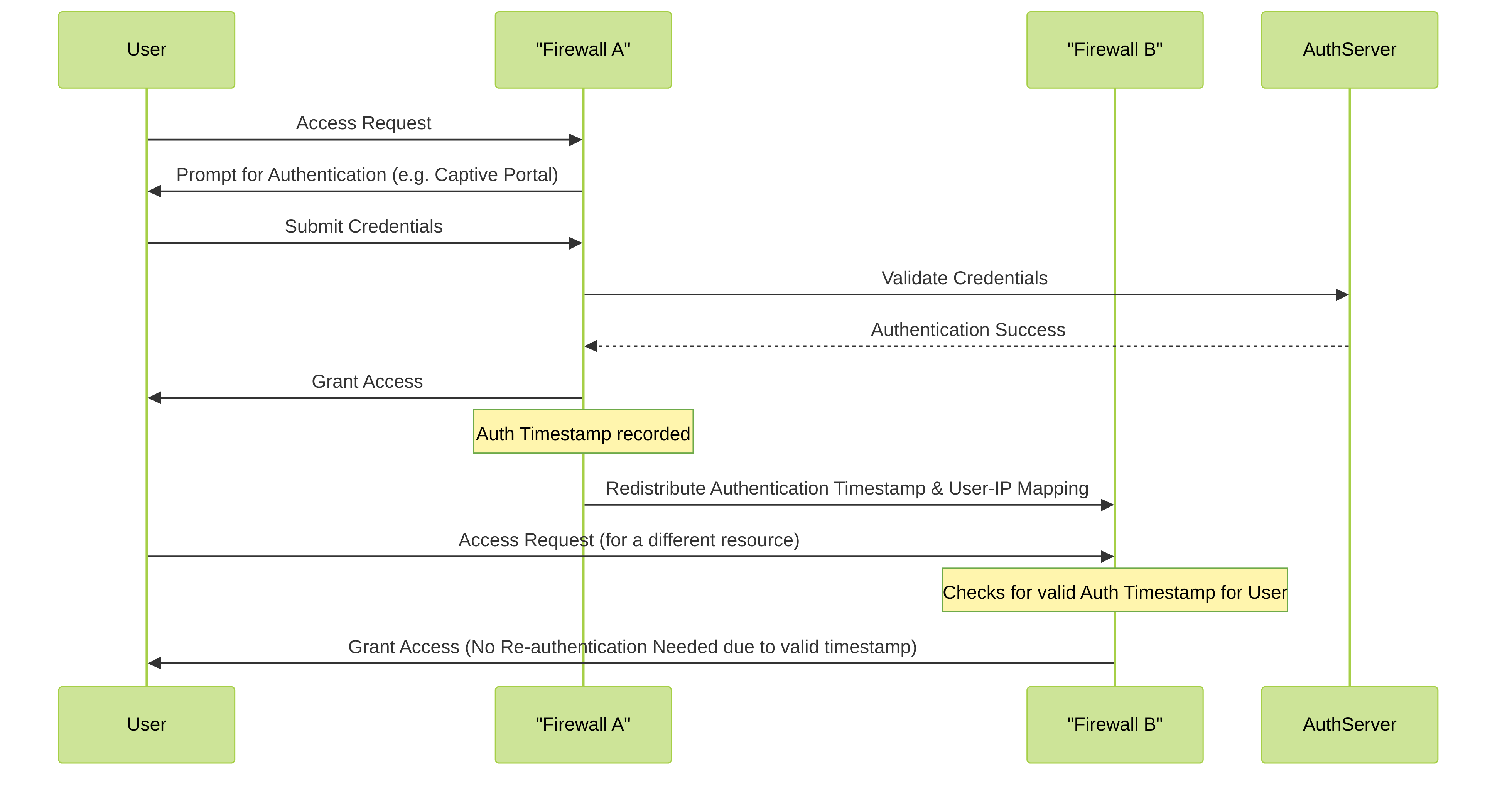

Mermaid Sequence Diagram: Original Authentication Timestamp Redistribution

This diagram, provided in the base, illustrates the fundamental flow when a user authenticates on one firewall and that authentication information is shared, preventing re-authentication on a second firewall.

This sequence shows User authenticating via Firewall A. Firewall A then redistributes the authentication timestamp. When the User accesses a resource via Firewall B, Firewall B uses the redistributed timestamp to grant access without requiring a new authentication, assuming the timestamp is still valid and Firewall B's policies permit it.

This sequence shows User authenticating via Firewall A. Firewall A then redistributes the authentication timestamp. When the User accesses a resource via Firewall B, Firewall B uses the redistributed timestamp to grant access without requiring a new authentication, assuming the timestamp is still valid and Firewall B's policies permit it.

PCNSE Knowledge Check: Palo Alto Networks Authentication Policy & Data Redistribution

1. Which Palo Alto Networks component is primarily responsible for actively challenging a user for credentials before granting access to a specific network resource?

2. When a user successfully authenticates via a Captive Portal triggered by an Authentication Policy, what crucial piece of information is generated and can be redistributed to other firewalls?

3. In a large-scale Palo Alto Networks deployment, which product is best suited to act as a central aggregator and redistributor of User-ID information, including authentication timestamps?

4. What is the primary benefit of redistributing authentication timestamps between Palo Alto Networks firewalls?

5. Which CLI command on a Palo Alto Networks firewall is used to view the status of connections to User-ID agents (sources of User-ID information)?

6. An Authentication Policy rule is configured with an Authentication Enforcement object that has an "Authentication Timeout" of 90 minutes. What does this timeout signify?

7. Which of the following is NOT a standard source for User-ID information on a Palo Alto Networks firewall?

8. When configuring firewall-to-firewall User-ID redistribution, what network service and default port must be enabled on the source firewall's interface and permitted by Security Policies?

9. A user authenticated on Firewall-A (FW-A) which has an Authentication Policy timeout of 60 minutes. This auth timestamp is redistributed to Firewall-B (FW-B). The user's traffic then hits FW-B 30 minutes later. FW-B has its own Authentication Policy for the same resource but with a 20-minute timeout. What is likely to happen if FW-B is configured to honor redistributed timestamps?

10. What feature in an Authentication Profile allows an administrator to specify multiple authentication methods to be tried in a defined order?

11. If a Palo Alto Networks firewall needs to send User-ID agent traffic out of a specific interface that is not in the default virtual router, what configuration is typically required?

12. In the context of User-ID, what does "Authentication Policy Timeout" generally refer to?

13. Which statement accurately describes the relationship between Authentication Policy and Security Policy in PAN-OS?

14. A PAN-OS firewall is configured to receive User-ID mappings from Panorama. Which CLI command would help verify if user mappings are being populated correctly on this firewall, including their source?

15. What is a "Group Include List" used for in the context of User-ID redistribution on a Palo Alto Networks firewall?

16. Which PAN-OS feature allows you to redirect a user's web browser to an authentication page when they attempt to access a resource matching an Authentication Policy rule?

17. If an Authentication Policy uses an Authentication Profile that points to an LDAP server, what information is primarily obtained from LDAP after successful credential validation?

18. What is a potential consequence if User-ID redistribution fails between a primary data center firewall and a remote branch firewall, and users roam between sites?

19. To ensure User-ID data (including authentication timestamps) from multiple regional User-ID Agents is available to all firewalls across a global enterprise, what is the Palo Alto Networks recommended architectural component for consolidation and redistribution?

20. An administrator notices that an Authentication Policy rule using Captive Portal is not triggering for HTTPS traffic to a specific internal server, although it works for HTTP traffic. What is a likely cause related to PAN-OS configuration?

References

For further information, consult the official Palo Alto Networks documentation on the Palo Alto Networks TechDocs portal , specifically searching for topics like "Authentication Policy," "User-ID," "User-ID Redistribution," and your PAN-OS version.
