PCNSE Study Guide: Mastering Layer 3 Interfaces in Palo Alto Networks Firewalls

Layer 3 interfaces are a cornerstone of network segmentation and routing within Palo Alto Networks Next-Generation Firewalls (NGFWs). For the PCNSE certification, a profound understanding of their configuration, diverse capabilities, operational nuances, and troubleshooting within the PAN-OS environment is absolutely essential. These interfaces enable the firewall to participate in routing, enforce security policies between different IP networks, and connect various network segments.

CRITICAL (Palo Alto Networks): Layer 3 interfaces are fundamental to the firewall's ability to route traffic and apply security policies. Misconfiguration can lead to network outages, security breaches, or inability to pass traffic. Always ensure IP addressing, zone assignment, and virtual router association are correct before committing changes.

Core Concepts of PAN-OS Layer 3 Interfaces

Understanding these core concepts is vital for effective deployment and management of Palo Alto Networks firewalls.

Types of Layer 3 Interfaces in PAN-OS

Palo Alto Networks firewalls support various types of interfaces that can operate in Layer 3 mode:

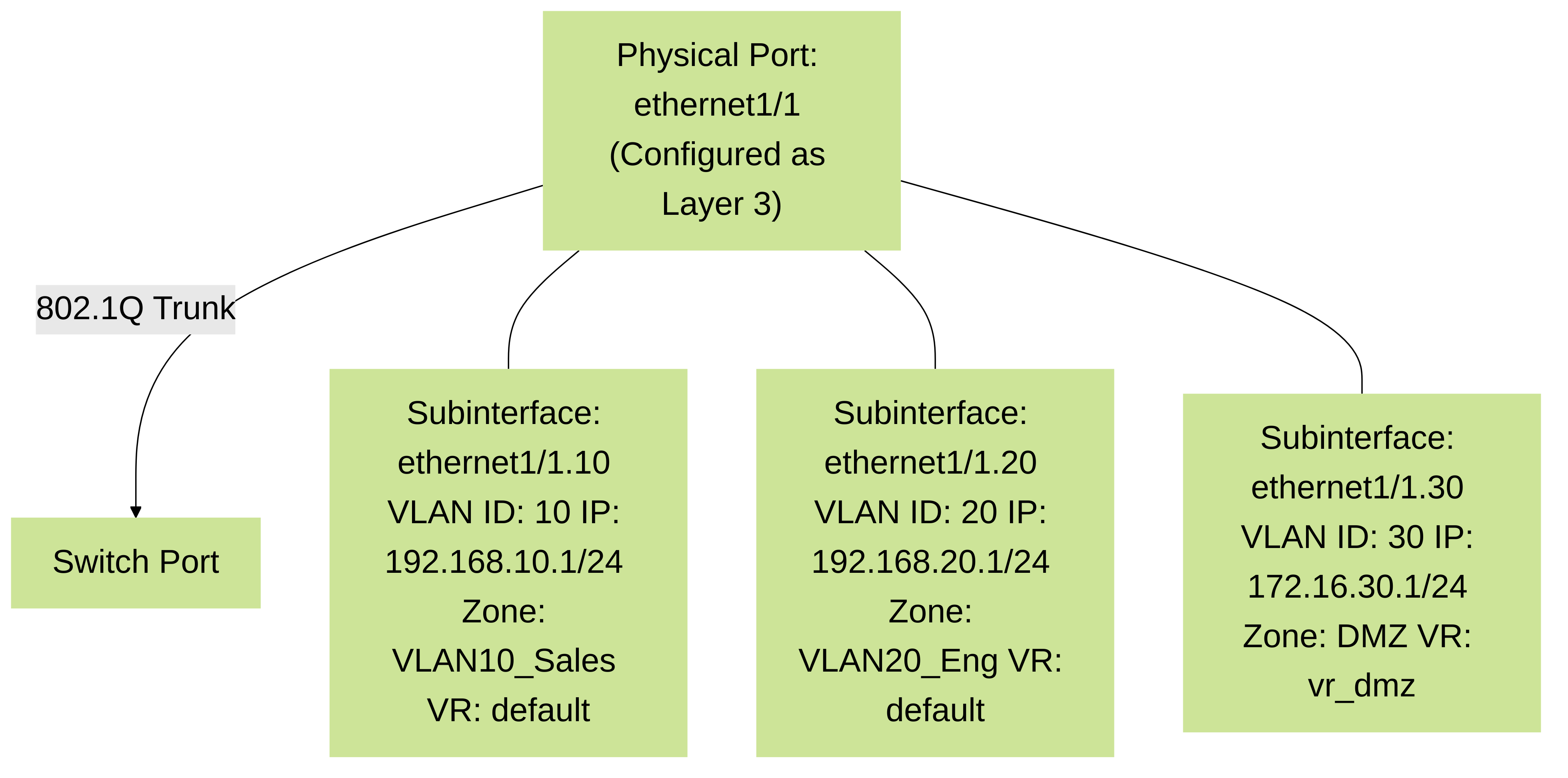

PCNSE/PCNSA Exam Note (Palo Alto Networks): You must be able to differentiate between these Layer 3 interface types and understand their specific use cases. Questions may involve selecting the appropriate interface type for a given scenario or configuring subinterfaces.

Key Features Supported by PAN-OS Layer 3 Interfaces

Layer 3 interfaces are the conduits through which traffic flows and becomes subject to the rich feature set of PAN-OS:

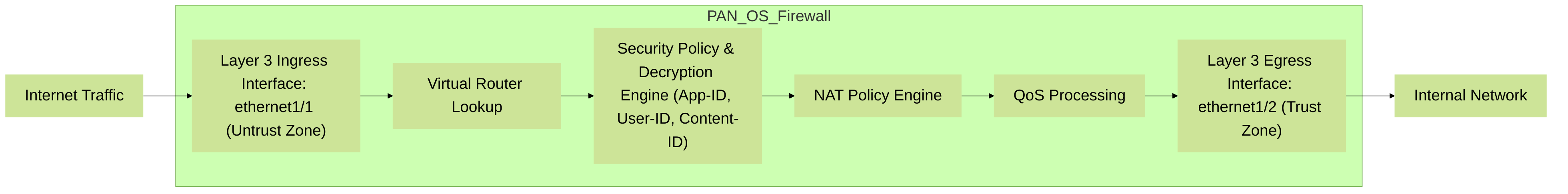

Simplified packet flow through a Palo Alto Networks firewall, highlighting the involvement of Layer 3 interfaces at ingress/egress and the application of various PAN-OS engines.

Simplified packet flow through a Palo Alto Networks firewall, highlighting the involvement of Layer 3 interfaces at ingress/egress and the application of various PAN-OS engines.

PAN-OS Layer 3 Interface Configuration Steps

Configuring a Layer 3 interface in PAN-OS (via the WebGUI) involves several key steps:

  1. Navigate to Network > Interfaces: Select the 'Ethernet' tab (or 'AE Groups', 'Loopback', 'Tunnel' as appropriate). Click on the physical interface name (e.g., `ethernet1/1`) you wish to configure, or click 'Add' to create a new logical interface (like Loopback or Tunnel).
  2. Set Interface Type to Layer3: In the interface configuration window, on the 'Config' tab (default), select `Layer3` from the 'Interface Type' dropdown menu. If configuring a subinterface, click 'Add Subinterface' on a parent Layer 3 physical interface, assign a numeric tag (VLAN ID), and then proceed.
        // Example: Viewing interface type in CLI
    admin@PA-VM> show interface ethernet1/1
    -------------------------------------------------------------------------------
    Name: ethernet1/1, ID: 6
    Operation mode: layer3
    Virtual router: default
    Zone: untrust, Nsx Universal: no
    ...

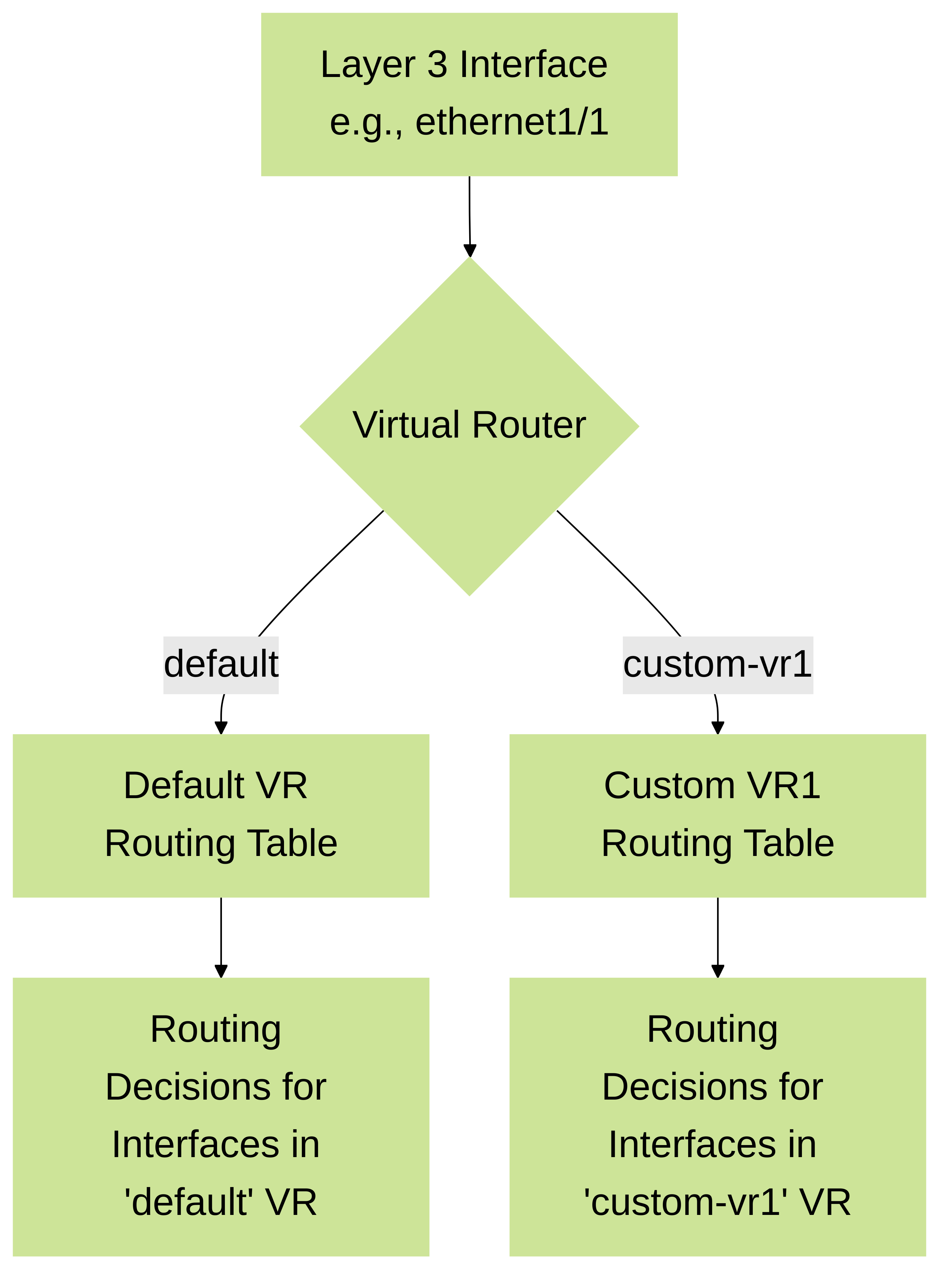

  3. Assign to Virtual Router and Security Zone:
    • Config Tab > Virtual Router: Select the appropriate Virtual Router from the dropdown (e.g., `default`). If needed, you can create a new VR from `Network > Virtual Routers` first.
    • Config Tab > Security Zone: Select an existing Layer 3 Security Zone from the dropdown or click 'New Zone' to create one. Ensure the new zone is of type 'Layer 3'.
  4. Configure IP Address(es):
    • IPv4 Tab:
      • Select Type: `Static`, `DHCP Client`, or `PPPoE Client`.
      • For `Static`: Click 'Add' and enter the IP address and netmask (e.g., `192.168.1.1/24`). You can add multiple secondary IP addresses if needed.
      • For `DHCP Client`: Optionally check 'Automatically create default route pointing to default gateway acquired from server'. You can also set a Client ID.
      • For `PPPoE Client`: Enter username, password, and select authentication type.
    • IPv6 Tab:
      • Check 'Enable IPv6'.
      • Click 'Add' to configure static IPv6 addresses (e.g., `2001:db8:acad:1::1/64`).
      • Configure settings for 'Router Advertisement' if the firewall should act as an IPv6 router for clients (e.g., Managed flag, Other Config flag).
      • Optionally enable 'DHCPv6 Client'.
  5. Apply Interface Management Profile (Optional but Recommended): Navigate to the 'Advanced' tab. In the 'Other Info' section, select an existing Interface Management Profile from the 'Management Profile' dropdown. This profile must be pre-configured under `Network > Network Profiles > Interface Mgmt`.
    Gotcha! (Palo Alto Networks): If you are configuring a new firewall and this is the primary interface for management (other than the MGT port), ensure this profile permits HTTPS/SSH from your management station's IP.
  6. Adjust Advanced Settings (as needed): On the 'Advanced' tab:
    • Link Speed / Duplex: Usually 'auto', but can be set manually.
    • MTU: Adjust from the default 1500 if necessary.
    • Adjust TCP MSS: Enable if needed, especially for VPNs.
      • IPv4 MSS: Enter a specific MSS value or let PAN-OS calculate.
      • IPv6 MSS: Enter a specific MSS value or let PAN-OS calculate.
    • LLDP: Select an LLDP Profile if LLDP is required.
    • ARP Entries: Add static ARP entries if required.
    • NDP Proxy / NDP Configuration (for IPv6): Configure as needed for specific IPv6 scenarios.
    • NetFlow Profile: Assign if exporting flow data from this interface.
  7. Click OK and Commit: Click 'OK' to close the interface configuration window. Then, click 'Commit' in the top-right corner of the WebGUI. Review the changes in the commit preview window and then click 'Commit' again to apply the configuration to the running state of the firewall.
CRITICAL (Palo Alto Networks): Always commit your changes. Configurations made in the PAN-OS GUI or CLI are candidate configurations until a commit operation is successfully completed. Without a commit, the changes will not take effect.

Troubleshooting Layer 3 Interfaces on PAN-OS

Effective troubleshooting is key for maintaining network stability. PAN-OS provides several tools and CLI commands.

Common Issues:

PAN-OS CLI Commands for Troubleshooting:

// Check interface status, IP, zone, VR
admin@PA-FW> show interface ethernet1/1

// Check hardware details and counters for an interface
admin@PA-FW> show interface ethernet1/1 hardware

// Check ARP table for a specific interface or all
admin@PA-FW> show arp ethernet1/1
admin@PA-FW> show arp all

// Check MAC address table (useful for L2 troubleshooting leading to L3)
admin@PA-FW> show mac all

// Check IPv6 neighbor cache
admin@PA-FW> show ipv6 neighbors interface ethernet1/1

// Check routing table for a specific VR
admin@PA-FW> show routing route virtual-router default

// Check forwarding table (FIB)
admin@PA-FW> show routing fib virtual-router default

// Test reachability from a specific L3 interface source IP
admin@PA-FW> ping source <IP_on_L3_interface> host <destination_IP>

// Test routing lookup for a destination IP
admin@PA-FW> test routing fib-lookup virtual-router default ip <destination_IP>

// Show active sessions, can filter by interface, zone, IP
admin@PA-FW> show session all filter source <source_IP> destination <dest_IP>
admin@PA-FW> show session id <session_ID>

// View global counters, can be filtered (e.g., for packet drops on an interface)
admin@PA-FW> show counter global filter packet-filter yes delta yes
admin@PA-FW> show counter interface ethernet1/1  // (Available on some platforms/versions)

// Check traffic logs via CLI (useful in headless scenarios)
admin@PA-FW> show log traffic direction equal backward query "(addr.src in 10.1.1.5) and (zone.src eq Trust)"

GUI Troubleshooting Tools:

PCNSE/PCNSA Exam Note (Palo Alto Networks): Be prepared for scenario-based troubleshooting questions. You should know which CLI commands or GUI sections to use to diagnose common Layer 3 interface problems like incorrect IP, zone, VR, or policy issues. Understanding `show session all filter` and `test routing fib-lookup` is particularly valuable.

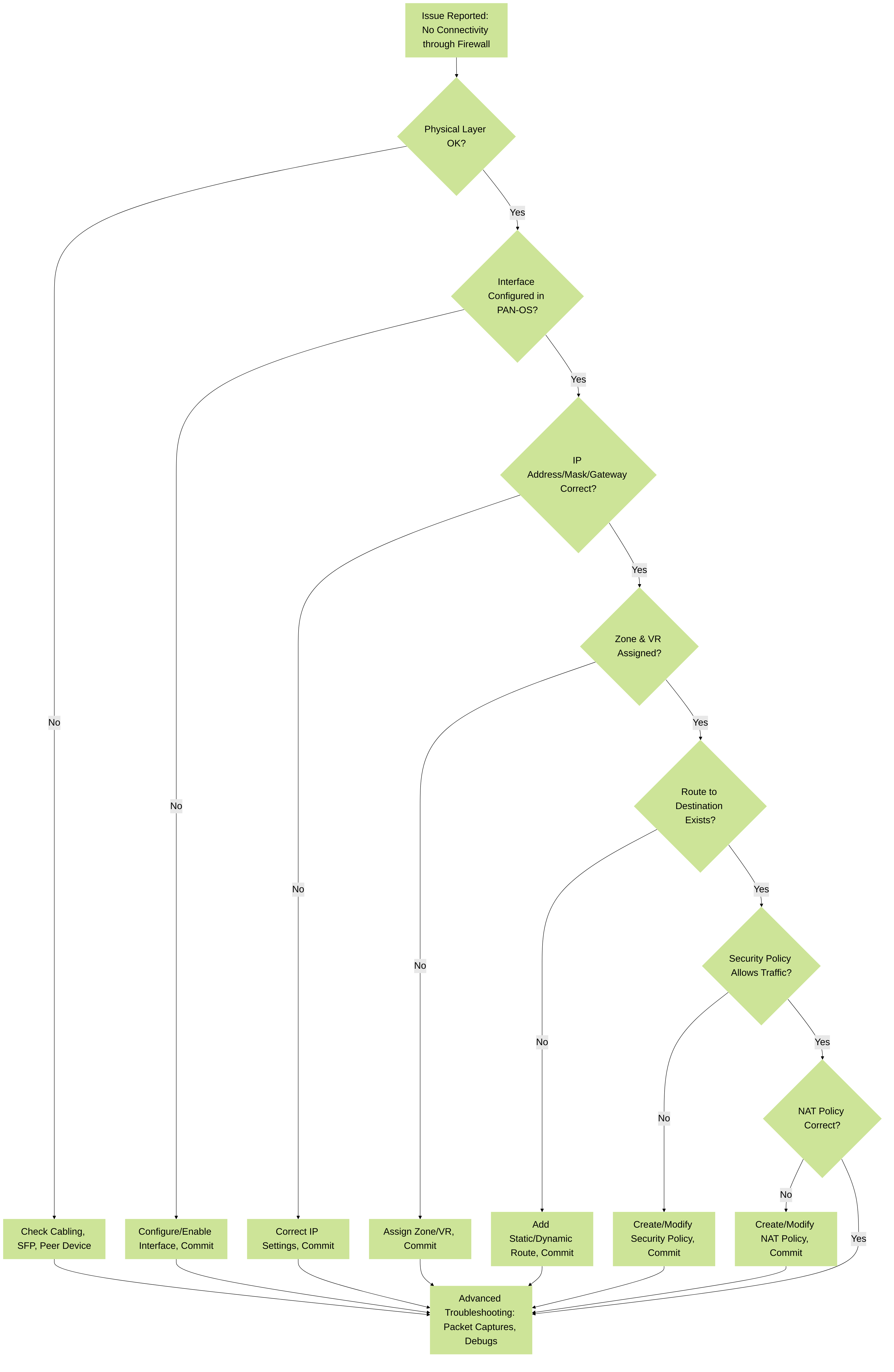

A simplified decision tree for troubleshooting Layer 3 interface connectivity issues on a Palo Alto Networks firewall.

A simplified decision tree for troubleshooting Layer 3 interface connectivity issues on a Palo Alto Networks firewall.

Layer 3 Interfaces in Palo Alto Networks High Availability (HA)

In a Palo Alto Networks HA cluster (Active/Passive or Active/Active), Layer 3 interfaces play a crucial role in maintaining connectivity during failovers.

Gotcha! (Palo Alto Networks): In HA Active/Passive, ensure that any static IP addresses configured directly on the interface (not floating IPs) are unique per firewall if they are on the same subnet. Floating IPs are designed to be shared and move between HA peers.

Conclusion

Layer 3 interfaces are indispensable components of any Palo Alto Networks firewall deployment. Their proper configuration is paramount for routing, security policy enforcement, NAT, VPNs, and many other advanced features. For the PCNSE exam, a thorough grasp of their setup, the types available (physical, subinterface, loopback, tunnel, aggregate), associated features, troubleshooting techniques, and HA considerations within the PAN-OS ecosystem is non-negotiable.

PCNSE Knowledge Check: Palo Alto Networks Layer 3 Interfaces

1. When configuring a Layer 3 interface on a Palo Alto Networks firewall, which two components are mandatory assignments on the 'Config' tab before the interface can pass routed traffic?





2. A network administrator needs to allow HTTPS management access to a Palo Alto Networks firewall via one of its dataplane Layer 3 interfaces (ethernet1/2). What must be configured and applied to ethernet1/2?





3. Which Palo Alto Networks feature allows a single physical Layer 3 interface to connect to multiple VLANs, each with its own IP address, security zone, and routing context?





4. A Palo Alto Networks firewall's external Layer 3 interface (ethernet1/1) is configured as a DHCP client. The administrator wants the firewall to automatically install a default route learned via DHCP. Which option must be enabled?





5. An administrator observes that TCP connections through a Palo Alto Networks firewall, specifically traversing an IPsec VPN tunnel, are experiencing performance issues and occasional drops. Path MTU is suspected to be an issue. Which feature on the Layer 3 interface associated with the internal network (pre-tunnel) can help mitigate this?





6. Which PAN-OS CLI command is most appropriate for verifying the Layer 3 interface configuration details, including its IP address, assigned security zone, and virtual router?





7. In a Palo Alto Networks Active/Passive HA configuration, what mechanism ensures that Layer 3 interfaces on the newly active firewall can immediately take over the IP addresses used for routing and services?





8. A Palo Alto Networks firewall has two Layer 3 interfaces: ethernet1/1 in the "Untrust" zone (VR: default) and ethernet1/2 in the "Trust" zone (VR: default). For traffic to flow from a host in the Trust zone to a server in the Untrust zone, what is the MINIMUM PAN-OS configuration required, assuming IP routing is already established?





9. What is the primary purpose of assigning a Layer 3 interface to a Security Zone in PAN-OS?





10. An administrator wants to use a stable, always-on IP address on the firewall for BGP peering that is not tied to a physical interface's state. Which type of Layer 3 interface is best suited for this purpose in PAN-OS?





11. When configuring a Layer 3 subinterface on a Palo Alto Networks firewall, what uniquely identifies the subinterface and associates it with a specific VLAN?





12. If a Palo Alto Networks firewall's Layer 3 interface is configured for PPPoE, where does it typically obtain its IP address and authentication credentials?





13. An administrator uses the PAN-OS CLI command `test routing fib-lookup virtual-router default ip 8.8.8.8`. What information does this command provide?





14. Which of the following is a common use case for configuring a Loopback interface as Layer 3 on a Palo Alto Networks firewall?





15. A network engineer is setting up a new Palo Alto Networks firewall. Ethernet1/1 is for the Untrust network and Ethernet1/2 is for the Trust network. Both are Layer 3 interfaces in the "default" virtual router. By default, what is the expected behavior for traffic initiated from the Trust zone to the Untrust zone?





16. What is the primary function of an LLDP Profile when applied to a Layer 3 interface on a Palo Alto Networks firewall?





17. If a Layer 3 interface on a Palo Alto Networks firewall has an MTU of 1500 and "Adjust TCP MSS" is enabled with no specific value set for IPv4 MSS, how will the firewall typically adjust the MSS for TCP SYN packets passing through it if it detects an IPsec tunnel with an overhead of 60 bytes is the next hop?





18. A PCNSE candidate is troubleshooting why OSPF is not forming an adjacency over a Layer 3 interface. The interface IP, zone, and VR are correctly configured. The physical link is up. Which of the following is a common OSPF-specific reason on the Palo Alto Networks firewall for this issue?





19. When is it necessary to use a Layer 3 subinterface instead of just a physical Layer 3 interface on a Palo Alto Networks firewall?





20. What is the significance of assigning a Layer 3 interface to a Virtual Router in PAN-OS?
