Palo Alto Networks: Mastering Multi-VSYS Environments for Enhanced Segmentation and Security

Overview of Multi-VSYS in PAN-OS

A multi-virtual systems (multi-vsys) environment, a cornerstone feature of Palo Alto Networks' PAN-OS, empowers organizations to partition a single physical Next-Generation Firewall (NGFW) or VM-Series firewall into multiple, logically independent virtual firewalls. Each virtual system (vsys) functions as a distinct firewall instance, complete with its own dedicated or shared interfaces, security zones, security policies (including App-ID, Content-ID, and User-ID based rules), routing instances (virtual routers), NAT policies, QoS policies, reporting, and administrative domains.

This powerful capability is indispensable for scenarios requiring strict traffic segmentation and administrative isolation. Common use cases include Managed Security Service Providers (MSSPs) managing multiple tenants, large enterprises segregating departmental or business unit traffic, separating production, development, and testing environments, or meeting stringent compliance mandates (e.g., PCI DSS, HIPAA) that demand logical data separation.

The fundamental principle is that traffic entering an interface assigned to a specific vsys is processed only by the policies and configurations of that vsys. This ensures that the security posture of one vsys does not impact another, providing robust isolation.

PCNSE/PCNSA Exam Note (Palo Alto Networks): Understanding the core concept of multi-vsys, its benefits, and how it provides isolation is crucial for the PCNSE and PCNSA exams. Be prepared for questions on when to use multi-vsys, how interfaces are assigned, and the nature of vsys independence.

Key Features and Benefits of Multi-VSYS

Enabling Multi-VSYS Mode

By default, Palo Alto Networks firewalls operate in a single vsys mode (implicitly `vsys1`). Enabling multi-vsys mode is a system-level change that requires a reboot of the firewall.

CRITICAL (Palo Alto Networks): Enabling multi-vsys mode is a disruptive operation that requires a firewall reboot. Plan this during a maintenance window. Once enabled, all existing configurations (interfaces, zones, policies, objects) are migrated to `vsys1`. You cannot revert to single vsys mode without a factory reset.

Prerequisites:

Steps to Enable Multi-VSYS (via GUI):

  1. Navigate to Device > Setup > Management .
  2. In the "General Settings" section, click the settings icon (gear) to edit.
  3. Check the Multi Virtual System Capability checkbox.
  4. Click OK .
  5. A warning message will appear indicating a reboot is required and that the current configuration will be moved to `vsys1`. Click Yes to proceed.
  6. Commit the changes. The firewall will reboot.

Steps to Enable Multi-VSYS (via CLI):

admin@PA-FW> configure
Entering configuration mode
[edit]
admin@PA-FW# set deviceconfig system multi-vsys on
[edit]
admin@PA-FW# commit

After the commit and reboot, the firewall will be in multi-vsys mode. You can verify this in the GUI (Device > Virtual Systems will now be available) or CLI:

admin@PA-FW> show system info
...
multi-vsys: on
...
PCNSE/PCNSA Exam Note (Palo Alto Networks): Know the CLI command to enable multi-vsys (`set deviceconfig system multi-vsys on`) and understand that it requires a commit and reboot. Also, remember that `vsys1` becomes the default vsys containing all pre-existing configurations.

VSYS Creation and Configuration

Once multi-vsys mode is enabled, `vsys1` exists by default. Additional virtual systems can be created and configured.

Creating a New VSYS (via GUI):

  1. Navigate to Device > Virtual Systems .
  2. Click Add at the bottom of the page.
  3. General Tab:
    • Name: Enter a descriptive name for the vsys (e.g., `vsys-department-A`, `vsys-customer-X`).
    • Display Name: (Optional) A more user-friendly name.
    • DNS Proxy: (Optional) Configure if this vsys will use DNS Proxy services.
  4. Resources Tab: (Optional but highly recommended for resource control)
    • Specify maximum limits for Sessions, Rulebase (Security, NAT, PBF, DoS, Decryption), Virtual Routers, IPSec Tunnels, GlobalProtect Gateway Tunnels, GlobalProtect Portal Concurrent Users . These settings prevent one vsys from exhausting firewall resources.
    • If not specified, the vsys shares from the global pool, which can be risky.
  5. Interfaces Tab:
    • Select physical or aggregate interfaces that will be exclusively assigned to this vsys. An interface can only belong to one vsys at a time (unless it's part of a Shared Gateway configuration).
  6. Import Tab: (Optional)
    • Allows importing a configuration from another vsys on the same firewall or from an exported vsys configuration file.
  7. Click OK and commit the changes.

Assigning Administrators to a VSYS:

You can create administrator accounts that have access only to specific vsys instances:

  1. Navigate to Device > Admin Roles . Create a new role profile, and under "Virtual Systems," specify the vsys this role can access.
  2. Navigate to Device > Administrators . Create a new administrator account and assign the role profile created above.
Gotcha! (Palo Alto Networks): When assigning interfaces to a vsys, ensure they are not already in use by `vsys1` or another vsys. An interface must be "freed" from its current vsys before it can be assigned to a new one. This includes Layer3 subinterfaces; the parent physical interface must be available or assigned to the same vsys.

VSYS Context Switching (CLI):

When managing a multi-vsys firewall via CLI, you operate in a global context or a specific vsys context. `vsys1` is the default management vsys.

admin@PA-FW> set system setting target-vsys vsys2  // Switch to vsys2 context
Switched to vsys vsys2
admin@PA-FW(vsys2)> configure
Entering configuration mode
[edit]
admin@PA-FW(vsys2)#  // Now configuring vsys2 specific settings

admin@PA-FW(vsys2)> set system setting target-vsys none // Switch back to global context
Switched to vsys none
admin@PA-FW>

Alternatively, you can use `set cli config-output-format set` and prepend commands with `vsys ` for configuration, or use `show system session all filter vsys vsys2` for operational commands targeting a specific vsys.

Mermaid Diagram: Multi-VSYS Architecture with Dedicated Interfaces

graph TD subgraph PA_Firewall ["Palo Alto Networks NGFW (Multi-VSYS Mode)"] subgraph VSYS1 ["VSYS1 (e.g., Management/Shared Services)"] direction LR V1_Eth1_1 ["Interface ethernet1/1"] V1_VR1 ["Virtual Router 1"] V1_Policy1 ["Security Policies for VSYS1"] V1_Eth1_1 --- V1_VR1 --- V1_Policy1 end subgraph VSYS2 ["VSYS2 (e.g., Department A)"] direction LR V2_Eth1_2 ["Interface ethernet1/2"] V2_VR2 ["Virtual Router 2"] V2_Policy2 ["Security Policies for VSYS2"] V2_Eth1_2 --- V2_VR2 --- V2_Policy2 end subgraph VSYS3 ["VSYS3 (e.g., Department B)"] direction LR V3_Eth1_3 ["Interface ethernet1/3"] V3_VR3 ["Virtual Router 3"] V3_Policy3 ["Security Policies for VSYS3"] V3_Eth1_3 --- V3_VR3 --- V3_Policy3 end end Net_Mgmt["Management Network"] --> V1_Eth1_1 Net_DeptA["Department A Network"] --> V2_Eth1_2 Net_DeptB["Department B Network"] --> V3_Eth1_3

This diagram illustrates a Palo Alto Networks firewall in multi-vsys mode. Each VSYS (VSYS1, VSYS2, VSYS3) has its own dedicated physical interface(s), virtual router, and security policies, providing complete logical separation for different network segments or tenants.

Shared Gateway Deep Dive

A Shared Gateway in PAN-OS is a crucial component in multi-vsys deployments, allowing multiple tenant vsys instances to share a common uplink, typically for internet access, without each needing its own public IP address or physical external interface. The Shared Gateway itself is configured as a special, dedicated vsys (often, but not necessarily, `vsys1` or a new vsys specifically for this purpose).

Key Characteristics and Configuration Points:

Configuration Workflow Summary:

  1. Designate or create a vsys to act as the Shared Gateway (e.g., `vsys-shared-gw`).
  2. Assign the physical external interface (e.g., `ethernet1/1`) to `vsys-shared-gw`. Configure its IP address and zone (e.g., `UNTRUST`).
  3. In `vsys-shared-gw`, create an internal-facing interface (e.g., `ethernet1/2`, or a VLAN interface if connecting to multiple tenants via a switch). Assign it an IP address and zone (e.g., `SHARED-TENANT-LINK`). This interface will be the next-hop for tenant vsys.
  4. In each tenant vsys (e.g., `vsys-customer-A`):
    • Create a new Layer 3 interface (e.g., `ethernet1/10` - name is logical, not tied to physical). Do NOT assign a physical interface.
    • Go to the "Shared Gateway" tab for this interface. Select `vsys-shared-gw` as the Shared Gateway VSYS and `ethernet1/2` (the internal interface of `vsys-shared-gw`) as the Shared Gateway Interface.
    • Assign an IP address to this interface in `vsys-customer-A` (e.g., an IP in the same subnet as `vsys-shared-gw`'s `ethernet1/2`).
    • Configure a default route in `vsys-customer-A` pointing to the IP of `vsys-shared-gw`'s `ethernet1/2`.
  5. In `vsys-shared-gw`, configure NAT policies for outbound traffic from tenant networks and security policies to control this traffic.
  6. Ensure `vsys-shared-gw` has routes back to the tenant networks.
PCNSE/PCNSA Exam Note (Palo Alto Networks): Shared Gateway configuration is a common topic. Understand the roles of the Shared Gateway vsys and tenant vsys, how interfaces are linked (Shared Gateway tab), and where NAT and security policies for internet-bound tenant traffic are applied (in the Shared Gateway vsys).

For detailed configuration steps, refer to the official documentation on Configuring a Shared Gateway (example using PAN-OS 10.2, adjust version as needed) .

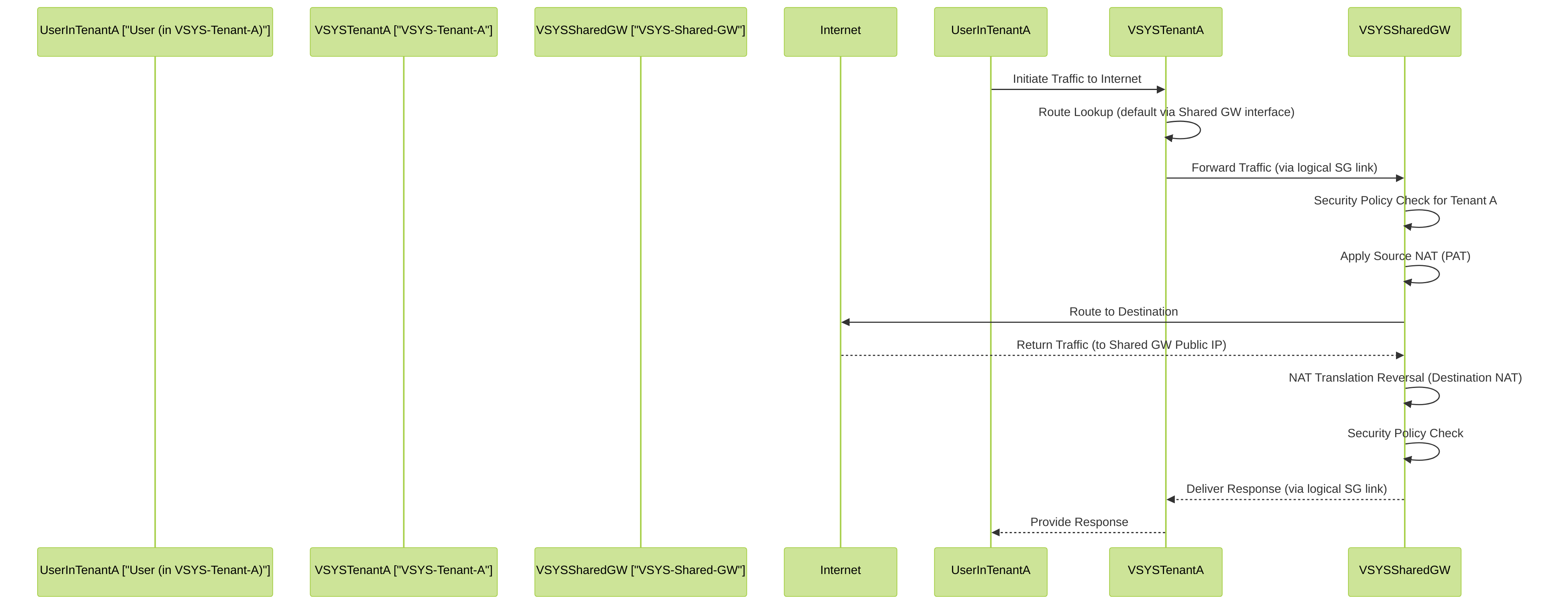

Mermaid Sequence Diagram: Shared Gateway Traffic Flow with NAT

This sequence diagram illustrates the traffic flow from a user in a tenant VSYS through a Shared Gateway VSYS to the internet. It highlights routing within the tenant, policy checks and NAT in the Shared Gateway, and the return path.

This sequence diagram illustrates the traffic flow from a user in a tenant VSYS through a Shared Gateway VSYS to the internet. It highlights routing within the tenant, policy checks and NAT in the Shared Gateway, and the return path.

External Zone for Inter-VSYS Communication

An External Zone in PAN-OS is a specialized type of security zone designed specifically to enable direct, logical communication between different virtual systems (vsys) residing on the same Palo Alto Networks firewall. This mechanism allows traffic to pass from one vsys to another without needing to physically leave and re-enter the firewall, making inter-vsys communication efficient.

Key Characteristics and Usage:

External Zones are highly efficient for inter-vsys traffic that needs to remain within the firewall chassis, as they avoid hair-pinning traffic through external interfaces.

PCNSE/PCNSA Exam Note (Palo Alto Networks): Understand that an External Zone is for inter-vsys traffic *within the same firewall*. Know that you need static routes with "Next VSYS" and security policies in *both* participating vsys. Remember the "one External Zone per vsys" limitation.

For more information, consult the official documentation on Inter-VSYS Traffic (example using PAN-OS 10.2, adjust version as needed) .

Mermaid Diagram: Inter-VSYS Traffic Flow using External Zones

graph TD subgraph PA_Firewall ["Palo Alto Networks NGFW"] subgraph VSYS_A ["VSYS-A"] VA_User["User in VSYS-A Network"] VA_Zone_Trust["Zone: VA-Trust"] VA_VR ["Virtual Router (VA-VR)"] VA_ExtZone ["External Zone (to VSYS-B)"] VA_Policy ["Policy: VA-Trust to EXT-to-VSYSB"] VA_User --> VA_Zone_Trust VA_Zone_Trust --> VA_VR VA_VR -- "Route to VSYS-B via NextVSYS" ---> VA_ExtZone VA_ExtZone -- "Policy Applied" ---> VA_Policy end subgraph VSYS_B ["VSYS-B"] VB_Server["Server in VSYS-B Network"] VB_Zone_DMZ["Zone: VB-DMZ"] VB_VR ["Virtual Router (VB-VR)"] VB_ExtZone ["External Zone (to VSYS-A)"] VB_Policy ["Policy: EXT-to-VSYSA to VB-DMZ"] VB_ExtZone --> VB_VR VB_VR -- "Route to local DMZ" ---> VB_Zone_DMZ VB_Zone_DMZ --> VB_Server VB_Policy -- "Policy Applied" ---> VB_ExtZone end %% Logical Connection VA_Policy ---|Inter-VSYS Link| VB_Policy end VA_User -- Request --> VB_Server VB_Server -- Response --> VA_User

This diagram depicts traffic flow between VSYS-A and VSYS-B using External Zones. Traffic from a user in VSYS-A is routed to its External Zone (representing VSYS-B) based on a "Next VSYS" static route. Security policies are applied in VSYS-A. The traffic then logically transits to VSYS-B's External Zone (representing VSYS-A), where VSYS-B's security policies are applied before the traffic reaches the server in VSYS-B's DMZ.

Resource Management in Multi-VSYS

Effective resource management is critical in a multi-vsys environment to ensure fair usage and prevent resource exhaustion by a single vsys. PAN-OS provides mechanisms to allocate and limit various system resources on a per-vsys basis.

Configurable Resources per VSYS:

These limits are configured under Device > Virtual Systems > [select vsys] > Resources tab .

CRITICAL (Palo Alto Networks): If resource limits are not explicitly defined for a vsys (left as "0" or blank, meaning unlimited within the global maximum), it can potentially consume resources up to the firewall's global capacity for that feature, potentially impacting other vsys instances. It is a best practice to define explicit limits for each vsys based on its expected needs.

CPU Resource Allocation:

While direct per-vsys CPU percentage allocation isn't typically granularly configured like individual rule counts, the overall firewall's CPU resources are shared among vsys. The session limits and processing demands of each vsys indirectly influence CPU load. On some higher-end platforms (like the PA-7000 series with multiple Network Processing Cards - NPCs), there can be more sophisticated partitioning of hardware resources, but for most platforms, CPU is a globally shared resource managed by PAN-OS. Ensuring that session and rule limits are appropriately set helps manage CPU utilization indirectly.

Monitoring Resource Usage:

PCNSE/PCNSA Exam Note (Palo Alto Networks): Be familiar with the types of resources that can be limited per vsys. Understand the importance of setting these limits to ensure stability and fair resource distribution in a multi-tenant or multi-department environment.

Panorama and Multi-VSYS Management

Palo Alto Networks Panorama provides centralized management for multiple firewalls, including those configured in multi-vsys mode. Panorama simplifies administration, policy deployment, and monitoring across numerous vsys instances.

Key Panorama Capabilities for Multi-VSYS:

Managing multi-vsys firewalls via Panorama offers significant operational efficiency, consistency, and scalability compared to managing each vsys or firewall individually.

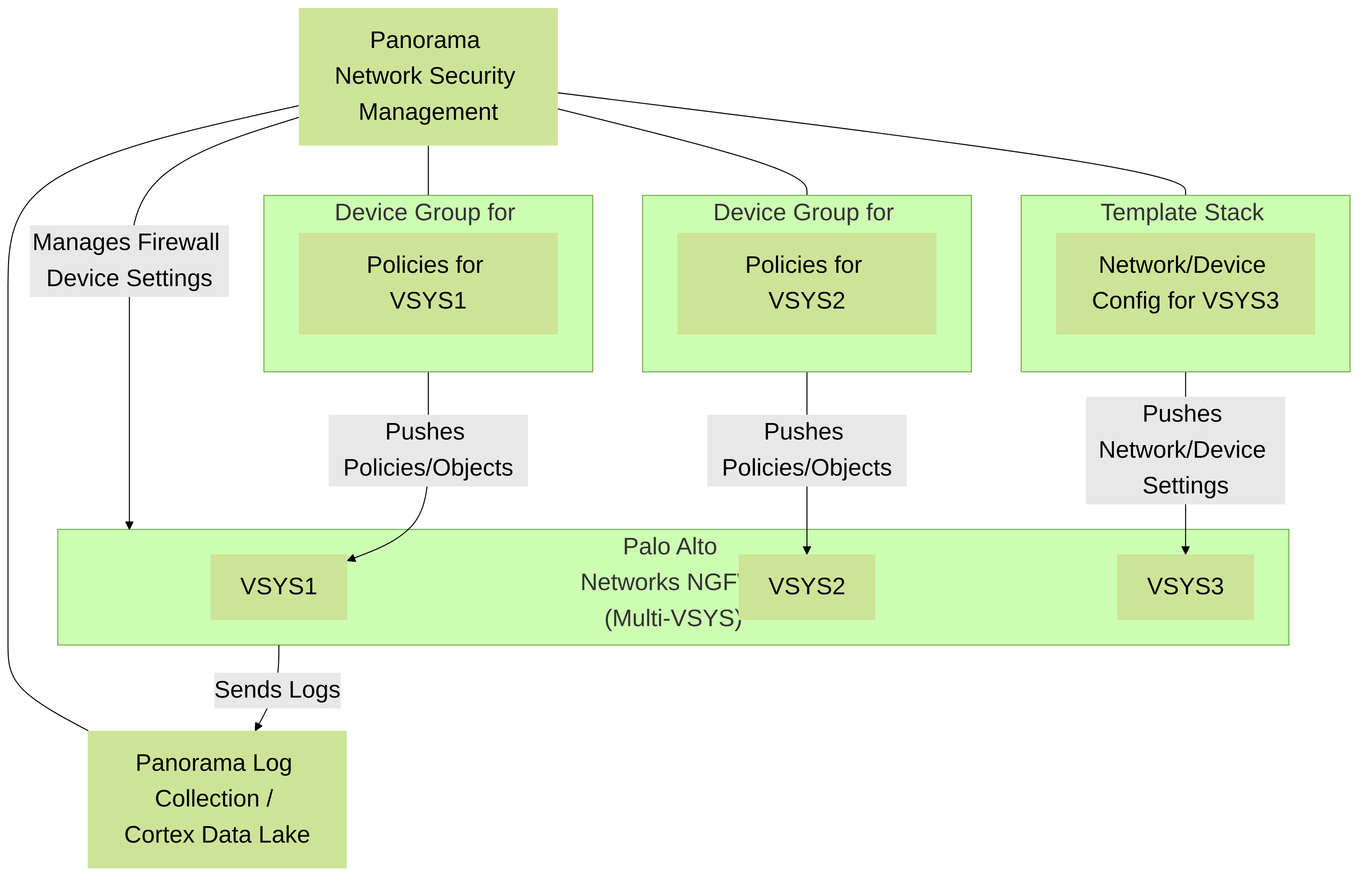

Mermaid Diagram: Panorama Managing Multi-VSYS Firewall

This diagram shows Panorama managing a multi-vsys firewall. Panorama uses Device Groups to apply specific policies to individual VSYS instances (VSYS1, VSYS2) and Template Stacks to push network and device configurations (e.g., to VSYS3). Logs from all VSYS are sent to Panorama for centralized monitoring and reporting.

This diagram shows Panorama managing a multi-vsys firewall. Panorama uses Device Groups to apply specific policies to individual VSYS instances (VSYS1, VSYS2) and Template Stacks to push network and device configurations (e.g., to VSYS3). Logs from all VSYS are sent to Panorama for centralized monitoring and reporting.

User-ID Sharing in Multi-VSYS Environments

User-ID technology allows policies to be based on user and group identity rather than just IP addresses. In a multi-vsys environment, sharing User-ID information across vsys instances is often necessary for consistent policy enforcement.

User-ID Hub Concept:

Configuration (General Steps):

  1. In the Hub VSYS (e.g., `vsys1`):
    • Configure User-ID Agents, Server Monitoring, etc., as per standard User-ID setup ( Device > User Identification ).
    • Enable User-ID redistribution. Navigate to Device > User Identification > User-ID Agents > [Agent Name] > Client Configuration (this terminology varies slightly across PAN-OS versions, look for redistribution or multi-vsys sharing settings). Alternatively, for system-wide redistribution (newer PAN-OS versions), configure under Device > Setup > Services > Service Route Configuration to ensure User-ID service is reachable, and then configure redistribution under Device > User Identification > Setup > Multi-VSYS Sharing .
  2. In the Spoke/Tenant VSYS (e.g., `vsys2`):
    • Navigate to Device > User Identification > Setup > Multi-VSYS Sharing (or similar path depending on PAN-OS version).
    • Configure the spoke vsys to receive mappings from the hub vsys. You'll typically specify the hub vsys name.
  3. Ensure network connectivity allows the spoke vsys to communicate with the hub vsys for User-ID updates (often over the management plane or via inter-vsys routing if necessary).
    4. PCNSE/PCNSA Exam Note (Palo Alto Networks): User-ID sharing in multi-vsys is an important concept. Understand that one vsys acts as a hub. For the exam, know where to generally configure these settings (User Identification sections within both hub and spoke vsys).

    This allows each vsys to enforce User-ID based security policies using a consistent and centrally managed set of user-to-IP mappings, without each vsys needing to independently collect all User-ID information.

Logging and Reporting in Multi-VSYS

Each vsys in a multi-vsys environment generates its own logs (Traffic, Threat, URL Filtering, WildFire, etc.). It's crucial to manage and access these logs effectively.

Gotcha! (Palo Alto Networks): Ensure that service routes for log forwarding (e.g., to Panorama or Syslog servers) are correctly configured, especially if the management interface is used. In a multi-vsys setup, the management interface is typically associated with `vsys1` or a dedicated management vsys. If other vsys need to forward logs directly, their respective data plane interfaces might need to be used, requiring appropriate service route configuration.

Common Use Cases for Multi-VSYS

Use Case Description Key Multi-VSYS Benefits Utilized
Managed Security Service Providers (MSSPs) Hosting multiple customers (tenants) on a single physical firewall. Isolation, dedicated administration, resource allocation, Shared Gateway for internet, User-ID sharing.
Large Enterprises (Departmental/BU Segmentation) Isolating network traffic and security policies for different departments (e.g., Finance, HR, Engineering). Isolation, dedicated administration (optional), granular policy control, inter-vsys communication via External Zones.
Dev/Test/Prod Environments Separating development, testing, and production networks with distinct security policies and risk profiles. Isolation, distinct policy sets, resource control.
Compliance Requirements (e.g., PCI DSS) Isolating specific network segments (e.g., Cardholder Data Environment) to meet regulatory compliance. Strict isolation, auditable policy boundaries, dedicated logging.
Business Partner Extranets Providing controlled network access to business partners, isolated from internal corporate networks. Isolation, specific security policies for partner access.
Firewall Consolidation Reducing the number of physical firewalls by consolidating multiple security domains onto fewer, more powerful platforms. Cost savings, reduced hardware footprint, centralized management (especially with Panorama).

Limitations and Considerations

Gotcha! (Palo Alto Networks): When troubleshooting, always remember to verify which vsys context you are in (CLI) or have selected (GUI). Configuration and logs are vsys-specific. A common mistake is to look for a policy or route in the wrong vsys.

Troubleshooting Common Multi-VSYS Issues

General Troubleshooting Commands (use `set system setting target-vsys ` first or filter by vsys):

show session all filter   // Check active sessions
show counter global filter packet-filter yes delta yes // Real-time packet processing counters
show log traffic // Check traffic logs
show log threat // Check threat logs
debug dataplane packet-diag set filter ... // Advanced packet diagnostics
test routing fib-lookup virtual-router  ip  // Check routing table

PCNSE Exam Focus for Multi-VSYS

For the PCNSE exam, a solid understanding of multi-vsys is essential. Expect questions covering:

PCNSE/PCNSA Exam Note (Palo Alto Networks): Scenario-based questions are common. You might be given a network diagram with multiple vsys and asked to determine the correct configuration for traffic flow, or how to troubleshoot a connectivity issue between vsys or from a vsys to the internet via a Shared Gateway.

PCNSE Knowledge Check: Palo Alto Networks Multi-VSYS Environments

1. What is the immediate impact on a Palo Alto Networks firewall's configuration when Multi-VSYS capability is enabled for the first time?





2. In a Palo Alto Networks multi-vsys environment, where are security policies and NAT policies typically configured for internet-bound traffic originating from a tenant vsys that utilizes a Shared Gateway?





3. What is the maximum number of External Zones that can be configured per vsys on a Palo Alto Networks firewall?





4. Which PAN-OS CLI command is used to switch the administrative context to a specific virtual system, for example, `vsys3`?





5. When configuring inter-vsys communication using an External Zone between `vsysA` and `vsysB`, what routing configuration is required in `vsysA` to send traffic to a network in `vsysB`?





6. Which of the following is a primary benefit of using a Shared Gateway in a Palo Alto Networks multi-vsys deployment?





7. If resource limits (e.g., Max Sessions, Max Security Rules) are NOT explicitly defined for a newly created vsys on a Palo Alto Networks firewall, what is the behavior?





8. How does Panorama typically manage security policies for different vsys instances on a single multi-vsys firewall?





9. In a User-ID sharing setup within a Palo Alto Networks multi-vsys environment, what is the role of the "hub" vsys?





10. Which of the following firewall settings is typically a global setting and NOT configurable on a per-vsys basis on a Palo Alto Networks firewall?





11. An administrator has enabled multi-vsys on a PA-3220 firewall. They assign `ethernet1/1` to `vsys2` and `ethernet1/2` to `vsys3`. How would traffic pass directly between a host connected to `ethernet1/1` and a host connected to `ethernet1/2` if both are on the same firewall?





12. What is a critical consideration when planning to enable multi-vsys mode on a production Palo Alto Networks firewall?





13. When using Panorama to manage a multi-vsys firewall, which Panorama feature is primarily used to push network configurations (like interfaces, zones, virtual routers) to a specific vsys?





14. A tenant vsys (`vsys-A`) needs to send traffic to the internet via a Shared Gateway vsys (`vsys-SG`). Which vsys is responsible for performing Source NAT (PAT) on this traffic?





15. To verify the current resource utilization (e.g., sessions, rules) for a specific vsys named `vsys-Finance` via the CLI, which command would be most appropriate?





16. Can a single physical interface on a Palo Alto Networks firewall be assigned to multiple vsys instances simultaneously (excluding Shared Gateway scenarios)?





17. What is the primary purpose of configuring resource limits (e.g., Max Sessions, Max Rules) on a per-vsys basis?





18. When troubleshooting inter-vsys traffic flow that uses External Zones between `vsysX` and `vsysY`, where must security policies be checked?





19. After enabling multi-vsys mode on a Palo Alto Networks firewall, which vsys typically handles management plane services by default (e.g., receiving Panorama connections, DNS proxy for management)?





20. An administrator needs to ensure that User-ID mappings collected by a central "User-ID Hub" vsys are available to several "Tenant" vsys instances for policy enforcement. What PAN-OS feature facilitates this?
