Palo Alto Networks: Mastering Server and Authentication Profiles for Robust User-ID

Core Concepts: User-ID, Server Profiles, and Authentication Profiles in PAN-OS

Palo Alto Networks' Next-Generation Firewalls (NGFWs) leverage User-ID™ technology to integrate user identity information into security policies. This allows for granular control and visibility based on users and groups, rather than just IP addresses. To achieve this, PAN-OS relies on two critical configuration components: Server Profiles and Authentication Profiles . These profiles are the bridge between the firewall and your organization's identity infrastructure.

Understanding how to configure and troubleshoot these profiles is fundamental for implementing effective security policies, enabling secure remote access with GlobalProtect, controlling administrative access, and utilizing features like Captive Portal for guest or internal user authentication.

CRITICAL (Palo Alto Networks): User-ID is a cornerstone of the Palo Alto Networks Security Operating Platform. Without accurate user-to-IP mapping and reliable authentication mechanisms, the firewall cannot enforce user-based policies, significantly diminishing its "next-generation" capabilities like granular App-ID™ control and threat prevention based on user roles.

Deep Dive: Server Profiles in Palo Alto Networks

Server Profiles define the connection parameters and communication protocols the Palo Alto Networks firewall uses to interact with external identity and authentication servers. Each profile type is tailored for a specific kind of server. These are configured under Device > Server Profiles in the PAN-OS web interface or Panorama.

1. LDAP Server Profile

The LDAP (Lightweight Directory Access Protocol) Server Profile is predominantly used to connect to directory services like Microsoft Active Directory (AD), OpenLDAP, or Novell eDirectory. Its primary functions within PAN-OS are:

Key LDAP Server Profile Configuration Parameters (PAN-OS):

Parameter Description Palo Alto Networks Context & Best Practice
Profile Name A descriptive name for the profile. Use a name indicating the directory service (e.g., AD-Primary-LDAP ).
LDAP Server Type Specifies the directory type (e.g., active-directory , eDirectory , sun , other ). Selecting the correct type helps PAN-OS optimize queries and attribute mapping. For AD, always select active-directory .
Servers Tab: Name, LDAP Server, Port Defines one or more LDAP server IP addresses or FQDNs and the port. Standard LDAP port is 389, LDAPS (LDAP over SSL/TLS) is 636. Always prefer LDAPS for security. List multiple domain controllers for redundancy.
SSL/TLS Encrypted Connection Enables LDAPS. CRITICAL: Always enable this. Requires importing the CA certificate (or server certificate if self-signed, not recommended for production) that signed the LDAP server's certificate into the firewall ( Device > Certificate Management > Certificates ).
Verify Server Certificate When SSL/TLS is enabled, this ensures the firewall validates the LDAP server's certificate against its trusted CAs. Highly recommended to keep enabled for security. Disable only in trusted lab environments with self-signed certs and after understanding risks.
Base DN The starting point in the LDAP directory tree for searches (e.g., DC=example,DC=com ). Specify as precisely as possible to reduce search scope and improve performance.
Bind DN The Distinguished Name of a service account used by the firewall to connect and search the LDAP directory (e.g., CN=svc-panldap,OU=ServiceAccounts,DC=example,DC=com ). Use a dedicated service account with read-only permissions to the necessary parts of the directory. Do not use an administrator account.
Bind Password The password for the Bind DN account. Use a strong, unique password.
Bind Protection (PAN-OS 10.0+) Provides options like SASL mechanisms for more secure bind operations. Consider using if your LDAP environment supports it for enhanced security.
User Domain (for AD) The NetBIOS domain name. Used if users log in with DOMAIN\user format. Automatically populated for AD type usually.
Retry Interval / Timelimit Connection retry and search time limits. Adjust based on network latency and directory size. Default values are usually fine.
PCNSE/PCNSA Exam Note (Palo Alto Networks): Expect questions on configuring LDAP Server Profiles, especially SSL/TLS, Base DN, Bind DN, and troubleshooting connectivity. Understanding the difference between LDAP for group mapping vs. authentication is key. The test ldap-authentication CLI command is useful for verification.
! Example PAN-OS CLI command to test an LDAP server profile connection (run from operational mode):
> test ldap-authentication server-profile "AD-Primary-LDAP" host ldap.example.com port 636 encryption ssl user-dn "CN=svc-panldap,OU=ServiceAccounts,DC=example,DC=com" password

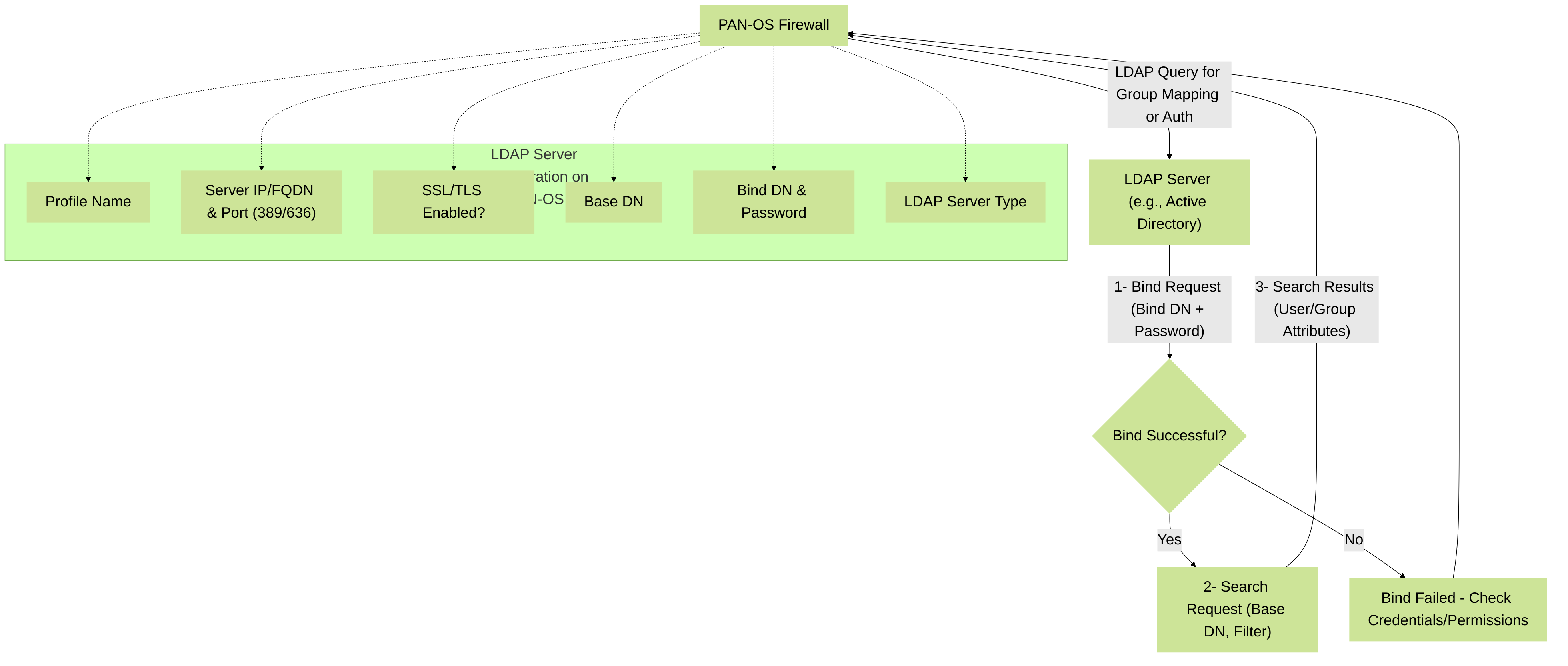

Figure 1: Simplified LDAP interaction flow with key PAN-OS configuration components. The PAN-OS firewall uses the configured Bind DN to authenticate to the LDAP server and then issues search queries starting from the Base DN to retrieve user/group information or validate credentials.

Figure 1: Simplified LDAP interaction flow with key PAN-OS configuration components. The PAN-OS firewall uses the configured Bind DN to authenticate to the LDAP server and then issues search queries starting from the Base DN to retrieve user/group information or validate credentials.

2. RADIUS Server Profile

RADIUS (Remote Authentication Dial-In User Service) is a client/server protocol that provides centralized Authentication, Authorization, and Accounting (AAA) management. In Palo Alto Networks firewalls, RADIUS Server Profiles are commonly used for:

Key RADIUS Server Profile Configuration Parameters (PAN-OS):

Gotcha! (Palo Alto Networks): The RADIUS shared secret is case-sensitive and must be identical on the PAN-OS firewall and the RADIUS server. Mismatched secrets are a very common cause of authentication failures. Also, ensure firewall rules permit UDP traffic on ports 1812/1813 (or custom ports) between the firewall's source interface (often management) and the RADIUS server.

3. TACACS+ Server Profile

TACACS+ (Terminal Access Controller Access-Control System Plus) is another AAA protocol. While RADIUS combines Authentication and Authorization, TACACS+ separates these functions, offering more granularity, particularly for device administration.

In Palo Alto Networks firewalls, TACACS+ Server Profiles are almost exclusively used for:

It's less common to use TACACS+ for end-user authentication (like GlobalProtect or Captive Portal) as LDAP or RADIUS/SAML are better suited for those purposes.

Key TACACS+ Server Profile Configuration Parameters (PAN-OS):

PCNSE/PCNSA Exam Note (Palo Alto Networks): Differentiate the primary use cases: TACACS+ for administrative access control to the firewall itself, RADIUS for end-user authentication (often with MFA) and sometimes admin access, LDAP for user/group info and end-user/admin authentication.

4. Kerberos Server Profile

Kerberos is a network authentication protocol designed to provide strong authentication for client/server applications by using secret-key cryptography. A Kerberos Server Profile on PAN-OS enables the firewall to:

Key Kerberos Server Profile Configuration Parameters (PAN-OS):

CRITICAL (Palo Alto Networks): Correct generation and deployment of the keytab file are crucial for Kerberos authentication to work. The SPN in the keytab must match the service name the client (e.g., browser, GlobalProtect client) is trying to access on the firewall. Time synchronization between the firewall, KDC, and clients is also critical for Kerberos.

5. SAML Identity Provider (IdP) Profile

SAML (Security Assertion Markup Language) is an XML-based open standard for exchanging authentication and authorization data between an Identity Provider (IdP) and a Service Provider (SP).

In this context, the Palo Alto Networks firewall acts as a Service Provider (SP) . The SAML IdP Profile configures the firewall to trust and consume assertions from an external SAML IdP (e.g., Okta, Azure AD, Ping Identity, ADFS). This enables Single Sign-On (SSO) for:

Key SAML IdP Profile Configuration Parameters (PAN-OS):

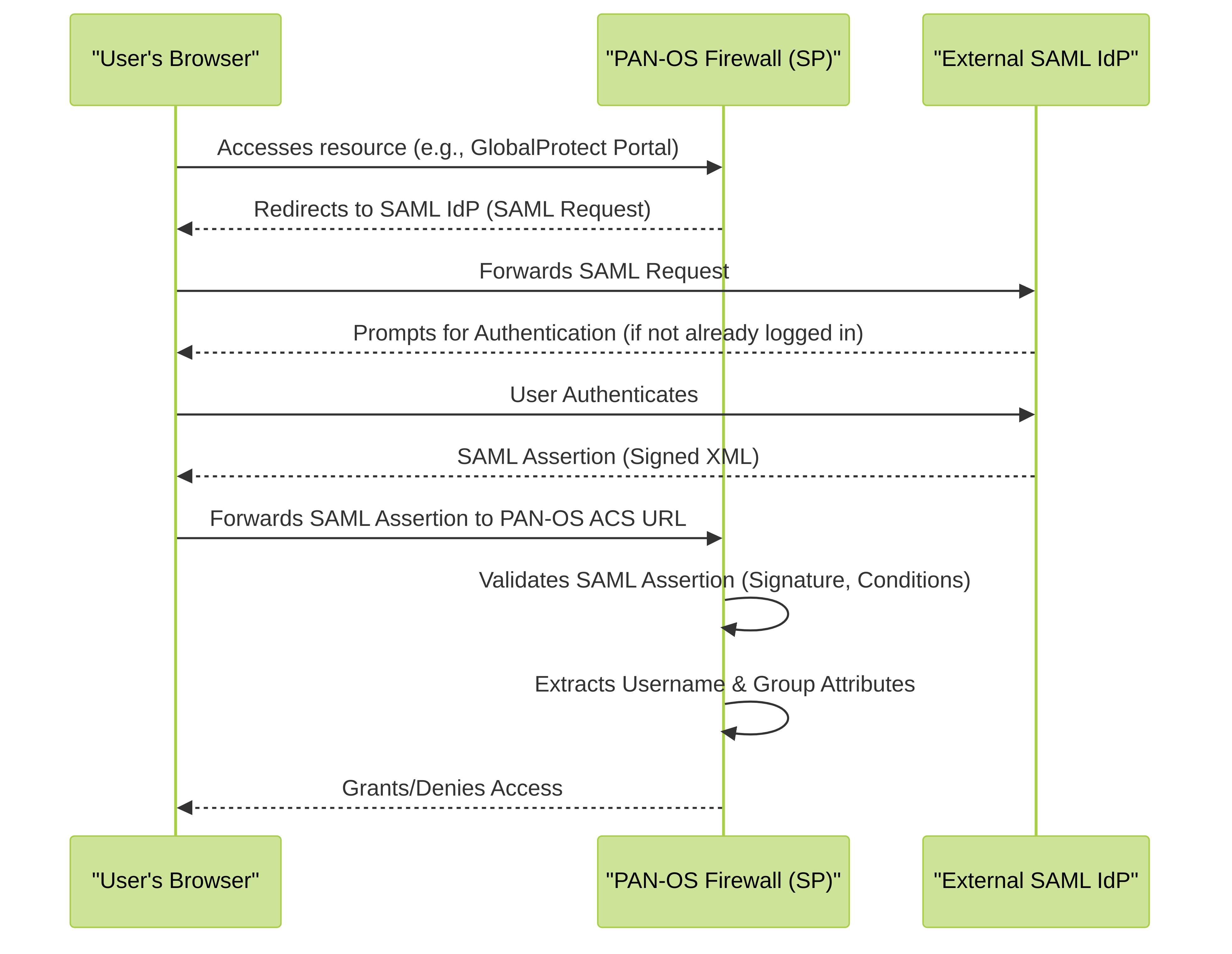

Figure 2: SAML Authentication Flow where PAN-OS acts as a Service Provider (SP). The user is redirected to the external IdP for authentication, and the IdP sends a SAML assertion back to PAN-OS.

Figure 2: SAML Authentication Flow where PAN-OS acts as a Service Provider (SP). The user is redirected to the external IdP for authentication, and the IdP sends a SAML assertion back to PAN-OS.

PCNSE/PCNSA Exam Note (Palo Alto Networks): Understand the roles of SP and IdP. For PAN-OS as SP, you mainly configure how to trust the IdP and interpret its assertions. Common issues involve metadata mismatch, certificate validation errors, and incorrect attribute mapping for username/groups.

Deep Dive: Authentication Profiles in Palo Alto Networks

An Authentication Profile on a Palo Alto Networks firewall ties together a Server Profile (defining how to connect to an authentication server) with specific authentication settings and user/group restrictions. It defines who can authenticate and what credentials or attributes are expected. Authentication Profiles are configured under Device > Authentication Profile .

They are referenced in various PAN-OS features that require user authentication:

Key Authentication Profile Configuration Parameters (PAN-OS):

Parameter Description Palo Alto Networks Context & Best Practice
Name A descriptive name for the profile. Use a name reflecting its purpose and method (e.g., Auth-GP-SAML-Okta , Auth-Admin-LDAP ).
Type Specifies the authentication method (e.g., LDAP , RADIUS , TACACS+ , SAML , Kerberos , Local Database ). This selection dictates which type of Server Profile can be associated.
Server Profile Selects the pre-configured Server Profile that this Authentication Profile will use. This links the "who" and "what" (Authentication Profile) to the "how" (Server Profile).
Login Attribute (for LDAP type) The LDAP attribute used to identify the user during login (e.g., sAMAccountName , userPrincipalName , mail , uid ). Must match what users will enter as their username. sAMAccountName is common for AD. userPrincipalName (UPN) is often used for multi-domain environments.
Username Modifier Modifies the username format before sending it to the authentication server. Options:
  • %USERINPUT% : Sends username as entered.
  • %USERDOMAIN%\%USERINPUT% : Prepends the User Domain from the LDAP Server Profile.
  • %USERINPUT%@%USERDOMAIN% : Appends @UserDomain.
  • Custom: Allows specific prefixes/suffixes.
Crucial for ensuring the username format matches what the authentication server expects (e.g., AD UPN format vs. pre-Windows 2000).
Allow List Specifies which users or groups are permitted to authenticate using this profile. Can be all or a selection of groups (from User-ID group mapping) or individual users. CRITICAL: Best practice is to define a specific allow list rather than using all . This restricts authentication attempts to only authorized personnel. For group-based allow lists, ensure group mapping is working correctly.
Multi-Factor Authentication Tab (if applicable) Allows chaining an MFA server profile (typically RADIUS) for second-factor authentication after primary authentication succeeds. Enables robust MFA for various services.
Advanced Tab: Lockout Settings Configure failed attempt lockouts (Failed Attempts, Lockout Time). Helps prevent brute-force attacks.
Advanced Tab: Timers Cache authentication results for a period (Authentication Cache Timeout). Can improve performance by reducing redundant authentications for the same user.
Gotcha! (Palo Alto Networks): The "Allow List" in an Authentication Profile is a common point of failure. If a user is not part of any group specified in the Allow List (or if the list is empty and not "all"), they will fail authentication even if their credentials are correct and the Server Profile is working. Verify group membership via show user group name on the CLI.
! Example PAN-OS CLI command to test an authentication profile:
> test authentication authentication-profile "Auth-GP-LDAP" username "jdoe" password
Enter password:
Target vsys: vsys1
Authentication type: ldap
Server profile: AD-Primary-LDAP
Authentication server: ldap.example.com
Username for authentication: EXAMPLE\jdoe
Trying to find user 'jdoe' in group 'all'...
User 'jdoe' is a member of the following group(s) :
    cn=globalprotect_users,ou=groups,dc=example,dc=com
    cn=domain users,ou=users,dc=example,dc=com
Authentication successful for user 'jdoe'

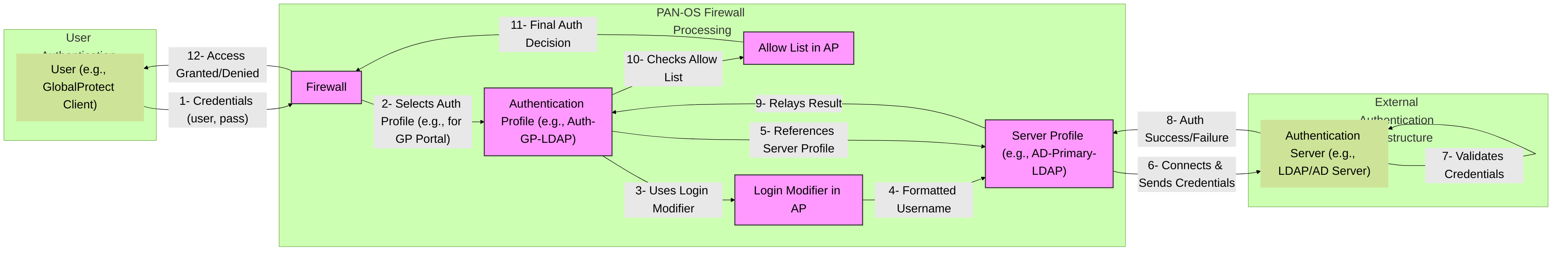

Figure 3: Interaction between Authentication Profile, Server Profile, and external Authentication Server during a user authentication attempt on a Palo Alto Networks firewall. The Authentication Profile orchestrates the process, applying modifiers and checking allow lists.

Figure 3: Interaction between Authentication Profile, Server Profile, and external Authentication Server during a user authentication attempt on a Palo Alto Networks firewall. The Authentication Profile orchestrates the process, applying modifiers and checking allow lists.

Authentication Sequences

Authentication Sequences (configured under Device > Authentication Sequence ) allow you to list multiple Authentication Profiles in an ordered sequence. When an authentication event occurs that uses an Authentication Sequence, the firewall attempts to authenticate the user against each profile in the list, one by one, until authentication succeeds or all profiles have been tried.

Key Features and Use Cases:

Configuration:

PCNSE/PCNSA Exam Note (Palo Alto Networks): Understand how Authentication Sequences are processed: top-down order unless "Use Profile From" criteria match. They are crucial for designing resilient authentication solutions.
Figure 4: Logic flow of an Authentication Sequence in PAN-OS. The firewall attempts authentication against each profile in the defined order until success or exhaustion of profiles.

Figure 4: Logic flow of an Authentication Sequence in PAN-OS. The firewall attempts authentication against each profile in the defined order until success or exhaustion of profiles.

User-ID: The Big Picture with Authentication

Server Profiles and Authentication Profiles are not just for authenticating users accessing firewall services; they are integral to the broader User-ID functionality. User-ID's goal is to map IP addresses to usernames. While methods like User-ID Agents (Windows-based, PAN-OS integrated), Syslog, and API integrations provide many mappings passively, active authentication methods are also key:

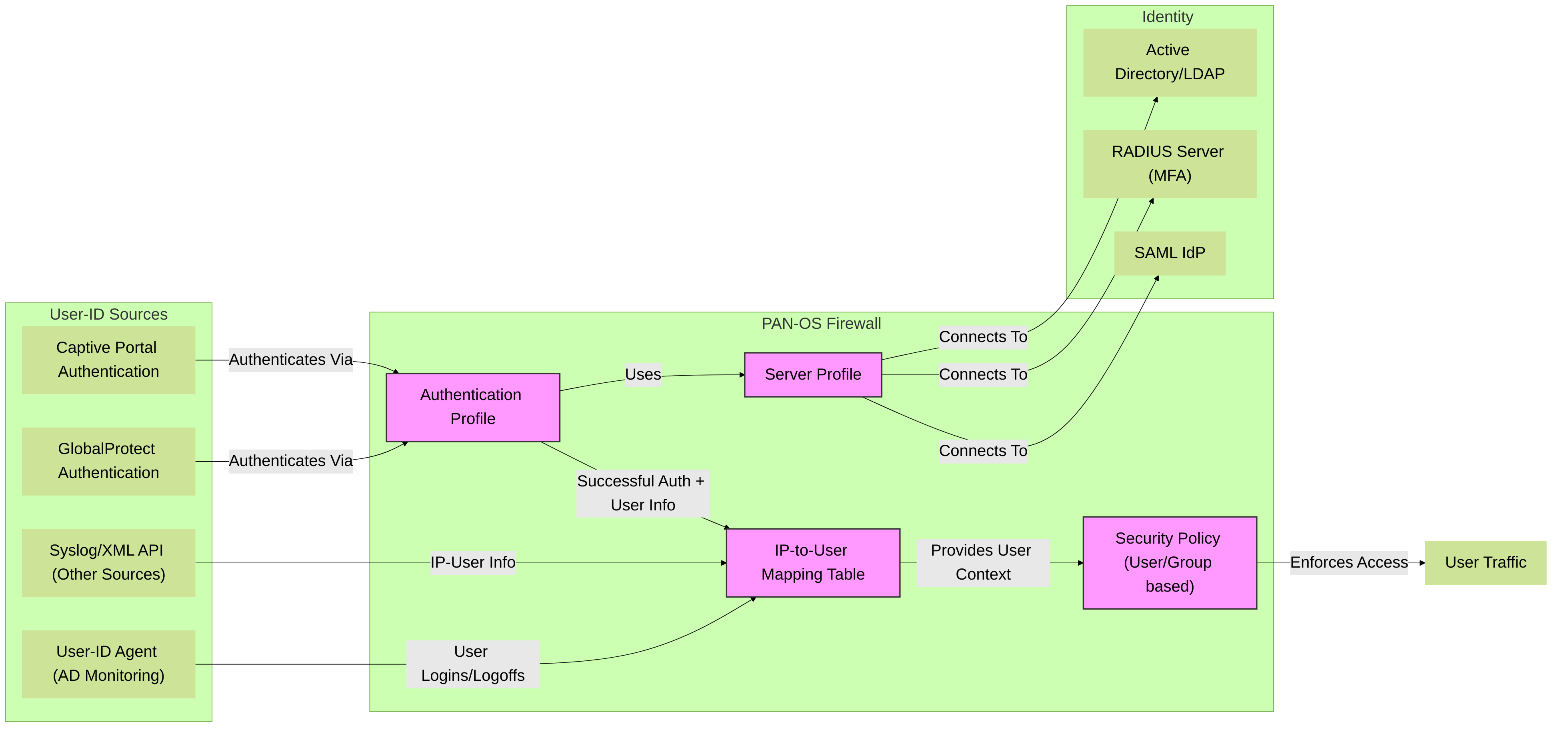

Figure 5: Integration of User-ID sources, Authentication Profiles, and Server Profiles in Palo Alto Networks. Authentication events from GlobalProtect and Captive Portal directly contribute to the IP-to-User mapping table, enabling user-based policy enforcement.

Figure 5: Integration of User-ID sources, Authentication Profiles, and Server Profiles in Palo Alto Networks. Authentication events from GlobalProtect and Captive Portal directly contribute to the IP-to-User mapping table, enabling user-based policy enforcement.

CRITICAL (Palo Alto Networks): Accurate and timely IP-to-user mappings are essential for User-ID. If mappings are stale or incorrect, policies based on users or groups will not function as expected, potentially leading to unauthorized access or blocking legitimate traffic. Authentication Profiles play a vital role in obtaining these mappings for actively authenticated users.

Troubleshooting Server and Authentication Profiles in PAN-OS

Effective troubleshooting involves a systematic approach:

  1. Verify Network Connectivity:
    • Can the firewall reach the authentication server on the required port(s)? (e.g., LDAP 389/636, RADIUS UDP 1812/1813, TACACS+ TCP 49). Use ping and show arp all (for L2 reachability).
    • Are there any intermediate firewalls or ACLs blocking traffic? Check traffic logs on PAN-OS and other devices.
    • For Server Profiles, the firewall typically sources traffic from its management interface. Ensure this interface has proper routing. For GlobalProtect/Captive Portal using data plane interfaces as source for RADIUS/LDAP, ensure service routes are configured if necessary ( Device > Setup > Services > Service Route Configuration ).
  2. Test Server Profile:
    • LDAP: Use test ldap-authentication server-profile <profile_name> ... or test authentication server-profile <profile_name> ... in PAN-OS 10.x+. Check show user server-monitor state name <profile_name> to see server status.
    • RADIUS/TACACS+: No direct "test" command for the server profile itself, but testing an Authentication Profile using it will validate connectivity. Check server status with show user server-monitor state name <profile_name> .
    • Kerberos: Verify keytab is loaded, realm is correct, and time is synchronized ( show clock ).
    • SAML: Check IdP metadata validity, certificate trust, and attribute mapping. Developer tools in browsers can show SAML requests/responses.
  3. Test Authentication Profile:
    • Use the CLI command: test authentication authentication-profile <profile_name> username <username> password . This provides detailed output on which server was tried, username modification, and group checks.
  4. Check Firewall Logs:
    • System Logs ( Monitor > Logs > System ): Look for general errors related to server connectivity or profile misconfigurations.
    • Authentication Logs ( Monitor > Logs > Authentication ): Shows authentication attempts, successes, and failures with reasons. Crucial for diagnosing login issues. Filter by username or auth profile.
    • User-ID Logs ( Monitor > Logs > User-ID ): Shows User-ID agent activity, IP-user mapping updates, and group mapping refreshes. Check for errors related to LDAP group mapping ( useridd.log ).
    • Traffic Logs ( Monitor > Logs > Traffic ): If policies are not behaving as expected, ensure User-ID is correctly identifying the user for the session.
  5. Examine Daemon Logs (CLI - Advanced):
    • less mp-log authd.log : Authentication daemon logs. Very detailed, useful for deep troubleshooting of RADIUS, LDAP, Kerberos, SAML authentication processes.
    • less mp-log useridd.log : User-ID daemon logs. Useful for User-ID agent issues, group mapping problems.
    • less mp-log ikemgr.log (for VPN) / less mp-log gpsvc.log (for GlobalProtect).
  6. Packet Captures (CLI/GUI):
    • If connectivity issues are suspected, take packet captures on the firewall filtered for the authentication server's IP and port. This can reveal TLS handshake failures, incorrect RADIUS secrets, or other network-level problems.
      ! Example: Capture LDAP traffic on management interface
> debug dataplane packet-diag set capture stage firewall file ldap_capture.pcap interface management host  port 636
> debug dataplane packet-diag set capture on
... (reproduce issue) ...
> debug dataplane packet-diag set capture off
! Then view or export the pcap file.
Gotcha! (Palo Alto Networks): When troubleshooting LDAP group mapping for User-ID, ensure the Bind DN account has sufficient permissions to read user attributes (like memberOf or primary group) and group objects across the relevant Base DN. Also, check the Group Include List and User Group Mapping settings under Device > User Identification > Group Mapping Settings . The command show user group list and show user group name " " are invaluable.

Palo Alto Networks Best Practices for Server and Authentication Profiles

PCNSE Knowledge Check: Palo Alto Networks Server & Authentication Profiles

1. An administrator is configuring an LDAP Server Profile on a PAN-OS firewall to integrate with Microsoft Active Directory. Which port should typically be configured for secure LDAP (LDAPS) communication?





2. In a Palo Alto Networks Authentication Profile configured for LDAP, what is the primary purpose of the "Allow List"?





3. Which Palo Alto Networks Server Profile type is most commonly used for integrating with Multi-Factor Authentication (MFA) solutions?





4. A PAN-OS administrator needs to configure Single Sign-On (SSO) for GlobalProtect users using an external Identity Provider like Okta or Azure AD. Which Server Profile type should be configured on the firewall?





5. What is the primary purpose of an Authentication Sequence in PAN-OS?





6. When configuring an LDAP Server Profile for Active Directory, what does the "Bind DN" field represent?





7. A user is trying to authenticate via Captive Portal, which uses an LDAP Authentication Profile. The user enters correct credentials, but authentication fails. The `authd.log` shows "user 'jdoe' not in allow list". What is the most likely cause?





8. Which PAN-OS CLI command is most useful for verifying the operational status and connectivity of a configured LDAP or RADIUS Server Profile?





9. In a SAML authentication flow where PAN-OS is the Service Provider (SP), what information does the firewall typically import from the Identity Provider (IdP)?





10. Which feature in a Palo Alto Networks Authentication Profile helps adapt the format of a username before it's sent to an authentication server, for example, to change "jdoe" to "EXAMPLE\jdoe"?





11. For which primary purpose are TACACS+ Server Profiles used on a Palo Alto Networks firewall?





12. An administrator has configured a Kerberos Server Profile and wants to use it for GlobalProtect authentication. What critical component must be generated on the Key Distribution Center (KDC) and uploaded to the PAN-OS firewall?





13. Which log type on the PAN-OS firewall is most directly useful for troubleshooting issues with user authentication attempts, showing success or failure reasons?





14. What is a common reason for RADIUS authentication to fail between a PAN-OS firewall and a RADIUS server, assuming network connectivity is confirmed?





15. If an LDAP Server Profile on PAN-OS is configured with "SSL/TLS Encrypted Connection" enabled but "Verify Server Certificate" is disabled, what is the security implication?





16. When troubleshooting User-ID group mapping issues with an LDAP Server Profile, which PAN-OS CLI command would you use to see the list of groups known to the firewall and the members of a specific group?





17. A Palo Alto Networks firewall is configured with an Authentication Profile that uses an LDAP Server Profile. Users report that they can log in with username@example.com but not with just username . Which setting in the Authentication Profile most likely needs adjustment?





18. What is the role of the "Service Route Configuration" ( Device > Setup > Services ) in the context of Server Profile communication?





19. You are configuring a SAML IdP Profile on a PAN-OS firewall to integrate with Azure AD for GlobalProtect authentication. After importing Azure AD's metadata, what information from the PAN-OS firewall (acting as SP) must typically be provided to Azure AD?





20. A critical security best practice for configuring the Bind DN in an LDAP Server Profile on a PAN-OS firewall is to:
