Configure BGP in a GRE over IPSec

Objective

Configure BGP in a GRE over IPSec to establish peering between endpoints

Environment

• Palo Alto Firewalls

• PANOS- 9.1 and above

• BGP configuration

• GRE over IPSEC tunnel using loopback

Procedure

1. Configure GRE over IPsec using loopback

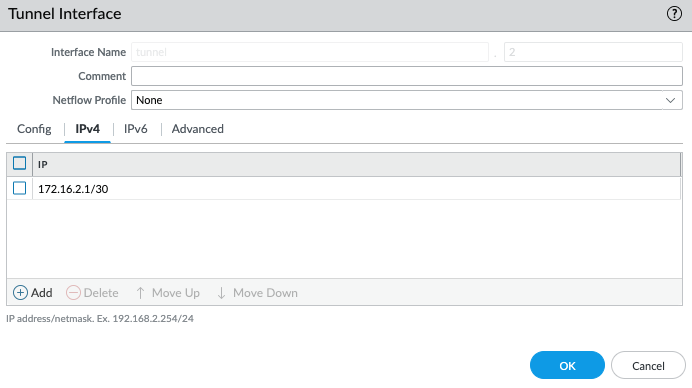

2. Configure IP address to GRE tunnel interface, in our example we are assigning IP address 172.16.2.1 for the local firewall and 172.16.2.2 for the remote side.

3. Navigate to  Network > Interfaces > Tunnel

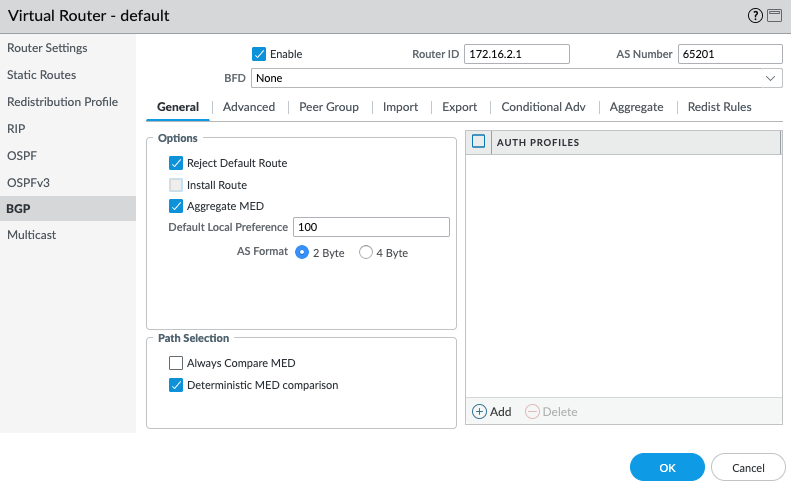

4. Configure BGP on a firewall by using GRE interface for BGP neighborship, navigate to  Network > Virtual Routers > Default > BGP >

   •  Enable BGP, set the AS number (using AS as 65201 and remote as 65200), and provide router ID

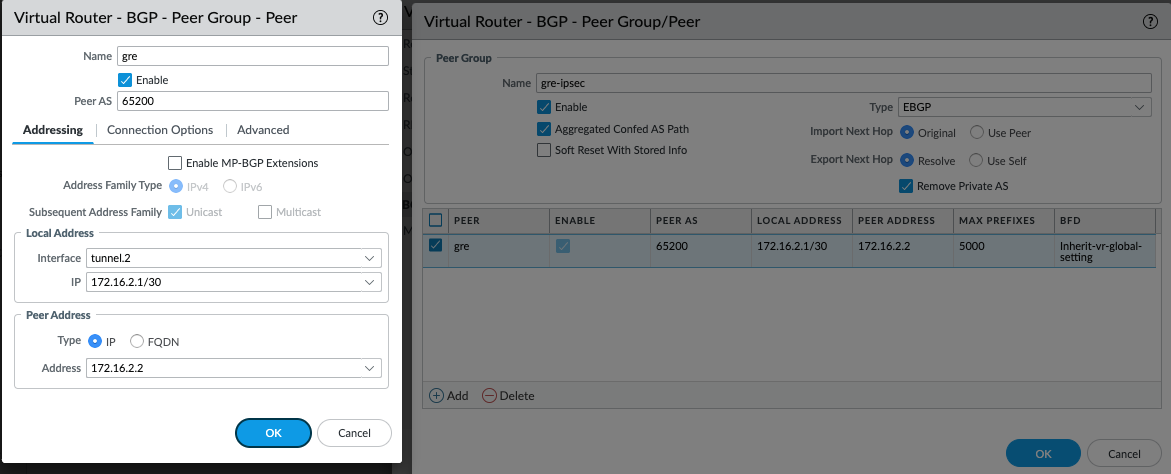

5. Navigate to  Peer Group > Add >  Provide name and click add, give it a name, and select Peer AS 65200 and local address Interface as GRE tunnel interface which is a tunnel.2

• In this example, select GRE interface IP as IP and enter remote peer IP address then click OK and commit.

• Configure the other side accordingly.

6. Verify BGP peering status by running command "show routing protocol bgp peer peer-name <name>"

adminn@PA-FW1> show routing protocol bgp peer peer-name gre

==========

Peer: gre (id 1)

virtual router: default

Peer router id: 172.16.2.2

Remote AS: 65200

Peer group: gre-ipsec (id 1)

Peer status: Established, for 2246 seconds

Password set: no

Passive: no

Multi-hop TTL: 1

Remote Address: 172.16.2.2:179

Local Address: 172.16.2.1:45127
