Comprehensive Guide to PAN-OS IPSec VPN Components

IPSec (Internet Protocol Security) is a suite of protocols used to secure Internet Protocol (IP) communications by authenticating and encrypting each IP packet of a communication session. Palo Alto Networks firewalls implement robust IPSec VPN capabilities, primarily using a route-based approach. This guide details the essential components configured in PAN-OS to establish and manage IPSec VPN tunnels.

Understanding these components is crucial for building secure site-to-site or remote access connections and is a core topic for the PCNSE certification.

IPSec VPN Fundamentals: Two Phases

An IPSec VPN connection is established in two distinct phases:

Phase 1 (IKE - Internet Key Exchange): Establishes a secure, authenticated channel between the two VPN peers (gateways). Its main purpose is to negotiate security parameters and generate shared secret keys for protecting the Phase 2 negotiation. This is often called the IKE Security Association (IKE SA) or Management Connection.
Phase 2 (IPSec): Uses the secure channel created in Phase 1 to negotiate parameters specifically for encrypting and authenticating the actual user data that will flow through the VPN tunnel. Multiple Phase 2 SAs (IPSec SAs) can exist under a single Phase 1 SA, typically one pair (inbound/outbound) for each defined network pair (Proxy ID).

     Understanding the two-phase process is fundamental for troubleshooting. Phase 1 must complete successfully before Phase 2 can begin.

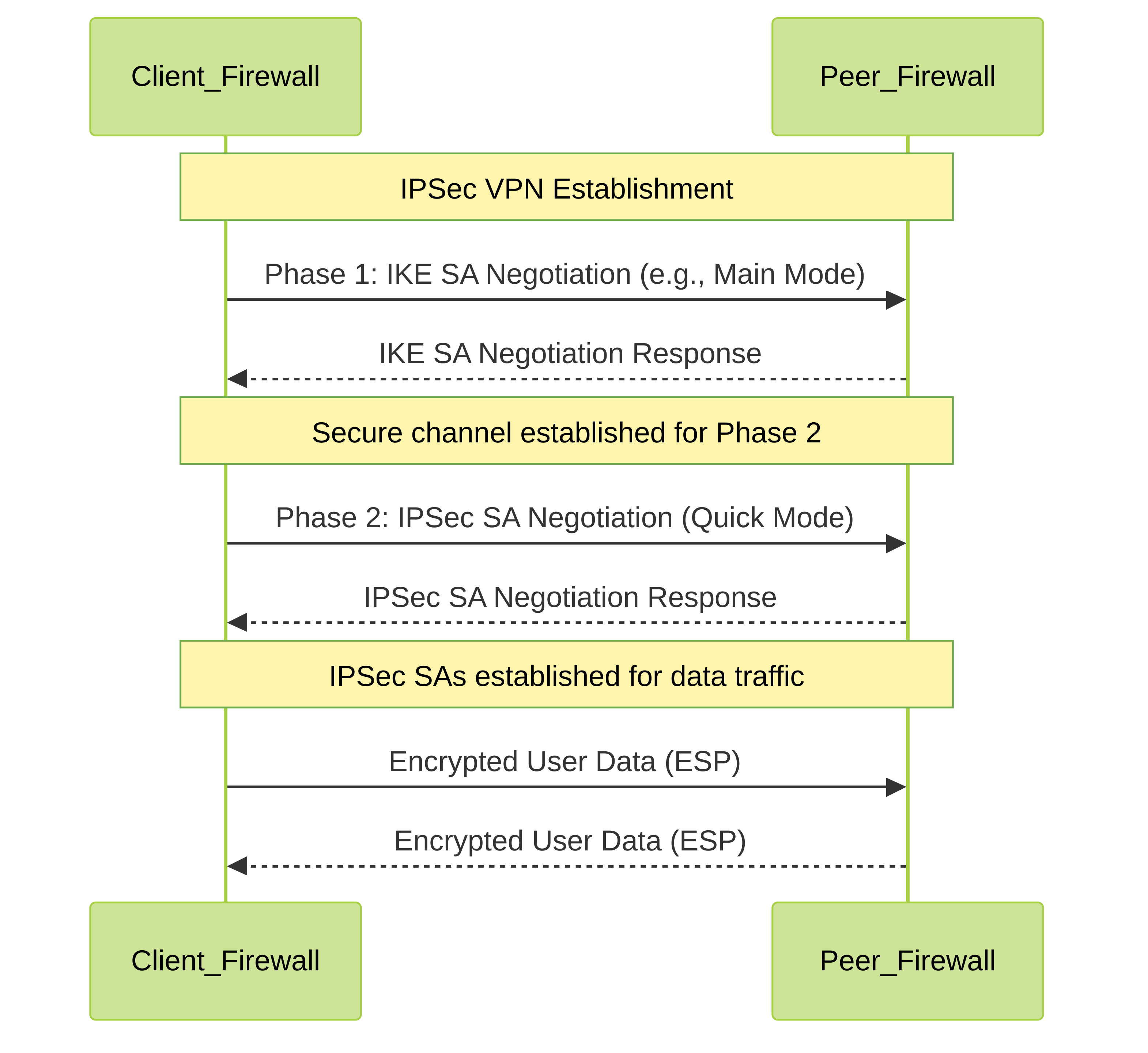

High-level overview of IPSec VPN Phase 1 and Phase 2 establishment.

Phase 1 (IKE) Components: IKE Gateway

The IKE Gateway object defines the parameters for establishing the Phase 1 connection with the remote peer firewall.

Key Configuration Settings:

Name: A unique identifier for the gateway object.
Version:
- IKEv1 : Older version, still widely used.
- IKEv2 : Preferred due to improved security, reliability (built-in keepalives/liveness check), and efficiency (fewer messages).
- IKEv2 preferred mode : Attempts IKEv2 first, falls back to IKEv1 if the peer doesn't support IKEv2.
IKEv2 offers several advantages over IKEv1, including built-in NAT traversal, support for EAP authentication, and greater resilience to network changes (MOBIKE).
Address Type: IPv4 or IPv6.
Interface: The external-facing physical or logical interface on the firewall where VPN traffic originates/terminates.
Local IP Address: The specific IP address on the selected interface to use for IKE negotiation. This is typically the public IP of the firewall.
Peer IP Address Type: Static or Dynamic (for peers with unknown/changing IP addresses).
Peer Address: The public IP address of the remote VPN gateway.
Authentication:
- Pre-Shared Key (PSK) : A secret string known only to the two peers. Simple but less scalable/secure than certificates. Keys must match exactly on both peers.
- Certificate : Uses digital certificates for authentication. More secure and scalable, requires a PKI (Public Key Infrastructure) setup.
Local Identification & Peer Identification: How the firewall identifies itself and expects the peer to identify itself. Options include IP address, FQDN (domain name), User FQDN (email format), or Key ID (ASN.1 DN for certificates).
These *must match* or be acceptable to the peer's configuration on both sides. Mismatches are a common cause of Phase 1 failures. If left as 'None', the IP address of the local/peer gateway is typically used.

IKEv1 Specific Settings:

Exchange Mode:
- Main Mode : (6 messages) Protects identities but is slower.
- Aggressive Mode : (3 messages) Faster but exposes identities; generally less secure. Sometimes needed for dynamic peers or specific clients.
- Auto : Typically defaults to Main Mode. Palo Alto Networks recommends Main Mode.

IKEv2 Specific Settings:

Liveness Check (DPD): Enable Dead Peer Detection (DPD) to detect if the peer is unresponsive. Configure interval and retry values. IKEv2 has this built-in (often just called Liveness Check).
NAT Traversal: Enable if a NAT device exists between the VPN peers. This encapsulates IKE/ESP traffic within UDP port 4500.
NAT Traversal should be enabled when either VPN peer is behind a device performing NAT. This changes the port for IKE from UDP 500 to UDP 4500 after initial contact.
Enable Passive Mode: Forces the firewall to only respond to IKE connections and never initiate them.

      PCNSE Exam Tip:

     Know the differences between IKEv1 and IKEv2, especially regarding message count, NAT-T, and DPD/Liveness Check.

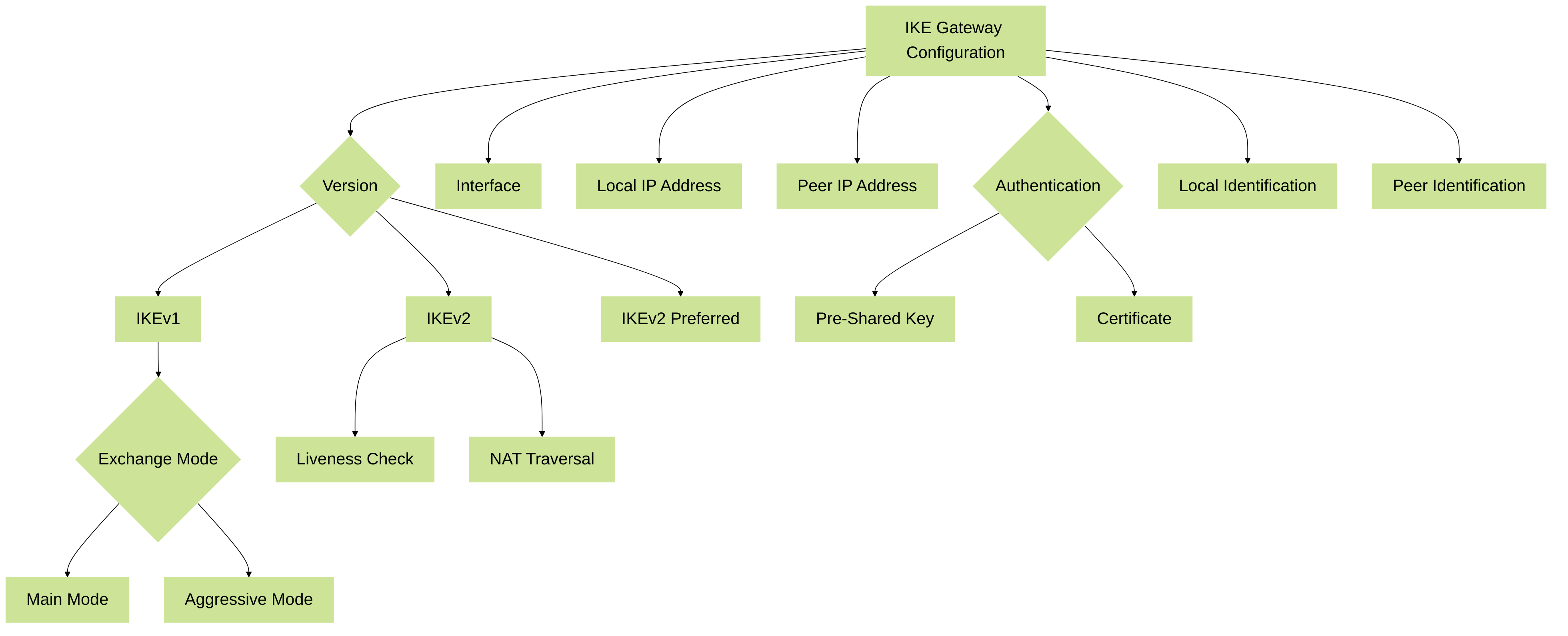

Key parameters for IKE Gateway configuration.

Phase 1 (IKE) Components: IKE Crypto Profile

This profile defines the cryptographic algorithms used to secure the Phase 1 (IKE SA) negotiation itself.

Key Configuration Settings:

Name: A unique identifier for the profile.
DH Group (Diffie-Hellman): Specifies the strength of the key exchange process. Higher groups (e.g., group 14, 19, 20, 21) are more secure. Both peers must support and agree on at least one common group. Multiple can be selected for negotiation.
Authentication: Hashing algorithm used for message integrity (e.g., SHA1, SHA256, SHA384, SHA512). Stronger algorithms like SHA256 or higher are recommended.
Encryption: Algorithm used to encrypt the Phase 1 negotiation (e.g., DES, 3DES, AES-128-CBC, AES-192-CBC, AES-256-CBC, AES-128-GCM, AES-256-GCM). AES (especially GCM variants which combine encryption and authentication) is strongly recommended.
Lifetime: How long the Phase 1 SA remains valid before it must be renegotiated (e.g., 8 hours, 24 hours). Shorter lifetimes increase security but also overhead. Common default is 28800 seconds (8 hours).

     The IKE Crypto Profile settings (DH Group, Authentication, Encryption, and Lifetime) must have at least one common proposal that matches

      exactly

     between the local firewall and the remote peer for Phase 1 to succeed. Mismatched proposals are a primary cause of Phase 1 failures.

      PCNSE Exam Tip:

     Be prepared to identify valid vs. invalid crypto proposals. Stronger DH groups and AES (especially GCM) are preferred. SHA1 is considered weak.

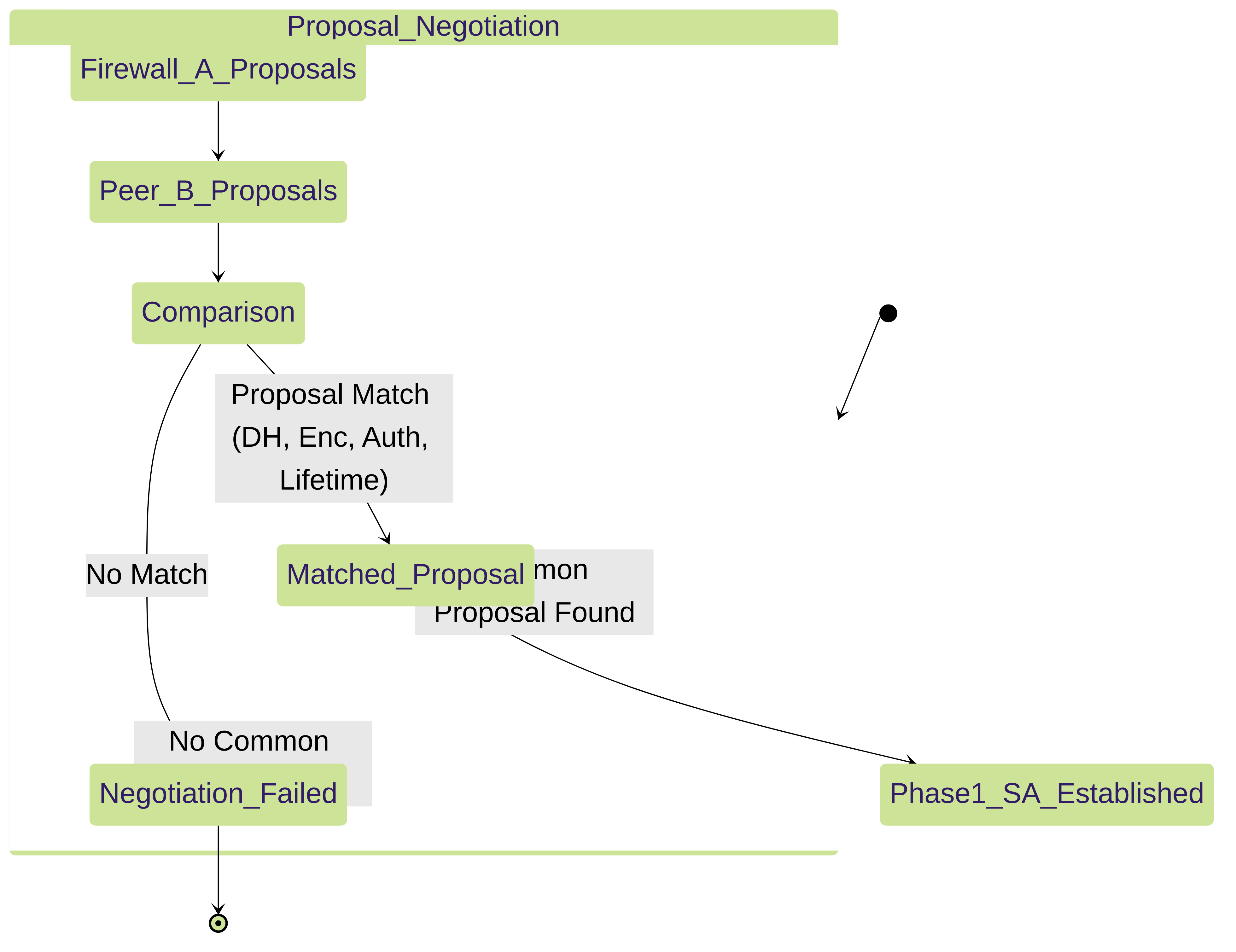

IKE Crypto Profile proposal negotiation leading to Phase 1 SA.

Phase 2 (IPSec) Components: IPSec Crypto Profile

This profile defines the cryptographic algorithms used to secure the actual user data (Phase 2 / IPSec SA).

Key Configuration Settings:

Name: A unique identifier for the profile.
IPSec Protocol:
- ESP (Encapsulating Security Payload) : Provides confidentiality (encryption) and authentication. Most common.
- AH (Authentication Header) : Provides authentication only, no encryption. Rarely used. AH authenticates the entire IP packet, including parts of the IP header, which makes it incompatible with NAT. ESP authentication typically covers the IP datagram.
ESP is overwhelmingly preferred as it provides both encryption and authentication. AH is generally not used because it doesn't offer encryption and is incompatible with NAT.
Encryption: Algorithm used to encrypt user data (e.g., DES, 3DES, AES-128-CBC, AES-192-CBC, AES-256-CBC, AES-128-GCM, AES-256-GCM). A null option provides authentication without encryption if needed (uncommon with ESP). AES (especially GCM) is strongly recommended.
Authentication: Hashing algorithm for data integrity (e.g., MD5, SHA1, SHA256, SHA384, SHA512). SHA256 or higher recommended.
DH Group (PFS - Perfect Forward Secrecy): Optional but highly recommended . If enabled, forces a new Diffie-Hellman exchange for each Phase 2 rekey. This ensures that if a Phase 2 key is compromised, it cannot be used to decrypt previously captured traffic (even if the Phase 1 key was also compromised). Select a strong group (e.g., group14, 19, 20, 21).
If PFS is enabled on one peer, it must be enabled on the other, and they must agree on a DH group. Mismatched PFS settings will cause Phase 2 to fail.
Lifetime: How long the Phase 2 SA remains valid before rekeying (e.g., 1 hour / 3600 seconds). Typically shorter than Phase 1 lifetime. Can also be specified in KBytes.

     Similar to Phase 1, the IPSec Crypto Profile settings (Protocol, Encryption, Authentication, DH Group for PFS, and Lifetime) must have at least one common proposal matching between peers for Phase 2 to succeed.


      PCNSE Exam Tip:

     Understand the purpose of ESP vs. AH, and the critical role of PFS. Be able to identify matching IPSec Crypto proposals.

Phase 2 (IPSec) Components: Tunnel Interface

In PAN-OS's route-based VPN approach, a logical Tunnel Interface is created to represent the VPN connection endpoint on the firewall.

Key Configuration Settings:

Interface Name: Logical name (e.g., tunnel.1, tunnel.10). Must be unique.
Virtual Router: Assign the tunnel interface to a Virtual Router (e.g., default). This allows the firewall to route traffic towards the tunnel.
Security Zone: Assign the tunnel interface to a Security Zone (e.g., VPN-Zone, Trust-VPN). This is crucial for Security Policy enforcement.
IPv4/IPv6 Address (Optional): Assigning an IP address is often done for routing protocol peering (like BGP/OSPF) over the tunnel or for tunnel monitoring, but it's not strictly required for the tunnel to function if static routes are used and tunnel monitoring pings a remote IP.
MTU (Maximum Transmission Unit): Can be adjusted if needed due to IPSec overhead, but default usually works. Palo Alto Networks may recommend specific MTU values like 1427 for some configurations.
IPSec adds overhead (ESP/AH headers, new IP header in tunnel mode). If the resulting packet exceeds the MTU of any link in the path, fragmentation can occur, or packets might be dropped if DF (Don't Fragment) bit is set. Adjusting TCP MSS (Maximum Segment Size) on the firewall can help prevent issues.

     The Tunnel Interface acts like any other interface for routing and policy purposes. Traffic destined for remote VPN networks needs a route pointing to this tunnel interface.


      PCNSE Exam Tip:

     Remember that a Tunnel Interface must be assigned to a Virtual Router and a Security Zone. An IP address is optional for basic static routing but often used for dynamic routing or specific monitoring.

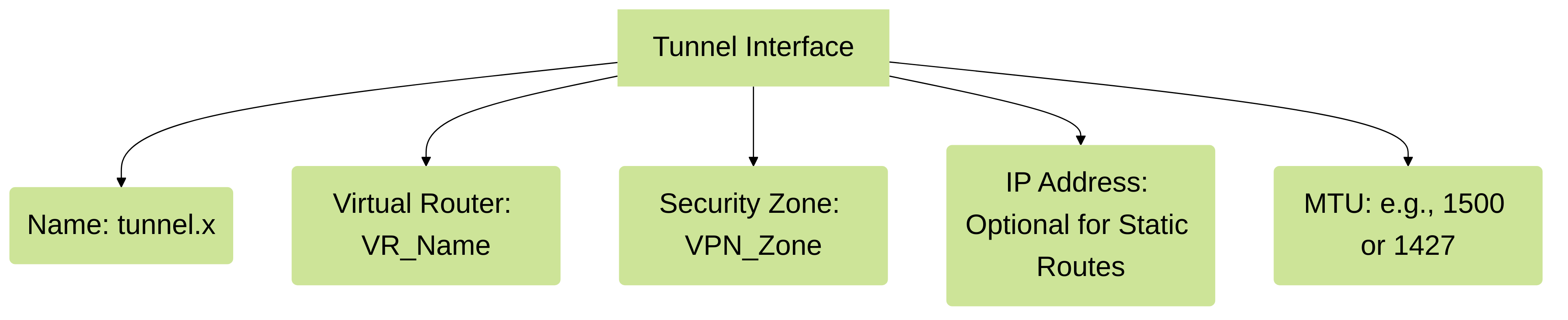

Key attributes of a Tunnel Interface.

Phase 2 (IPSec) Components: IPSec Tunnel (Proxy ID / Traffic Selector Configuration)

The IPSec Tunnel object ties together the IKE Gateway, IPSec Crypto Profile, and the logical Tunnel Interface. It also defines which traffic is allowed through the tunnel using Proxy IDs (also known as Traffic Selectors).

Key Configuration Settings:

Name: A unique identifier for the IPSec tunnel configuration.
Tunnel Interface: Select the logical tunnel interface created earlier (e.g., tunnel.1).
Type: Auto Key (uses IKE) is standard. Manual Key is highly discouraged and generally not used.
IKE Gateway: Select the IKE Gateway object configured for the peer.
IPSec Crypto Profile: Select the IPSec Crypto profile defining Phase 2 parameters.
Proxy IDs (Traffic Selectors): This defines the specific local and remote networks that this IPSec SA will protect.
- Local Network(s): The source IP subnet(s) behind the Palo Alto Networks firewall.
- Remote Network(s): The destination IP subnet(s) behind the remote peer firewall.
- Protocol/Port (Optional): Can further restrict the SA to specific protocols/ports (rarely used in route-based VPNs unless connecting to specific policy-based peers).
PAN-OS Route-Based Default: Often configured with Local: 0.0.0.0/0 and Remote: 0.0.0.0/0 . In this case, the routing table and security policies determine what *actually* goes over the tunnel. This is typical for PAN-to-PAN or PAN-to-route-based peer configurations.

Policy-Based VPN / Specific Needs: If connecting to a peer that requires specific network pairs (like a traditional policy-based VPN device) or if you need multiple SAs for different traffic types, you *must* configure specific, matching Proxy IDs on both ends.
Proxy IDs must be a "mirror image" on both peers. For example, if Firewall A has Local: 192.168.1.0/24 and Remote: 10.0.0.0/24, then Firewall B must have Local: 10.0.0.0/24 and Remote: 192.168.1.0/24.
Mismatched Proxy IDs are a very common cause of Phase 2 failures, often indicated by " IKE phase-2 negotiation failed when processing Proxy ID " messages in logs.

PCNSE Exam Tip: Proxy IDs are critical. For route-based VPNs (PAN-OS default), 0.0.0.0/0 for local and remote is common. When connecting to a policy-based VPN peer, proxy IDs must be specific and be a mirror image of the peer's configuration. If traffic is NATed before entering the VPN, the Proxy ID should reflect the post-NAT IP addresses.
Tunnel Monitor (Optional): Allows the firewall to ping an IP address (typically the peer's tunnel interface IP or an internal IP behind the peer) across the tunnel to verify connectivity. Can trigger failover actions if the destination becomes unreachable.

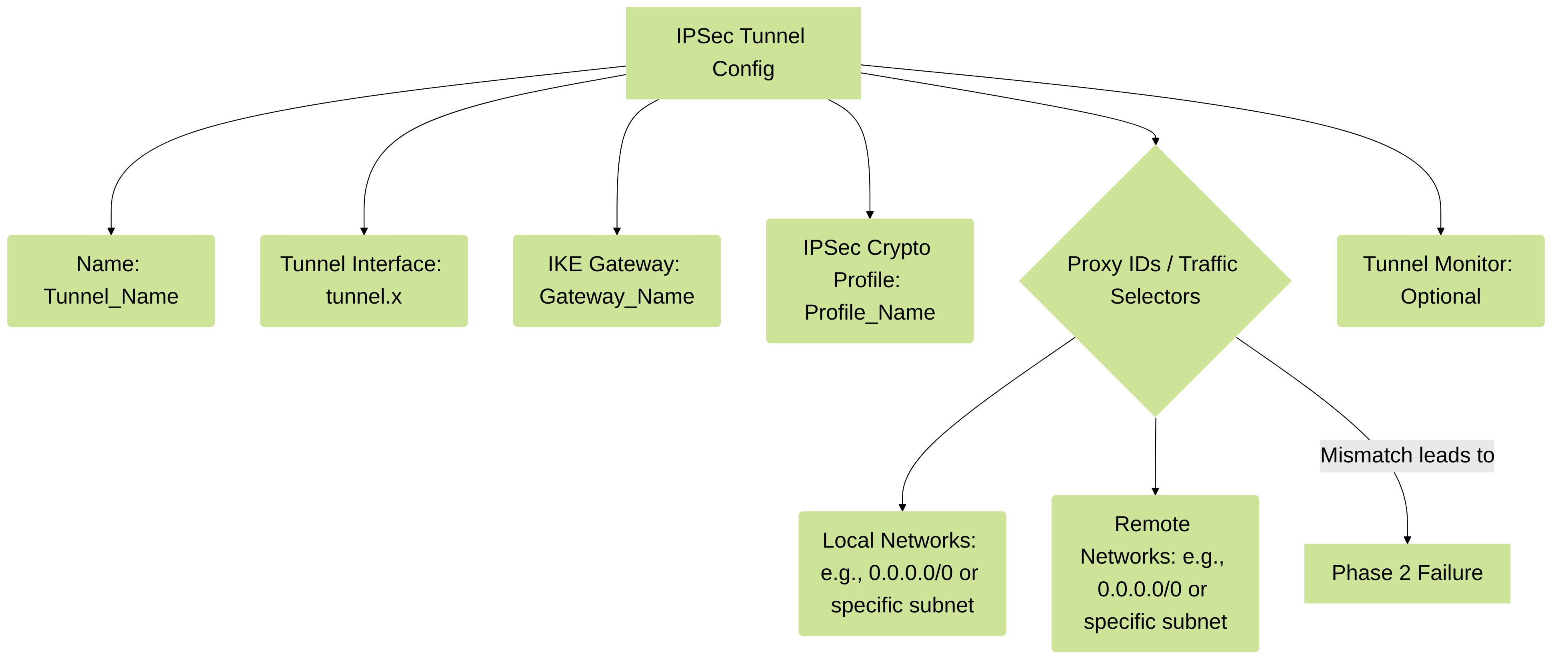

IPSec Tunnel configuration elements and the critical role of Proxy IDs.

Supporting Configuration: Routing

Since PAN-OS uses route-based VPNs, the firewall needs routes to direct traffic destined for the remote network(s) *towards* the logical Tunnel Interface.

Static Routes:

Manually configure routes in the Virtual Router pointing the remote subnet(s) to the appropriate Tunnel Interface. For example: Destination: 10.20.0.0/16 , Interface: tunnel.1 , Next Hop: typically None for a tunnel interface (as the interface itself is the path).

     When using static routes with a tunnel interface, the "Next Hop" is often left as "None" because the tunnel interface itself implies the egress point for that routed traffic.


Dynamic Routing (BGP/OSPF):

Configure a dynamic routing protocol to peer with the remote gateway *over* the tunnel interface. This allows for automatic learning and updating of routes. Often requires IP addresses on the tunnel interfaces to establish peering.

      PCNSE Exam Tip:

     Traffic will not flow over the VPN unless there's a route directing it to the tunnel interface. This is a fundamental concept of route-based VPNs.

Routing decision flow for VPN traffic.

Supporting Configuration: Security Policies

IPSec tunnels terminate in Security Zones. You need Security Policies to explicitly allow traffic to flow between your internal zones and the VPN zone associated with the tunnel interface.

Example Policies:

Outbound Policy:
- From Zone: e.g., Trust
- To Zone: e.g., VPN-Zone (the zone your tunnel interface is in)
- Source Address: Local-Subnets
- Destination Address: Remote-VPN-Subnets
- Application: any (or specific)
- Service: any (or specific, e.g., application-default )
- Action: Allow
Inbound Policy:
- From Zone: e.g., VPN-Zone
- To Zone: e.g., Trust
- Source Address: Remote-VPN-Subnets
- Destination Address: Local-Subnets
- Application: any (or specific)
- Service: any (or specific, e.g., application-default )
- Action: Allow

     Remember, Security Policies match on the

      Pre-NAT

     source and destination IP addresses. If NAT is involved for traffic going *into* the tunnel, ensure your security policies reflect the original addresses.

      PCNSE Exam Tip:

     Just like any other traffic, VPN traffic needs security policies to be permitted. Ensure your zones are correctly identified. Tunnel interfaces reside in their own security zone.

Supporting Configuration: NAT Considerations

NAT Traversal (NAT-T):

Handled by enabling the option in the IKE Gateway settings. This allows IPSec packets (which are normally IP protocol 50 for ESP) to be encapsulated in UDP (typically port 4500 after initial IKE on UDP 500) so they can pass through NAT devices. No specific NAT policy is needed for NAT-T itself to function, but the IKE Gateway must be configured for it if a NAT device is between peers.

     NAT Traversal is essential if either VPN peer is behind a NAT device. It encapsulates IKE and ESP traffic within UDP to allow NAT devices to correctly translate addresses.


No-NAT for VPN Traffic:

Often, you do *not* want to perform NAT on traffic going over the VPN tunnel because you want internal IPs to communicate directly with remote internal IPs. You may need explicit "No NAT" rules in your NAT Policy list *before* any broader outbound NAT rules.

These No-NAT rules would typically match traffic:

Original Packet:
- Source Zone: e.g., Trust
- Destination Zone: e.g., VPN-Zone (or the zone of the tunnel interface)
- Destination Interface: The tunnel interface (e.g., tunnel.1 )
- Source Address: Local internal subnets
- Destination Address: Remote VPN subnets
Translated Packet:
- Source Address Translation: None
- Destination Address Translation: None

     If traffic *is* intended to be NATed before entering the IPSec tunnel (e.g., hiding internal IPs or dealing with overlapping IP schemes), then your Proxy IDs in the IPSec Tunnel configuration must reflect the

      post-NAT

     IP addresses. Security policies, however, still match on pre-NAT IPs. This can be a tricky point.

      PCNSE Exam Tip:

     Understand when NAT-T is needed (device between peers doing NAT). Also, know how to configure No-NAT rules for VPN traffic to ensure original source/destination IPs are maintained within the tunnel, and the implication of NAT on Proxy ID configuration.

IPSec Flow Diagrams

Visualizing the IPSec process can help in understanding and troubleshooting.

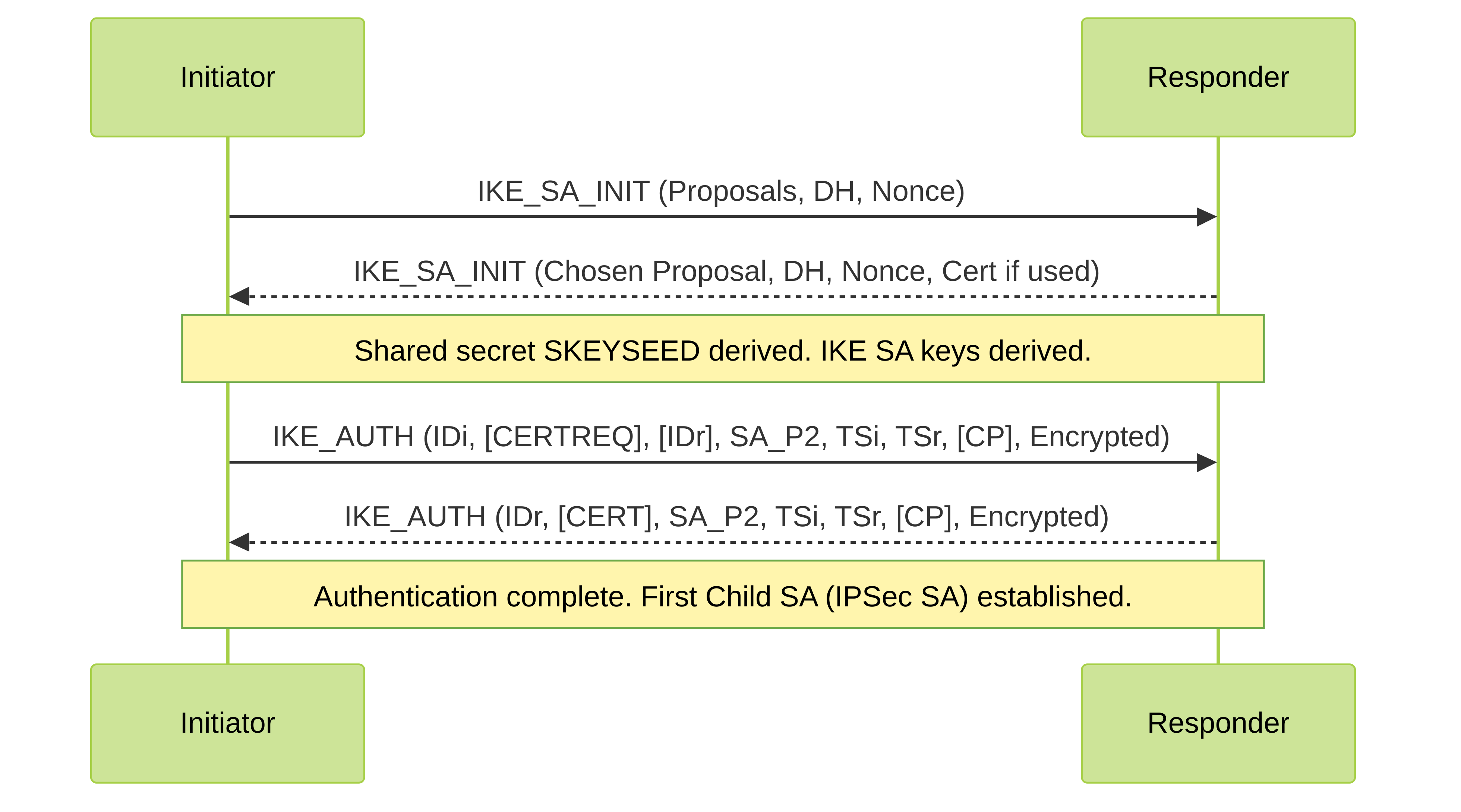

Simplified IKEv2 Negotiation Flow

Simplified IKEv2 4-message exchange for initial IKE SA and first Child (IPSec) SA. IKEv2 is more efficient than IKEv1.

PAN-OS Route-Based VPN Traffic Processing

Simplified traffic flow for outbound traffic through a route-based VPN on PAN-OS.

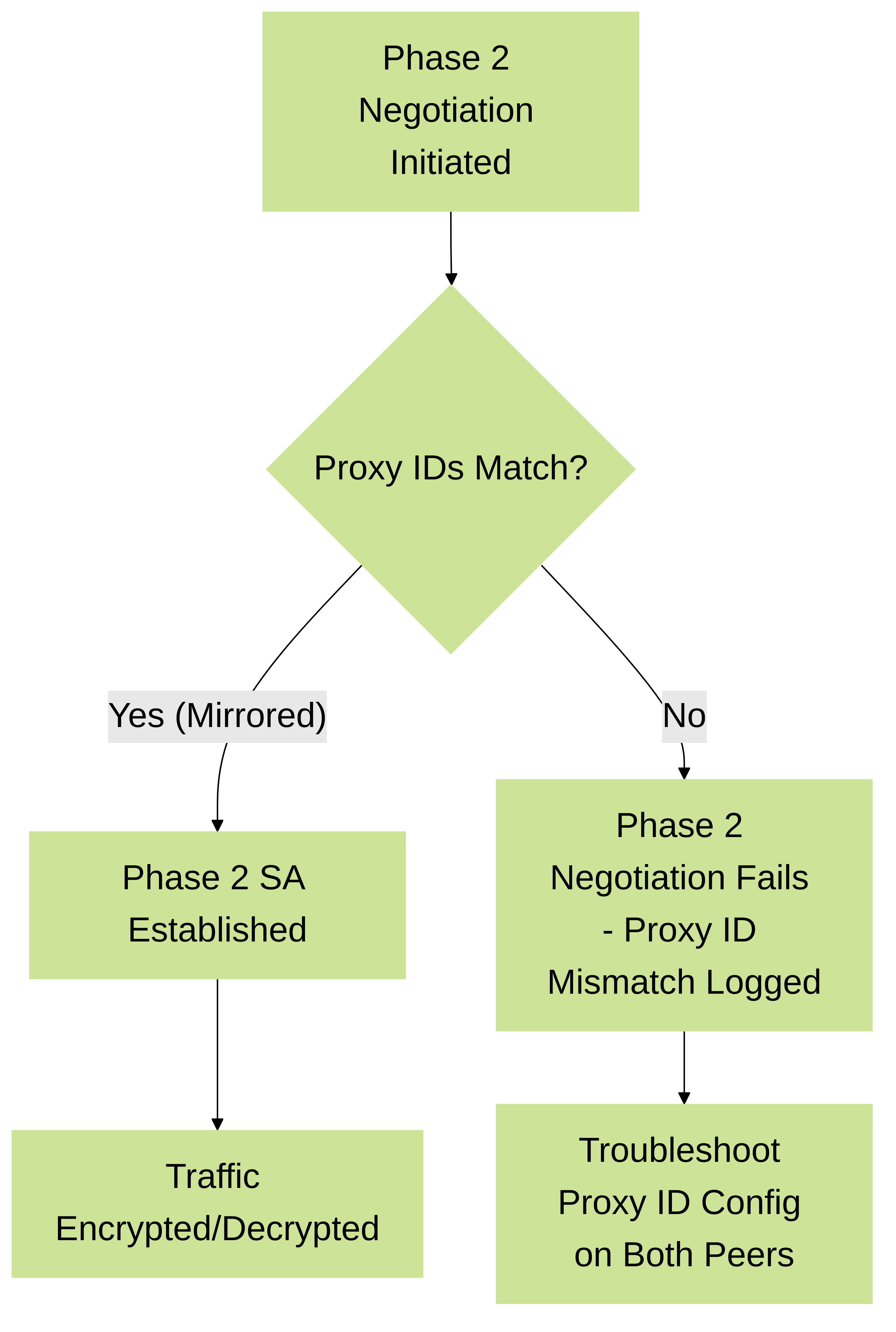

Proxy ID Matching Logic

Proxy ID (Traffic Selector) matching is critical for Phase 2 success.

PCNSE Prep: IPSec VPN Quiz

Test your knowledge of PAN-OS IPSec VPN configurations.

1. Which IKE version is generally preferred for new IPSec VPN configurations on Palo Alto Networks firewalls due to improved security and efficiency?

IKEv1 Aggressive Mode IKEv2 IKEv1 Main Mode Auto (defaults to IKEv1)

2. What is the primary purpose of the IKE Gateway object in a PAN-OS IPSec VPN configuration?

To define the encryption algorithms for user data. To specify the local and remote networks for the VPN tunnel. To define parameters for establishing the Phase 1 (IKE SA) connection with the remote peer. To assign the tunnel interface to a security zone.

3. In an IKE Crypto Profile, which of the following elements must have at least one common proposal matching exactly between peers for Phase 1 to succeed?

DH Group, Encryption, Authentication, and Peer IP Address Encryption, Authentication, Lifetime, and Local Identification DH Group, IPSec Protocol, Authentication, and Lifetime DH Group, Authentication Algorithm, Encryption Algorithm, and Lifetime

4. What is the function of Perfect Forward Secrecy (PFS) in an IPSec Crypto Profile?

Ensures that if a Phase 2 key is compromised, it cannot be used to decrypt previously captured traffic by forcing a new DH exchange for each Phase 2 rekey. Encrypts the Phase 1 negotiation messages. Authenticates the peer gateway using digital certificates. Allows the tunnel to automatically re-establish if the peer becomes unresponsive.

5. In PAN-OS route-based VPNs, what is the typical Proxy ID configuration when connecting to another Palo Alto Networks firewall or a route-based peer?

Local: Specific local subnet, Remote: Specific remote subnet Local: 0.0.0.0/0, Remote: 0.0.0.0/0 Local: Firewall's public IP, Remote: Peer's public IP Proxy IDs are not required for route-based VPNs.

6. A tunnel interface in PAN-OS must be assigned to which two of the following?

A physical interface and an IKE Gateway An IPSec Crypto Profile and a Security Policy A Virtual Router and a Security Zone An IP address and a MAC address

7. If NAT Traversal is enabled in an IKE Gateway configuration, what UDP port is commonly used for IPSec traffic after the initial IKE exchange?

UDP 50 UDP 500 TCP 4500 UDP 4500

8. Which IPSec protocol provides both confidentiality (encryption) and authentication for user data?

ESP (Encapsulating Security Payload) AH (Authentication Header) IKE (Internet Key Exchange) PFS (Perfect Forward Secrecy)

9. What is a common cause of IPSec Phase 2 negotiation failure related to Proxy IDs when connecting to a policy-based VPN peer?

Using 0.0.0.0/0 as the Proxy ID on the Palo Alto Networks firewall. Mismatched Proxy IDs (traffic selectors) that are not a mirror image of each other. Enabling NAT Traversal on the IKE Gateway. Using different IKE versions on the peers.

10. In a route-based VPN on PAN-OS, how does the firewall determine which traffic should be sent over the VPN tunnel?

Based on the Proxy ID configuration exclusively. Based on the source IP address matching the IKE Gateway's local IP. Based on the destination IP address and the routing table directing traffic to the tunnel interface. Based on the application identified in the Security Policy.

11. Which IKEv1 exchange mode protects peer identities during negotiation but requires more messages?

Aggressive Mode Main Mode Quick Mode Secure Mode

12. If an IPSec tunnel is configured between two firewalls and traffic is NATed before entering the tunnel on Firewall A, what IP addresses should be used in Firewall A's Proxy ID configuration for the "Local Network"?

The pre-NAT private IP addresses. The public IP address of Firewall A. 0.0.0.0/0 The post-NAT public IP addresses.

13. What is the primary function of a Tunnel Monitor in a PAN-OS IPSec Tunnel configuration?

To verify connectivity across the tunnel by sending probes (e.g., pings) to a specified IP address. To monitor the cryptographic strength of the tunnel. To log all traffic passing through the tunnel. To enforce rekeying of Phase 1 SAs.

14. Which of the following is a characteristic of the Authentication Header (AH) protocol in IPSec?

It encrypts the entire IP packet. It is compatible with NAT by default. It provides authentication and integrity for the IP packet but no encryption. It is only used in IKEv2.

15. When troubleshooting an IPSec VPN, if Phase 1 completes successfully but Phase 2 fails, where is a likely area to investigate first?

IKE Gateway peer IP address mismatch. IPSec Crypto Profile mismatches or Proxy ID misconfiguration. Incorrect pre-shared key in the IKE Gateway. Firewall rules blocking UDP 500.

16. What does "DPD" refer to in the context of IKEv1, and what is its equivalent in IKEv2?

Dynamic Peer Discovery; Child SA Data Packet Decryption; NAT Traversal Diffie-Hellman Public Key; Rekeying Dead Peer Detection; Liveness Check

17. If a Palo Alto Networks firewall is configured for a route-based VPN and uses 0.0.0.0/0 for local and remote Proxy IDs, what primarily controls which specific networks can communicate over the VPN?

The routing table and Security Policies. The IKE Crypto Profile settings. The Tunnel Monitor configuration. The NAT Traversal setting in the IKE Gateway.

18. Which of these is NOT a valid Local/Peer Identification type in an IKE Gateway?

IP address FQDN (hostname) MAC address User FQDN (email address)

19. Enabling "Passive Mode" in the IKE Gateway configuration on a Palo Alto Networks firewall will cause it to:

Actively initiate IKE negotiations but not respond to them. Only respond to IKE connections initiated by the peer and never initiate them. Use a less secure cryptographic suite for faster connection. Bypass Phase 2 negotiation.

20. Security Policies for allowing traffic through an IPSec tunnel should be configured between which zones?

Untrust to Untrust Trust to Trust The zone of the physical egress interface to the Untrust zone. The internal zone (e.g., Trust) and the Security Zone to which the tunnel interface is assigned.

21. What is a key benefit of using IKEv2 over IKEv1 regarding NAT traversal?

IKEv2 does not require NAT traversal. IKEv1 has mandatory NAT traversal; IKEv2 makes it optional. IKEv2 has built-in NAT traversal functionality, improving compatibility. IKEv2 uses TCP for NAT traversal, while IKEv1 uses UDP.

22. If PFS is enabled in an IPSec Crypto Profile, what additional parameter must be agreed upon by both peers for Phase 2?

The Pre-Shared Key A common DH Group for PFS The IKEv2 Liveness Check interval The MTU size of the tunnel interface

23. A "No NAT" rule for VPN traffic typically sets the translation type for source and destination addresses to:

None Dynamic IP and Port Static IP Translated Address

24. Which of the following statements is TRUE regarding assigning an IP address to a tunnel interface on a Palo Alto Networks firewall?

It is mandatory for all IPSec VPN configurations. It is only required if IKEv1 is used. It prevents the use of static routes for the VPN. It is often required for dynamic routing protocols over the VPN or for tunnel monitoring.

25. What is the typical lifetime setting for Phase 1 SAs compared to Phase 2 SAs?

Phase 1 lifetime is much shorter than Phase 2 lifetime. Phase 1 and Phase 2 lifetimes are always identical. Phase 1 lifetime is typically longer than Phase 2 lifetime. Lifetimes are only configured for IKEv2.

26. If you see log messages indicating "IKE phase-2 negotiation failed when processing Proxy ID", what is the most likely cause?

The pre-shared keys do not match. The local and remote network definitions in the Proxy ID (Traffic Selector) do not correctly mirror each other on both VPN peers. The IKE Crypto Profile lifetimes are different. NAT Traversal is disabled, but a NAT device is present.

27. Which component in PAN-OS ties together the IKE Gateway, IPSec Crypto Profile, and the logical Tunnel Interface?

The IPSec Tunnel configuration object. The Virtual Router. The Security Policy. The IKE Crypto Profile itself.

28. What is the primary advantage of using digital certificates over pre-shared keys for IKE authentication?

Certificates are easier to configure for a small number of tunnels. Certificates encrypt the Phase 1 negotiation, while PSKs do not. Certificates allow for faster Phase 1 SA establishment. Certificates offer greater scalability and security, especially for a large number of VPNs, by leveraging a PKI.

29. If an IPSec VPN tunnel is established, but no traffic is passing, which of the following should be checked on the Palo Alto Networks firewall AFTER verifying tunnel status is green?

IKE Gateway version compatibility. Pre-shared key correctness. Routing to direct traffic to the tunnel interface and Security Policies allowing the traffic. DH Group selection in the IKE Crypto Profile.

30. What does PAN-OS use as its primary VPN implementation method?

Route-based VPN Policy-based VPN SSL VPN only Manual Key IPSec

31. In IKEv2, how many messages are typically exchanged to establish the initial IKE SA and the first child SA (IPSec SA)?

2 messages 4 messages 6 messages (Main Mode equivalent) 9 messages

32. What is the purpose of selecting multiple DH groups in an IKE Crypto Profile?

To use all selected DH groups simultaneously for increased key strength. To force the peer to use the highest DH group listed. To offer a list of supported DH groups, allowing the peers to negotiate and select one common group. This is not a valid configuration; only one DH group can be selected.

33. Which of these is a common reason to adjust the MTU on a tunnel interface?

To increase the speed of the VPN tunnel. To match the peer's public IP address. To enable dynamic routing protocols. To account for IPSec overhead and prevent fragmentation issues.

34. If an IKEv1 negotiation uses Aggressive Mode, what is a potential security concern?

Peer identities are exchanged in the clear before a secure channel is established. It does not support Pre-Shared Keys. It is slower than Main Mode. It cannot be used with NAT Traversal.

35. If Security Policies are correctly configured to allow traffic from Trust to VPN-Zone, but VPN traffic is still blocked, what other policy type might be missing or misconfigured for traffic exiting the firewall towards the VPN?

Decryption Policy NAT Policy (e.g., a conflicting outbound NAT rule placed before a No-NAT rule for VPN traffic) Application Override Policy QoS Policy

36. What is the term for the specific local and remote networks that an IPSec SA will protect, configured within the IPSec Tunnel object?

Security Associations IKE Gateways Proxy IDs (or Traffic Selectors) Tunnel Interfaces

37. Which of these Diffie-Hellman groups is generally considered stronger and more secure for IKE and PFS?

Group 1 Group 2 Group 5 Group 14 (or higher, like 19, 20, 21)

38. If a Palo Alto Networks firewall is connecting to a third-party policy-based VPN device that requires specific network pairs, what must be configured carefully on the Palo Alto side?

Specific Proxy IDs that mirror the policy-based peer's configuration. The IKE Gateway must be set to IKEv1 Aggressive Mode. NAT Traversal must be disabled. The tunnel interface must not have an IP address.

39. In the context of an IPSec Crypto Profile, what does "ESP" stand for?

Enhanced Security Protocol Encapsulating Security Payload External Session Protection Encrypted Service Packet

40. Palo Alto Networks firewalls support which mode for IPSec VPN, according to documentation?

Transport mode only Both Tunnel mode and Transport mode equally Tunnel mode (Transport mode is not supported for IPSec VPN). Neither, it uses a proprietary mode.

41. What is a common symptom if the pre-shared keys do not match exactly between IKE peers?

Phase 2 will fail, but Phase 1 will complete. Phase 1 negotiation will fail, often with timeout errors or authentication failures. The tunnel will come up, but data will not be encrypted. Proxy IDs will be rejected.

42. Which feature of IKEv2 allows VPN connections to be maintained even if the user's device changes IP addresses (e.g., switching from Wi-Fi to cellular)?

NAT Traversal EAP Authentication Liveness Check MOBIKE (MObility and Multihoming Protocol for IKEv2)

43. When configuring a static route for VPN traffic, what is typically entered as the "Next Hop" when the interface is a tunnel interface?

None (or left blank, as the tunnel interface itself implies the path) The IP address of the remote peer's tunnel interface The IP address of the local firewall's physical egress interface The name of the IKE Gateway

44. If ESP is used with AES-GCM (Galois/Counter Mode) encryption, what is a key characteristic of GCM mode?

It provides encryption only and requires a separate authentication algorithm like SHA256. It is an older, less secure form of AES. It is an Authenticated Encryption with Associated Data (AEAD) algorithm, providing both encryption and authentication in a single process. It is primarily used for IKE Phase 1, not Phase 2.

45. What is a primary reason for using shorter lifetimes for IPSec SAs (Phase 2)?

To reduce CPU overhead on the firewall. To enhance security by limiting the amount of data encrypted with a single key and forcing more frequent rekeys. To simplify the Proxy ID negotiation process. To allow for faster tunnel establishment.

46. If a firewall log shows "encapsulation bytes are increasing and decapsulation is constant" for an IPSec tunnel, what might this indicate?

The tunnel is operating normally. The firewall is receiving traffic but not sending. Phase 1 negotiation is stuck. The firewall is sending encrypted packets, but not receiving (or decrypting) packets from the peer.

47. When using certificates for IKE authentication, what infrastructure is typically required?

A Public Key Infrastructure (PKI) including a Certificate Authority (CA). A RADIUS server. An LDAP server. A syslog server for certificate logging.

48. Which of the following is NOT an advantage of IKEv2 over IKEv1?

Fewer messages to establish a tunnel. Built-in NAT-T functionality. Support for symmetric authentication only. Support for EAP authentication.

49. If a VPN peer requires Proxy IDs of Local: 10.1.1.0/24 and Remote: 172.16.1.0/24, what should the Palo Alto Networks firewall configure for its Proxy IDs to match?

Local: 10.1.1.0/24, Remote: 172.16.1.0/24 Local: 172.16.1.0/24, Remote: 10.1.1.0/24 Local: 0.0.0.0/0, Remote: 0.0.0.0/0 Local: 10.1.1.1, Remote: 172.16.1.1

50. What is the command line interface (CLI) command on PAN-OS to clear active IKE Security Associations?


         clear session all filter vpn-name <name>


         debug ike gateway clear


         restart vpn process


         clear vpn ike-sa

Correct Answer: D
The command


        clear vpn ike-sa

is used to clear active IKE (Phase 1) Security Associations. To clear IPSec (Phase 2) SAs, you would use


        clear vpn ipsec-sa
