Destination NAT on Palo Alto Networks Next-Generation Firewalls: A Comprehensive Guide

Welcome to this in-depth guide on Destination Network Address Translation (DNAT) as implemented on Palo Alto Networks Next-Generation Firewalls (NGFWs). This document is designed for network security engineers, administrators, and PCNSE aspirants seeking a thorough understanding of DNAT concepts, configuration, and troubleshooting within the PAN-OS ecosystem.
PCNSE/PCNSA Exam Note (Palo Alto Networks): Understanding NAT, particularly the distinction between Source NAT and Destination NAT, and how NAT policies interact with Security policies, is fundamental for both PCNSE and PCNSA exams. Pay close attention to the packet flow, policy evaluation order, and the IP addresses/zones used in different policy types.

1. Core Concept and Purpose of Destination NAT

In the context of Palo Alto Networks firewalls, **Destination NAT (DNAT)** is a mechanism that modifies the destination IP address and/or port of incoming packets as they pass through the firewall. It allows external (typically public) IP addresses and ports to be translated to internal (typically private) IP addresses and ports, enabling external users to access services hosted on internal servers.

Primary Purpose:

Differentiation from Source NAT (SNAT):

Typical Traffic Flow with Destination NAT:

  1. An external client initiates a connection to a public IP address and port (e.g., 203.0.113.10:80 ) that is managed by the Palo Alto Networks firewall.
  2. The packet arrives at the firewall's external-facing interface (e.g., in the "Untrust" zone).
  3. The firewall's packet processing engine evaluates NAT policies before Security policies for new sessions.
  4. If a matching DNAT rule is found:
    • The destination IP address in the packet header is changed from the public IP ( 203.0.113.10 ) to the private IP of the internal server (e.g., 192.168.1.100 ).
    • Optionally, the destination port can also be changed (e.g., from public port 80 to internal port 8080 ).
  5. The packet, now with its modified destination, is then evaluated by Security policies. The Security policy must allow traffic to the original (public) destination IP but use the post-NAT destination zone (the zone where the internal server resides, e.g., "DMZ" or "Trust").
  6. If allowed by the Security policy, the packet is forwarded to the internal server.
  7. Return traffic from the internal server back to the external client automatically undergoes the reverse NAT translation (private IP to public IP for the source address of the return packet) because the firewall maintains a session table entry for the translation.
Diagram illustrating a typical Destination NAT traffic flow for accessing an internal web server through a Palo Alto Networks firewall. Note the NAT policy application before the Security policy check, and how the Security policy uses the original destination IP but the post-NAT destination zone.

Diagram illustrating a typical Destination NAT traffic flow for accessing an internal web server through a Palo Alto Networks firewall. Note the NAT policy application before the Security policy check, and how the Security policy uses the original destination IP but the post-NAT destination zone.

2. Common Use Cases for Destination NAT

Destination NAT is a cornerstone for enabling secure access to internal resources. Here are some common use cases:

  1. Exposing an Internal Web Server to the Internet:

    • Scenario: Your company hosts its public website on an internal web server (e.g., Apache or IIS) with a private IP address (e.g., 192.168.10.50 ) in your DMZ zone. You want to make this website accessible via your company's public IP address (e.g., 203.0.113.20 ) on standard HTTP (port 80) and HTTPS (port 443) ports.
    • How DNAT Solves It: A DNAT rule is configured on the Palo Alto Networks firewall.
      • When an external user browses to http://203.0.113.20 , the firewall receives the packet.
      • The DNAT rule matches on destination IP 203.0.113.20 and destination port 80 .
      • It translates the destination IP to 192.168.10.50 and keeps the port as 80 (or translates it if needed).
      • A corresponding Security policy allows this traffic from the "Untrust" zone to the "DMZ" zone, destined for 203.0.113.20 on port 80 .
    • Original Destination: IP 203.0.113.20 , Port 80 (or 443 for HTTPS)
    • Translated Destination: IP 192.168.10.50 , Port 80 (or 443 )

  2. Providing Remote Desktop (RDP) Access to an Internal Server:

    • Scenario: An administrator needs to access an internal Windows server (e.g., 10.0.5.15 ) via RDP (TCP port 3389) from their home office. For security, you might want to expose RDP on a non-standard public port (e.g., TCP 33389) while the internal server listens on the standard 3389.
    • How DNAT Solves It:
      • A DNAT rule translates incoming connections on public IP 203.0.113.25 and port 33389 to the internal server's IP 10.0.5.15 and port 3389 .
      • This involves both IP address translation and port translation (Port Address Translation - PAT, a form of DNAT).
    • Original Destination: IP 203.0.113.25 , Port 33389
    • Translated Destination: IP 10.0.5.15 , Port 3389
    Gotcha! (Palo Alto Networks): When exposing services like RDP, always ensure your Security Policies are as restrictive as possible (e.g., limit source IPs if feasible, apply strong authentication, and use Threat Prevention profiles). Exposing RDP directly to the internet, even with DNAT, is a significant security risk if not properly secured.

  3. Mapping Different Public Ports to Different Internal Servers/Services on the Same Public IP:

    • Scenario: You have only one public IP address (e.g., 203.0.113.30 ) but need to host multiple services. For example, a web server on port 80, an FTP server on port 21, and a custom application on port 9000.
    • How DNAT Solves It: Multiple DNAT rules are created, each mapping a specific public port on the shared public IP to a different internal server or service.
      • Rule 1: 203.0.113.30:80 (public) -> 192.168.1.10:80 (internal web server)
      • Rule 2: 203.0.113.30:21 (public) -> 192.168.1.11:21 (internal FTP server)
      • Rule 3: 203.0.113.30:9000 (public) -> 192.168.1.12:8080 (internal custom app, with port translation)
    • Original Destination: IP 203.0.113.30 , Ports 80, 21, 9000 (handled by separate rules)
    • Translated Destination: IPs 192.168.1.10, 192.168.1.11, 192.168.1.12 , Ports 80, 21, 8080 respectively

  4. Basic Load Distribution to Multiple Internal Servers (Static Round Robin-like behavior with Dynamic IP Translation):

    • Scenario: You have two identical web servers ( 10.1.1.100 and 10.1.1.101 ) and want to distribute incoming web traffic from public IP 203.0.113.40 to them. While Palo Alto Networks offers more advanced load balancing features, a simple form of distribution can be achieved with DNAT.
    • How DNAT Solves It: A DNAT rule is configured using "Dynamic IP" as the translated address type, with a pool containing the IPs of the internal servers.
      • When "Dynamic IP" is used in DNAT, PAN-OS can distribute new sessions across the IPs in the pool. Note: This is not true session-based load balancing with health checks. It's a simpler distribution. For robust load balancing, dedicated solutions or the firewall's more advanced features should be considered.
    • Original Destination: IP 203.0.113.40 , Port 80/443
    • Translated Destination: Pool containing 10.1.1.100 and 10.1.1.101 , Port 80/443 . New sessions are assigned to an IP from the pool.
      • PCNSE/PCNSA Exam Note (Palo Alto Networks): While DNAT can use a pool of translated addresses (Dynamic IP), this is less common for typical DNAT scenarios compared to "Static IP" translation. Be clear on when "Static IP" vs. "Dynamic IP" translated types are used in NAT policies. DIPP is almost exclusively for Source NAT.

  5. U-Turn NAT: Accessing an Internal Server using its Public IP from the Internal Network

    • Scenario: Internal users (e.g., in the "Trust" zone) need to access an internal server (e.g., in the "DMZ" zone) using its public FQDN or IP address (e.g., www.example.com which resolves to 203.0.113.50 ). Without U-Turn NAT, this traffic might be hairpinned by an upstream router or blocked if internal routing doesn't allow it.
    • How DNAT Solves It (in conjunction with SNAT): U-Turn NAT is a combination of DNAT and SNAT.
      1. An internal client ( 192.168.1.50 ) tries to connect to 203.0.113.50 .
      2. A DNAT rule translates the destination 203.0.113.50 to the server's private IP (e.g., 10.10.10.5 ).
      3. Crucially, a second NAT rule (SNAT) is needed to translate the source IP of the internal client ( 192.168.1.50 ) to an IP address on the firewall (often the firewall's interface IP in the server's zone, e.g., 10.10.10.1 ). This ensures the server sends return traffic back to the firewall, which can then perform the reverse NAT and send it to the client. Without this SNAT, the server would see the original internal client IP and might try to respond directly, bypassing the firewall for the return path and breaking the session.
    • Original Client Request: Source 192.168.1.50 , Destination 203.0.113.50
    • After DNAT: Source 192.168.1.50 , Destination 10.10.10.5
    • After SNAT (U-Turn): Source 10.10.10.1 (firewall IP), Destination 10.10.10.5
    Simplified U-Turn NAT flow. An internal client accesses an internal server using its public IP. Both DNAT and SNAT are required for the session to establish correctly through the firewall.

    Simplified U-Turn NAT flow. An internal client accesses an internal server using its public IP. Both DNAT and SNAT are required for the session to establish correctly through the firewall.

3. Configuration Details and Steps (GUI & CLI)

Configuring Destination NAT on a Palo Alto Networks firewall is primarily done through NAT Policy rules.

NAT Policy Configuration (GUI Focus)

Navigate to **Policies > NAT** in the PAN-OS GUI. NAT rules are evaluated top-down, like Security policies.

Steps to Configure a Destination NAT Policy:

  1. Click **"Add"** at the bottom of the NAT Policy page.
  2. The NAT Policy Rule window opens. Configure the following tabs:

A. General Tab:

B. Original Packet Tab: This tab defines the characteristics of the incoming packet that will trigger this NAT rule.

C. Translated Packet Tab: This tab defines how the packet's destination (and sometimes source for bi-directional) is modified.

Once configured, click **"OK"** and then **"Commit"** the changes to the firewall.

CLI Equivalents (Brief Overview)

While GUI is preferred for configuration, CLI can be used for verification and advanced troubleshooting. Configuring complex NAT rules via CLI is less common but possible.

Example: Viewing NAT rules (PAN-OS CLI in configuration mode)

# In configuration mode
show rulebase nat

Example: Creating a very basic Static DNAT rule (conceptual CLI structure, syntax may vary slightly based on PAN-OS version and specific parameters). This is more complex to do fully via CLI compared to GUI.

# In configuration mode
set rulebase nat rules <RULE_NAME> from <SOURCE_ZONE>
set rulebase nat rules <RULE_NAME> source <SOURCE_IP_OBJECT_OR_ANY>
set rulebase nat rules <RULE_NAME> to <DESTINATION_ZONE_OF_PUBLIC_IP>
set rulebase nat rules <RULE_NAME> destination <PUBLIC_IP_OBJECT>
set rulebase nat rules <RULE_NAME> service <SERVICE_OBJECT_OR_ANY>
set rulebase nat rules <RULE_NAME> to-interface <INCOMING_INTERFACE_OR_ANY>
set rulebase nat rules <RULE_NAME> description "My DNAT Rule"

set rulebase nat rules <RULE_NAME> destination-translation translated-address <PRIVATE_IP_OBJECT>
set rulebase nat rules <RULE_NAME> destination-translation translated-type static-ip
# For port translation (optional):
# set rulebase nat rules <RULE_NAME> destination-translation translated-port <PORT_NUMBER>

# For bi-directional (optional):
# set rulebase nat rules <RULE_NAME> bi-directional yes

The `set` commands are used in configuration mode. Use `show` commands in operational mode to view status.

Considerations for Dynamic IP Translated Addresses (for DNAT)

As mentioned, using "Dynamic IP" for the translated address in a DNAT rule means the firewall will pick an IP from a configured pool of internal addresses for new incoming sessions. This can provide a rudimentary form of load distribution or resiliency if one server in the pool goes down (though without health checks, traffic might still be sent to a down server until sessions time out).

CRITICAL (Palo Alto Networks): Remember that NAT rules are evaluated based on the first match . The order of NAT rules is crucial, especially if you have overlapping conditions. More specific rules should generally be placed above more generic rules.

4. Security Policy Interaction

Understanding how Destination NAT policies interact with Security policies is one of the most critical aspects of configuring a Palo Alto Networks firewall and a common point of confusion.
PCNSE/PCNSA Exam Note (Palo Alto Networks): This is a frequently tested concept. You MUST know which IP addresses and zones to use in your Security Policies when NAT is involved.

For traffic undergoing Destination NAT (e.g., an external user accessing an internal server):

Clear Example:

The corresponding Security Policy rule should be:

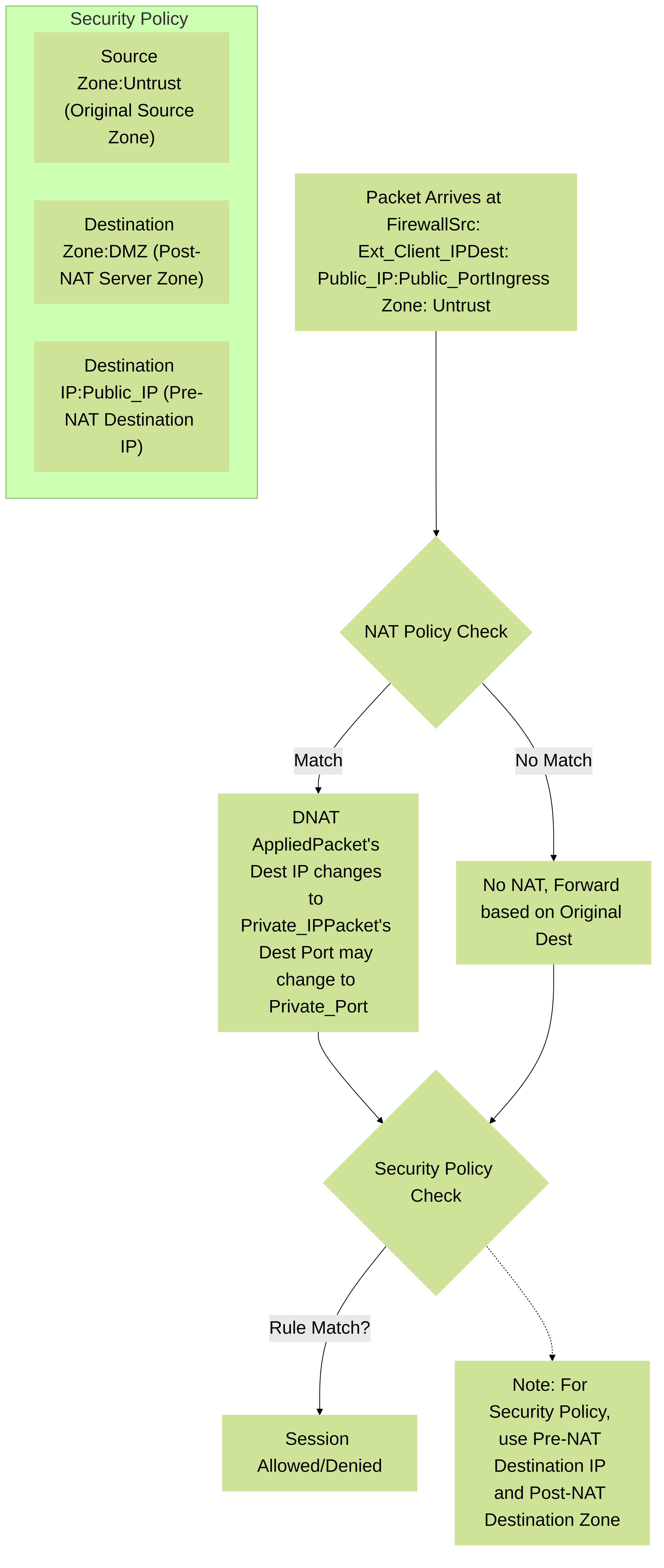

Diagram illustrating the interaction between NAT and Security Policies. For inbound DNAT traffic, the Security Policy uses the original (pre-NAT) destination IP address but the final (post-NAT) destination zone.

Diagram illustrating the interaction between NAT and Security Policies. For inbound DNAT traffic, the Security Policy uses the original (pre-NAT) destination IP address but the final (post-NAT) destination zone.

Gotcha! (Palo Alto Networks): A common mistake is to use the internal private IP address in the Destination Address field of the Security Policy rule for DNATted traffic. This is incorrect; the Security Policy must use the original, public destination IP. Using the private IP will cause the Security Policy rule to never match for inbound DNAT traffic.

5. Best Practices for Destination NAT Configuration

Adhering to best practices ensures your DNAT configurations are secure, efficient, and maintainable.
  1. Be Specific with Original Destination IPs:
    • Instead of using "any" for the "Destination Address" in the Original Packet tab of your NAT rule, always specify the exact public IP address(es) that are being NATted. This prevents unintended NATting of other traffic.
  2. Service Specificity:
    • In the "Service" field of the Original Packet tab, define the specific service(s) (e.g., TCP/80, TCP/443, TCP/3389) that should trigger the DNAT rule. Avoid using "any" or "application-default" unless absolutely necessary and fully understood. This limits the attack surface.
  3. Security Policy Alignment:
    • Always create or verify a corresponding Security Policy rule that allows the intended traffic post-NAT. Remember the "Pre-NAT Destination IP, Post-NAT Destination Zone" rule for Security policies.
    • Apply appropriate Security Profiles (Antivirus, Anti-Spyware, Vulnerability Protection, URL Filtering, File Blocking, WildFire) to the allowing Security Policy rule to inspect the DNATted traffic.
  4. Naming Conventions:
    • Use clear and consistent naming conventions for NAT rules, Address Objects, and Service Objects. For example: dnat_WebServer_Ext_to_DMZ , addr_Public_WebServer_IP , addr_Private_WebServer_IP . This greatly improves readability and troubleshooting.
  5. Regularly Review and Audit NAT Rules:
    • Periodically review your NAT rulebase to remove outdated or unnecessary rules. Unneeded NAT rules, especially DNAT, can pose security risks if they expose internal systems unintentionally.
  6. Use FQDN Objects for Translated Addresses Cautiously:
    • While you can use FQDN address objects for the "Translated Address" (internal server), be aware of DNS resolution dependencies. The firewall must be able to resolve the FQDN to an IP address. IP address objects are generally more reliable for the translated server IP unless the server's IP changes frequently and DNS is always up-to-date. If an FQDN resolves to multiple IPs, behavior might vary based on PAN-OS version and context (it might use the first resolved IP or a set).
  7. Logging and Monitoring NAT Rule Hits:
    • While NAT rules themselves don't have direct logging options like Security policies, you monitor their usage by checking session logs (which show NAT applied) and traffic logs (which show security policy hits associated with NATted flows). You can also use the `show counter global filter aspect nat` CLI command to see NAT rule hit counts. For Panorama, log forwarding from firewalls provides centralized visibility.
  8. Limit Source Addresses When Possible:
    • In the "Source Address" field of the Original Packet tab in the NAT rule (and corresponding Security Policy), if access to the internal service should be restricted to specific external IPs or regions, configure this accordingly. This reduces exposure.
  9. Consider Bi-Directional NAT Carefully:
    • Only enable bi-directional NAT if there's a specific requirement for the internal server to initiate traffic back to the original external client using the public IP as its source. For general outbound internet access from the server, use a separate SNAT rule.
  10. Zone and Interface Specificity:
    • Be specific with Source Zone, Destination Zone (original), and Destination Interface in the NAT rule to ensure it only applies to traffic from expected sources and arriving on expected interfaces.

6. Troubleshooting Common Destination NAT Issues

Troubleshooting DNAT involves checking configurations, logs, and packet flows.

  1. Problem: Connection Fails - Traffic Not Reaching Internal Server

    • Incorrect Security Policy:
      • Symptom: Traffic logs show "deny" or "drop" by the default deny rule or an explicit block rule. Session table might show no session or session in DISCARD state.
      • Troubleshooting:
        • Verify the Security Policy uses the pre-NAT (public) destination IP and the post-NAT (internal server's) destination zone .
        • Ensure the service/application in the Security Policy matches the traffic.
        • Check source zone/address in the Security Policy.
        • Look at Traffic logs (Monitor > Logs > Traffic) filtering by the public IP and port.
    • NAT Rule Not Matching:
      • Symptom: External client cannot connect. Traffic logs might show traffic hitting the public IP but no NAT applied in session details, or the session fails.
      • Troubleshooting:
        • Use the CLI command: test nat-policy-match source <client_ip> destination <public_ip> protocol <tcp_or_udp_num> destination-port <public_port> source-zone <untrust_zone> destination-zone <untrust_zone_for_public_ip> . This command simulates packet flow and tells you which NAT rule (if any) would match.
          # Example:
test nat-policy-match source 1.2.3.4 destination 203.0.113.10 protocol 6 destination-port 80 source-zone Untrust destination-zone Untrust
        • Verify all parameters in the "Original Packet" tab of the NAT rule: Source Zone, Destination Zone (of the public IP), Destination Interface, Service, Source Address, and especially Destination Address (public IP). A mismatch in any of these can cause the rule not to trigger.
        • Check NAT rule order. A more general rule above your specific DNAT rule might be matching first.
    • Translated IP/Port Incorrect or Service Not Listening on Internal Server:
      • Symptom: NAT is applied (visible in session details), Security Policy allows, but connection still fails or times out.
      • Troubleshooting:
        • Verify the "Translated Address" and "Translated Port" in the NAT rule's "Translated Packet" tab are correct for the internal server.
        • Ensure the internal server is actually listening on the translated IP and port. Use tools like `netstat` on the server.
        • Check for any host-based firewalls on the internal server that might be blocking the connection.
        • Perform a packet capture on the firewall (Monitor > Packet Capture) on the internal interface connecting to the server to see if packets are being sent to the server and if the server is responding.
    • Routing Issues for the Translated IP:
      • Symptom: Firewall correctly NATs and forwards the packet, but the internal server cannot send return traffic back to the firewall, or the firewall cannot route to the internal server.
      • Troubleshooting:
        • Ensure the internal server has a route back to the firewall for the source IP of the external client (or a default gateway pointing to the firewall's internal interface in the server's subnet). This is critical. If the server's gateway is not the Palo Alto Networks firewall, U-Turn NAT or Policy Based Forwarding might be needed for return traffic to ensure symmetry.
        • Verify the firewall has a connected or static route to the subnet of the translated (internal server) IP address.
    • Session Table Shows Incorrect NAT Behavior:
      • Symptom: Connection issues, unexpected behavior.
      • Troubleshooting:
        • Use the CLI command show session id <session_id> to inspect a specific session. Look for "dst translated" or "src translated" flags and the translated IP/ports.
          # First, find the session ID, e.g., by destination IP:
show session all filter destination-ip 203.0.113.10 destination-port 80
# Then view details:
show session id 12345
        • If " इफ्लक्स इंटरफ़ेस NAT है (is NAT-src) " or " एग्रेस इंटरफ़ेस NAT है (is NAT-dst) " flags are unexpected, it points to NAT rule issues.
    • Global NAT Counters:
      • Symptom: Suspect NAT is not occurring at all or for specific rule.
      • Troubleshooting:
        • Use CLI: show counter global filter aspect nat . This shows various NAT-related counters, including per-rule packet and session counts (if supported clearly for specific rules in your PAN-OS version - often more general counters). This can help determine if any NAT rule is being hit.
        • debug nat-policy-match can provide verbose logging for NAT policy matching but is resource-intensive and should be used cautiously in production.
CRITICAL (Palo Alto Networks): When troubleshooting NAT, always check both the NAT policy and the Security policy. They work in tandem. A misconfiguration in one will break the intended traffic flow even if the other is correct.

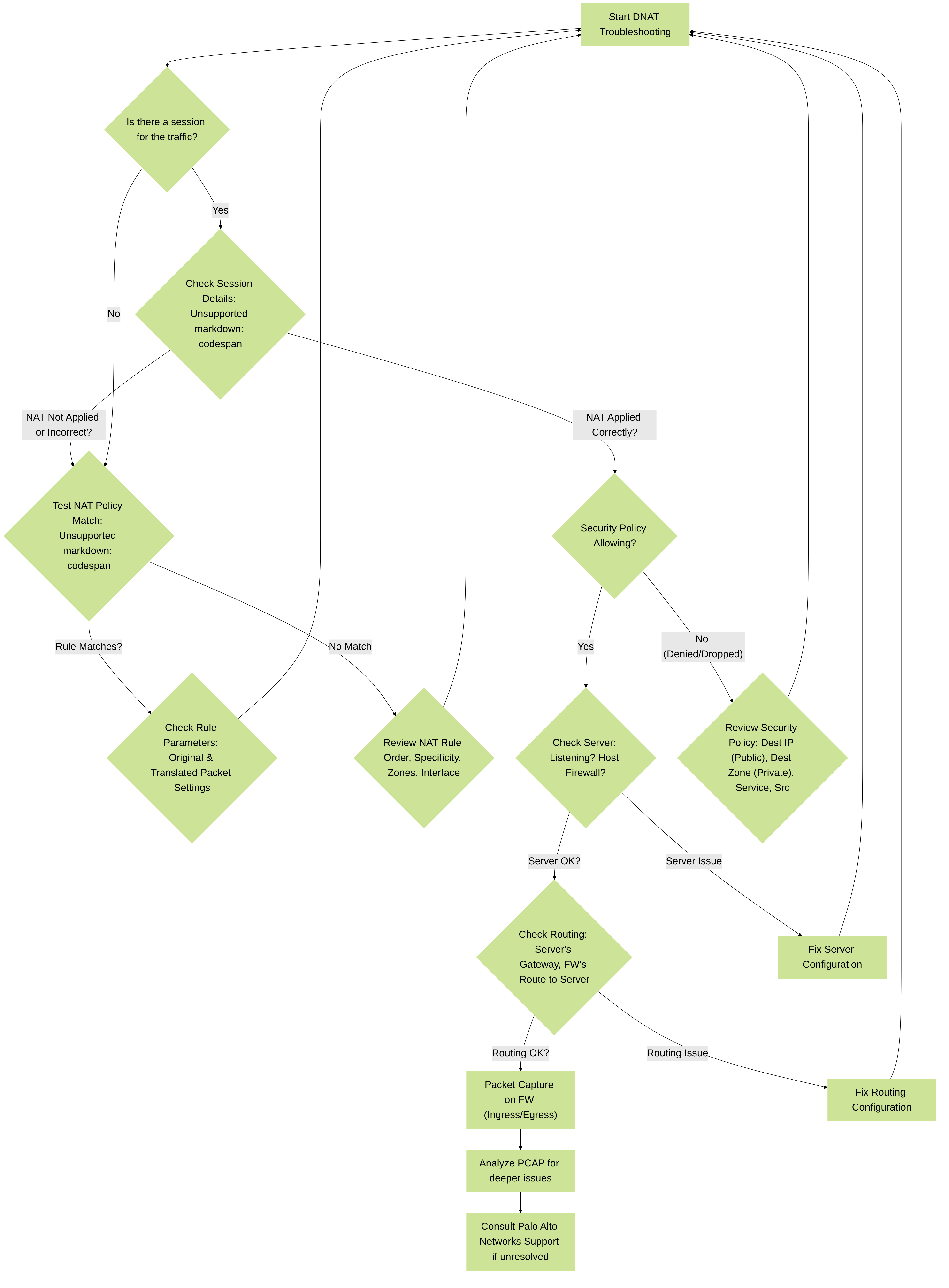

A decision tree for troubleshooting common Destination NAT issues on Palo Alto Networks firewalls.

A decision tree for troubleshooting common Destination NAT issues on Palo Alto Networks firewalls.

7. Advanced Considerations

While the core DNAT concepts cover most scenarios, some advanced topics might arise: This comprehensive guide covers the essentials and many intricacies of Destination NAT on Palo Alto Networks firewalls. Mastering DNAT is key to effectively leveraging your NGFW for secure service publication and is a vital skill for any Palo Alto Networks security professional.

PCNSE Knowledge Check: Palo Alto Networks Destination NAT

1. When configuring a Security Policy for inbound traffic that is subject to Destination NAT (DNAT), which IP address and zone should be used in the Destination fields of the Security Policy rule?





2. What is the primary purpose of the "Bi-directional" option in a Palo Alto Networks DNAT rule?





3. An administrator wants to expose an internal web server (10.1.1.5:80) to the internet via public IP 203.0.113.100, but wants external users to connect to port 8080 on the public IP. Which NAT configuration elements are essential?





4. Which PAN-OS CLI command is most directly used to verify if a hypothetical packet would match a specific NAT policy rule?





5. In a NAT policy rule on a Palo Alto Networks firewall, what does the "Destination Zone" field in the "Original Packet" tab refer to?





6. What is a common symptom if a DNAT rule is correctly configured, but the corresponding Security Policy rule uses the post-NAT (private) IP address in its destination field?





7. For U-Turn NAT to function correctly on a Palo Alto Networks firewall, allowing an internal client to access an internal server using its public IP, which NAT components are typically required?





8. Which "Translated Packet" type is most commonly used for a standard Destination NAT rule that maps one public IP to one private IP for an internal server?





9. If a Destination NAT rule includes port translation (e.g., public port 8443 to internal server port 443), what service object should be specified in the "Service" field of the "Original Packet" tab?





10. When troubleshooting a failing DNAT connection, traffic logs show the session is allowed by the correct Security Policy, and session details (`show session id`) confirm NAT is applied. What is a likely next area to investigate?





11. Which of the following is a Palo Alto Networks best practice for DNAT configuration?





12. You configure a DNAT rule to translate public IP 203.0.113.70 to private IP 10.0.0.7. The internal server 10.0.0.7 is in the 'DMZ' zone. The public IP 203.0.113.70 is associated with the 'Untrust' zone. What should be the Destination Zone in the Security Policy that allows this traffic?





13. If a DNAT rule uses "Dynamic IP" as the Translation Type with a pool of three internal server IPs, how does the Palo Alto Networks firewall typically distribute new sessions to these servers?





14. An administrator observes that a DNAT rule for RDP access is not working. The `test nat-policy-match` command shows "no matching rule". Which tab in the NAT policy rule is most likely misconfigured?





15. What is a potential issue if an internal server, targeted by a DNAT rule, does NOT have the Palo Alto Networks firewall as its default gateway and no other measures are taken for return traffic?





16. In a Palo Alto Networks firewall, where are NAT policies evaluated in the packet flow sequence for a new session?





17. You have a public web server IP 203.0.113.10 DNATted to internal server 192.168.1.10. Users complain that accessing `http://203.0.113.10` works, but `https://203.0.113.10` does not. Both services run on the internal server. What is a likely cause related to NAT/Security policies?





18. Using an FQDN address object (e.g., `server.internal.domain`) as the "Translated Address" in a DNAT rule relies on what firewall capability?





19. Which NAT type on Palo Alto Networks firewalls modifies the destination IP address of incoming packets to allow external access to internal resources?





20. A DNAT rule exists for `203.0.113.20:443` -> `10.1.1.20:443`. The server `10.1.1.20` is in `DMZ-Zone`. The external connection originates from `Untrust-Zone`. A Security rule is configured as: SrcZone: `Untrust-Zone`, DstZone: `DMZ-Zone`, DstIP: `10.1.1.20`, Svc: `tcp-443`, Action: `Allow`. Why might connections fail?
