Understanding NPTv6 on Palo Alto Networks Firewalls (PCNSE Focus)

NPTv6 (Network Prefix Translation for IPv6), formally defined in RFC 6296, offers a distinct approach to IPv6 address translation compared to traditional NAT or NAT64.

As IPv6 adoption grows, understanding NPTv6 becomes increasingly important for network engineers. For the PCNSE exam, familiarity with its concepts, configuration on PAN-OS, use cases, and key differences from other NAT mechanisms is essential.

     PCNSE candidates should grasp the stateless nature of NPTv6, its focus on prefix translation only (preserving the host ID), its common use cases (multi-homing, renumbering), how it's configured via NAT policies in PAN-OS, and its interaction with security policies.


What is NPTv6?

NPTv6 is an IPv6-to-IPv6 Network Prefix Translation mechanism. Its core goal is to translate one IPv6 prefix to another while leaving the Interface Identifier (host portion) of the address unchanged.

Key Characteristics:

Stateless (Checksum-Neutral Algorithm): NPTv6 uses an algorithmic approach to translate prefixes. This algorithm is designed to be "checksum-neutral," meaning the IPv6 header checksum calculation remains valid after the prefix translation, reducing the need for the translating device (firewall) to recalculate it. While the firewall still tracks sessions for security policy enforcement, the NPTv6 translation itself doesn't require per-session state in the same way as traditional NAT.
1:1 Address Mapping: Every address within the original internal prefix maps uniquely to a corresponding address within the translated external prefix, and vice versa. There is no address overloading or pooling.
Prefix Translation Only: Only the network bits (defined by the prefix length, e.g., /48 or /64) are modified. The remaining bits, representing the host's Interface Identifier, are copied directly.
No Port Translation: NPTv6 operates purely at the IP layer and does *not* modify TCP/UDP port numbers.
Transport Agnostic: Because it only modifies the IP prefix and maintains checksum validity, it generally doesn't interfere with transport layer protocols (TCP, UDP, ICMPv6) or higher-layer protocols that might embed address information (unlike some forms of traditional NAT).

     NPTv6 aims to maintain the "addressability" aspect of the end-to-end principle, allowing internal hosts to be uniquely represented externally, even if the public prefix changes.


Key Differences: NPTv6 vs. NAT44/NAT64

Understanding how NPTv6 differs from more familiar NAT mechanisms is crucial:

Feature	NPTv6	NAT44 (PAT/DIPP)	NAT64 (NAPT64)
Translation Type	IPv6 Prefix <-> IPv6 Prefix	IPv4 Address <-> IPv4 Address	IPv6 Address <-> IPv4 Address
Address Mapping	1:1 (within prefixes)	Many-to-One or Many-to-Few	Many-to-One or Many-to-Few
Statefulness (NAT level)	Stateless (Algorithmic)	Stateful	Stateful
Translates Ports?	No	Yes (PAT/DIPP)	Yes (NAPT64)
Translates Interface ID?	No (Preserved)	N/A (IPv4 concept)	N/A (Translates entire address)
Checksum Recalculation	Generally Avoided (Checksum Neutral)	Required	Required
Primary Purpose	Prefix Independence, Multi-homing, Renumbering	IPv4 Address Conservation, Basic Security	IPv6 -> IPv4 Transition

     Focus on the key differentiators for PCNSE: NPTv6 is IPv6-to-IPv6, stateless (at the NAT level), translates only the prefix, maintains a 1:1 mapping, and does not touch ports.


NPTv6 Use Cases

NPTv6 addresses specific challenges in IPv6 network management:

ISP Multi-homing: An organization receives unique IPv6 prefixes from two different ISPs. They use a stable internal prefix (like a ULA or a primary GUA). NPTv6 rules translate the internal prefix to ISP A's prefix for traffic going out via ISP A, and to ISP B's prefix for traffic going out via ISP B. This allows seamless failover or load balancing without re-addressing internal hosts.
Network Renumbering / ISP Change: If an organization changes its ISP and receives a new public IPv6 prefix, only the NPTv6 translation rule on the border firewall needs to be updated. All internal hosts can keep their existing stable addresses, drastically simplifying the renumbering process compared to re-addressing every host.
Provider Independence with ULAs: Organizations can use Unique Local Addresses (ULAs, fd00::/8 ) for internal addressing, which are not globally routable but provide stable internal numbering. NPTv6 can then translate the ULA prefix to a globally routable GUA prefix provided by the ISP for external communication.
Consistent Internal Addressing: Even if using GUAs internally, NPTv6 allows the use of a stable GUA prefix internally while translating to potentially different GUAs assigned at the edge for external access.

     Recognize these use cases, particularly multi-homing and simplified renumbering, as key drivers for implementing NPTv6.


PAN-OS NPTv6 Configuration Details

NPTv6 is configured using NAT Policies on the Palo Alto Networks firewall.

Create NAT Rule: Navigate to Policies > NAT and click "Add".
General Tab:
- Name: Descriptive (e.g., `NPTv6_Internal_to_External`).
- NAT Type: Select nptv6 .
- Ensure Rule is Enabled.
Original Packet Tab: Defines the traffic flow requiring prefix translation.
- Source Zone: Zone of the source prefix (e.g., `Zone_Internal_v6`).
- Destination Zone: Zone towards which translated traffic flows (e.g., `Zone_External_v6`).
- Source Address: The Internal IPv6 Prefix (e.g., fd00:aaaa:bbbb::/48 ). Must be an Address Object of type 'IP Netmask'.
- Destination Address: Typically `any` (::/0) unless translation is only needed for specific destinations.
- Service: Usually `any`.
Translated Packet Tab: This tab defines the bidirectional mapping.
- Source Address Translation:
  - Type: Static IP (This seems counter-intuitive but is correct for NPTv6 prefix mapping).
  - Translated Address: The External IPv6 Prefix (e.g., 2001:db8:100::/48 ). Must be an Address Object of the same prefix length as the Internal Prefix.
  - Purpose: Translates the source prefix for outbound traffic.
- Destination Address Translation:
  - Type: Static IP .
  - Translated Address: The Internal IPv6 Prefix (e.g., fd00:aaaa:bbbb::/48 ). Must be an Address Object of the same prefix length as the External Prefix.
  - Purpose: Translates the destination prefix for inbound (return) traffic.
- No Bi-directional Checkbox: Unlike NAT44 Static IP, there is no 'Bi-directional' checkbox for NPTv6. The bidirectional translation is implicitly handled by configuring both Source and Destination translation within this single rule.
Click OK and Commit.

     Key configuration points for PCNSE: Set NAT Type to `nptv6`. Original Packet matches the internal source prefix. Translated Packet configures *both* Source Translation (to External Prefix) and Destination Translation (back to Internal Prefix) using 'Static IP' type for both. Remember the prefix lengths must match.


NPTv6 Traffic Flow Example

Let's trace a packet with these prefixes defined in an NPTv6 rule:

Internal Prefix: fd00:aaaa:bbbb::/48 (Source Address in Original Packet, Destination Address in Translated Packet)
External Prefix: 2001:db8:100::/48 (Source Address in Translated Packet)
Internal Client: fd00:aaaa:bbbb::1234
External Server: 2001:db8:ffff::5678

Forward Path (Internal Client -> External Server)

Client sends packet:
- Source IP: fd00:aaaa:bbbb::1234
- Destination IP: 2001:db8:ffff::5678
Firewall receives packet.
NAT rule lookup matches NPTv6 rule (Original Src Addr = fd00:aaaa:bbbb::/48).
Security Policy lookup (based on original IPs).
NPTv6 Applied at Egress:
- Source Prefix fd00:aaaa:bbbb::/48 translated to 2001:db8:100::/48 .
- Interface ID ::1234 is preserved.
- Destination IP remains 2001:db8:ffff::5678 (Not affected by source translation).
Firewall sends packet:
- Source IP: 2001:db8:100::1234
- Destination IP: 2001:db8:ffff::5678

Return Path (External Server -> Internal Client)

Server sends reply packet:
- Source IP: 2001:db8:ffff::5678
- Destination IP: 2001:db8:100::1234 (The address the server saw)
Firewall receives packet.
NAT rule lookup: Packet destination 2001:db8:100::1234 matches the External Prefix defined in the NPTv6 rule's "Source Address Translation" section (which implicitly defines the inbound mapping target).
Security Policy lookup (based on original IPs - firewall derives original destination fd00:aaaa:bbbb::1234 for policy lookup based on state/NPTv6 rule).
Reverse NPTv6 Applied at Egress (towards Internal):
- Destination Prefix 2001:db8:100::/48 translated back to fd00:aaaa:bbbb::/48 (using the Destination Address Translation config in the rule).
- Interface ID ::1234 is preserved.
- Source IP remains 2001:db8:ffff::5678 (Not affected by destination translation).
Firewall sends packet:
- Source IP: 2001:db8:ffff::5678
- Destination IP: fd00:aaaa:bbbb::1234

     Trace the flow: Outbound translates source prefix. Inbound translates destination prefix back. Host bits (Interface ID) remain untouched throughout.


NPTv6 Interaction with Security Policy

Configuring security policy for NPTv6 traffic is generally straightforward because NPTv6 aims for transparency.

Key Principle: Security Policy rules match on the original (pre-translation) source and destination addresses and zones.

Unlike DNAT (including NAT64), where the destination *zone* used in the security policy is the post-NAT zone, NPTv6 primarily affects the source prefix on egress and the destination prefix on ingress *after* the main security policy check for the original flow has occurred (similar to SNAT logic).

Example Security Rule

Given:

Internal Zone: `Zone_Internal_v6`
Internal Prefix (Source): fd00:1111:2222::/48
External Zone: `Zone_External_v6`
NPTv6 Rule: Translates fd00:1111:2222::/48 <-> 2001:db8:abc::/48

Security Rule to Allow Outbound:

Name: `Allow_Internal_v6_Outbound`
Source Zone: `Zone_Internal_v6`
Source Address: fd00:1111:2222::/48 (Original Internal Prefix)
Destination Zone: `Zone_External_v6`
Destination Address: `any` (or specific external IPv6 destinations)
Application/Service: `any` (or specific)
Action: `Allow`

Security Rule to Allow Inbound (Example: Allowing External to reach specific internal host):

Name: `Allow_External_To_InternalHost`
Source Zone: `Zone_External_v6`
Source Address: `any` (or specific external source)
Destination Zone: `Zone_Internal_v6`
Destination Address: fd00:1111:2222::100 (The specific *internal* host address)
Application/Service: `any` (or specific)
Action: `Allow`

     Even though the external sender targets the *external* prefix address (e.g.,

      2001:db8:abc::100

     ), the security policy allowing the inbound traffic must match the final, *internal* destination address (

      fd00:1111:2222::100

     ) and the internal destination zone. The firewall determines this intended internal destination based on the NPTv6 rule and session state before the Security Policy lookup for the return/inbound initiation.

     For PCNSE, remember that Security Policies for NPTv6 generally use the *original* pre-translation addresses and zones for matching, similar to how SNAT interaction works.


NPTv6 NDP Proxy Requirement

A critical requirement for NPTv6 to function correctly on Palo Alto Networks firewalls is the configuration of NDP Proxy (Neighbor Discovery Protocol Proxy).

Why is it needed?

NPTv6 translates prefixes. When an external host tries to reach an internal host using its translated (external prefix) address (e.g., 2001:db8:100::1234 ), routers on the external network will send Neighbor Solicitation (NS) messages asking "Who has 2001:db8:100::1234 ?".
The internal host ( fd00:aaaa:bbbb::1234 ) will not respond to NS messages for its translated address.
NDP Proxy configured on the firewall's external interface allows the firewall to respond to these NS messages on behalf of the internal hosts, providing its own MAC address. This directs traffic destined for the translated external prefix addresses towards the firewall, enabling it to perform the NPTv6 translation back to the internal prefix for inbound traffic.

Configuration

Enable NDP Proxy under: Network > Interfaces > [Your External IPv6 Interface] > IPv6 Tab > NDP Proxy .
Click "Enable NDP Proxy".
You typically do *not* need to add specific target addresses unless required for very specific scenarios; enabling the proxy function itself is usually sufficient for NPTv6.
Commit changes.

     NPTv6 translation for inbound traffic will likely fail without NDP Proxy enabled on the external-facing interface associated with the translated external prefix.


     Remember that NPTv6 requires NDP Proxy to be enabled on the relevant external interface to allow the firewall to answer Neighbor Solicitations for the translated addresses.

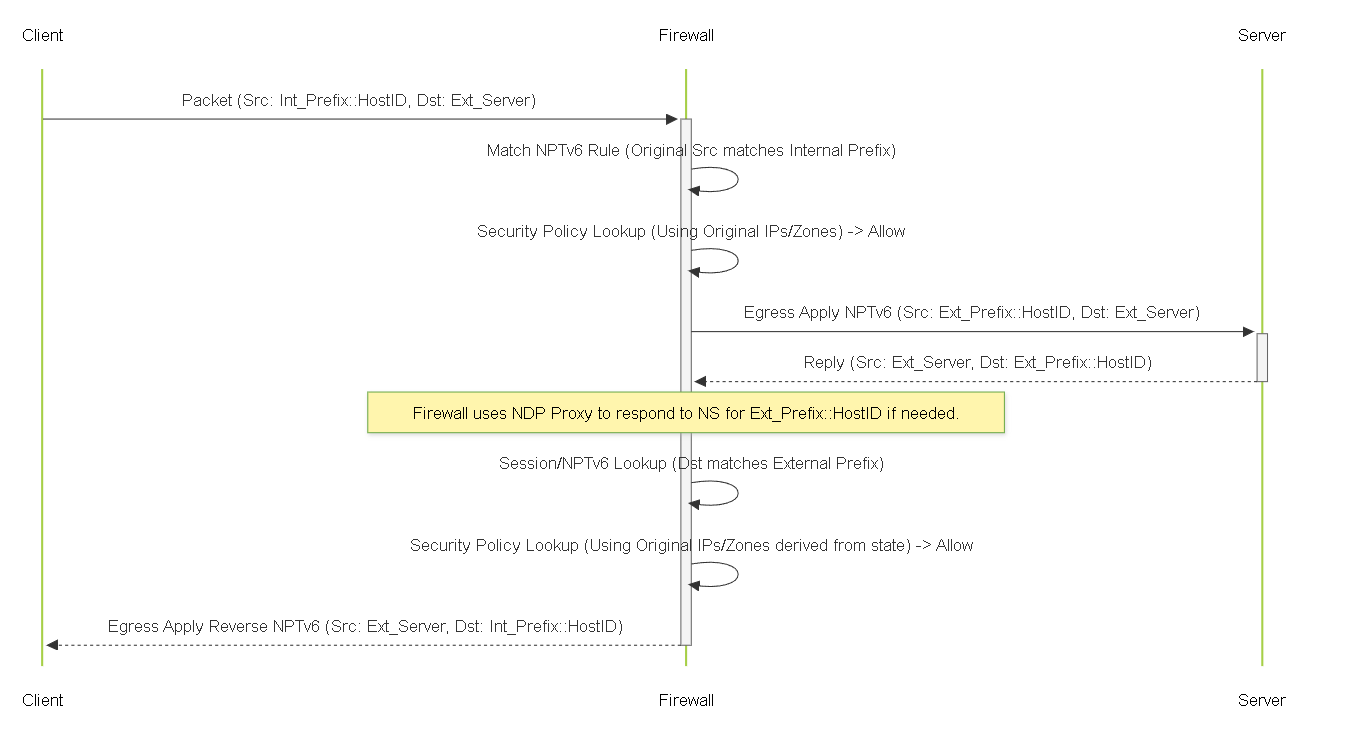

Diagram: Sequence - NPTv6 Traffic Flow

Sequence diagram illustrating NPTv6 translation for both outbound source and inbound destination prefixes.

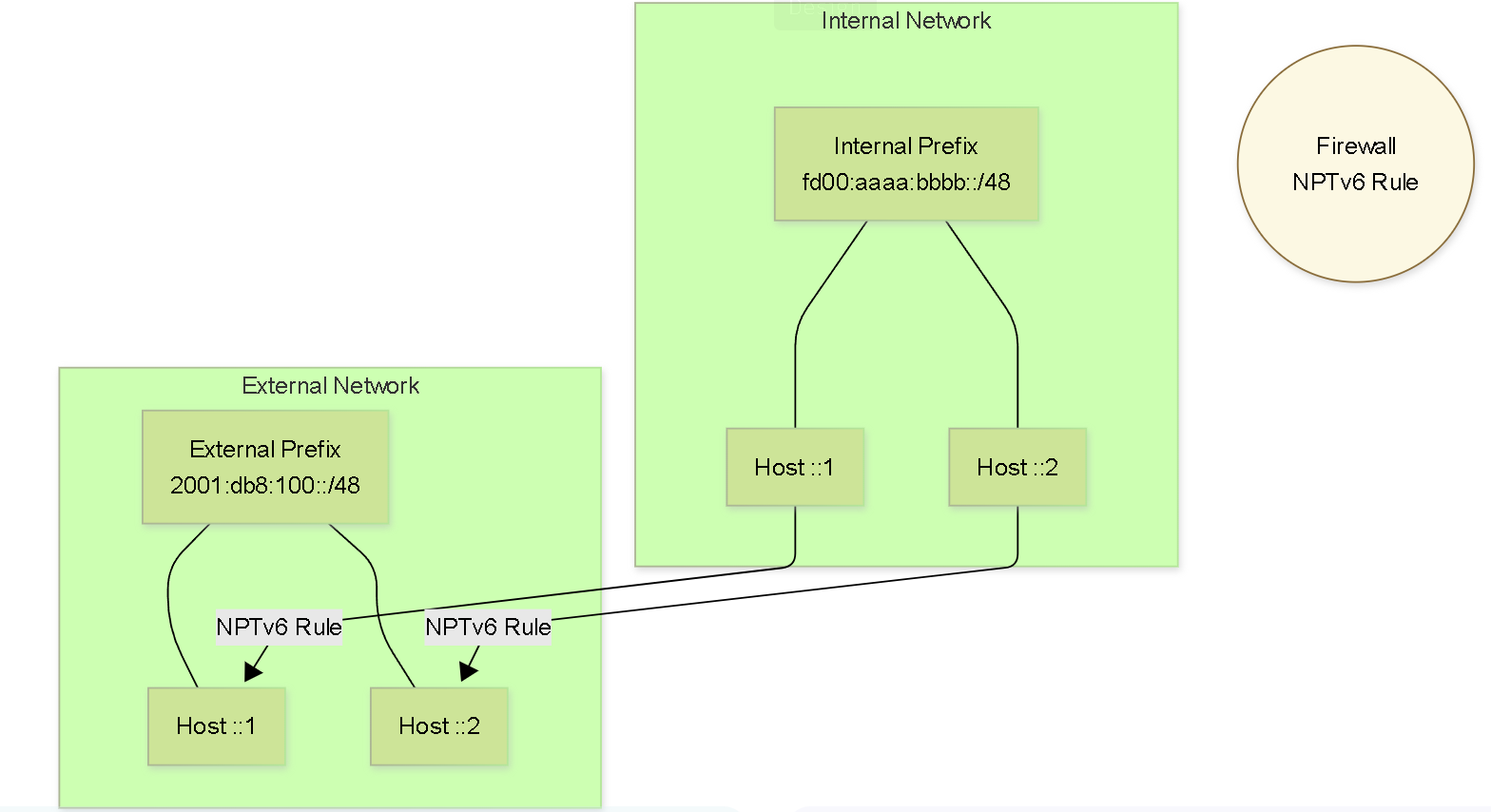

Diagram: Graph - NPTv6 Prefix Mapping

Graph illustrating the 1:1 mapping created by NPTv6. The prefix changes (fd00:aaaa:bbbb -> 2001:db8:100), but the Interface ID (::1, ::2) is preserved.

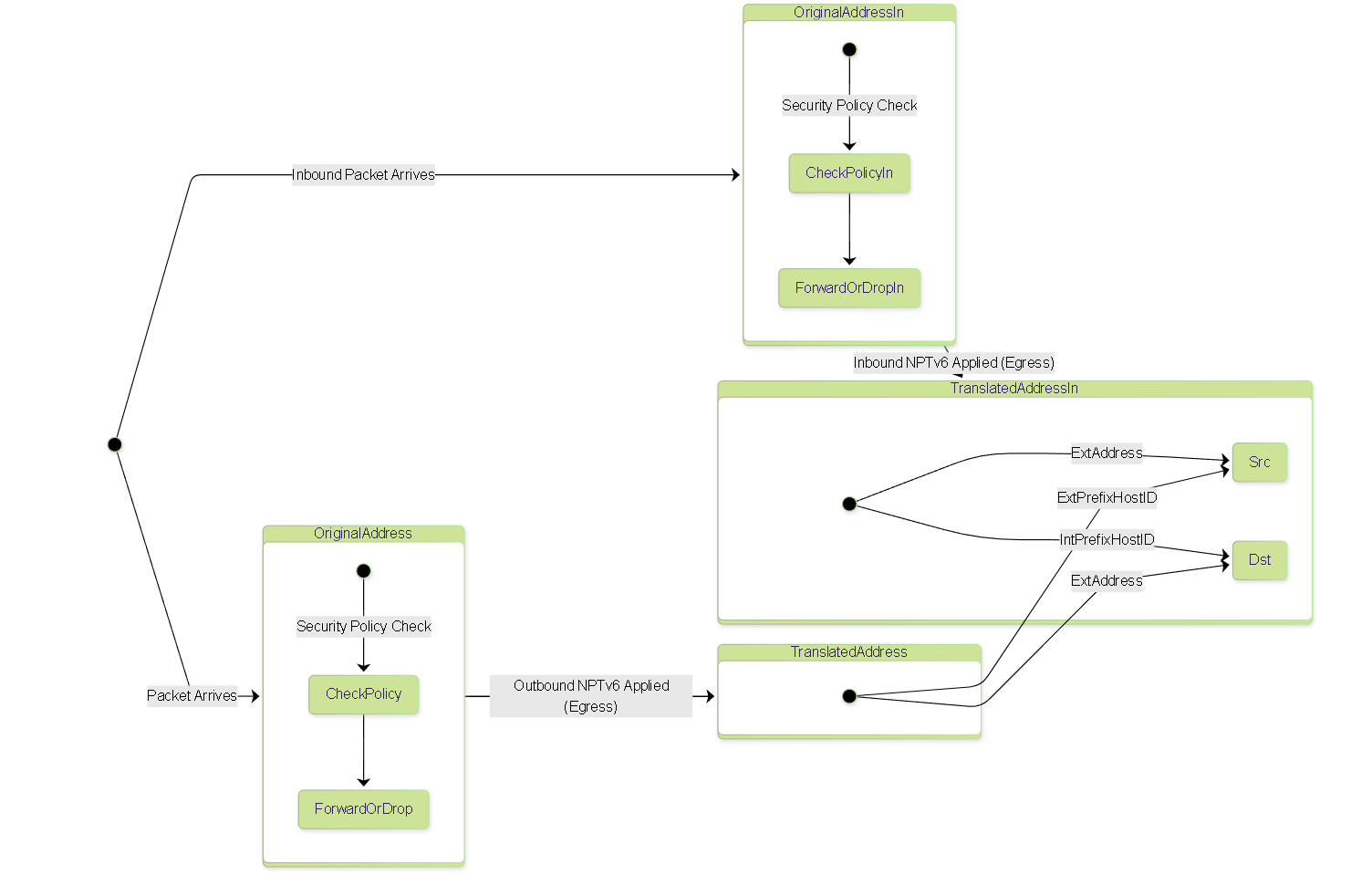

Diagram: State - NPTv6 Address Translation State

Simplified state diagram showing how NPTv6 affects source (outbound) and destination (inbound) addresses based on rule configuration.

PCNSE Exam Focus Summary (NPTv6)

Key NPTv6 concepts and configurations for the PCNSE exam:

Purpose & Characteristics: Know NPTv6 is stateless (at NAT level), 1:1 IPv6 prefix translation, preserves host ID, checksum-neutral, no port translation.
Use Cases: Recognize multi-homing, simplified renumbering, and ULA-to-GUA translation as primary drivers.
PAN-OS Configuration:
- NAT Policy Type: `nptv6`.
- Original Packet: Matches the source internal prefix .
- Translated Packet: Configures both Source Translation (to external prefix) and Destination Translation (back to internal prefix) using "Static IP" type.
- Prefix Lengths: Internal and External prefixes in the rule must have the same length.
Security Policy Interaction: Security rules generally match on original (pre-NPTv6) addresses and zones.
NDP Proxy: Understand that NDP Proxy is required on the external interface for inbound NPTv6 translation to work correctly.
Comparison: Clearly distinguish NPTv6 from stateful NAT44 and stateful NAT64.

     Expect questions testing your understanding of NPTv6's purpose (vs. NAT64), its stateless nature, the specific configuration within a PAN-OS NAT rule (using Static IP for prefix mapping), and the requirement for NDP Proxy. Security policy interaction is also a key area.


PCNSE Style Quiz: NPTv6

Test your understanding with these 20 questions focused on NPTv6:

1. What is the primary goal of implementing NPTv6?

To allow IPv6 clients to reach IPv4 servers. To translate both IPv6 prefixes and TCP/UDP ports for security. To provide a stateless, 1:1 mapping between internal and external IPv6 prefixes, primarily for multi-homing or renumbering. To dynamically assign IPv6 addresses from a pool to internal clients.

2. Which part of an IPv6 address does NPTv6 translate?

The entire 128-bit address using a state table. Only the Interface Identifier (last 64 bits). Only the Network Prefix (typically the first /48 or /64). The IPv6 Flow Label.

3. When configuring an NPTv6 rule on a Palo Alto firewall for bidirectional traffic (e.g., internal prefix fd00:1::/48 mapped to external 2001:db8:1::/48), what is typically configured in the "Translated Packet" tab?

Source Translation set to the External Prefix, Destination Translation set to None. Source Translation set to None, Destination Translation set to the Internal Prefix. Both Source Translation (to External Prefix) and Destination Translation (to Internal Prefix) configured, typically using "Static IP". Both Source and Destination Translation set to "Dynamic IP and Port".

4. Which statement best describes NPTv6 compared to traditional NAT/PAT?

NPTv6 is stateful and translates port numbers. NPTv6 is generally stateless (at the NAT level) and preserves the Interface ID and transport ports. NPTv6 translates IPv6 to IPv4 addresses. NPTv6 uses a dynamic pool to map many internal IPs to one external IP.

5. How should Security Policy rules generally be configured for traffic that will be translated by NPTv6?

Rules should match the translated (external) source and destination prefixes. Rules should match the original (internal/pre-translation) source and destination zones and prefixes/addresses. A separate Security Policy type called "NPTv6 Policy" must be used. Security rules are not required if an NPTv6 rule exists.

6. What additional feature must typically be enabled on the firewall's external-facing IPv6 interface for NPTv6 to handle inbound connections correctly?

IPv6 Router Advertisements DHCPv6 Relay MLD Snooping NDP Proxy

7. When configuring the Internal and External Prefixes in an NPTv6 rule on PAN-OS, what must be true about their lengths?

They must have the same prefix length (e.g., both /48 or both /64). The External Prefix must be shorter than the Internal Prefix. The Internal Prefix must be shorter than the External Prefix. Prefix length does not matter for NPTv6 configuration.

8. Which scenario is a primary use case for NPTv6?

Allowing many internal IPv6 hosts to share a single external IPv6 address. Enabling IPv6 clients to connect to legacy IPv4 web servers. Simplifying network renumbering when changing ISP-provided IPv6 prefixes. Translating multicast IPv6 addresses.

9. Does NPTv6 translate TCP or UDP port numbers?

Yes, it performs NAPTv6. No, it only translates the IPv6 prefix. Only if the "Translate Ports" option is checked. Only for UDP traffic.

10. In a PAN-OS NPTv6 rule, the 'Translated Packet' tab requires configuration for:

Only Source Address Translation. Only Destination Address Translation. Neither Source nor Destination Translation (it's automatic). Both Source Address Translation (to external prefix) and Destination Address Translation (to internal prefix).

11. Which NAT technology is designed to be "checksum-neutral" to minimize IP header modifications?

NPTv6 NAT64 NAT44 (PAT) All NAT types are checksum-neutral.

12. When configuring NPTv6 source or destination translation in the Translated Packet tab, which 'Type' is selected?

Dynamic IP and Port Dynamic IP Static IP None

13. An internal host fd00:a::1 sends a packet outbound. An NPTv6 rule translates fd00:a::/48 to 2001:db8:a::/48. What will the source address be after translation?

fd00:a::1 2001:db8:a::1 2001:db8:a:: The firewall's external interface IP.

14. True or False: NPTv6 rules are evaluated using the same top-down, first-match logic as other NAT rules.

True False

15. For traffic allowed by Security Policy and matching an NPTv6 rule, when is the prefix translation typically applied?

Immediately upon ingress. During the Security Policy lookup. When the session is established. Just before egress from the firewall.

16. Can NPTv6 be used to translate between a ULA prefix (fd00::/8 range) and a Global Unicast Address (GUA) prefix?

No, NPTv6 only works between two GUA prefixes. No, NPTv6 only works between two ULA prefixes. Yes, this is a common use case for provider independence. Yes, but it requires NAT64 as well.

17. What is the primary benefit of NPTv6 being (mostly) stateless compared to NAT64?

It supports more concurrent sessions. Reduced complexity, potentially better performance, and better preservation of end-to-end addressability. It can translate port numbers more efficiently. It requires less configuration.

18. If NDP Proxy is NOT enabled on the external interface, which NPTv6 traffic flow is most likely to fail?

Inbound connections initiated from external hosts to internal hosts (via the translated prefix). Outbound connections initiated by internal hosts to external hosts. Both inbound and outbound connections equally. Traffic that does not require translation.

19. What should the Destination Address field contain in a Security Policy rule designed to allow NPTv6-translated traffic initiated from internal hosts (using prefix fd00:a::/48) to any external destination?

The external translated prefix (e.g., 2001:db8:a::/48). The internal source prefix (fd00:a::/48). The specific external server's address. 'any' (or specific external destination addresses/prefixes).

20. You need to map internal prefix 2001:db8:1::/48 to external prefix 2001:db8:2::/48 using NPTv6. In the Translated Packet tab, Source Address Translation should use ____ and Destination Address Translation should use ____.

2001:db8:1::/48 | 2001:db8:2::/48 None | 2001:db8:1::/48 2001:db8:2::/48 | 2001:db8:1::/48 2001:db8:2::/48 | None
