Understanding U-Turn NAT on Palo Alto Networks Firewalls

Welcome to this comprehensive guide on U-Turn NAT, also known as Hairpin NAT or Internal NAT. This is a crucial concept for managing internal network traffic that needs to traverse the firewall, particularly when internal clients try to access internal servers using their public IP address or external DNS name.

This article will provide a deep dive into U-Turn NAT, explaining why it's necessary, detailing common scenarios, illustrating the packet flow, guiding you through the configuration on Palo Alto Networks firewalls, highlighting key points for the PCNSE/PCNSA exams, and offering troubleshooting tips.

What is U-Turn NAT?

U-Turn NAT, often referred to as Hairpin NAT, is a NAT technique used when a client on an internal network attempts to access a server (also on an internal network or DMZ) using that server's public IP address or hostname. Without U-Turn NAT, this traffic pattern would typically fail because the firewall (or router) doesn't know how to route the response packet back to the client.

Consider a scenario:

An internal client (e.g., on the LAN zone) has a private IP (192.168.1.10).
An internal server (e.g., also on the LAN zone) has a private IP (192.168.1.50) but is accessible from the internet via a public IP (e.g., 203.0.113.10) using Destination NAT (DNAT).
The internal client tries to connect to the server using its public IP (203.0.113.10).

Without U-Turn NAT, the firewall would receive the packet from the client (Source: 192.168.1.10, Destination: 203.0.113.10). The firewall would apply the standard Internet-facing DNAT rule, changing the destination to the server's private IP (192.168.1.50). The server receives the packet (Source: 192.168.1.10, Destination: 192.168.1.50). When the server replies, it sends a packet directly back to the client's private IP (Source: 192.168.1.50, Destination: 192.168.1.10) because they are on the same network. This response packet does NOT go back through the firewall, so the firewall's NAT session is unaware of the response, and the client never receives it, causing the connection to fail.

U-Turn NAT solves this by applying Source NAT (SNAT) to the client's private IP as the traffic traverses the firewall towards the server. This forces the server's reply packet to return to the firewall's SNAT address, allowing the firewall to track the session and send the response back to the client's original private IP.

     U-Turn NAT is also known as Hairpinning or NAT Loopback. It requires BOTH Destination NAT (DNAT) and Source NAT (SNAT) to be applied on the same firewall interface/zone pair (often the internal zone).


Why is U-Turn NAT Needed? Common Scenarios

U-Turn NAT is essential in environments where internal users access resources that are published externally via public IP addresses or external DNS names. Here are the most common scenarios:

Scenario 1 Overview: Internal Clients Accessing Internal Servers by Public IP/DNS

This is the classic U-Turn scenario. You have internal servers (e.g., web servers, application servers) that users both inside and outside the organization need to access. External users access them via a public IP and standard DNAT. Internal users are accustomed to using the same public IP or external FQDN (which resolves to the public IP via public DNS) as the external users.

Example: Internal Web Server

Internal Client IP: 192.168.10.10
Internal Web Server Private IP: 192.168.10.50
Web Server Public IP: 203.0.113.10 (DNAT'd on Firewall to 192.168.10.50)
External DNS Name: www.mycompany.com (resolves to 203.0.113.10 publicly)

Internal users type www.mycompany.com into their browser. Their internal DNS might return the public IP (common setup for simplicity or when internal DNS isn't aware of internal IPs for external names). Their request goes to the firewall with Destination IP 203.0.113.10.

Without U-Turn NAT, the firewall correctly translates the destination but the server replies directly back to the client's private IP, bypassing the firewall on the return path, breaking the session.

Scenario 2 Overview: Services on DMZ Accessed by Internal Clients Using Public IP/DNS

Similar to Scenario 1, but the server resides in a different zone (DMZ) than the client (LAN). While routing might be different, the core problem remains: the client uses the public IP, the firewall DNATs it, but the server might try to route the reply directly back to the client if they are on the same Layer 3 segment behind the firewall, or if the firewall's route back is simpler than traversing back through the NAT layer correctly without SNAT.

Example: DMZ Application Server

Internal Client IP: 192.168.10.10 (LAN Zone)
DMZ App Server Private IP: 10.10.10.50 (DMZ Zone)
App Server Public IP: 203.0.113.20 (DNAT'd on Firewall to 10.10.10.50)
External DNS Name: app.mycompany.com (resolves to 203.0.113.20 publicly)

Internal clients try to access app.mycompany.com (resolving to 203.0.113.20). The firewall DNATs 203.0.113.20 to 10.10.10.50. The client traffic goes from LAN to DMZ zone.

U-Turn NAT (applying SNAT) ensures the server's reply comes back to the firewall's SNAT address, which allows the firewall to reverse both the SNAT and DNAT translations correctly and route the packet back to the original client on the LAN zone, maintaining session state.

     The need for U-Turn NAT arises when internal clients access internal/DMZ resources using the server's PUBLIC IP/DNS name, and the default return path bypasses the firewall's NAT state.


Scenario 1: Internal Clients to Internal Servers (Same Zone)

Let's detail the classic U-Turn scenario where the client and server are in the same zone (e.g., both on the LAN zone) but in different IP subnets, and the client uses the server's public IP.

U-Turn NAT Scenario Diagram — Conceptual diagram showing client, firewall, and server for U-Turn NAT. (Image Source: Palo Alto Networks Documentation)

Setup:

Client: IP 192.168.1.10, Zone: Trust, Interface: ethernet1/2
Server: IP 192.168.2.50, Zone: Trust, Interface: ethernet1/2
Server Public IP: 203.0.113.10
Firewall Interface (Trust Zone): ethernet1/2 (Gateway for 192.168.1.0/24 and 192.168.2.0/24)
Firewall Interface (Untrust Zone): ethernet1/1

The Problem (Without U-Turn NAT):

Client 192.168.1.10 sends packet: SRC: 192.168.1.10, DST: 203.0.113.10
Packet arrives at firewall (ingress interface: ethernet1/2, ingress zone: Trust).
Firewall performs route lookup for 203.0.113.10. It has a DNAT rule for 203.0.113.10 translating to 192.168.2.50.
Packet after DNAT: SRC: 192.168.1.10, DST: 192.168.2.50 .
Firewall performs security policy lookup (Trust zone to Trust zone). If allowed, it forwards the packet out the ingress interface (ethernet1/2) towards the 192.168.2.0/24 network.
Server 192.168.2.50 receives packet: SRC: 192.168.1.10, DST: 192.168.2.50 .
Server 192.168.2.50 replies: SRC: 192.168.2.50, DST: 192.168.1.10 .
Since 192.168.1.10 and 192.168.2.50 are within networks whose gateway is the firewall's ethernet1/2 interface, the server sends the reply packet directly to that interface.
The reply packet arrives at the firewall (ingress interface: ethernet1/2, ingress zone: Trust). However, this is the reverse of the original packet flow. The firewall expects the reply for the session initiated by 192.168.1.10 -> 203.0.113.10 to come from 192.168.2.50 (the translated destination) and ideally arrive back through the NAT mechanism. Since the server replies directly to the original source IP, bypassing the NAT state on the return, the firewall doesn't recognize this as a valid reply to the existing session, and the packet is dropped.

     The core issue is that the server replies directly to the client's internal IP, bypassing the firewall on the return path, causing the firewall to not see the return traffic for its NAT session.


Scenario 2: Internal Clients to DMZ Servers

This scenario involves a client and server in different zones behind the firewall, but the client still uses the server's public IP/DNS.

Setup:

Client: IP 192.168.1.10, Zone: Trust, Interface: ethernet1/2
Server: IP 10.10.10.50, Zone: DMZ, Interface: ethernet1/3
Server Public IP: 203.0.113.20
Firewall Interface (Trust Zone): ethernet1/2 (Gateway for 192.168.1.0/24)
Firewall Interface (DMZ Zone): ethernet1/3 (Gateway for 10.10.10.0/24)
Firewall Interface (Untrust Zone): ethernet1/1

The Problem (Without U-Turn NAT):

Client 192.168.1.10 sends packet: SRC: 192.168.1.10, DST: 203.0.113.20 .
Packet arrives at firewall (ingress interface: ethernet1/2, ingress zone: Trust).
Firewall performs route lookup for 203.0.113.20. It has a DNAT rule for 203.0.113.20 translating to 10.10.10.50.
Packet after DNAT: SRC: 192.168.1.10, DST: 10.10.10.50 .
Firewall performs security policy lookup (Trust zone to DMZ zone). If allowed, it forwards the packet out the ethernet1/3 interface towards the DMZ.
Server 10.10.10.50 receives packet: SRC: 192.168.1.10, DST: 10.10.10.50 .
Server 10.10.10.50 replies: SRC: 10.10.10.50, DST: 192.168.1.10 .
The server 10.10.10.50 has a route for 192.168.1.0/24 pointing to its default gateway (firewall's ethernet1/3 interface). So, the reply packet goes back to the firewall.
The reply packet arrives at the firewall (ingress interface: ethernet1/3, ingress zone: DMZ). The firewall looks up the session table for a session initiated by 192.168.1.10 -> 203.0.113.20. The reply packet (10.10.10.50 -> 192.168.1.10) does not match the expected reverse flow for the session (which would involve 192.168.2.50 replying *back* to the firewall's SNAT address, if SNAT were applied). Even though the packet returns to the firewall, without U-Turn NAT (specifically SNAT), the firewall cannot correlate this reply with the outgoing session initiated by 192.168.1.10 and drops it.

While the server reply returns to the firewall in this inter-zone scenario, the fundamental issue is the lack of Source NAT on the initial packet from the client. This prevents the server from sending the reply back to a translated IP on the firewall, which is necessary for the firewall to reverse the NAT process and return the packet to the original client.

     In both scenarios, the key is that the server's reply uses the *original* client's private IP as the destination and does not naturally return through the firewall's NAT engine in a way it expects without SNAT being applied to the initial client request.


How U-Turn NAT Works (Packet Flow)

U-Turn NAT on a Palo Alto Networks firewall involves applying both Destination NAT (DNAT) and Source NAT (SNAT) simultaneously to the traffic flow.

Let's revisit Scenario 1 (Internal Client -> Internal Server, Same Zone) and trace the packet flow with U-Turn NAT configured.

Setup:

Client: IP 192.168.1.10, Zone: Trust
Server: IP 192.168.2.50, Zone: Trust
Server Public IP: 203.0.113.10
U-Turn NAT Rule:
- Original Packet:
- Source Zone: Trust
- Destination Zone: Trust
- Destination Address: 203.0.113.10 (Server Public IP)
- Service: (e.g., http/80)
- Translated Packet:
- Destination Address: 192.168.2.50 (Server Private IP) - DNAT
- Source Address: Interface Address (or a specific IP) - SNAT

Packet Flow with U-Turn NAT:

Client 192.168.1.10 sends packet: SRC: 192.168.1.10, DST: 203.0.113.10 .
Packet arrives at firewall (ingress interface: ethernet1/2, ingress zone: Trust).
Firewall performs route lookup for 203.0.113.10.
Firewall performs NAT policy lookup. It matches the U-Turn NAT rule (Source Zone Trust, Dest Zone Trust, Dest Address 203.0.113.10).
Based on the U-Turn NAT rule, the firewall applies both DNAT and SNAT .
- Destination is translated from 203.0.113.10 to 192.168.2.50.
- Source is translated from 192.168.1.10 to the firewall's Trust zone interface IP (e.g., 192.168.1.1, or another specified IP). Let's assume Interface Address.
Packet after NAT: SRC: 192.168.1.1 (Firewall Trust IP), DST: 192.168.2.50 . The firewall records this session in its NAT session table.
Firewall performs security policy lookup (Trust zone to Trust zone). The rule must allow traffic from the Firewall's Trust IP (or the translated source) to the Server's Private IP (the translated destination) for the specific application/service. If allowed, the packet is forwarded out the ethernet1/2 interface towards the 192.168.2.0/24 network.
Server 192.168.2.50 receives packet: SRC: 192.168.1.1, DST: 192.168.2.50 . It sees the connection as coming from the firewall.
Server 192.168.2.50 replies: SRC: 192.168.2.50, DST: 192.168.1.1 . This reply packet is sent to the firewall's Trust interface IP.
The reply packet arrives at the firewall (ingress interface: ethernet1/2, ingress zone: Trust).
Firewall performs NAT policy lookup. It finds the existing session in its NAT session table for 192.168.1.1 -> 192.168.2.50.
Based on the session state, the firewall reverses the NAT translations:
- Source is translated back from 192.168.2.50 to 203.0.113.10 (the original destination).
- Destination is translated back from 192.168.1.1 to 192.168.1.10 (the original source).
Packet after Reverse NAT: SRC: 203.0.113.10 (Server Public IP), DST: 192.168.1.10 .
Firewall performs security policy lookup (Trust zone to Trust zone - this lookup happened on the forward path, but the flow is checked against the session). If allowed, the packet is forwarded out the ethernet1/2 interface towards the 192.168.1.0/24 network.
Client 192.168.1.10 receives packet: SRC: 203.0.113.10, DST: 192.168.1.10 . The connection is successful.

     For PCNSE/PCNSA, understand that U-Turn NAT relies on a single NAT rule doing

      both

     DNAT (changing destination IP) and SNAT (changing source IP) for internal traffic hitting the public IP of an internal resource. This forces the return traffic back through the firewall.

U-Turn NAT Diagrams

Visualizing the packet flow and state changes can greatly enhance understanding. Here are some diagrams illustrating U-Turn NAT.

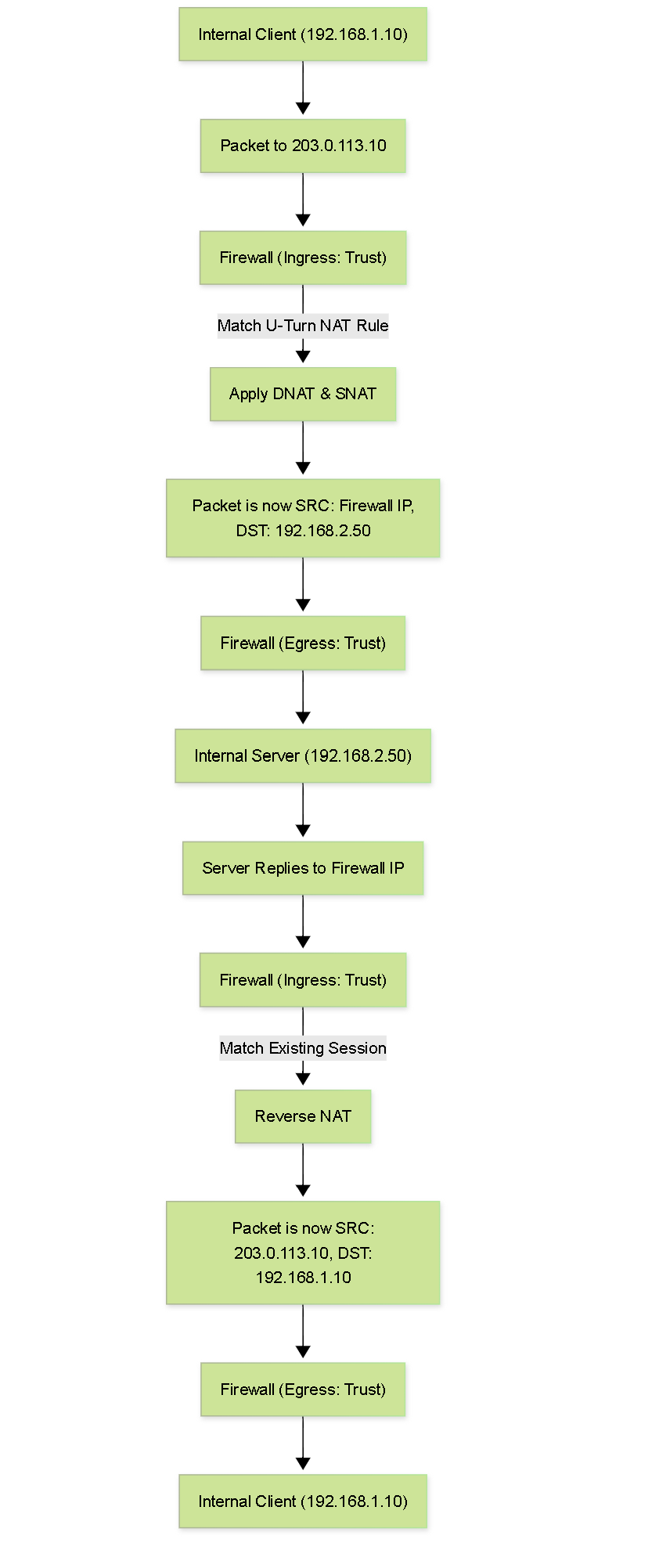

Simplified Flowchart

Simplified flowchart illustrating the steps in U-Turn NAT packet processing.

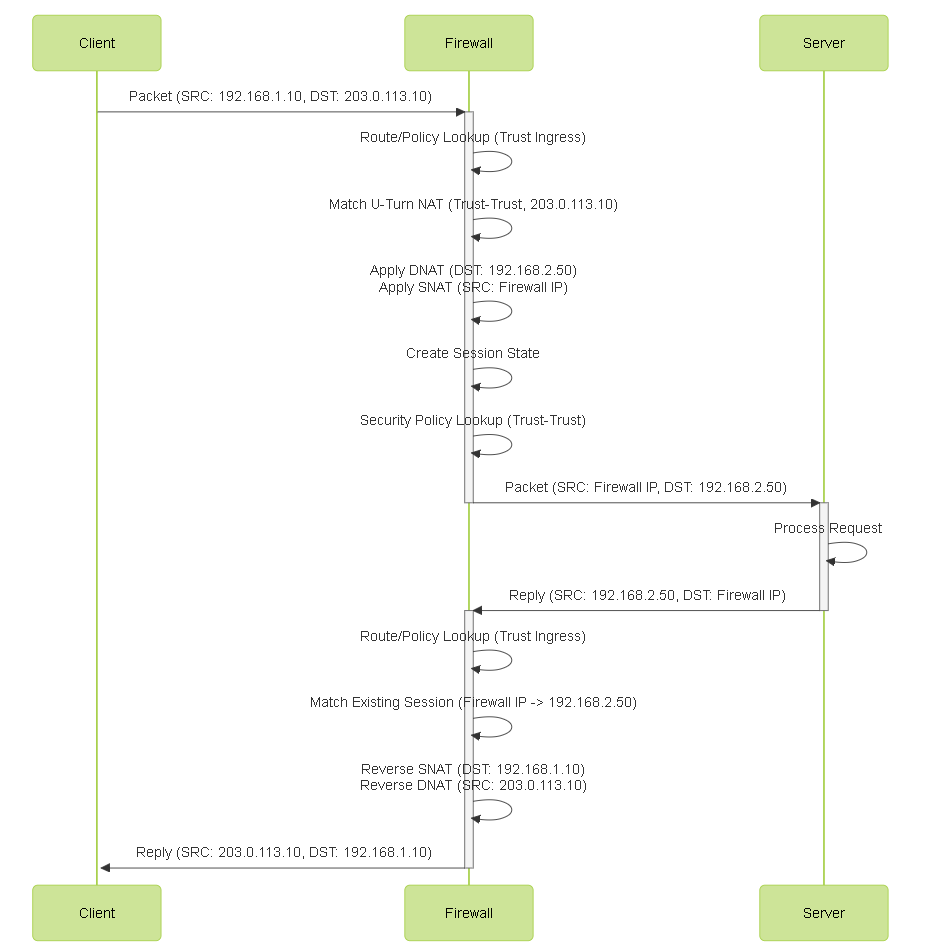

Detailed Sequence Diagram

Sequence diagram showing the packet exchange and NAT translations between client, firewall, and server.

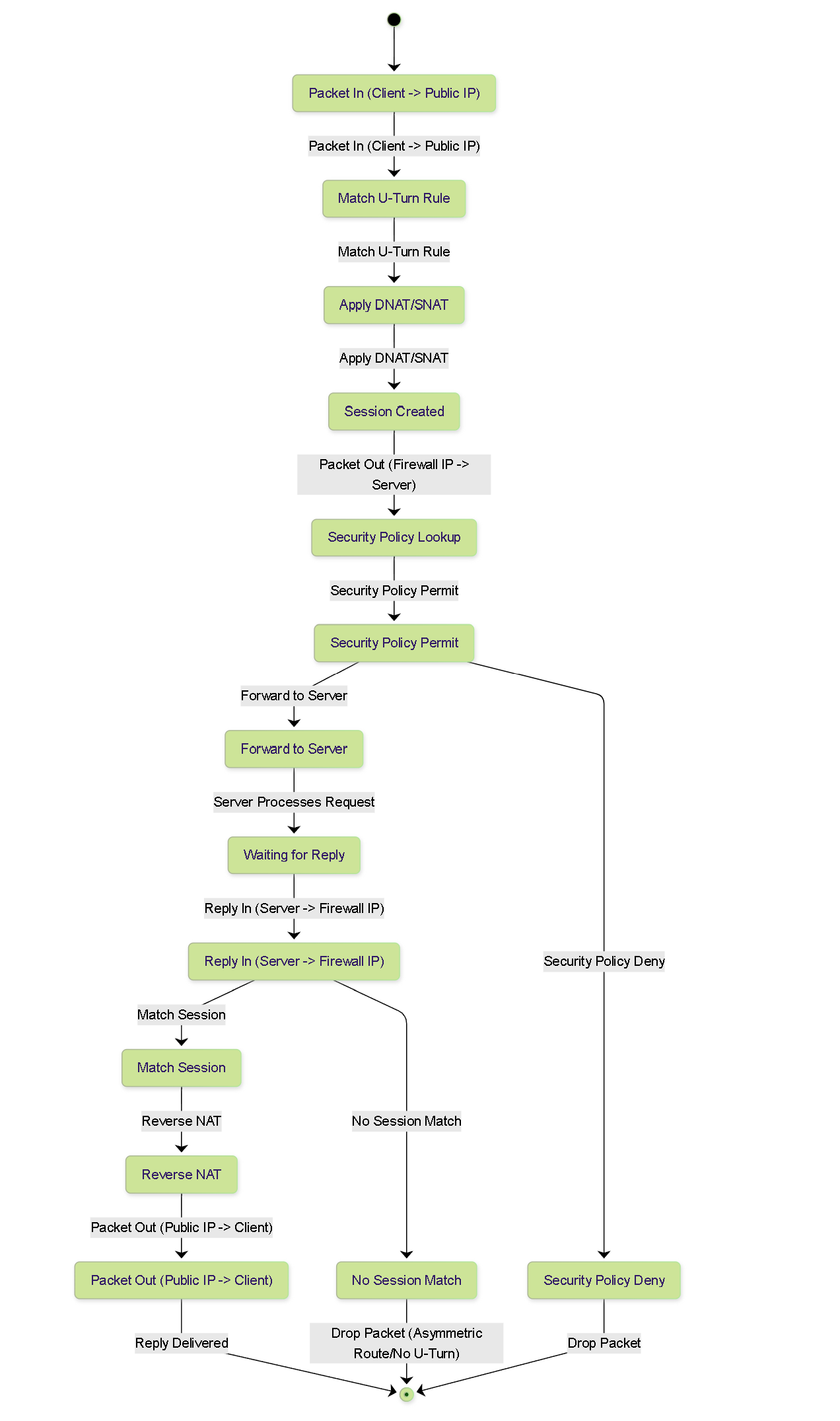

Firewall Session State Diagram (Simplified)

State diagram showing key states and transitions for a session undergoing U-Turn NAT on the firewall.

     Mermaid diagrams are not directly tested in PCNSE/PCNSA, but understanding the flow and states they represent is crucial for comprehending NAT and policy evaluation.


Configuration on Palo Alto Networks Firewalls

Configuring U-Turn NAT on PAN-OS involves creating a specific NAT policy rule and ensuring corresponding security policies allow the traffic.

Key Configuration Steps:

Define Zones and Interfaces: Ensure your internal and potentially DMZ zones are correctly configured on interfaces.
Create Addresses: Define address objects for your internal client subnets, the internal server's private IP, and the server's public IP.
Create Services: Define service objects for the ports/protocols used (e.g., TCP/80, TCP/443).
Create NAT Policy Rule: This is the core of U-Turn NAT.
Create Security Policy Rule(s): Allow the U-Turn traffic based on the translated addresses and zones.

     The order of NAT rules matters! Place your U-Turn NAT rule(s) higher in the list than your general Internet-facing DNAT rules, especially if the client-to-server traffic could potentially match both. Traffic is evaluated top-down.


U-Turn NAT Policy Rule on PAN-OS

The U-Turn NAT rule requires specific settings:

NAT Type: Destination and Source
Original Packet Tab:
- Source Zone: The zone where the internal client resides (e.g., 'Trust').
- Destination Zone: The zone where the server resides (e.g., 'Trust' or 'DMZ'). Note: For classic U-Turn (client and server same zone), both Source and Destination zones are the same.
- Destination Interface: Typically 'Any' or the firewall interface facing the internet (Untrust zone). While the packet ingress is internal, the *destination* IP is the public one associated with the Untrust interface. Setting this to 'Any' or the Untrust interface is common.
- Service: The application service/port(s) being accessed (e.g., 'service-tcp-80').
- Source Address: The internal client subnet(s) (e.g., 'Internal-Clients-Subnet').
- Destination Address: The server's public IP address object (e.g., 'Server-Public-IP'). This is the address the client is attempting to reach.
Translated Packet Tab:
- Destination Address Translation:
  - Translation Type: Static IP
  - Translated Address: The server's private IP address object (e.g., 'Server-Private-IP').
- Source Address Translation:
  - Translation Type: Interface Address (or Static IP/Dynamic IP And Port if needed, but Interface Address is common and simplest for U-Turn)
  - Interface: The firewall interface in the server's zone (e.g., ethernet1/2 for Trust, ethernet1/3 for DMZ).
  - IP Address: The IP of the chosen interface. If using Static IP, specify the desired translation IP.

Example Configuration (Scenario 1 - Trust to Trust):

     Rule Name: U-Turn-Internal-Web
 NAT Type: Destination and Source

 Original Packet:
   Source Zone: Trust
   Destination Zone: Trust
   Destination Interface: Any
   Service: service-tcp-80, service-tcp-443
   Source Address: Internal-Clients-Subnet (192.168.1.0/24)
   Destination Address: Internal-Web-Server-Public-IP (203.0.113.10)

 Translated Packet:
   Destination Address: Static IP (Internal-Web-Server-Private-IP - 192.168.2.50)
   Source Address: Interface Address (Interface: ethernet1/2, IP: 192.168.1.1)


Example Configuration (Scenario 2 - Trust to DMZ):

     Rule Name: U-Turn-DMZ-App
 NAT Type: Destination and Source

 Original Packet:
   Source Zone: Trust
   Destination Zone: DMZ
   Destination Interface: Any
   Service: service-tcp-8080
   Source Address: Internal-Clients-Subnet (192.168.1.0/24)
   Destination Address: DMZ-App-Server-Public-IP (203.0.113.20)

 Translated Packet:
   Destination Address: Static IP (DMZ-App-Server-Private-IP - 10.10.10.50)
   Source Address: Interface Address (Interface: ethernet1/3, IP: 10.10.10.1)


     Crucially, notice that for the U-Turn NAT rule, the

      Source Zone

     and

      Destination Zone

     in the original packet tab define the path the packet takes through the firewall *logically*. The packet enters the firewall from the Source Zone, and is routed *back out* the firewall towards the Destination Zone after NAT and security policy are applied. In classic U-Turn, this is from Trust to Trust (or similar internal zone to itself). For DMZ access, it's Trust to DMZ.

U-Turn Security Policy Rules on PAN-OS

Once the NAT rule is configured, you need security policy rules that allow the traffic based on the translated addresses and zones.

For the U-Turn NAT rule above (Scenario 1 - Trust to Trust), the packet after NAT looks like: SRC: Firewall IP (192.168.1.1), DST: Server Private IP (192.168.2.50) , going from Trust zone to Trust zone.

Required Security Policy Rule (Scenario 1 - Trust to Trust):

Source Zone: Trust
Destination Zone: Trust
Source Address: Firewall Interface IP object (or the specific translated IP if Static SNAT was used) - (e.g., 'Trust-Interface-IP' or 192.168.1.1)
Destination Address: The server's private IP address object (e.g., 'Internal-Web-Server-Private-IP' or 192.168.2.50)
Application: The specific application(s) (e.g., 'web-browsing', 'ssl')
Service: application-default (or the specific service objects used in NAT, e.g., service-tcp-80, service-tcp-443)
Action: Allow

     Rule Name: Allow-U-Turn-Internal-Web
 From Zone: Trust
 To Zone: Trust

 Source: Trust-Interface-IP (192.168.1.1)

      /* Note: Based on the SNAT translation */

     Destination: Internal-Web-Server-Private-IP (192.168.2.50)

      /* Note: Based on the DNAT translation */

     Application: web-browsing, ssl
 Service: application-default
 Action: Allow


For the U-Turn NAT rule above (Scenario 2 - Trust to DMZ), the packet after NAT looks like: SRC: Firewall IP (10.10.10.1), DST: Server Private IP (10.10.10.50) , going from Trust zone to DMZ zone.

Required Security Policy Rule (Scenario 2 - Trust to DMZ):

Source Zone: Trust
Destination Zone: DMZ
Source Address: Firewall DMZ Interface IP object (or the specific translated IP if Static SNAT was used) - (e.g., 'DMZ-Interface-IP' or 10.10.10.1)
Destination Address: The server's private IP address object (e.g., 'DMZ-App-Server-Private-IP' or 10.10.10.50)
Application: The specific application(s) (e.g., 'custom-app-8080')
Service: application-default (or the specific service object, e.g., service-tcp-8080)
Action: Allow

     Rule Name: Allow-U-Turn-DMZ-App
 From Zone: Trust
 To Zone: DMZ

 Source: DMZ-Interface-IP (10.10.10.1)

      /* Note: Based on the SNAT translation */

     Destination: DMZ-App-Server-Private-IP (10.10.10.50)

      /* Note: Based on the DNAT translation */

     Application: custom-app-8080
 Service: application-default
 Action: Allow


     The security policy for U-Turn NAT traffic uses the

      translated source and destination addresses

     and the

      original source and destination zones

     defined in the NAT rule's Original Packet tab.

PCNSE/PCNSA Key Points for U-Turn NAT

U-Turn NAT is a frequently tested concept on Palo Alto Networks certification exams (PCNSA, PCNSE). Pay close attention to these points:

NAT Rule Type: U-Turn NAT requires a rule with Type: Destination and Source . This is crucial for applying both translations in a single rule match.
Original Packet Match Criteria: Understand the criteria used to match the initial client packet:
- Source Zone: Internal client zone.
- Destination Zone: Server zone (often the same as Source Zone for classic U-Turn).
- Destination Address: The server's public IP.
Translated Packet Settings: Know what happens after a match:
- Destination Address: Translated to the server's private IP (DNAT).
- Source Address: Translated to the firewall's interface IP in the server's zone (or a specified IP) (SNAT).
Security Policy Matching: Security policies evaluate traffic based on the translated addresses and original zones . A common mistake is to write the security policy based on the original (client -> public IP) addresses, which will fail. The security rule must permit traffic from the translated source IP (Firewall IP) to the translated destination IP (Server Private IP) within the original Source/Destination zones.
Packet Flow Order: Remember the high-level packet processing order: Packet In -> Zone Protection/DDoS -> Flow Lookup -> Session Lookup -> NAT Policy (Ingress) -> Tunnel Decryption -> App-ID -> Content-ID (Security Policy) -> Routing -> NAT Policy (Egress - for SNAT) -> Packet Out. U-Turn NAT's DNAT/SNAT happens early in the flow, influencing the security policy match.
Asymmetric Routing: U-Turn NAT prevents asymmetric routing issues where the reply bypasses the firewall's NAT state. The SNAT ensures the reply comes back to the firewall.
Alternatives: Be aware that split-DNS (internal DNS resolving the external FQDN to the server's internal IP) is often a simpler alternative to U-Turn NAT if you manage internal DNS. However, U-Turn NAT is necessary if split-DNS is not feasible or if clients use the public IP directly.

     Practice tracing the packet flow step-by-step for a U-Turn scenario, identifying the IP addresses/zones at each stage before and after NAT/Policy lookup. Use the session browser in PAN-OS to see the 'pkt-info' for packets that might be dropping during troubleshooting.


On the exam, questions might involve scenarios asking how to configure NAT/Security rules for internal access to publicly-addressed servers, or troubleshooting questions related to this traffic pattern. Look for keywords like "internal users access internal server via public IP", "hairpinning", or "NAT loopback".

Troubleshooting U-Turn NAT Issues

Troubleshooting U-Turn NAT often involves verifying NAT and Security policy configurations and tracing the packet flow.

Common troubleshooting steps and areas to check:

Verify DNS Resolution: Ensure the client is resolving the public FQDN to the correct public IP address. Use nslookup or dig from the client. If it resolves to the private IP, U-Turn NAT isn't needed (this is the Split-DNS solution).
Check Firewall Traffic Logs: Look for traffic logs matching the client's source IP, destination public IP, and service.
- Action: Drop? If dropped, look at the 'Action' and 'Rule' columns. Is it dropped by a Security Policy? Or implicitly dropped?
- If Action is Drop by Security Policy: The security rule is misconfigured. Check the translated source and destination IPs shown in the session or packet details ('pkt-info' in CLI) and ensure your security rule permits that translated traffic between the original zones.
- If Action is Allow: Check the session details. Is the NAT rule being applied correctly (both DNAT and SNAT)?
Check Firewall NAT Logs: Look for NAT logs matching the client's source IP and the public destination IP. Verify that the correct U-Turn NAT rule is being hit and that both destination and source translations are happening as expected.
Use the Session Browser (CLI): The command show session all filter source <client-ip> destination <public-server-ip> can show the session state. Check the translated IPs and ports. If no session exists, the packet is likely being dropped early (routing, zone protection, or failing NAT policy match).
> show session all filter source 192.168.1.10 destination 203.0.113.10 > show session id <session-id> detail # Use the session ID from the previous command > show session id <session-id> pkt-info # Detailed packet information for the session
Use Packet Capture: Capture packets on the relevant firewall interfaces (internal interface ingress/egress, potentially DMZ interface). This shows the packets before and after NAT and routing.
> set cli config-output on > debug dataplane packet-diag set capture on > debug dataplane packet-diag set filter match source 192.168.1.10 destination 203.0.113.10 protocol 6 # TCP > debug dataplane packet-diag set capture stage drop on > debug dataplane packet-diag set capture stage firewall on > debug dataplane packet-diag set capture stage receive on > debug dataplane packet-diag set capture stage transmit on > debug dataplane packet-diag set capture stage flow on > debug dataplane packet-diag set capture stage proxy on > debug dataplane packet-diag set capture stage decrypt on > debug dataplane packet-diag set capture stage encrypt on > debug dataplane packet-diag set capture stage forward on > debug dataplane packet-diag set capture stage nat on > debug dataplane packet-diag set capture stage policy on > debug dataplane packet-diag set capture stage route on > debug dataplane packet-diag set capture stage lookup on > debug dataplane packet-diag set capture stage app-id on > debug dataplane packet-diag set capture stage content-id on > debug dataplane packet-diag set capture stage vulnerability on > debug dataplane packet-diag set capture stage wildfire on > debug dataplane packet-diag set capture stage url on > debug dataplane packet-diag set capture stage file on > debug dataplane packet-diag set capture stage user on > debug dataplane packet-diag set capture stage qos on > debug dataplane packet-diag set capture stage zone-protection on > debug dataplane packet-diag set capture stage dos on > debug dataplane packet-diag set capture stage decryption-policy on > debug dataplane packet-diag set capture stage security-policy on > debug dataplane packet-diag set capture stage nat-policy on # Trigger the traffic from the client > debug dataplane packet-diag set capture off > debug dataplane packet-diag show capture all > panos_uturn_capture.pcap # Download the pcap file using SCP/WinSCP/Cyberduck
Route Lookups: Verify the routing table (`show routing fib`) on the firewall for both the original destination public IP and the translated private IP. Ensure the firewall routes traffic correctly to the server's network segment.
Server-Side Firewall: If there's a host-based firewall or security group on the server, ensure it's configured to allow traffic from the firewall's SNAT IP (the translated source IP).
Check for Duplicate DNAT Rules: Ensure your U-Turn NAT rule is matched before any broader DNAT rule for the same public IP that might apply to traffic coming from the internal zone.

     For troubleshooting U-Turn NAT on the exam, focus on the NAT rule order, the NAT rule configuration (especially Source & Destination translations and Original Packet zones), and the Security Policy rule match criteria based on the *translated* addresses. The session browser and packet flow stages are critical diagnostic tools.


U-Turn NAT Quiz

Test your understanding of U-Turn NAT concepts and configuration on Palo Alto Networks firewalls with these 20 questions.

     This quiz covers key concepts relevant to the PCNSA and PCNSE exams regarding NAT, policy, and packet flow.


1. What is another common name for U-Turn NAT?

Static NAT Hairpin NAT Policy-Based NAT Source NAT

Correct Answer: b Hairpin NAT is a widely used synonym for U-Turn NAT, describing the traffic flow pattern.

2. U-Turn NAT is typically needed when internal clients access:

External servers via their private IP. Internal servers via their private IP. External servers via their public IP. Internal servers via their public IP/DNS.

Correct Answer: d U-Turn NAT addresses the scenario where internal clients try to reach internal resources using their external (public) address.

3. What two types of NAT translations are applied simultaneously in a U-Turn NAT rule on a Palo Alto Networks firewall?

Source NAT and Static NAT Dynamic NAT and Destination NAT Destination NAT and Source NAT Policy-Based NAT and Destination NAT

Correct Answer: c The U-Turn NAT rule explicitly involves translating both the destination (to the server's private IP) and the source (to the firewall's IP or another specified IP).

4. In the U-Turn NAT rule's 'Original Packet' tab, what should be the 'Destination Address' when internal clients access an internal server using its public IP 203.0.113.10?

The server's public IP (203.0.113.10) The server's private IP (e.g., 192.168.1.50) The client's private IP (e.g., 192.168.1.10) The firewall's interface IP

Correct Answer: a The 'Original Packet' section describes the packet *before* any translation, as it arrives at the firewall from the client. The client is sending the packet to the server's public IP.

5. In the U-Turn NAT rule's 'Translated Packet' tab, what should be the 'Destination Address Translation' when the internal server's private IP is 192.168.1.50 and its public IP is 203.0.113.10?

The server's public IP (203.0.113.10) The client's private IP (e.g., 192.168.1.10) The server's private IP (192.168.1.50) The firewall's interface IP

Correct Answer: c The 'Translated Packet' Destination Address is where the firewall should send the packet *after* translating the original destination (the public IP). This must be the server's actual private IP.

6. What is the typical 'Source Address Translation' type used in a U-Turn NAT rule for simplicity?

Static IP Interface Address Dynamic IP Dynamic IP And Port

Correct Answer: b Interface Address translation is commonly used for U-Turn NAT's SNAT. It translates the client's source IP to the IP of the firewall interface in the server's zone, ensuring the server's reply comes back to that interface.

7. In the U-Turn NAT rule's 'Original Packet' tab, if the client is in the 'Trust' zone and the server is in the 'DMZ' zone, what should the 'Source Zone' and 'Destination Zone' be?

Source: DMZ, Destination: Trust Source: Trust, Destination: Trust Source: DMZ, Destination: DMZ Source: Trust, Destination: DMZ

Correct Answer: d The Original Packet zones represent the zones the packet is originating from (Source Zone) and is logically destined for (Destination Zone) *before* any NAT or routing based on translated addresses. The client is in Trust, and the server is in DMZ.

8. If a U-Turn NAT rule translates the source IP to the firewall's Trust interface IP (192.168.1.1) and the destination IP to the server's private IP (192.168.2.50), which addresses must the security policy rule allow traffic BETWEEN?

Source: Firewall's IP (192.168.1.1), Destination: Server's private IP (192.168.2.50) Source: Client's private IP (e.g., 192.168.1.10), Destination: Server's public IP (203.0.113.10) Source: Client's private IP (e.g., 192.168.1.10), Destination: Server's private IP (192.168.2.50) Source: Server's private IP (192.168.2.50), Destination: Client's private IP (e.192.168.1.10)

Correct Answer: a Security policies are evaluated *after* the initial NAT translation. Therefore, the security policy must match the packet headers *after* DNAT and SNAT have been applied.

9. What zone combination is used in the security policy rule for a classic U-Turn NAT scenario where both client and server are in the 'Trust' zone?

From: Trust, To: Untrust From: Trust, To: Trust From: Trust, To: DMZ From: Any, To: Any

Correct Answer: b Security policies use the original zones from the NAT rule's 'Original Packet' tab. If the client and server are in the Trust zone, the original zones are Trust to Trust.

10. In the packet flow, when does the firewall apply the NAT translations for a U-Turn packet?

After Security Policy Lookup After Routing Before Security Policy Lookup On the return path only

Correct Answer: c NAT policy lookup occurs early in the packet flow, *before* the security policy lookup. This is why the security policy must match the translated addresses.

11. What is the primary reason the server's reply packet is dropped by the firewall without U-Turn NAT configured?

The server sends the reply to the public IP. The firewall's security policy blocks the reply. The server receives the packet with the public IP as source. The server replies directly to the client's private IP, bypassing the firewall's NAT state.

Correct Answer: d Without SNAT, the server sees the client's original private IP and replies directly to it, assuming it's routable directly or via its default gateway (the firewall, but not via the specific NAT state). The firewall doesn't see this reply packet as part of the NAT session it created for the outgoing packet.

12. Where should a U-Turn NAT rule typically be placed relative to other NAT rules?

At the bottom of the list. It doesn't matter as long as it's enabled. Higher than the general Internet-facing DNAT rule for the same server. Lower than the general Internet-facing DNAT rule for the same server.

Correct Answer: c NAT rules are evaluated top-down. The U-Turn rule has more specific criteria (Source Zone is internal, not Untrust). Placing it higher ensures the internal-to-internal traffic hits the U-Turn rule before the general internet-to-internal DNAT rule.

13. What is a common alternative to U-Turn NAT when internal clients access internal resources by their external FQDN?

Split-DNS Port Forwarding Proxy Server VPN Tunnel

Correct Answer: a Split-DNS involves configuring internal DNS servers to resolve external FQDNs of internal resources to their private IP addresses, bypassing the need for U-Turn NAT on the firewall for DNS-based access.

14. When troubleshooting U-Turn NAT, if traffic logs show the session is being allowed by a security policy, but the connection still fails, what should you check next?

The client's IP address configuration. The NAT logs or session details to ensure NAT translations are applied correctly. The external interface configuration. The server's public IP address.

Correct Answer: b If the security policy is allowing the traffic, the issue is likely in the NAT translation itself, the session state, or the return path. Checking NAT logs and session details provides crucial information about how the firewall is translating and tracking the connection.

15. A client (192.168.1.10, Trust) accesses a server (192.168.1.50, Trust) using public IP 203.0.113.10. The U-Turn NAT rule SNATs the source to 192.168.1.1 (Firewall Trust IP). What source IP will the server see for the incoming connection?

192.168.1.10 203.0.113.10 The client's gateway IP 192.168.1.1

Correct Answer: d The server sees the packet *after* the firewall applies the SNAT translation. The source IP is changed from the client's original IP to the firewall's translated IP.

16. In a U-Turn NAT setup where the server is in the DMZ zone, and the client is in the Trust zone, what should the 'Destination Zone' in the NAT rule's Original Packet tab be?

Trust Untrust DMZ Any

Correct Answer: c The Destination Zone in the Original Packet tab specifies the logical zone where the firewall will route the packet *after* the NAT translation and security policy lookup. Since the server is in the DMZ, the packet is routed to the DMZ zone.

17. Which CLI command is most useful for seeing the translated source and destination IPs/ports for an active U-Turn NAT session?

show running nat-policy show session all filter... less mp-log traffic.log test security-policy-match

Correct Answer: b The `show session all filter` command allows you to find a specific session and view its details, including the original and translated source and destination IPs/ports, NAT rule hit, and policy rule hit.

18. When configuring the Source Address Translation in a U-Turn NAT rule using 'Interface Address', which interface should you select?

The firewall interface in the server's zone. The firewall interface in the client's zone. The firewall interface in the Untrust zone. Any interface can be used.

Correct Answer: a Translating the source to the firewall's IP in the server's zone ensures that the server's reply is routed back to that specific interface on the firewall, allowing the firewall to correctly reverse the NAT translations and return the packet to the client.

19. Why is Source NAT (SNAT) a necessary component of U-Turn NAT?

To make the client appear as the server. To hide the server's private IP from the client. To reduce the number of required security policies. To ensure the server's reply traffic returns to the firewall for reverse NAT.

Correct Answer: d The SNAT changes the source IP the server sees to the firewall's IP. When the server replies, it sends the packet back to this firewall IP, guaranteeing the reply returns to the firewall where the session state exists and reverse NAT can occur.

20. If internal users can access a server using its private IP, but not its public IP/DNS name, and the public IP is working correctly for external users, the issue is most likely related to:

U-Turn NAT configuration or Split-DNS. The server's firewall blocking external traffic. The main Internet-facing NAT rule. Default routing on the firewall.

Correct Answer: a Accessing the server via its private IP works, indicating basic network connectivity and server configuration are fine. Access failing via the public IP from internal clients points directly to the U-Turn scenario problem, requiring either U-Turn NAT or the Split-DNS alternative. The other options relate more to external access or general routing.

Conclusion

U-Turn NAT is a powerful solution for a specific, yet common, network challenge on Palo Alto Networks firewalls: allowing internal clients to access internal or DMZ resources using the same public IP or DNS name that external users employ. By applying both Destination and Source NAT translations simultaneously, the firewall ensures that the server's reply traffic is directed back through the firewall, maintaining session state and enabling the connection.

Understanding the packet flow, the specific configuration requirements for both NAT and security policies, and how to troubleshoot common issues is vital, particularly for those pursuing PCNSA or PCNSE certifications. While alternatives like Split-DNS exist, U-Turn NAT remains a necessary technique in many environments.

By mastering U-Turn NAT, you gain deeper insight into firewall packet processing, NAT rule evaluation, and the interaction between NAT and security policies, skills that are fundamental to network security and firewall administration.
