Palo Alto Networks: Mastering QoS and Security Policy Interaction for PCNSE Success

Effective network performance and security are paramount in modern IT infrastructures. Palo Alto Networks Next-Generation Firewalls (NGFWs) provide robust Quality of Service (QoS) capabilities that, when intricately woven with Security Policies, allow for granular control over application traffic. This guide offers an in-depth exploration of this interaction, crucial for day-to-day network administration and indispensable knowledge for the Palo Alto Networks Certified Network Security Engineer (PCNSE) certification.

Core Concepts: QoS and Security Policies in PAN-OS

Quality of Service (QoS) in Palo Alto Networks

QoS on Palo Alto Networks firewalls is designed to manage network bandwidth and prioritize traffic to ensure that critical applications receive the necessary resources, especially during periods of congestion. PAN-OS implements QoS through QoS Profiles and their application to network interfaces and traffic flows.

A QoS Profile defines how traffic belonging to different QoS Classes should be treated. PAN-OS supports eight standard QoS classes:

• Class 1 (Highest Priority): Typically reserved for network control, routing updates, or extremely sensitive real-time traffic.
• Class 2: Often used for voice (VoIP) traffic.
• Class 3: Suitable for interactive video or other high-priority business applications.
• Class 4: Common for critical data applications, enterprise applications (e.g., SAP, Oracle).
• Class 5: General business applications, web browsing.
• Class 6: Less critical applications, large file transfers (non-urgent).
• Class 7: Low-priority traffic, recreational applications.
• Class 8 (Lowest Priority - Default): Best-effort traffic; any traffic not explicitly classified falls into this class by default.

Within a QoS Profile, configured under Network > QoS Profile , you can specify for each class:

• Guaranteed Bandwidth: The minimum amount of bandwidth allocated to this class when the link is congested. This is a crucial parameter for ensuring performance for critical applications.
• Maximum Bandwidth: The upper limit of bandwidth this class can consume, preventing it from starving other classes.
• Priority: Determines the order in which queues are serviced. Higher priority classes are serviced before lower priority ones.
• DSCP/ToS Marking (Optional): The firewall can mark IP packet headers (DSCP or IP Precedence) to signal desired QoS treatment to downstream network devices. This is configured under Network > Network Profiles > QoS Profile > [Profile Name] > Class Bandwidth Settings and then selecting a QoS Policy for advanced marking, or implicitly by class priority. Palo Alto Networks standard QoS Profiles primarily use priority and bandwidth settings; explicit DSCP marking is more tied to QoS Policy objects (under Policies > QoS).

Security Policies: The Gatekeepers of Traffic

Security Policies are the foundational elements of traffic control in PAN-OS. Configured under Policies > Security , they are evaluated sequentially from top to bottom. The first rule that matches the traffic's parameters (source/destination zone, address, user, application, service, etc.) is applied, and no further rules are processed for that session.

The action defined in the matching Security Policy rule (e.g., allow, deny, drop) determines the fate of the traffic. Crucially for QoS, the Security Policy rule is also where you associate specific application flows with a QoS Profile.

The Crucial Link: Security Policies Driving QoS

The interaction between Security Policies and QoS in Palo Alto Networks firewalls is direct and deterministic: QoS treatment is assigned based on the Security Policy rule that permits the traffic.

Here's the typical flow:

1. A new session's first packet arrives at an ingress interface.
2. The firewall performs a Security Policy lookup.
3. App-ID identifies the application (potentially over multiple packets).
4. User-ID (if configured) identifies the user.
5. If a matching Security Policy rule is found that permits the traffic, the firewall checks the rule's Action tab .
6. If a QoS Profile is specified in the Action tab of that Security Policy rule, the session is "tagged" or marked with that QoS Profile and assigned to the corresponding QoS Class defined within that profile.
7. As traffic for this session egresses an interface where QoS is enabled, the firewall enforces the bandwidth guarantees, limits, and priority defined for its assigned QoS Class.

Detailed packet flow illustrating Security Policy lookup and QoS profile assignment in Palo Alto Networks PAN-OS.

Key Implications of this Interaction:

• Policy Order is King: The most critical aspect. A specific Security Policy rule intended to provide special QoS treatment (e.g., for VoIP identified by App-ID `sip` and `rtp`) MUST be placed above any broader rules that might also match the VoIP traffic but have a different (or no) QoS profile. If VoIP traffic hits a general "allow web and SSL" rule first, it will get the QoS profile of that general rule.
• App-ID's Role: Accurate application identification by App-ID is vital. If App-ID misclassifies an application, the traffic might match an unintended Security Policy rule, leading to incorrect QoS treatment.
• Egress Enforcement: QoS marking happens based on the policy match, but the actual bandwidth management (queuing, shaping, policing) is performed on the egress interface where QoS has been explicitly enabled and configured. This is done under Network > Interfaces > [Interface Type] > [Interface Name] > QoS tab . Here, you apply an interface-level QoS profile which defines the queue structure for that interface. The session's QoS class (from the security policy) determines which of these queues it uses.
• Default QoS Treatment: If a session matches a Security Policy rule that does *not* specify a QoS profile, or if no Security Policy rule explicitly allows the traffic and it falls to an implicit allow (not recommended) or an intra-zone default allow, the traffic will typically be assigned to the default QoS class (Class 8, unless the interface's default QoS profile specifies otherwise).

Table: Key Palo Alto Networks Components in QoS Implementation

Configuring Policy-Based QoS: A Step-by-Step Overview

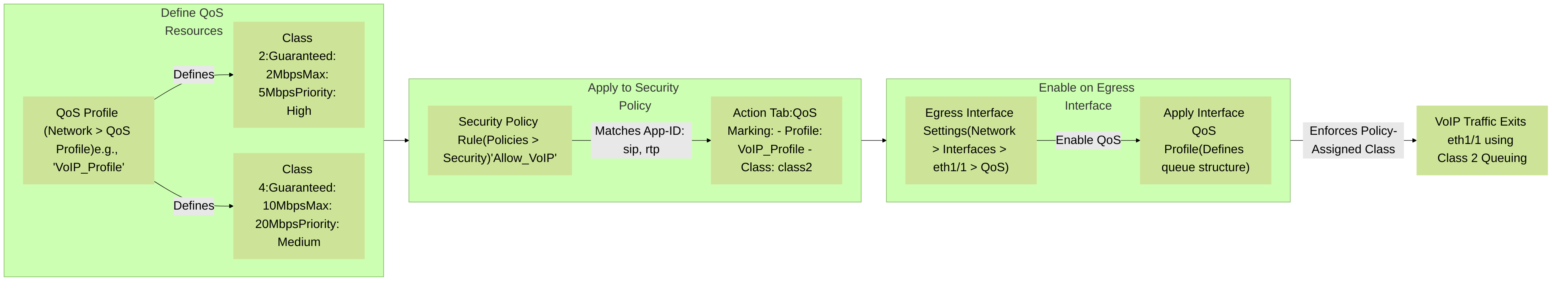

Palo Alto Networks configuration linkage: QoS Profile definition, assignment in Security Policy, and enablement on the egress interface.

Illustrative Examples (Mermaid Diagrams Expanded)

Sequence Diagram: Packet Processing & QoS (PAN-OS Detail)

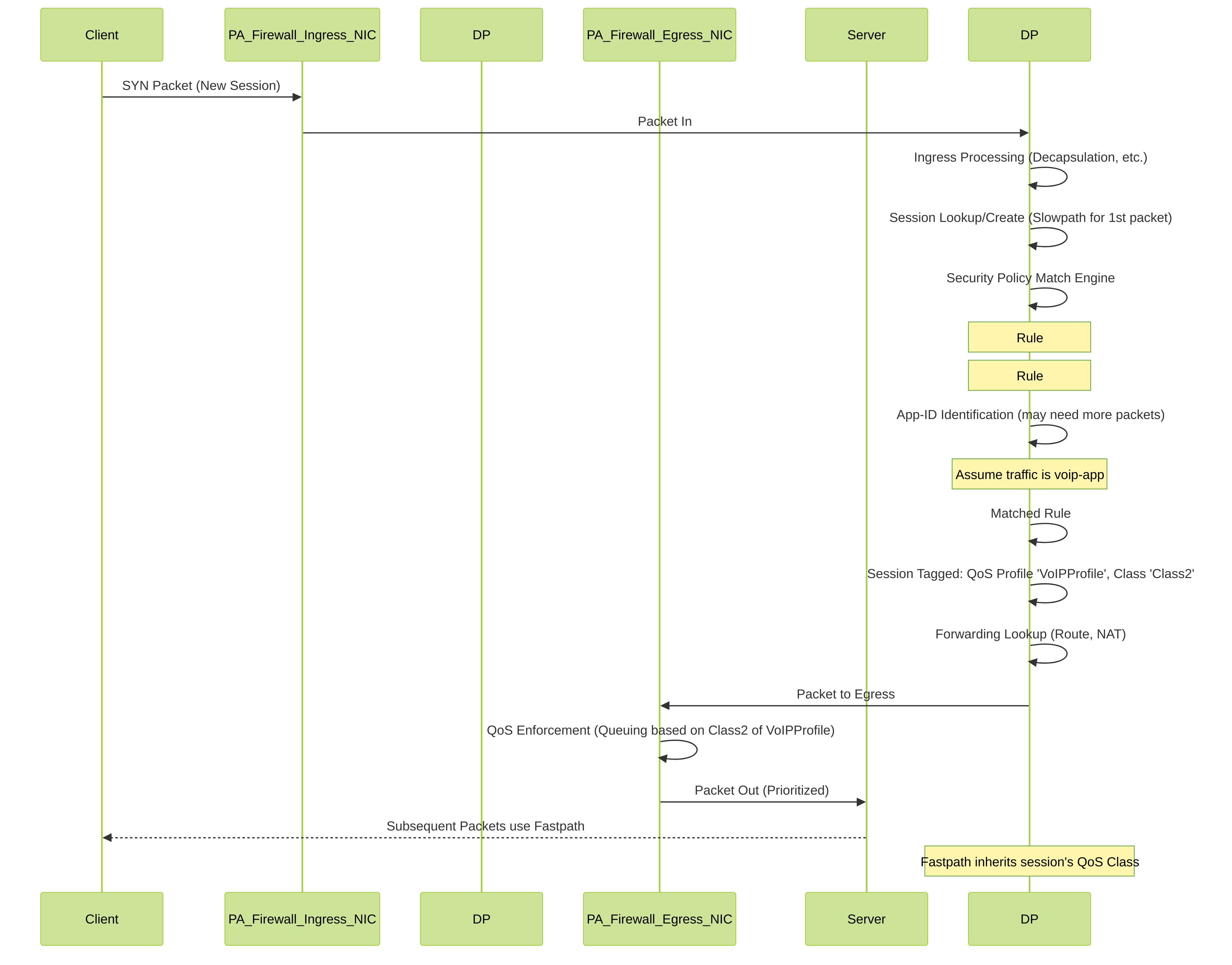

Detailed sequence showing PAN-OS packet processing for a new session, highlighting Security Policy match, App-ID, and QoS profile assignment leading to egress QoS enforcement.

Flowchart: Security Policy Decision & QoS (Refined for PAN-OS)

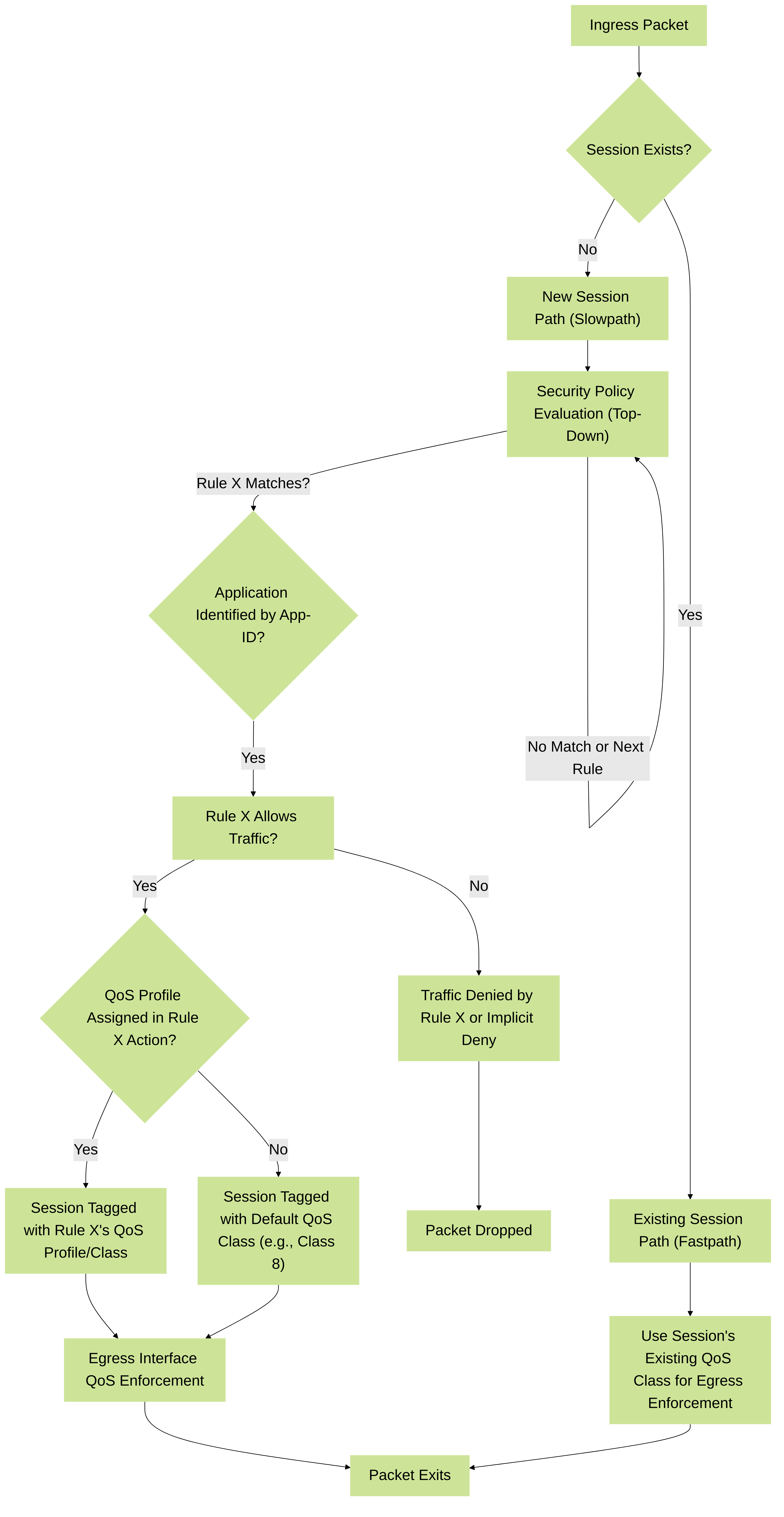

Refined flowchart for PAN-OS illustrating Security Policy decision points, App-ID influence, and QoS assignment for both new and existing sessions.

State Diagram: Session State & QoS Relevance (PAN-OS Context)

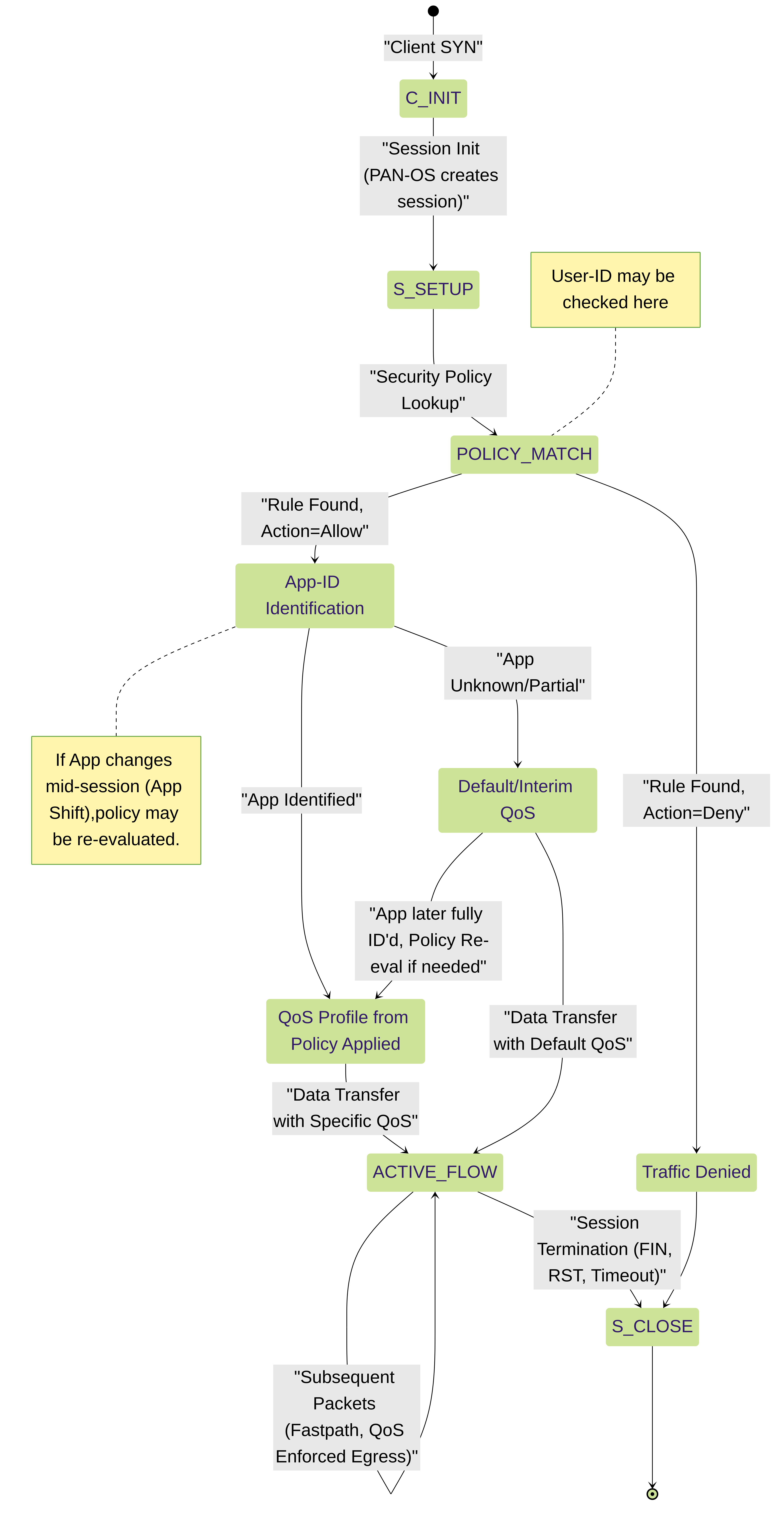

PAN-OS session lifecycle state diagram emphasizing points of Security Policy match, App-ID, and QoS profile assignment.

PCNSE Focus: Key Considerations, Gotchas, and Advanced Topics

Key PCNSE Concepts for QoS & Security Policies

• Policy Rule Order Supremacy: Hammer this home. Specific rules (e.g., for `ms-rpd` with high QoS) above general rules (e.g., allow `ssl` with standard QoS).
• QoS Profile Components: Know what Guaranteed Bandwidth, Maximum Bandwidth, and Priority mean and how they affect traffic. Understand the 8 PAN-OS QoS classes.
• Interface QoS Enablement: Traffic is only QoS-managed if QoS is enabled on the egress interface. The interface QoS profile sets up the queues.
• Security Policy Action Tab: This is where the QoS Profile and Class are explicitly assigned to application flows.
• App-ID and QoS: App-ID's accuracy is fundamental to correct QoS policy application. If `web-browsing` is actually `salesforce`, QoS may be wrong.
• Verification and Monitoring: Know the CLI commands (`show qos interface`, `test security-policy-match`, `show session id`) and GUI locations (ACC, Monitor tab logs) to check QoS.
• Clear Text vs. Tunneled Traffic: QoS can be applied to traffic inside tunnels (e.g., GlobalProtect, IPsec). Security policies would match traffic destined for or emerging from tunnel interfaces. The QoS profile would be applied based on the de-capsulated (inner) traffic characteristics if policies are set up to inspect it.

Common Palo Alto Networks Gotchas

Hierarchical QoS (HQoS) and QoS Policy Objects

While Security Policy-based QoS is the most common method for application prioritization, PAN-OS also supports more advanced QoS configurations using QoS Policy objects found under Policies > QoS . These are typically used for:

• Hierarchical QoS (HQoS): Allows for multi-level scheduling, often used in service provider environments or complex enterprise networks to provide granular bandwidth allocation to different customers, departments, or services sharing a common link. For example, an outer policy might allocate bandwidth to a department, and inner policies might further divide that department's bandwidth among its applications.
• DSCP-Based Classification and Re-marking: QoS Policy rules can match traffic based on existing DSCP markings and then re-mark packets or assign them to specific QoS classes. This is useful for integrating with existing QoS schemes in the network.
• Per-Session Bandwidth Control (Advanced): While QoS Profiles define class-based limits, more granular per-session limits might be part of advanced QoS policy configurations in some specific PAN-OS versions or scenarios.

For most enterprise use cases covered by PCNSE, assigning a QoS Profile via the Security Policy is the primary method. However, being aware of dedicated QoS Policies for advanced scenarios is beneficial.

Debugging QoS with PAN-OS CLI Commands

The CLI is invaluable for verifying and troubleshooting QoS.

ethernet1/1 (Max BW: 1000 Mbps, Path: /hw:ethernet1_1/qos, Qos RUNNING)
QoS Profile: default (id 10001)
Class   BW Guaranteed   BW Max          Priority  Pkt Queued    Pkt Dropped   Throughput(Kbps)
1       0               1000000         real-time 0             0             0
2       0               1000000         high      0             0             0
3       0               1000000         high      0             0             0
4       0               1000000         medium    5             1205          15000
5       0               1000000         medium    0             0             8000
6       0               1000000         low       0             0             0
7       0               1000000         low       0             0             0
8       0               1000000         low       150           85000         450000

Session          67890
...
qos node:       ethernet1/1, qos profile VoIPQoS, class 2
...

Troubleshooting QoS - A Decision Tree Approach

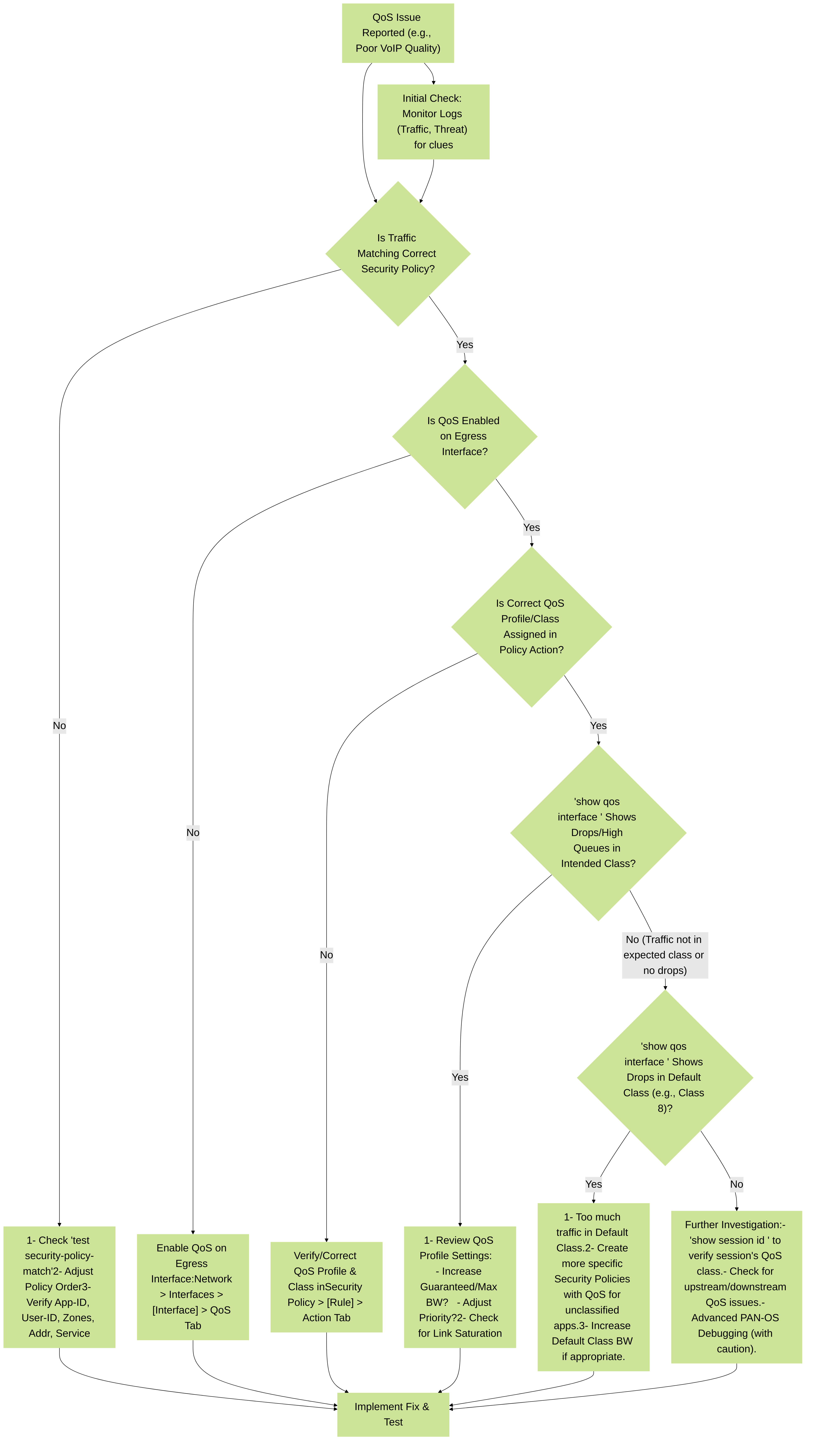

A decision tree for troubleshooting common QoS issues on Palo Alto Networks firewalls.

Conclusion

The interaction between Security Policies and QoS is a cornerstone of effective traffic management on Palo Alto Networks NGFWs. By correctly identifying applications with App-ID, structuring Security Policies logically, and defining appropriate QoS Profiles, network administrators can ensure that critical applications receive the network resources they need. For PCNSE candidates, a deep understanding of this interplay, including configuration, verification, and troubleshooting, is essential for exam success and for deploying robust, high-performing secure networks.
