Aggregate routes seen as 'suppressed specific' in BGP RIB Out

Symptom

BGP Local RIB on peer does not show aggreagted routes, instead it shows the contributing routes as advertised.

Palo Alto Networks firewall advertising the aggregate route has the following contributing routes:

172.31.2.0/23

172.31.0.0/24

The aggregate route to be advertised is 172.31.0.0/21.

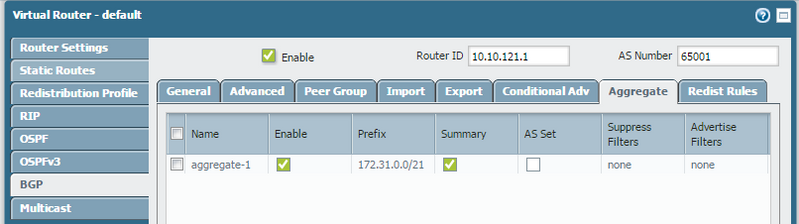

Route aggregation configuration :

A screenshot of a computer AI-generated content may be incorrect.

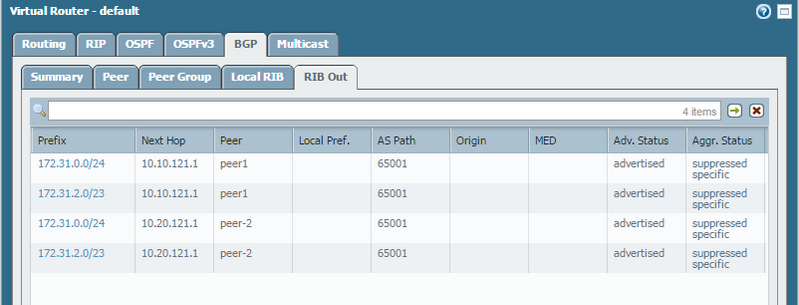

BGP RIB Out is found to have "suppressed specific" for aggregate status:

A screenshot of a computer AI-generated content may be incorrect.

Diagnosis

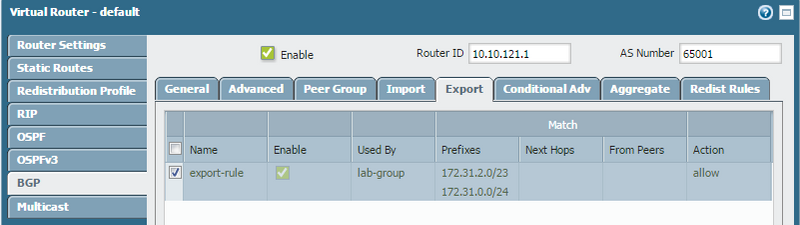

An Export rule for the same set of contributing routes causes the issue :

A screenshot of a computer AI-generated content may be incorrect.

Resolution

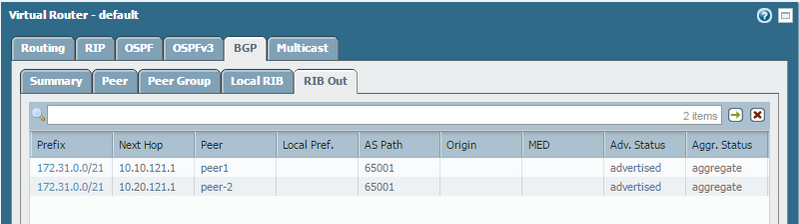

Removal of the above Export resolves the issue and the BGP RIB Out shows the "aggregate" as status:

A screenshot of a computer AI-generated content may be incorrect.

BGP Local RIB on peer now shows the aggregate route.
