How to Redistribute a Loopback Address via iBGP without a Static Route

Procedure

To Redistribute a loopback address with BGP:

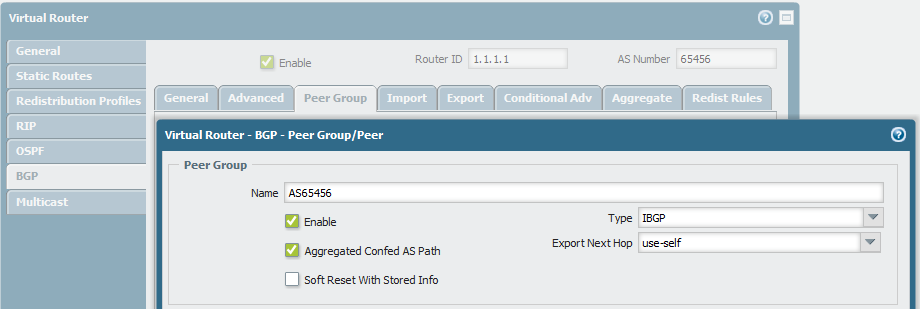

  1. Configure the BGP next hop Export to be use-self. Under Virtual Router > BGP > Peer Group > select the Export Next Hop to be use-self and Type to be 'IBGP'.

A screenshot of a computer AI-generated content may be incorrect.

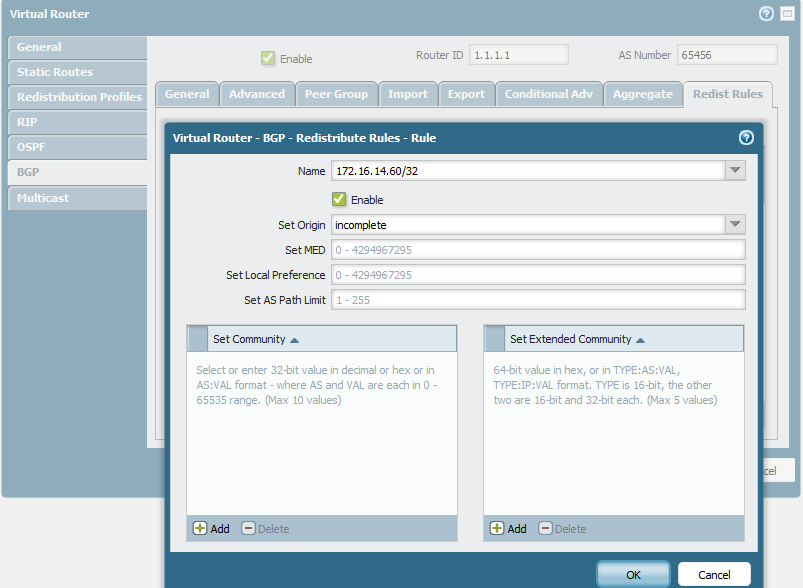

  1. Configure the loopback IP address in the Redistribution Profile. Under Virtual Router > BGP > Redistribution Rules, type in the loopback address and set the origin to be 'Incomplete'.

A screenshot of a computer AI-generated content may be incorrect.

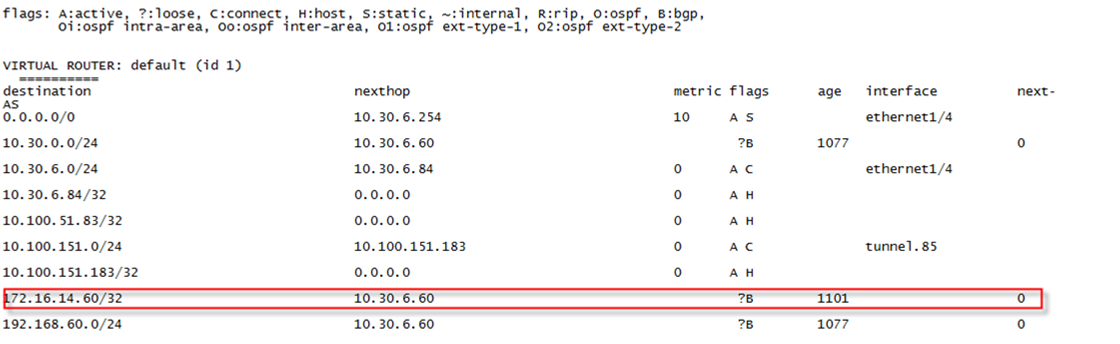

Routing table example:

A screenshot of a computer AI-generated content may be incorrect.
