Understanding Service Routes on Palo Alto Networks Firewalls

Palo Alto Networks firewalls are complex devices that require connectivity to various external services to function optimally. These services include retrieving software updates, licenses, threat intelligence updates, contacting logging destinations, and interacting with management platforms like Panorama.

By default, traffic destined for these services originates from the firewall's dedicated Management (MGT) interface. However, network designs often dictate that the MGT interface resides on a separate, isolated network segment which may not have routing access to all necessary external services. This is where Service Routes become essential.

Management Interface vs. Data Plane Interface Traffic

The Palo Alto Networks firewall operates with two main planes: the Management Plane and the Data Plane.

Management Plane: Handles administrative traffic, GUI/CLI access (SSH, HTTPS), logging, reporting, and service traffic like updates, licenses, and Panorama communication by default. It uses the MGT interface as its default gateway.
Data Plane: Processes user traffic, applies security policies, performs NAT, routing, etc. It uses configured data interfaces (Ethernet, Aggregate Ethernet, VLAN interfaces) which are associated with virtual routers.

While the Management Plane typically handles service traffic, Service Routes allow you to explicitly direct specific service traffic to originate from a Data Plane interface instead. This is crucial when the external service (like a DNS server, Panorama, or update server) is only reachable through the network segments connected to your data interfaces.

Using a Data Plane interface for service traffic means that traffic will traverse the Data Plane's routing table (specifically, the virtual router associated with the chosen interface) to reach its destination. This allows service traffic to follow the same network paths as user traffic if necessary, overcoming limitations of the MGT network.

Core Concepts and Configuration

Purpose of Service Routes

The primary purpose of service routes is to enable the firewall's management plane to reach external services when the default routing via the Management interface is not suitable or possible. This is necessary when external services are not reachable via the MGT interface but are accessible through in-band data interfaces (interfaces configured within a virtual router).

     Understand why and when to use service routes instead of relying on the default management interface. This includes scenarios where external services are not reachable via the MGT interface but are accessible through in-band data interfaces.


Default Behavior

By default, the Management (MGT) interface is the source and egress interface for all service-related traffic originating from the firewall itself. This relies on the MGT interface having a default gateway configured that can route traffic to the internet or internal service hosts.

     Know that the management interface is the default for all services unless a service route is configured.


Configuration Steps

Configuring service routes involves specifying which service traffic should use a different source interface and potentially a different source IP address than the default MGT interface settings. The configuration is performed within the Device tab.

The general steps are:

Navigate to Device > Setup > Services .
Locate the Service Route Configuration section.
Click Customize .
Select the specific service you want to modify (e.g., DNS, NTP, Panorama, Updates).
Choose the desired Source Interface from the available data plane interfaces. This interface must be configured and be part of a virtual router.
(Optional) Specify a Source IP Address if you need the traffic to originate from a specific IP on that interface (e.g., a secondary IP or the interface's primary IP if not automatically selected).
Some services might require manually adding the destination server address if not present in the firewall's database.
Commit the changes.

     Be familiar with the process of configuring service routes (Device > Setup > Services > Customize), selecting the appropriate data interface, and optionally specifying a source IP.


Service Route Customization

You can customize routes for various specific services. The interface chosen for the service route must be a layer 3 interface configured in a virtual router. The firewall will then use the routing table of that virtual router to determine the actual next hop and egress interface for the service traffic.

     Selecting a source interface for a service route means the firewall will use the VIRTUAL ROUTER associated with that interface, NOT necessarily the interface itself as the final egress point. The virtual router's routing table determines the actual path.


Global vs. Per-VSYS Service Routes

In deployments utilizing Virtual Systems (VSYS), service route configuration has additional considerations.

Global Service Routes

Service routes configured at the global level (when logged into the shared environment or VSYS1 if no other VSYS exist) apply to the entire firewall and all configured Virtual Systems by default.

Per-VSYS Service Routes

In a multi-VSYS environment, each virtual system inherits global service route settings by default. However, administrators can customize service routes specifically for individual VSYS instances.

This is important for scenarios such as:

Supporting multiple tenants with distinct external service needs (e.g., different DNS servers, different Panorama instances).
Ensuring service traffic for a specific VSYS follows particular network paths only accessible within that VSYS's routing domain.

     Understand the difference between Global and Per-VSYS service routes. Per-VSYS settings override Global settings for that specific VSYS.


     When configuring per-VSYS service routes, you select a

      Virtual Router

     associated with that VSYS, rather than a specific egress interface. The firewall then uses that VSYS's routing table to find the path. This is different from the Global configuration where you select a source interface.

Interaction with Routing

Regardless of whether the service route is Global or Per-VSYS, the firewall determines the actual egress interface and next hop for the service traffic based on the routing table:

Global Service Route: Uses the routing table of the virtual router associated with the Source Interface selected in the configuration.
Per-VSYS Service Route: Uses the routing table of the Virtual Router explicitly selected in the VSYS's service route configuration.

     Remember that service routes leverage the firewall's routing table. For Global routes, the interface determines the VR. For Per-VSYS, the configured VR is used. The firewall needs a valid route to the service destination via the chosen path.


Importance and Use Cases

Service routes are fundamental for ensuring the Palo Alto Networks firewall can connect to critical external services necessary for its proper operation, security functions, and management. Key use cases and the services involved include:

Accessing External Services

Service routes are fundamental for enabling the firewall to connect to critical external services required for its operation and security updates.

Dynamic Updates

Ensuring the firewall can download and install dynamic content and software updates is a crucial use case. Services requiring connectivity often include:

PAN-OS Software Updates: New firewall operating system versions.
Licenses: Retrieving and validating firewall licenses.
Threat Intelligence Updates:
- WildFire (malware analysis and signatures)
- Antivirus signatures
- Spyware signatures
- Vulnerability signatures
- URL Filtering database
- Applications and Threats database
- GlobalProtect Data File
- Correlation Objects

     Dynamic Updates (PAN-OS, Licenses, Threat Feeds) are critical services often requiring service routes if the MGT interface cannot reach the update servers. Ensure these are correctly routed.


Network Services

Several essential network services rely on service routes if their destinations are not reachable via the default Management route:

DNS (Domain Name System): Used by the firewall to resolve hostnames for various services (updates, Panorama, URL filtering lookups, etc.). Correct DNS resolution is vital.
NTP (Network Time Protocol): For time synchronization, which is critical for accurate logging, certificate validation, and correlation of events.
Authentication Services: Connectivity to external LDAP, RADIUS, TACACS+, and SAML servers for administrator or user authentication.
Syslog: Forwarding logs to external syslog servers for centralized logging and analysis.

Panorama Connectivity

If the firewall is managed by Panorama, it must be able to connect to the Panorama appliance. A service route might be needed if the Panorama IP is not reachable via the MGT interface.

Security and Segmentation

Using dedicated data interfaces for services can enhance security and align with network segmentation strategies. Instead of exposing the MGT network to paths required for production services, you can route service traffic via specific data plane interfaces configured within more appropriate network segments.

Routing service traffic via a data plane interface also means that traffic will be processed by the Data Plane to some extent. While it bypasses security policies (service traffic is typically generated by the Management Plane), it will use the routing table, NAT configuration (if applicable to the source IP/interface), and potentially features like QoS or path monitoring configured on that interface's virtual router.

     Service traffic originating from the firewall (even via a data plane interface using a service route) typically bypasses the security policy rules that apply to *user* traffic. However, it still uses the specified source interface/IP and the associated virtual router's routing table.


Benefits and Disadvantages of Service Routes

Implementing service routes offers several advantages but also introduces potential complexities.

Benefits:

Reachability: Enables the firewall to access critical external and internal services that are not reachable via the isolated Management network. This is the primary benefit.
Network Segmentation Alignment: Allows service traffic to follow the designed network architecture and segmentation strategy by using appropriate data plane interfaces and routing domains.
Flexibility: Provides granular control over which services use which network paths, adapting to complex network designs.
Enhanced Security (via segmentation): By routing service traffic off the dedicated management network, you reduce the need for complex routing or firewall holes into the management segment from other networks.
Utilization of Data Plane Features: Service traffic can implicitly benefit from routing, NAT (if configured on the source interface/VR), and potentially other network features within the data plane's virtual router.

Disadvantages:

Configuration Complexity: Requires explicit configuration for each service route, adding overhead compared to relying solely on the MGT interface default gateway.
Potential for Misconfiguration: Errors in selecting the source interface, source IP, or ensuring the virtual router has the correct route can lead to service outages (e.g., updates failing, logging stopping).
Troubleshooting Difficulty: Issues can be harder to diagnose as traffic is no longer simply exiting the known MGT interface but following complex data plane routing paths. Requires understanding which interface/VR is being used and its routing table.
Dependency on Data Plane Health: If the data plane interface or the network path through its virtual router fails, the service traffic will also fail, even if the Management plane is operational.

Troubleshooting Service Routes

When services are failing (updates not downloading, Panorama showing disconnected, logs not arriving), service routes are a common area to investigate, especially if the MGT interface doesn't have direct internet access.

Verifying Service Routes

The first step is to confirm if a service route is configured for the problematic service and that the configuration is as expected (correct source interface/virtual router). This is done in the GUI (Device > Setup > Services > Service Route Configuration > Customize) or via the CLI.

     Know how to check the configured service routes to see if a specific service has been customized to use a data plane interface.


CLI Commands for Debugging

The CLI is invaluable for verifying the operational state of service routes and diagnosing underlying routing issues.

Viewing Configured Service Routes:

> show running service-route

This command shows the service routes configured in the candidate or running configuration.
Viewing Operational Service Routes (Management Plane perspective):

> debug dataplane internal vif route

Replace <destination_IP> with the IP address of the service host (e.g., Panorama IP, update server IP, DNS server IP). This command shows how the Management Plane intends to route traffic to that specific destination based on configured service routes and the underlying data plane routing tables.

Be aware of the debug dataplane internal vif route <destination_IP> command. This is a critical command to verify which interface/VR the management plane will use for a specific service destination IP.

The output of debug dataplane internal vif route shows the routing from the Management Plane's perspective, but relies on the Data Plane's routing tables. It will indicate the chosen virtual router and the resulting egress interface/next hop from that VR's table. A missing route in the VR will show up here.
Viewing Data Plane Routing Table:

> show routing route virtual-router

Use this to verify that the virtual router associated with your service route (either via the source interface for Global, or directly configured for Per-VSYS) actually has a valid route to the service destination IP.
Pinging from a Data Plane Interface (Requires license/specific versions):

> ping source host

or

> ping source host

This can help verify basic Layer 3 connectivity from the chosen source interface/IP that your service route is configured to use.

Common Issues

Incorrect Source Interface/Virtual Router: Selecting an interface or VR that doesn't have a valid route to the service destination.
Missing Route in Virtual Router: The VR associated with the service route doesn't have a specific or default route covering the service destination IP.
Firewall/ACLs Blocking Traffic: An external firewall or ACL is blocking the service traffic originating from the data plane interface's source IP. Remember, while policy bypasses security *rules*, external devices might still filter based on source/destination/port.
NAT Issues: If the service destination requires communication with a specific source IP and NAT is incorrectly configured (or not configured when needed) on the data plane interface.
DNS Resolution Failure: If the service route is for DNS itself, or if the firewall needs to resolve the service destination hostname (e.g., update server FQDN), and the specified DNS server is unreachable or incorrect.

     Common troubleshooting steps involve verifying the configured service route, checking the routing table of the associated virtual router, using

      debug dataplane internal vif route

     , and verifying basic connectivity (ping).

Log Analysis

Firewall logs can provide clues. System logs may show errors related to failed updates, license retrieval, or Panorama connection issues. Traffic logs might show sessions initiated from the firewall's source IP towards service destinations, indicating if traffic is hitting a block somewhere downstream (though service traffic often doesn't appear in standard traffic logs in the same way user traffic does).

Illustrations

Understanding how service routes interact with the different planes and routing tables is key. Here are some conceptual diagrams illustrating the traffic flow.

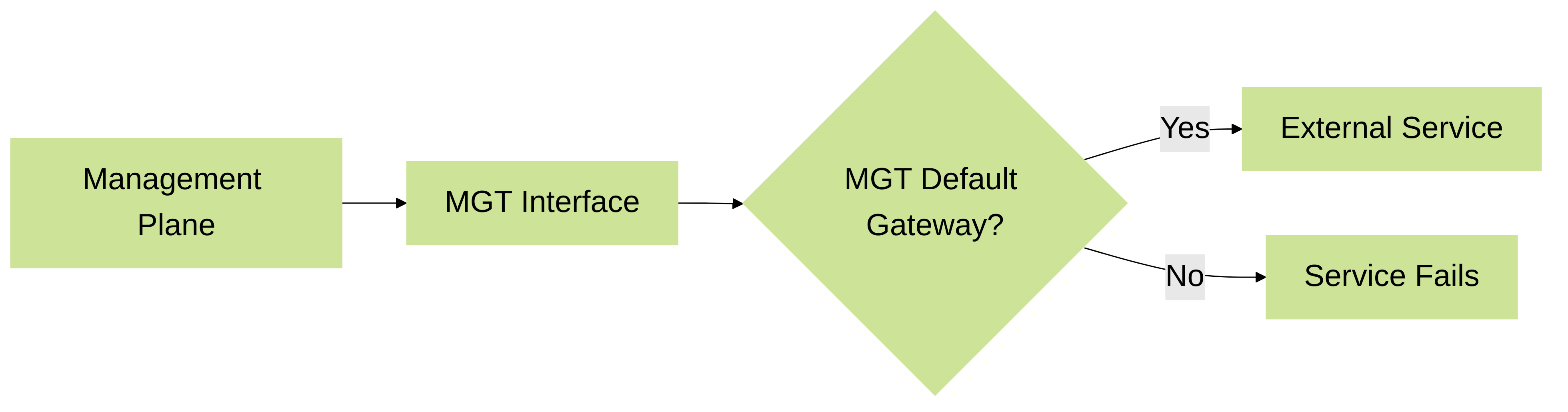

Flowchart: Default Service Traffic Flow (No Service Route)

Illustration of service traffic flow using the default Management interface.

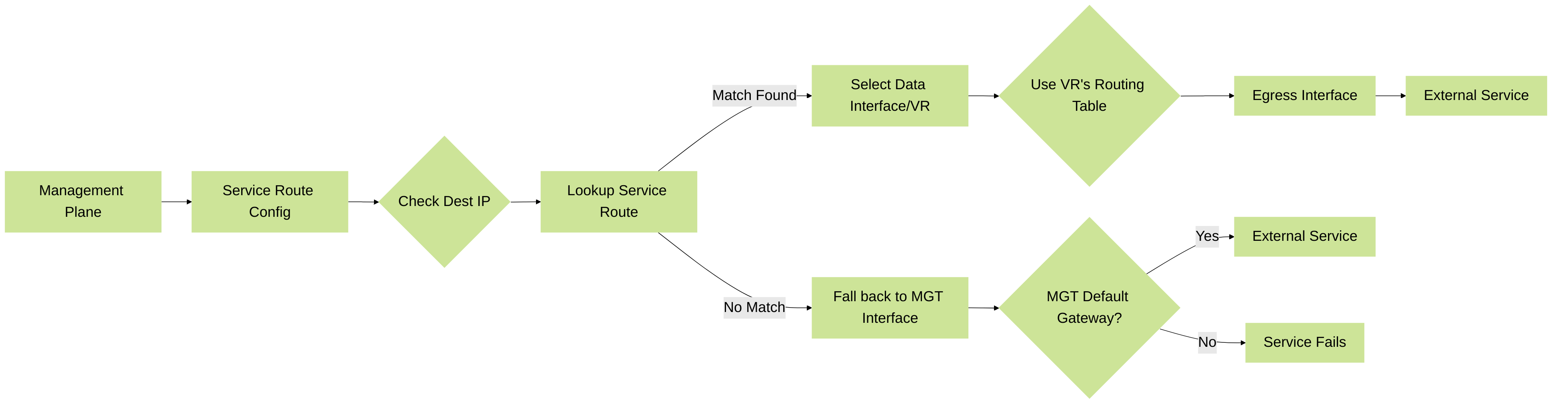

Flowchart: Service Traffic Flow (With Service Route)

Illustration of service traffic flow when a service route is configured.

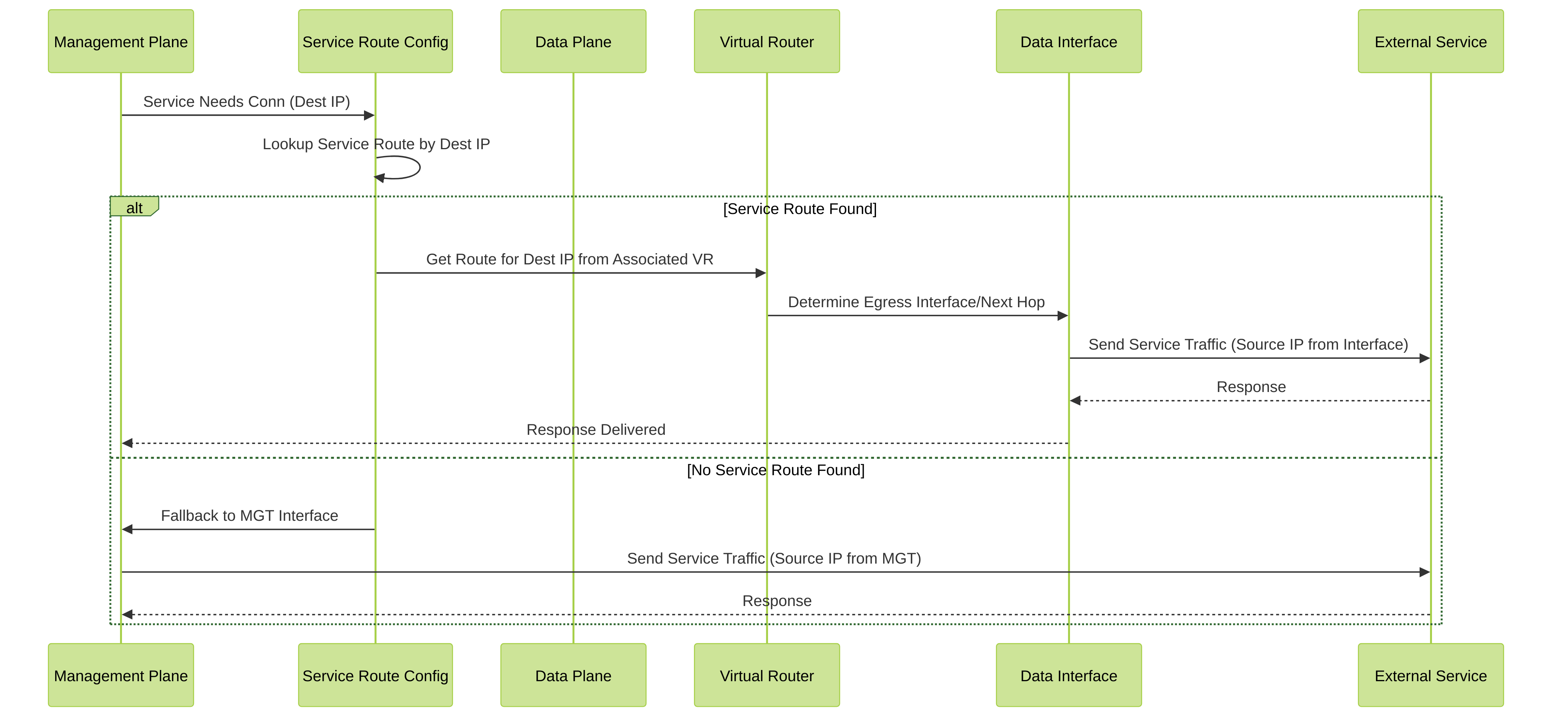

Sequence Diagram: Service Route Lookup

Sequence of operations when the firewall determines the path for service traffic.

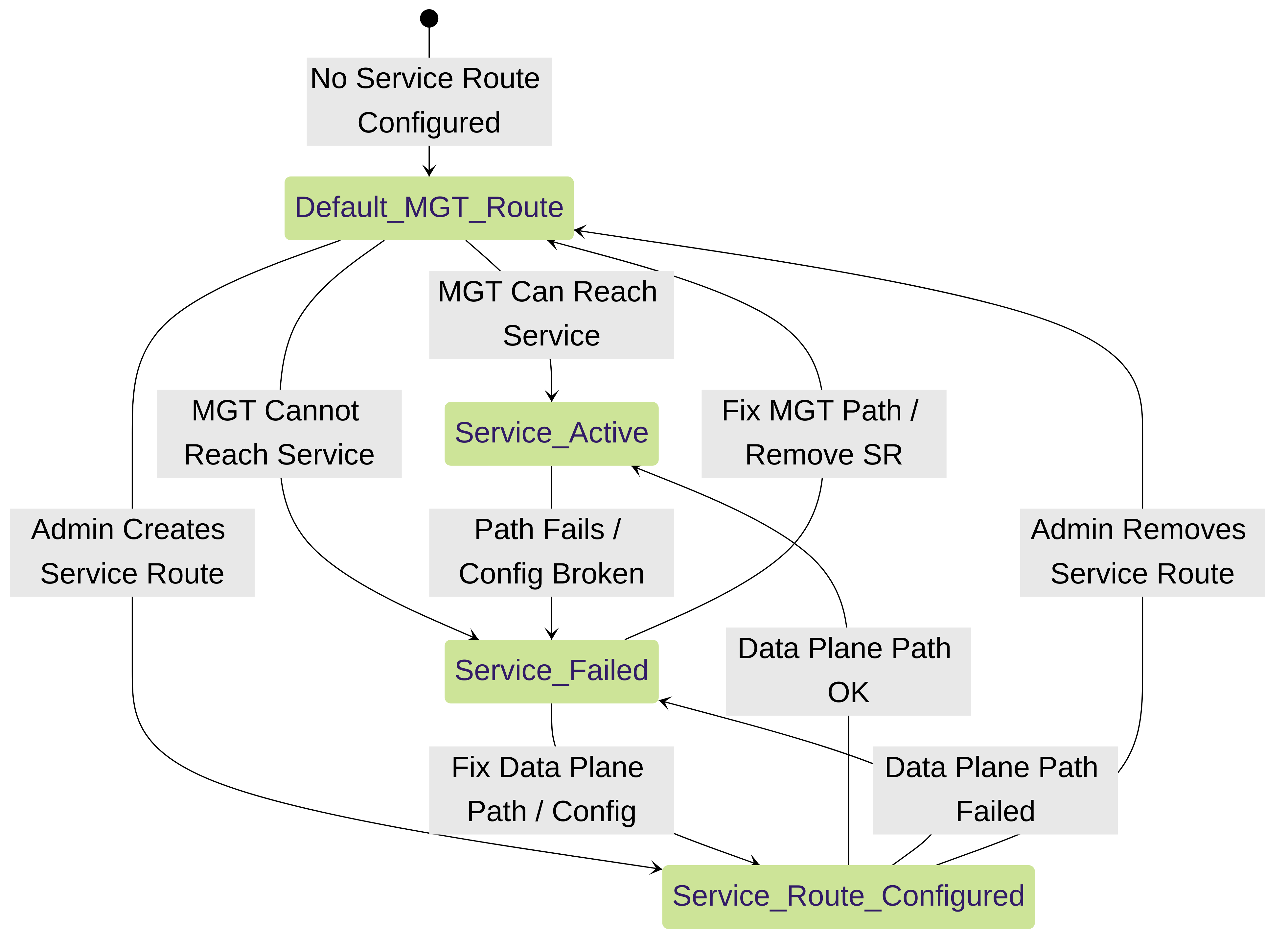

State Diagram: Service Route State

Simplified state transitions based on service route configuration and path reachability.

Service Routes Quiz

Test your understanding of Palo Alto Networks Service Routes with these questions, typical of what might be found in a PCNSE exam.

1. By default, which interface does a Palo Alto Networks firewall use to source traffic for services like PAN-OS updates and Panorama connectivity?

Data plane interface Management interface Loopback interface High Availability interface

Correct Answer: Management interface
The Management (MGT) interface is the default egress for all service traffic generated by the firewall itself unless a specific service route is configured.

2. What configuration is required to make firewall services like DNS or NTP originate from a data plane interface instead of the default interface?

A static route in the data plane's virtual router. A security policy rule allowing the traffic. A Service Route configuration. A NAT rule on the data plane interface.

Correct Answer: A Service Route configuration.
Service Routes are specifically designed to redirect management plane originated service traffic to a data plane interface. While routing is still required, the Service Route configuration is the mechanism to make the management plane *use* the data plane interface's routing table. Security policy is generally bypassed.

3. When configuring a Service Route in a multi-VSYS environment for a specific VSYS, which entity do you select to determine the routing path?

A specific data plane interface within the VSYS. A Virtual Router associated with the VSYS. The Management Interface. A Service Object.

Correct Answer: A Virtual Router associated with the VSYS.
For per-VSYS service routes, you select the Virtual Router. The firewall then uses that VR's routing table to determine the egress interface and path. This is different from global service routes where you select a source interface which implies its VR.

4. When service traffic uses a Service Route to exit a data plane interface, how does it interact with security policies?

It requires a specific security policy rule to be allowed. It is evaluated against security policies like normal user traffic. It typically bypasses standard security policy rules. It is always blocked unless explicitly permitted by a hidden rule.

Correct Answer: It typically bypasses standard security policy rules.
Service traffic originated by the firewall's management plane is not subject to the same security policy evaluation as user traffic traversing the data plane. However, external firewalls or ACLs might still filter this traffic based on its source/destination/port.

5. Which CLI command is useful for verifying how the Management Plane intends to route traffic to a specific service destination IP based on service routes and data plane routing?


         show routing route virtual-router <vr-name>


         test security-policy-match


         debug dataplane internal vif route <destination-ip>


         ping source <interface> host <destination-ip>

Correct Answer: debug dataplane internal vif route <destination-ip>
This command is specifically designed to show the Management Plane's perspective on routing service traffic by consulting the data plane's routing tables based on configured service routes. The other commands check data plane routing, policy match (not applicable to service traffic), or basic connectivity, but not the Management Plane's specific service route lookup.

6. What is the primary reason to configure a service route for services like WildFire or URL Filtering updates?

To save bandwidth on the Management interface. To apply security policies to the update traffic. The update servers are not reachable via the Management interface's default route. To ensure the update traffic is logged explicitly.

Correct Answer: The update servers are not reachable via the Management interface's default route.
The core purpose of service routes is reachability when the default path via the MGT interface isn't viable, often due to network segmentation or lack of routing.

7. If no service routes are configured, which services will use the Management interface by default?

Only dynamic content updates (Antivirus, Apps&Threats). Only basic network services like DNS and NTP. Only GUI/CLI access and SNMP. All services originating from the firewall's management plane (updates, licenses, Panorama, DNS, NTP, Syslog, Auth, etc.).

Correct Answer: All services originating from the firewall's management plane (updates, licenses, Panorama, DNS, NTP, Syslog, Auth, etc.).
The MGT interface is the default gateway for *all* management plane originated traffic unless explicitly overridden by a service route.

8. In the Palo Alto Networks GUI, where are Service Routes configured?

Network > Virtual Routers Policies > Security Device > Setup > Services Network > Interfaces

Correct Answer: Device > Setup > Services.
The Service Route Configuration is found within the Services section under the Device tab in the GUI.

9. Besides reachability, what is another benefit of using service routes to direct services like Syslog to a data plane interface?

It always makes the service traffic faster. It automatically compresses the service traffic. It can align service traffic with network segmentation and security best practices. It deduplicates log messages.

Correct Answer: It can align service traffic with network segmentation and security best practices.
Routing service traffic via data interfaces allows administrators to keep management networks isolated and route different service types through appropriate network zones, enhancing overall security posture.

10. If you configure a per-VSYS service route for DNS in VSYS-A, which routing table will be used to find the path to the DNS server?

The global routing table (within VSYS1). The Management interface's implicit routing table. The routing table of the Virtual Router specified in the VSYS-A service route configuration. The routing table of the specific data interface used.

Correct Answer: The routing table of the Virtual Router specified in the VSYS-A service route configuration.
For per-VSYS service routes, you explicitly select a Virtual Router within that VSYS, and its routing table is used. For global routes, it's the VR associated with the selected source interface.

11. A common issue when troubleshooting service routes where traffic doesn't reach the destination is:

Incorrect NAT configuration on the Management interface. A missing security policy rule allowing the service traffic. The Virtual Router associated with the service route is missing a route to the service destination. The data interface used for the service route is in the wrong security zone.

Correct Answer: The Virtual Router associated with the service route is missing a route to the service destination.
Service routes redirect traffic to a VR, but that VR *must* have a valid route (static or dynamic) to reach the service destination IP. Security rules typically don't apply. NAT might be an issue if the service destination requires communication with a specific source IP that isn't the interface IP, but incorrect routing is more fundamental.

12. How do per-VSYS service routes interact with global service routes for the same service?

They are merged, using the most specific route. Per-VSYS routes are ignored; only global routes are used. Per-VSYS routes override global routes for that specific VSYS. Global is primary, Per-VSYS is backup.

Correct Answer: Per-VSYS routes override global routes for that specific VSYS.
Per-VSYS configurations are more specific and take precedence over global settings within that particular Virtual System.

13. Which of the following is a Palo Alto Networks service that frequently requires a service route configuration if the firewall's MGT interface doesn't have internet connectivity?

SSH access to the firewall CLI. User internet browsing traffic. Dynamic content updates (AV, Apps&Threats, WildFire, etc.). HA interface monitoring.

Correct Answer: Dynamic content updates (AV, Apps&Threats, WildFire, etc.).
These services require outbound connectivity to Palo Alto Networks update servers, which are typically on the internet. If the MGT interface is on an isolated internal network without internet access, a service route via a data interface is necessary. SSH access is typically internal management access, user traffic is data plane traffic, and HA monitoring is usually a direct link.

14. Which of the following is a disadvantage of using service routes?

It decreases the speed of service traffic. It decreases the security of service traffic. It adds configuration complexity and potential for misconfiguration. It significantly increases Management Plane CPU usage.

Correct Answer: It adds configuration complexity and potential for misconfiguration.
Explicitly configuring multiple service routes for different services on different interfaces adds steps and requires careful attention to source interfaces, source IPs, and ensuring correct routing in the associated VRs, increasing the chance of errors compared to a simple default route on MGT.

15. What information does the debug dataplane internal vif route <destination-ip> command primarily help you verify regarding service routes?

Which security policy rule is matched for the service traffic. If NAT translation is occurring for the service traffic. How the firewall will route traffic from the Management Plane to that specific destination IP, considering service routes. The full packet flow for user traffic through the data plane.

Correct Answer: How the firewall will route traffic from the Management Plane to that specific destination IP, considering service routes.
This command is designed to show the management plane's routing decision for its *own* traffic (services) to a given destination IP, taking into account any configured service routes and the associated virtual router's routing table. It doesn't directly show security policy, NAT (though it might show the source IP after NAT if the VR does NAT), or general user traffic flow.

16. When configuring a Global service route for DNS, you specify a "Source Interface". What does selecting this interface primarily achieve?

It forces the traffic to physically exit only that interface. It automatically sets the source IP to that interface's primary IP. It tells the Management Plane to use the Virtual Router associated with that interface for routing the service traffic. It places the service traffic in that interface's security zone for policy matching.

Correct Answer: It tells the Management Plane to use the Virtual Router associated with that interface for routing the service traffic.
The selection of the source interface for a Global service route is primarily about selecting the *virtual router* context for that traffic. The VR's routing table then determines the actual egress interface and next hop. The source IP is often automatically set to the interface's IP, but you can override it. Security zones/policies are generally bypassed.

17. Time synchronization is critical for accurate logging and certificate validation. Which service would you configure a service route for if its server is not reachable via the MGT interface?

DNS Syslog NTP SNMP

Correct Answer: NTP.
NTP (Network Time Protocol) is used for time synchronization. If the NTP server is not reachable via the default MGT route, a service route is required to direct this traffic via a data plane interface.

18. Which pair of services are essential for the firewall's basic operational health and often require service routes if internet access is not available via the Management interface?

SSH and Telnet. PAN-OS Updates and Licenses. User VPN traffic and HipMatch. SNMP and HA monitoring.

Correct Answer: PAN-OS Updates and Licenses.
The firewall needs to contact Palo Alto Networks servers for software updates and license validation. These services require internet connectivity. SSH/Telnet are management access (usually internal), user VPN is user traffic, HA monitoring is inter-firewall communication, and SNMP is for monitoring (usually internal polling).

19. After configuring a new service route in the GUI, what is the next necessary step for the configuration to become active?

Save the configuration. Restart the firewall. Commit the configuration. Push the configuration from Panorama (if managed).

Correct Answer: Commit the configuration.
Like most configuration changes on a Palo Alto Networks firewall, changes made in the candidate configuration (via GUI or CLI) must be committed to become the active running configuration.

20. Configuring a service route for Syslog enables the firewall to send logs to an external server. Which plane generates this Syslog traffic?

Data Plane Management Plane Control Plane Forwarding Plane

Correct Answer: Management Plane.
Logging, reporting, updates, licensing, and authentication services originate from the Management Plane. Service routes allow the Management Plane to use Data Plane interfaces/routing for these services, but the traffic originates from the Management Plane itself.
