Protecting Firewall Resources: Zone, Packet Buffer, and DoS Protection

Goal and Use Case

While Security Profiles (like Antivirus, Anti-Spyware, Vulnerability Protection) focus on inspecting the content of allowed traffic for threats, another class of attacks targets the firewall itself or specific protected resources behind it. These attacks aim to exhaust resources like CPU, memory, session tables, or packet buffers, leading to a denial-of-service (DoS) condition where the firewall becomes unresponsive or unable to process legitimate traffic.

Palo Alto Networks firewalls provide several mechanisms, primarily configured under Network > Network Profiles , to mitigate these resource exhaustion and reconnaissance attacks:

Zone Protection Profiles: Protect network segments (zones) from common flood attacks and reconnaissance scans directed at the firewall interfaces within that zone.
Packet Buffer Protection: A global defense mechanism against overwhelming the firewall's shared hardware packet buffers.
DoS Protection Profiles & Policies: Protect specific destination IP addresses (servers, critical hosts) behind the firewall from denial-of-service attacks.

     These protection mechanisms operate early in the packet processing pipeline, often before Security Policy lookup and content inspection, providing foundational security for the firewall and protected assets.


     Distinguishing between Zone Protection (protecting the zone ingress/firewall itself) and DoS Protection (protecting specific downstream resources via policy) is a key concept for the PCNSE exam.


Zone Protection Profiles

Zone Protection profiles are applied directly to ingress zones ( Network > Zones > [Select Zone] > Zone Protection Profile ) and defend against attacks targeting the firewall interfaces within that zone or attempting to map the network via reconnaissance.

Flood Protection

This defends against common volumetric flood attacks designed to overwhelm the firewall's session table or CPU.

Types of Floods Covered:
- SYN Flood: Detects excessive SYN packets (indicating the start of TCP sessions) without corresponding ACKs. Action can be RED (Random Early Drop) or SYN Cookies .
- UDP Flood: Detects high rates of UDP packets targeting the zone. Action is RED.
- ICMP Flood: Detects high rates of ICMP packets. Action is RED.
- Other IP Flood: Detects high rates of non-TCP/UDP/ICMP IP packets. Action is RED.
Thresholds (per flood type):
- Alarm Rate: Threshold (packets per second - pps) at which logs/alerts are generated. No packets dropped yet.
- Activate Rate: Threshold (pps) at which the firewall starts taking the configured mitigation action (SYN Cookies or RED). (Must be >= Alarm Rate)
- Maximum Rate: Absolute ceiling (pps) above which all matching flood packets are dropped. (Must be >= Activate Rate)
Actions:
- SYN Cookies (SYN Flood only): The firewall acts as a proxy for the TCP handshake. It responds to the client SYN with a SYN-ACK containing a cryptographic cookie. Only upon receiving a valid ACK back from the client (validating the source IP) does the firewall establish the connection to the actual server. This prevents the server/firewall session table from being filled by spoofed SYN packets.
- Random Early Drop (RED): As the packet rate approaches the Activate/Maximum thresholds, the firewall starts randomly dropping incoming packets of the flood type. The drop probability increases as the rate increases.
Block Duration: How long (in seconds) an attacking IP address is blocked after exceeding thresholds (applies to Reconnaissance Protection).

     Know the types of floods Zone Protection covers, the meaning of Alarm/Activate/Max thresholds, and the difference between SYN Cookies and RED actions. Remember it's applied per-zone.


Reconnaissance Protection

This detects and optionally blocks attempts to scan the network for open ports or active hosts.

Types Covered:
- TCP Port Scan: Detects when a single source IP scans multiple destination ports on one or more hosts within the zone.
- UDP Port Scan: Detects when a single source IP scans multiple UDP ports.
- Host Sweep: Detects when a single source IP sends packets (e.g., ICMP Echo, TCP SYN) to multiple destination IP addresses within the zone to identify live hosts.
Action: Can be set to Alert (log only) or Block (log and block the source IP for the configured Block Duration).
Thresholds: Configured within the profile, defining the number of scanned ports/hosts within a specific time interval that triggers the action.

     Reconnaissance protection helps prevent attackers from mapping your network infrastructure prior to launching targeted attacks.


Predefined Profiles

PAN-OS often includes predefined Zone Protection profiles like `default`, `strict`, and `lenient` with varying threshold levels, which can be used as starting points for tuning.

Packet Buffer Protection

Packet Buffer Protection is a global safeguard against exhaustion of the firewall's hardware packet buffers, which are a finite shared resource used for processing all traffic transiting the device.

Unlike Zone or DoS Protection which target specific types of traffic or destinations, Packet Buffer Protection acts as a safety net for the entire system's packet handling capacity.

How it Works

Applied globally under Device > Setup > Session > Session Settings > Packet Buffer Protection .
Monitors the overall utilization of the packet buffer pool.
When buffer utilization exceeds a configured threshold (percentage), the firewall enters a "Red Zone" state.
While in the Red Zone, the firewall starts applying Random Early Drop (RED) to *all* new incoming connections, regardless of source, destination, zone, or policy. This aims to alleviate buffer pressure by shedding load non-discriminately.
An alert is typically generated in the System Log when Packet Buffer Protection activates.

     Packet Buffer Protection activating indicates the firewall is under severe load and potentially dropping legitimate traffic. It's a critical alert that requires investigation into the cause of the high buffer utilization (e.g., massive flood attack bypassing other defenses, undersized hardware, asymmetric routing).


     Remember that Packet Buffer Protection is global, applies RED to *all* new connections when triggered, and is logged in the System Log, not the Threat Log. It's a last line of defense against buffer exhaustion.


Packet Buffer Protection Logging

Environment

PAN-OS 8.x and later (Note: While the original text specified 8.x, PBP exists in later versions too)
Packet Buffer Protection (PBP) Enabled

Log Generation

When Packet Buffer Protection is activated due to buffer congestion, the firewall generates specific log entries to record the event and subsequent actions.

     The firewall records alert events in the

      System log

     and events related to dropped traffic, discarded sessions, or blocked IPs in the

      Threat log

     .

System Logs

Location: Monitor > Logs > System
Event Type: Typically general
Severity: Informational (Note: Can vary, but activation is often informational, indicating a condition)
Description Example: Indicates the buffer usage percentage exceeded the alert threshold (e.g., "Packet buffer congestion is 14272/17203 (82%)(alert threshold is 40%).").

Example System Log Entry:

Domain Receive Time   Serial #  Type   Threat/Content Type Config Version Generate Time Virtual System Event ID Object         fmt id module  Severity       Description
1      10/11/2019 12:01 xxxxxxx   SYSTEM general             1             10/11/2019 12:01 general        0       0      general informational Packet buffer congestion is 14272/17203 (82%)(alert threshold is 40%).

Threat Logs

Specific Threat IDs are generated when PBP takes action:

Location: Monitor > Logs > Threat
Common PBP Threat IDs:
- Threat ID: 8507
  - Type: Flood
  - Name: PBP Packet Drop
  - Severity: High
  - Description: Packet buffer protection enforcing RED packet drop.
- Threat ID: 8508
  - Type: Flood
  - Name: PBP Session Discarded
  - Severity: High
  - Description: Packet buffer protection enforcing session discard.
- Threat ID: 8509
  - Type: Flood
  - Name: PBP IP Blocked
  - Severity: High
  - Description: Packet buffer protection enforcing source IP block. (Note: IP blocking might be less common directly from PBP compared to session/packet actions).

Example Threat Log Entries:

Domain Receive Time   Serial # Type   Threat/Content Type Config Version Generate Time Source address Destination address NAT Source IP NAT Destination IP Rule Source User Destination User Application Virtual System Source Zone Destination Zone Inbound Interface Outbound Interface Log Action Time Logged Session ID Repeat Count Source Port Destination Port NAT Source Port NAT Destination Port Flags    IP Protocol Action URL/Filename Threat/Content Name       Category Severity
1      10/11/2019 12:02 xxxxxxx THREAT flood               1             10/11/2019 12:02 10.10.10.10    192.168.10.10                             not-applicable    vsys1               vwire                                           10/11/2019 12:02 33555666      1            20033                20033                 0                  0 0x102000 hopopt       block               PBP Session Discarded(8508) any      high
1      10/11/2019 12:02 xxxxxxx THREAT flood               1             10/11/2019 12:02 10.10.10.10    192.168.10.10                             not-applicable    vsys1               vwire                                           10/11/2019 12:02 33555666      1            20033                20033                 0                  0 0x102000 hopopt       drop                PBP Packet Drop(8507)       any      high

Global Counters

Packet drops due to Packet Buffer Protection will also increment specific global counters, which can be viewed via the CLI:

show counter global | match flow_dos_pbp_drop

Counter Name: flow_dos_pbp_drop
Description: Packets dropped: Dropped by packet buffer protect

     Knowing where to find logs for specific features is crucial for troubleshooting and monitoring. Remember: PBP activation alerts are in the

      System Log

     , while resulting packet/session drops are often logged with specific IDs (8507, 8508, 8509) in the

      Threat Log

     . The global counter `flow_dos_pbp_drop` also tracks these drops.

Packet Buffer Protection Threat IDs

When Packet Buffer Protection takes specific actions to mitigate buffer exhaustion, corresponding events are logged in the Threat Log with the following Threat IDs:

Threat ID: 8507
- Threat Name: PBP Packet Drop (or similar wording like "PBP IP enforcing RED packet drop" as noted in source)
- Threat Type: Flood
- Severity: High
- Description: Indicates that Packet Buffer Protection is actively dropping packets using Random Early Drop (RED) due to buffer congestion.
Threat ID: 8508
- Threat Name: PBP Session Discarded
- Threat Type: Flood
- Severity: High
- Description: Indicates that Packet Buffer Protection is discarding entire sessions to alleviate buffer pressure.
Threat ID: 8509
- Threat Name: PBP IP Blocked
- Threat Type: Flood
- Severity: High
- Description: Indicates that Packet Buffer Protection is blocking traffic from specific source IP addresses identified as contributing excessively to buffer congestion (Note: This action might be less common than packet/session drops directly from PBP).

     Memorizing specific Threat IDs like 8507, 8508, and 8509 associated with Packet Buffer Protection actions (Packet Drop, Session Discard, IP Block) can be helpful for quickly identifying PBP events when analyzing Threat Logs during troubleshooting or exam scenarios.


DoS Protection Profiles & Policies

DoS Protection profiles, unlike Zone Protection, are used within DoS Protection Policy Rules ( Policies > DoS Protection ) to safeguard specific destination IP addresses or subnets (e.g., critical servers, entire server segments) from denial-of-service attacks.

It focuses on protecting resources *behind* the firewall, whereas Zone Protection primarily defends the firewall interfaces/zones themselves.

DoS Protection Profile Settings

Configured under Objects > Security Profiles > DoS Protection .

Protection Type:
- Aggregate: Monitors the total number of concurrent sessions or connection rate (CPS) for *all* traffic matching the DoS rule. If the total exceeds thresholds, protection actions apply broadly to new matching sessions. Useful for protecting a group of servers sharing a common resource pool.
- Classified: Tracks sessions or CPS *per source IP*, *per destination IP*, or *per source-destination pair*. Allows more granular protection, applying actions only to specific offending sources or overwhelmed destinations within the matched traffic.
Thresholds (based on CPS - Connections Per Second): Defines rates for different actions (can vary slightly based on Aggregate vs. Classified and action type).
- Alarm Rate: Generates logs/alerts when CPS threshold is crossed.
- Activate Rate: Rate at which mitigation actions begin.
- Maximum Rate: Rate above which all new matching connections are dropped.

DoS Protection Policy Rules

Configured under Policies > DoS Protection . These rules determine *which* traffic the DoS Protection profile applies to.

Matching Criteria: Rules match based on Source/Destination Zone, Source/Destination Address (crucially, protecting specific destination IPs/subnets), Service, etc.
Profile Application: A configured DoS Protection Profile is attached to the rule.
Action: The primary actions defined within the rule are:
- Protect: Enforces the thresholds and actions defined within the attached DoS Protection Profile (Aggregate or Classified).
- Allow: Bypasses DoS protection for matching traffic.
- Deny: Blocks matching traffic outright.
- SYN Cookies (TCP only): Activates SYN Cookie protection when the SYN Flood thresholds (defined in the *profile*) are exceeded for traffic matching this rule. Mitigates SYN floods targeting the protected destination(s).

     Key distinctions for PCNSE: DoS Protection is applied via *Policy* to protect *specific destinations*. Zone Protection is applied to *Zones* to protect ingress/firewall interfaces. Know the difference between Aggregate and Classified profiles and the main actions (Protect, SYN Cookies). DoS events are logged in the Threat Log.


Tuning Best Practices for Zone/DoS/Packet Buffer Protection

Effectively tuning these protection mechanisms requires careful consideration and monitoring.

Establish Baselines: Before enabling blocking actions , understand your normal traffic patterns. Monitor connection rates (CPS), packet rates (pps), and buffer utilization during peak hours. Use tools like SNMP, NetFlow, or firewall reporting to establish baselines.
Start with 'Alert' or High Thresholds: When first configuring Zone Protection or DoS Protection profiles/policies, set actions to `Alert` or configure relatively high `Activate` and `Maximum` thresholds based on your baseline + buffer room.
Monitor Logs:
- Check Monitor > Logs > Threat frequently for Zone Protection and DoS Protection alerts. Investigate the source and nature of triggering traffic.
- Check Monitor > Logs > System for Packet Buffer Protection alerts. These indicate severe load.
Gradual Tightening: Based on log analysis and baseline data, gradually lower the `Activate` and `Maximum` thresholds towards values slightly above your observed legitimate peaks. Switch actions from `Alert` to mitigation actions (`SYN Cookies`, `RED`, `Protect`, `Block`) cautiously, one rule or profile at a time.
Understand Scope: Remember Zone Protection applies broadly to zone ingress, while DoS Protection applies specifically via policy to protected destinations. Don't rely solely on Zone Protection to safeguard critical servers; use DoS policies.
Use SYN Cookies Wisely: SYN Cookies are effective against SYN floods but add some processing overhead. Use the `SYN Cookies` action in Zone or DoS Protection specifically when SYN floods are a concern and observed.
Classified vs. Aggregate DoS: Use Classified DoS profiles for more granular protection of multiple servers behind a single policy, applying actions only to offending sources/destinations. Use Aggregate if protecting a single resource or if the combined load is the primary concern.
Packet Buffer Monitoring: Treat Packet Buffer Protection alerts as critical indicators of potential undersizing or massive attacks bypassing other layers. Investigate the cause immediately; tuning the threshold itself is usually less important than addressing the root cause.
Documentation: Document baseline values, configured thresholds, and reasons for specific settings.

     Tuning is an iterative process: Baseline -> Configure (Alert/High Thresholds) -> Monitor -> Adjust -> Document.


Diagrams: Resource Protection Concepts

Packet Flow Order

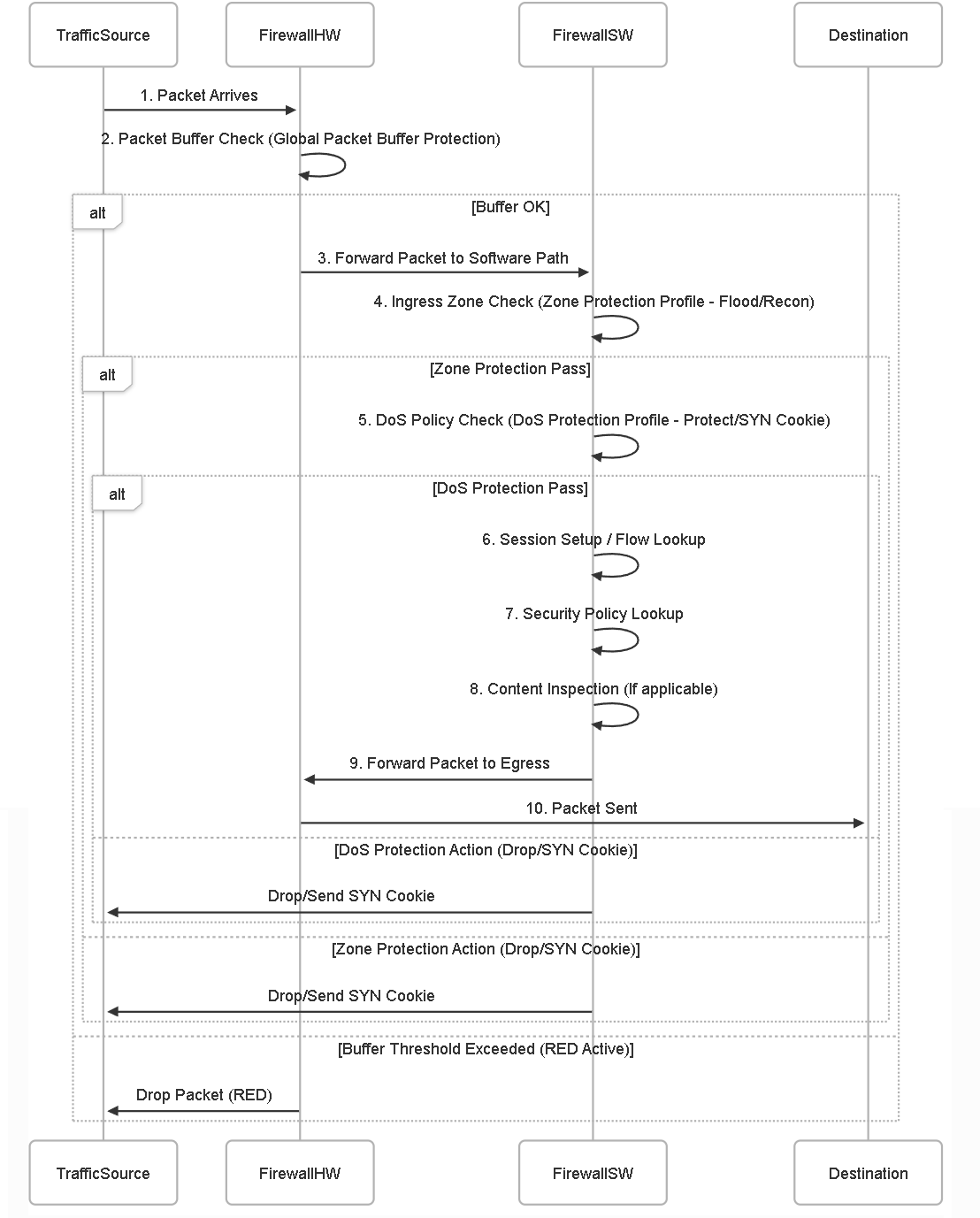

Simplified sequence showing the order of checks: Packet Buffer -> Zone Protection -> DoS Protection -> Security Policy/Content Inspection.

Zone Protection Flowchart

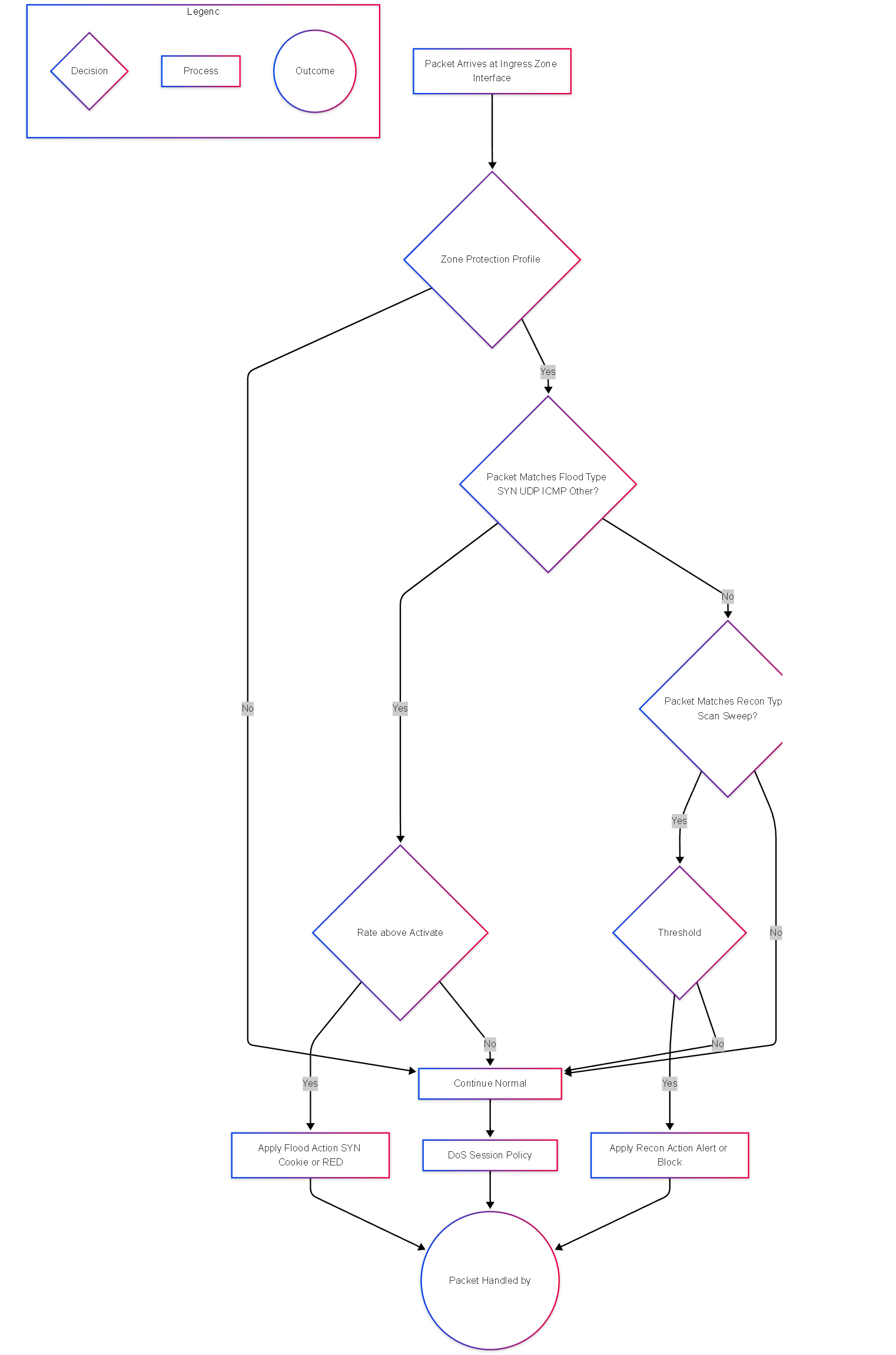

Decision flowchart for Zone Protection Profile processing.

DoS Protection State Diagram (Classified Example)

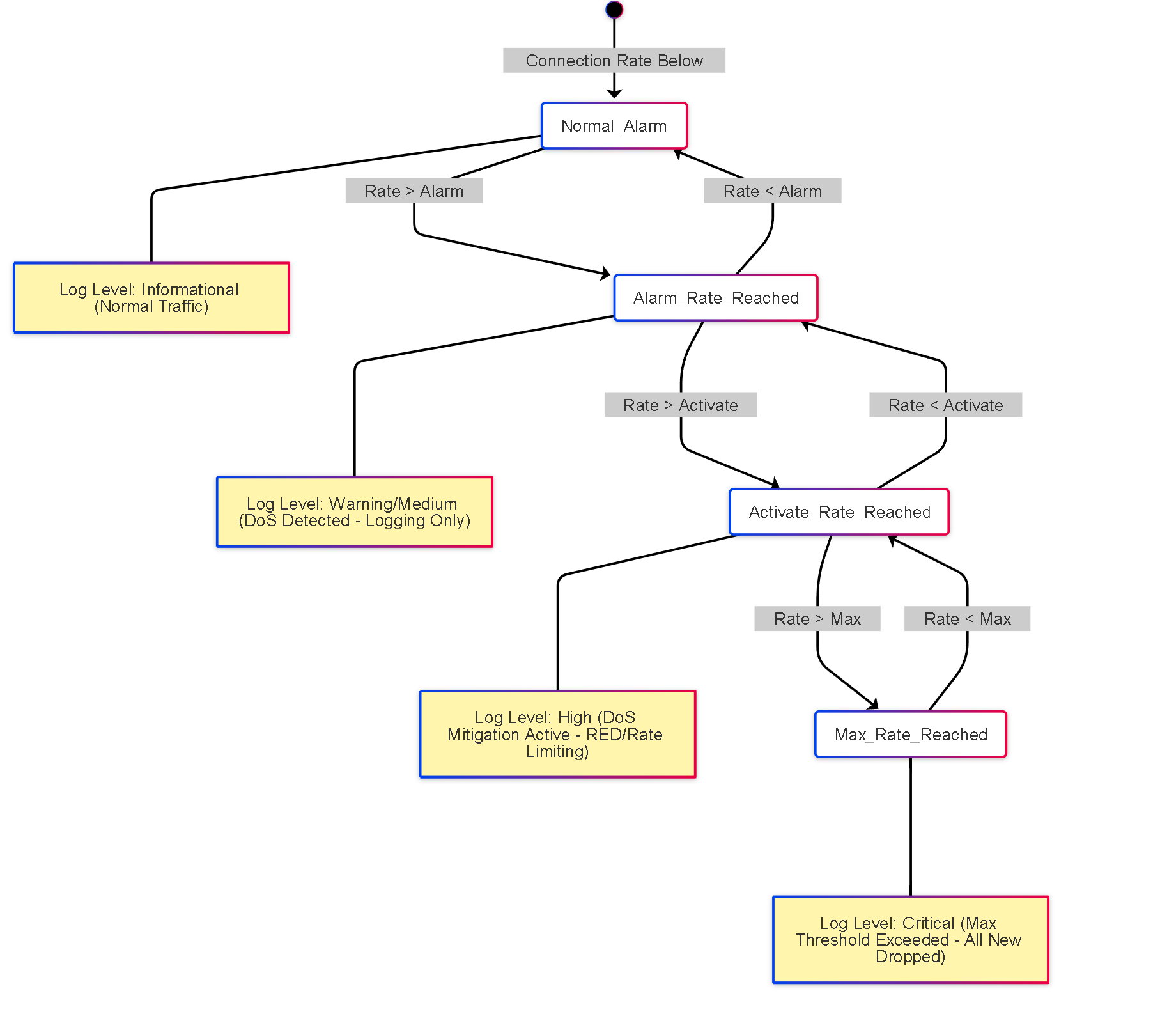

State transitions for a specific source/destination pair under Classified DoS Protection based on Connection Rate (CPS).

PCNSE Exam Focus Points

Key concepts related to Zone Protection, Packet Buffer Protection, and DoS Protection for the PCNSE exam:

Core Purpose: Understand these features primarily protect the firewall resources (CPU, memory, buffers, sessions) and specific downstream servers, operating *before* content inspection security profiles.
Zone Protection vs. DoS Protection: This is a critical distinction.
- Zone Protection: Applied directly to network Zones . Protects the firewall interfaces within the zone from ingress floods (SYN, UDP, ICMP, Other IP) and reconnaissance (scans, sweeps).
- DoS Protection: Applied via DoS Protection Policies . Protects specific destination IP addresses/subnets behind the firewall from DoS attacks based on connection rates (CPS).
Packet Buffer Protection: Know it's a global setting ( Device > Setup > Session ) protecting shared hardware buffers via RED when utilization exceeds the threshold. Logged in System Logs .
Configuration Locations:
- Zone Protection Profiles: Network > Network Profiles > Zone Protection , applied under Network > Zones .
- DoS Protection Profiles: Objects > Security Profiles > DoS Protection , applied via Policies > DoS Protection .
- Packet Buffer Protection: Device > Setup > Session .
Zone Protection Details:
- Flood types: SYN, UDP, ICMP, Other IP.
- Thresholds: Alarm Rate, Activate Rate, Maximum Rate (all in pps).
- Actions: SYN Cookies (for SYN flood), Random Early Drop (RED).
- Recon types: TCP/UDP Port Scan, Host Sweep. Actions: Alert, Block (+ Block Duration).
DoS Protection Details:
- Policy-based, targets destination IPs.
- Profile Types: Aggregate vs. Classified. Know the difference in monitoring scope.
- Thresholds: Typically based on Connections Per Second (CPS) - Alarm, Activate, Max.
- Rule Actions: Protect (uses profile thresholds), SYN Cookies (uses profile SYN flood settings), Allow, Deny.
Logging:
- Zone Protection events: Threat Log .
- DoS Protection events: Threat Log .
- Packet Buffer Protection activation: System Log .
Tuning Approach: Understand the importance of baselining, starting with alert/high thresholds, and gradual implementation.

     Be ready for scenario questions asking which feature to use to protect a web server farm vs. protecting the external zone interface from SYN floods. Understand the configuration locations and the different types of thresholds and actions available for each feature. Logging locations are also frequently tested.


Resource Protection Knowledge Check (PCNSE Style)

Test your understanding of Zone Protection, Packet Buffer Protection, and DoS Protection.

1. Which feature is primarily designed to protect specific destination IP addresses (like web servers) from high connection rates (CPS)?

Zone Protection Profile DoS Protection Policy/Profile Packet Buffer Protection Vulnerability Protection Profile

2. Where are Zone Protection Profiles applied in the firewall configuration?

To Network Zones (Network > Zones) To Security Policy Rules (Policies > Security) Globally under Device > Setup > Session To DoS Protection Policy Rules (Policies > DoS Protection)

3. Which protection mechanism operates globally and triggers Random Early Drop (RED) for ALL new connections when packet buffers are highly utilized?

Zone Protection (Other IP Flood) DoS Protection (Aggregate Profile) Packet Buffer Protection Zone Protection (UDP Flood)

4. What is the purpose of the SYN Cookies action available in Zone Protection and DoS Protection?

To detect reconnaissance port scans. To randomly drop excessive UDP packets. To limit the rate of connections per second (CPS). To validate the source IP address during a TCP handshake and mitigate SYN flood attacks.

5. In a Zone Protection profile, what does the "Activate Rate" threshold signify for flood protection?

The packet rate (pps) at which the firewall begins applying the mitigation action (RED or SYN Cookies). The packet rate (pps) at which threat logs are first generated. The maximum packet rate (pps) the firewall will allow before dropping all packets. The duration for which an offending IP address is blocked.

6. Which log type should be monitored primarily for events related to Zone Protection and DoS Protection rule triggers?

System Log Traffic Log Threat Log Configuration Log

7. What is the key difference between Aggregate and Classified DoS Protection profiles?

Aggregate uses SYN Cookies, Classified uses RED. Aggregate monitors the total resource usage for the policy, while Classified tracks usage per source, destination, or source-destination pair. Aggregate is applied to Zones, Classified is applied via DoS Policy. Aggregate protects against floods (pps), Classified protects against scans.

8. Which feature specifically protects against TCP/UDP Port Scans and Host Sweeps?

DoS Protection (Classified) Packet Buffer Protection Zone Protection (Flood Protection) Zone Protection (Reconnaissance Protection)

9. When tuning Zone or DoS protection, what is the recommended initial approach before enabling blocking actions?

Establish traffic baselines and initially configure profiles with 'alert' actions or high thresholds. Apply the 'strict' predefined profile immediately with blocking actions. Disable Packet Buffer Protection to avoid conflicts. Configure DoS policies with an action of 'Allow' first.

10. An alert in the System Log indicates "Packet Buffer Protection activated". What does this signify?

A specific web server is under DoS attack. A port scan was detected against the external zone. The firewall's global packet buffers are nearing exhaustion, and RED is likely being applied to new connections. The DoS Protection license has expired.

11. What unit is typically used for the Alarm, Activate, and Max thresholds in Zone Protection Flood settings?

Connections Per Second (CPS) Packets Per Second (pps) Megabits Per Second (Mbps) Concurrent Sessions

12. Which protection method is applied via policy rules found under `Policies > DoS Protection`?

Zone Protection Packet Buffer Protection Reconnaissance Protection DoS Protection

13. What is the primary purpose of the "Block Duration" setting within a Zone Protection profile?

To specify how long a source IP is blocked after triggering Reconnaissance Protection. To set the time interval for calculating flood rates. To define how long SYN Cookies are active for a session. To specify the maximum time a packet can stay in the buffer.

14. A Classified DoS Protection profile can track connection rates based on all the following EXCEPT:

Source IP Address Destination IP Address User-ID / Username Source-Destination IP Address Pair

15. Which action is NOT a valid primary action for a DoS Protection Policy rule?

Protect Allow SYN Cookies Random Early Drop (RED)

16. If you want to protect your external-facing zone (e.g., "Untrust") from excessive incoming UDP packets aimed at overwhelming the firewall interface itself, which feature would you primarily configure?

DoS Protection Policy targeting the firewall's external IP. Zone Protection Profile applied to the Untrust zone, configured for UDP Flood. Packet Buffer Protection with a low Red Zone threshold. Vulnerability Protection profile with UDP signatures.

17. What is the first threshold typically crossed in Zone or DoS Protection that triggers logging/alerting but does NOT yet initiate mitigation?

Alarm Rate Activate Rate Maximum Rate Red Zone Threshold

18. Where would you configure settings related to Reconnaissance Protection (Port Scan, Host Sweep)?

In a DoS Protection Profile In a Vulnerability Protection Profile Globally under Device > Setup > Session In a Zone Protection Profile

19. What is a key recommendation for establishing thresholds for Zone or DoS Protection?

Use the lowest possible values for maximum security immediately. Copy thresholds directly from Palo Alto Networks documentation defaults without adjustment. Monitor baseline traffic patterns for your specific environment and set thresholds slightly above normal peaks. Set the Alarm, Activate, and Maximum rates to the same value.

20. A DoS Protection policy rule with the action set to 'Protect' will primarily use thresholds defined in which component?

The Zone Protection Profile applied to the destination zone. The DoS Protection Profile attached to the DoS policy rule. The global Packet Buffer Protection settings. The Security Policy rule allowing the traffic.
