Converting Port/Protocol Rules to App-ID Rules

This article provides comprehensive information on transitioning Palo Alto Networks firewall security rules from traditional port and protocol-based enforcement to leveraging App-ID.

     Part of PCNSE Domain 3 (17%): Deploy and Configure Features and Subscriptions, specifically 3.1 Configure App-ID and 3.1.1 Create security rules with App-ID.


The Need for Migration

Migrating from legacy security rules based solely on ports and protocols (Layer 4) to rules leveraging App-ID (Layer 7) is a critical step in realizing the full security potential of a Palo Alto Networks firewall. Port-based rules are inherently insecure in modern networks because:

Applications often use non-standard ports or hop between ports.
Multiple applications can run over standard ports like TCP/80 (HTTP) and TCP/443 (SSL/TLS).
Malicious actors deliberately disguise traffic by using well-known ports for C2 communication or data exfiltration.

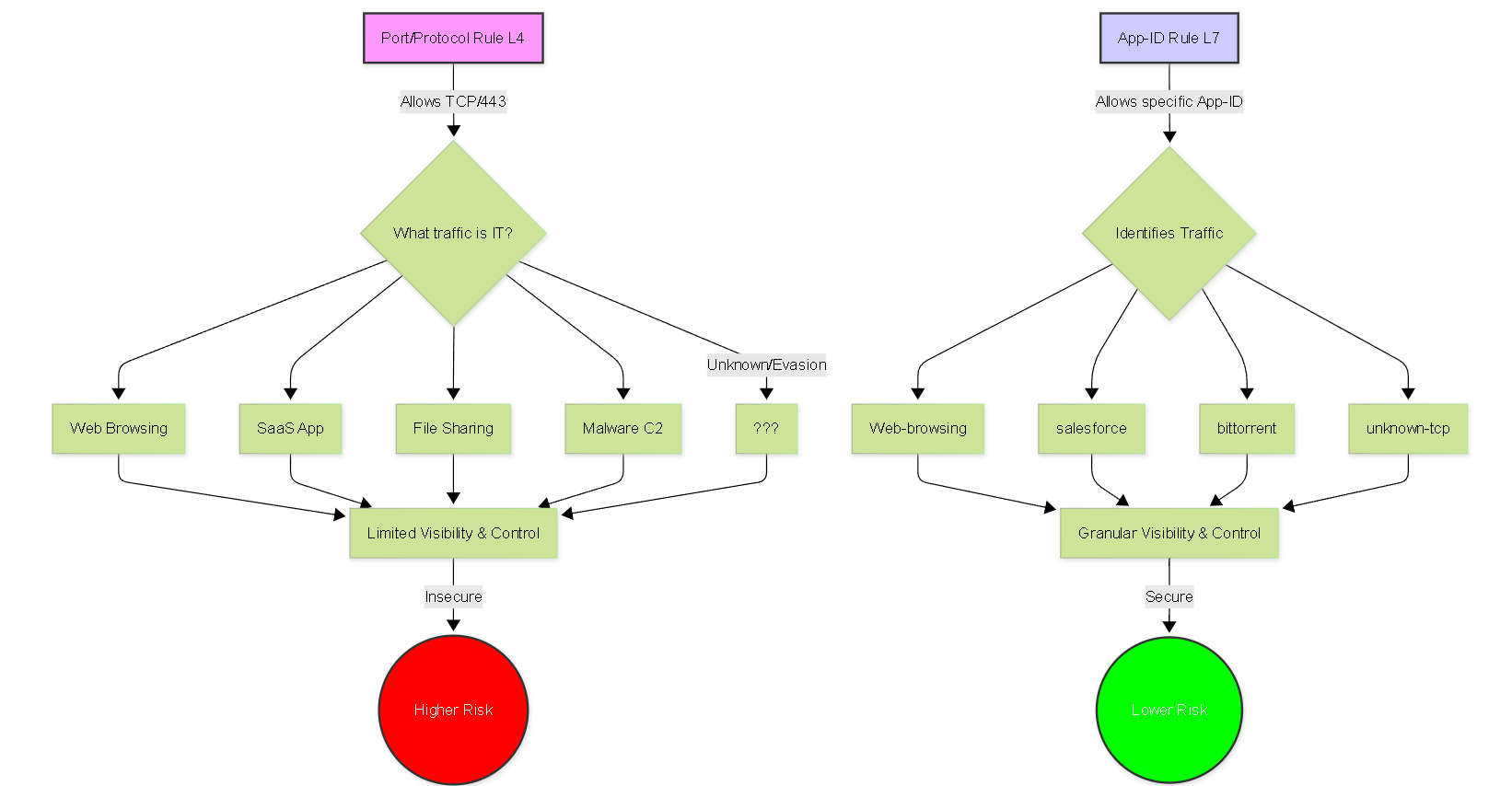

Converting to App-ID rules provides true visibility and control over the actual applications traversing the network, significantly reducing the attack surface and enabling effective threat prevention.

App-ID (L7) provides granular visibility and control over specific applications, unlike traditional Port/Protocol (L4) rules which allow any traffic using the permitted port, increasing risk.

The Challenge: Discovering Real Application Usage

The main challenge in conversion is accurately determining which applications are actually using the ports allowed by the legacy rules. A rule allowing TCP/443 might be intended for web browsing, but could also be carrying:

Specific SaaS applications (Salesforce, Office 365)
Social Media
File Sharing applications tunneling over SSL
Collaboration tools
Potentially malicious C2 traffic

Simply replacing service-https with App-ID ssl or web-browsing in a rule is often insufficient and doesn't achieve the desired granularity or security improvement. A methodical approach involving discovery is required.

     Simply changing 'Service' to `application-default` on a port-based rule without specifying App-IDs will LIKELY break many applications! `application-default` means "allow only if the application is using its *standard* port". If applications on that port are *not* using their standard port (which is often the case), they will be blocked. Discovery is essential!


Methodology for Conversion

A phased approach is recommended for converting port-based rules to App-ID rules:

Phase 1: Discovery and Analysis

Goal: Identify the specific applications currently traversing the network using the ports allowed by legacy rules.

Methods:

Analyze Traffic Logs: Filter logs based on the legacy port-based rule(s) and examine the Application column. This shows what App-ID has identified even on port-based rules.
Use ACC (Application Command Center): Visualize application traffic passing through specific rules or using specific ports/services. Look for unexpected applications on standard ports.
Run Reports: Generate custom reports focusing on traffic hitting specific port-based rules, showing application distribution.
Leverage Policy Optimizer: Use the built-in tool designed for this purpose (see details below).
Temporary Monitoring Rules (Optional): Clone the port-based rule, set the Application to any , Service to the original port(s), Action to Allow , and enable logging. Place it below the original rule (or temporarily disable the original) to capture and log all applications trying to use that port. Analyze these logs carefully.

Phase 2: Create App-ID Based Rules

Goal: Build new Security Policy rules that explicitly allow the identified, required applications discovered in Phase 1.

Best Practices:

Create new rules using specific App-IDs, Application Groups, or Filters based on your analysis.
Set the Service to application-default whenever possible. Only use specific ports if absolutely required for custom/non-standard applications.
Place these new App-ID rules above the legacy port-based rule they are intended to replace.
Handle application dependencies appropriately (often implicit, sometimes needs explicit rules).
Consider rules for unidentified traffic (App-ID unknown-tcp , unknown-udp ). Decide whether to allow (with caution/inspection) or block it.

Phase 3: Validation, Refinement, and Cleanup

Goal: Ensure the new App-ID rules work as intended and safely remove the legacy rules.

Methods:

Monitor Hit Counts: After committing the new App-ID rules (placed above the legacy rule), monitor their hit counts. Traffic should start hitting the new rules.
Monitor Legacy Rule Hit Count: The hit count on the legacy port-based rule (now below the App-ID rules) should decrease significantly or drop to zero.
Analyze Logs: Check logs for the new App-ID rules to confirm expected traffic. Also check logs for denied traffic to see if any required applications were missed.
Refine Rules: Adjust App-ID rules based on monitoring (e.g., add a missed application, correct a dependency).
Disable Legacy Rule: Once confident, disable (don't delete yet!) the legacy port-based rule. Monitor for any issues or user complaints.
Delete Legacy Rule: After a suitable observation period with the legacy rule disabled, delete it.

Recommended phased migration methodology from Port/Protocol to App-ID.

Tools for Discovery and Conversion

Palo Alto Networks firewalls provide several tools to assist with the conversion process.

1. Traffic Logs, ACC, and Reports

What they do: Provide raw data and visualizations of actual network traffic.

How to use for conversion:

Filter Traffic logs on a specific port-based Security Rule name or policy ID ( (rule eq 'Legacy-Web-Allow') ). Examine the 'Application' column for traffic hitting that rule.
Use the ACC tab, filtering by Rule or Service (e.g., service-https ), and view the Applications widget to see the distribution of App-IDs using that port.
Create custom Reports (Monitor > Manage Custom Reports) to aggregate application usage data over time for specific rules or services.

Pros: Uses built-in tools, provides direct visibility into actual traffic.

Cons: Can be time-consuming to analyze manually, requires effective filtering and interpretation.

2. Policy Optimizer (Built-in Tool)

What it does: Specifically designed to aid in migrating port-based rules to App-ID rules and identifying unused rules.

Location: Policies > Policy Optimizer

Key Features for Conversion:

No App Specified / Port-Based Rules: Identifies rules where the Application field is set to any but the Service is specific (port-based).
Apps Seen: Shows the actual applications (App-IDs) that have matched a specific port-based rule based on traffic logs over a configurable time period (e.g., last 30 days).
Suggested Apps: Recommends which App-IDs could be added to the rule based on the observed traffic.
Rule Conversion: Provides options to directly add suggested App-IDs to the existing rule or clone the rule with the new App-IDs.

Pros: Highly effective, integrated, directly analyzes rule usage vs. logs, simplifies identification, provides direct modification options.

Cons: Relies on historical log data; if an application hasn't run recently, it won't be seen. Still requires administrator review and validation before converting rules.

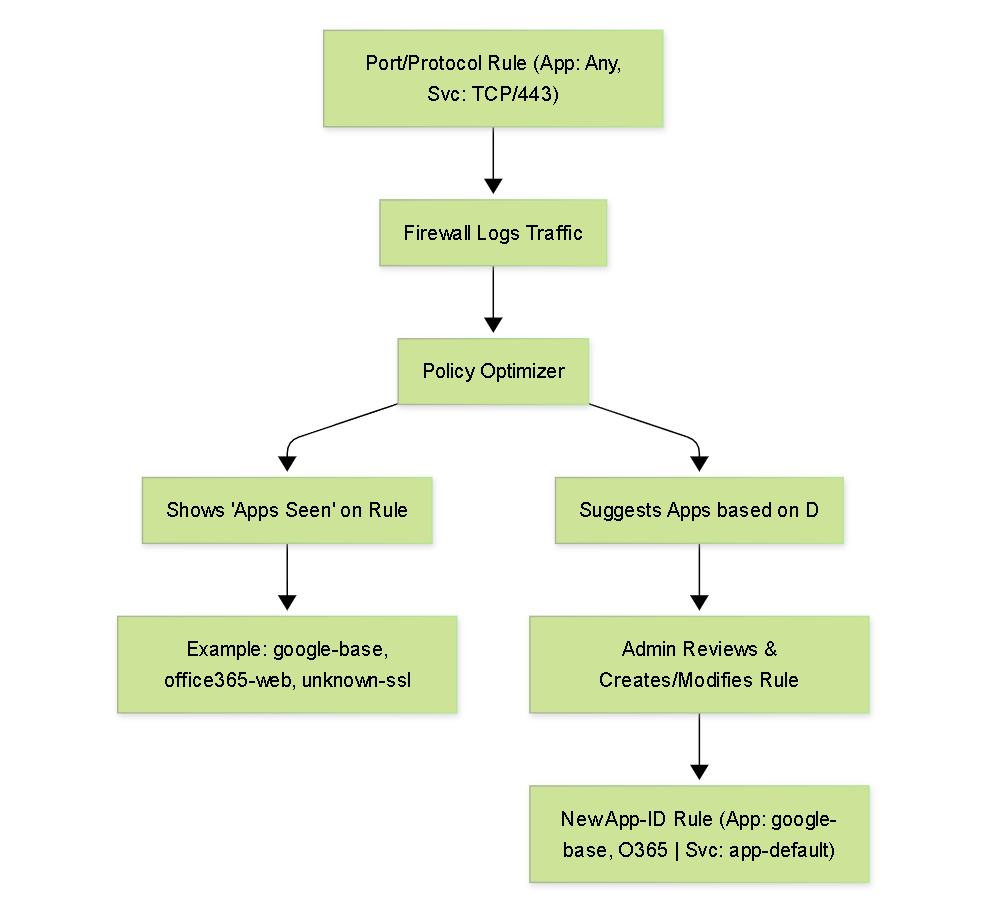

Simplified Policy Optimizer workflow for converting port-based rules.

3. Expedition Migration Tool

What it is: A free, powerful, standalone tool provided by Palo Alto Networks (runs as a VM or container) designed for complex configuration analysis, migration, and best practice implementation.

How to use for conversion:

Import firewall configurations (PAN-OS or other vendors).
Analyze existing rulebases for port-based rules.
Correlate configuration with imported traffic logs (optional but recommended) to see actual application usage.
Provides sophisticated rule merging, object cleanup, and best-practice recommendations.
Can automate the generation of App-ID based rules based on its analysis.
Outputs configuration changes that can be imported back into Panorama or the firewall.

Pros: Very powerful for large/complex environments, multi-vendor migrations, advanced analysis, automation capabilities.

Cons: Requires separate setup and learning curve, more complex than Policy Optimizer, processing can take time for large configs/logs. Often overkill for simple conversions but invaluable for large migrations.

Best Practices Summary

Follow these best practices for a smooth and secure transition:

Analyze Before Converting: Don't guess; use logs, ACC, Policy Optimizer, or Expedition to see what's really using the ports.
Prioritize application-default: Use this service setting whenever possible for enhanced security.
Start Specific: Create rules for known, required applications first.
Handle Unknown/Unidentified: Decide on a policy for unknown-tcp / unknown-udp traffic (often deny or allow with strict profiles).
Use New Rules: Create new App-ID rules above the legacy ones; avoid simply modifying the legacy rule initially.
Decrypt Where Needed: Implement SSL/TLS decryption for visibility into encrypted flows.
Log Everything: Ensure both the new App-ID rules and potentially denied traffic are logged.
Test and Validate: Monitor hit counts and logs carefully after changes.
Cleanup Systematically: Disable, then delete legacy rules only after confirming the new App-ID rules handle the required traffic.
Leverage Tools: Use Policy Optimizer regularly; consider Expedition for larger projects.

PCNSE Exam Focus

For the PCNSE exam, regarding rule conversion:

Understand the why (security benefits of App-ID).
Know the methodology (discovery, creation, validation, cleanup).
Be familiar with the tools used for discovery, especially Policy Optimizer (its purpose and basic function) and the role of log/ACC analysis. Know that Expedition is a more advanced migration tool.
Recognize the importance of application-default .
Understand the best practice of creating new rules above legacy ones during migration.
Know that validating hit counts and logs is crucial before removing old rules.

     Expect questions testing your understanding of why App-ID is necessary, how to identify applications using existing rules (Policy Optimizer, Logs, ACC), the steps in a migration project, and key best practices like using `application-default` and handling unknown traffic.


App-ID Conversion Quiz (PCNSE Focus)

Test your knowledge on converting port/protocol rules to App-ID.

1. Which of the following is a primary reason to migrate from port/protocol rules to App-ID rules?

App-ID rules are processed faster by the firewall. App-ID provides visibility and control over the actual application regardless of port. App-ID rules consume less firewall resources. App-ID eliminates the need for Security Profiles.

Correct Answer: b App-ID identifies applications at Layer 7, providing granular control and visibility regardless of which port the application uses.

2. A legacy security rule allows TCP/443. Where should you look first to see which applications are *actually* using this rule/port?

System Logs Configuration Audit Logs Traffic Logs or ACC Report detailing interface statistics

Correct Answer: c Traffic logs contain the 'Application' column which shows the App-ID detected for sessions hitting a rule. ACC provides visualizations of this data.

3. What is the Palo Alto Networks built-in tool specifically designed to help migrate port-based rules to App-ID?

Command Line Interface (CLI) ACC (Application Command Center) Expedition Policy Optimizer

Correct Answer: d Policy Optimizer has features like "No App Specified" and "Apps Seen" specifically for this migration task.

4. In Policy Optimizer, what does the "Apps Seen" column for a port-based rule indicate?

The applications identified by App-ID that have used this rule based on logs. The standard applications that typically use the configured service port. The total number of applications defined on the firewall. Applications suggested by Palo Alto Networks best practices.

Correct Answer: a "Apps Seen" directly correlates observed traffic hitting that rule in the logs with the App-IDs detected.

5. Which of the following is NOT a recommended phase in the App-ID migration methodology?

Discovery and Analysis Create App-ID Based Rules Immediate Deletion of Legacy Rules Validation, Refinement, and Cleanup

Correct Answer: c Legacy rules should be disabled and monitored first, not immediately deleted, to ensure the new rules are working correctly.

6. What is the recommended 'Service' setting when creating new App-ID based security rules?

The specific port number(s) application-default any tcp/udp

Correct Answer: b Using 'application-default' ensures the firewall enforces the application's standard ports, providing better security posture.

7. When migrating, where should you place the *new* App-ID rule relative to the original port-based rule it's replacing?

Below the original rule In a separate rule block Above the original rule It doesn't matter where it's placed

Correct Answer: c Placing new rules above ensures traffic hits them first. Monitoring the original rule's hit count dropping confirms the new rule is effective.

8. What App-IDs represent traffic that the firewall could not identify as a known application?

unknown-application, custom-app incomplete, firewall-app residual, unclassified unknown-tcp, unknown-udp

Correct Answer: d `unknown-tcp` and `unknown-udp` are used for traffic that couldn't be identified. Policies for these should be carefully considered (deny or allow with strict profiles).

9. What is a potential risk of simply changing the Service on a TCP/443 rule to the 'ssl' App-ID without discovery?

It will block all web browsing traffic. It may block other applications using TCP/443 that are not identified as 'ssl' or dependent. It will allow all encrypted traffic regardless of the application. It will automatically enable SSL decryption.

Correct Answer: b TCP/443 is used by many applications besides basic SSL. Simply using the 'ssl' App-ID won't automatically allow, for example, Office 365 traffic that happens to be using 443 unless specifically allowed by other rules or dependencies.

10. After creating and placing new App-ID rules above the legacy rule, what is a key metric to monitor during the validation phase?

CPU utilization Session count Application Command Center widgets Hit counts on both the new and legacy rules

Correct Answer: d Monitoring hit counts confirms that the new rules are being used and that the legacy rule is no longer necessary.

11. Expedition is typically used for which scenario?

Large, complex, or multi-vendor firewall migrations. Real-time traffic monitoring and analysis. Automating software updates and patching. Creating custom App-IDs.

Correct Answer: a Expedition is a powerful, standalone tool designed for planning and executing large-scale migration projects, including importing configs from other vendors.

12. Why is it important to implement SSL/TLS decryption during the App-ID migration process?

Decryption speeds up traffic processing. Decryption is required for basic App-ID functionality. Decryption prevents applications from using non-standard ports. Many applications use encrypted traffic, and decryption is needed for the firewall to identify them.

Correct Answer: d App-ID needs to inspect traffic to identify applications. If traffic is encrypted, it may be identified only generically as 'ssl' or 'web-browsing' without decryption, limiting granular control.

13. During Phase 1 (Discovery), creating a temporary monitoring rule that allows a specific port but with Application set to 'any' helps to:

See all applications attempting to use that specific port. Test if the port itself is open. Automatically convert the rule to App-ID. Block all traffic on that port.

Correct Answer: a Setting Application to 'any' tells the firewall to try and identify *any* application using the specified service/port, logging it for analysis.

14. Malicious actors might disguise C2 traffic by running it over standard ports like TCP/443. How does App-ID help mitigate this?

App-ID automatically blocks all traffic on standard ports. App-ID encrypts traffic to hide C2 communication. App-ID can identify the actual malicious application even if it's using a standard port. App-ID redirects suspicious traffic to a sandbox.

Correct Answer: c App-ID's deep packet inspection can often identify malware C2 traffic based on its signature and behavior, even if it's hidden on a common port like 443.

15. After disabling the legacy port-based rule, how long should you typically monitor before deleting it?

24 hours 1 week Immediately if hit count is zero A suitable observation period based on traffic patterns (e.g., 30-90 days)

Correct Answer: d A longer observation period (like 30-90 days) covers monthly/quarterly applications or tasks, ensuring the legacy rule wasn't needed for less frequent traffic.

16. When analyzing traffic logs for a port-based rule, what specific column is most useful for identifying the applications seen?

Application Source Port Destination Zone Action

Correct Answer: a The 'Application' column in Traffic logs shows the App-ID identified for that specific session, even if the rule allowing it was port-based.

17. Which Policy Optimizer feature can suggest specific App-IDs to add to a rule based on observed traffic?

Rule Usage Suggested Apps App-ID Dependency View Application Filters

Correct Answer: b The Policy Optimizer directly analyzes the 'Apps Seen' and suggests adding them via the "Suggested Apps" feature.

18. What is the primary purpose of the "Discovery and Analysis" phase?

To block unwanted applications immediately. To create all new App-ID rules. To identify the actual applications using existing port-based rules. To delete unused legacy rules.

Correct Answer: c Discovery is all about understanding your current traffic profile and identifying the real applications hidden behind port numbers.

19. When creating new App-ID rules, using Application Groups or Filters can help with:

Grouping related applications for easier management. Reducing the number of firewall sessions. Bypassing Security Profiles. Automatically applying decryption.

Correct Answer: a Application Groups (static lists) and Filters (dynamic based on attributes) allow administrators to manage multiple related App-IDs as a single object in a rule.

20. What is a key benefit of logging traffic that hits the new App-ID rules and denied traffic during validation?

Reduces firewall resource usage. Helps identify if any required applications were missed in the new rules. Speeds up commit times. Is required for the rules to be active.

Correct Answer: b If legitimate applications are suddenly blocked after the change, reviewing denied traffic logs quickly identifies what was missed in the new App-ID rules.

21. You have a legacy rule allowing TCP/80. After analysis, you find it's used for 'web-browsing', 'sharepoint', and 'internal-web-app'. How should you create the new rule?

Create three separate rules, one for each application. Modify the existing rule to use 'application-default' service. Create a new rule with Service TCP/80 and Application 'any'. Create one new rule listing 'web-browsing', 'sharepoint', and 'internal-web-app' in the Application field and Service 'application-default'.

Correct Answer: d The goal is to allow *only* the identified applications. Listing them in the Application field and using 'application-default' is the best practice. A or B might work partially but don't align with best practices. C reverts to the original problem.

22. What PCNSE exam domain is App-ID configuration primarily covered under?

Domain 3: Deploy and Configure Features and Subscriptions Domain 1: Plan Domain 4: Manage and Operate Domain 5: Troubleshoot

Correct Answer: a App-ID configuration falls under Domain 3 of the PCNSE exam outline.

23. What does the 'application-default' service setting mean in a security rule?

The rule applies to all applications. The firewall will automatically determine the correct port. The rule uses the ports defined in the Application object definition. Traffic is allowed only if the application is using its standard, default port(s).

Correct Answer: d 'application-default' is a security control that restricts the allowed traffic for an application to only the ports it is known to use by default, blocking evasion attempts on non-standard ports.

24. If you disable a legacy port-based rule and users report issues, what is the immediate step you should take?

Delete the new App-ID rules. Re-enable the legacy rule temporarily. Immediately create a new rule allowing all traffic. Blame the user for misconfiguration.

Correct Answer: b Re-enabling the legacy rule quickly restores service. You can then analyze logs to determine exactly what traffic was blocked and adjust the new App-ID rules before disabling the legacy rule again.

25. Which tool is best for analyzing historical traffic data to understand application usage on specific ports over a longer period?

The firewall CLI Packet Capture Reports or Logging Service/Panorama Policy Optimizer (Apps Seen)

Correct Answer: c While Policy Optimizer's "Apps Seen" is useful, comprehensive historical analysis over extended periods is best done using custom reports generated from firewall logs or by querying the Logging Service/Panorama logs.

26. Why is it considered insecure to rely solely on port and protocol for modern security?

Applications can use non-standard ports or multiple applications can share standard ports. Port-based rules are vulnerable to DDoS attacks. Port-based rules cannot apply Security Profiles. Port-based rules require more administrative effort.

Correct Answer: a The flexibility of applications and the ability for malicious traffic to disguise itself on standard ports make port-based rules ineffective for granular security.

27. During the "Create App-ID Based Rules" phase, if you need to allow a specific custom or non-standard application that App-ID doesn't identify, what should you do?

Block that application. Use the 'any' App-ID. Define a Custom App-ID or rely on a port/protocol rule placed below App-ID rules if necessary. Use a Custom App-ID or use a specific port/protocol service definition.

Correct Answer: d For custom or unknown applications, you can define a Custom App-ID if it has a identifiable signature, or fall back to using a specific port/protocol definition for that application, placed carefully in the rulebase.

28. What is a key advantage of using Policy Optimizer compared to manual log analysis for migration?

It can migrate rules from other firewall vendors. It directly correlates application usage to specific port-based rules and suggests actions. It decrypts traffic automatically. It identifies zero-day threats.

Correct Answer: b Policy Optimizer streamlines the process by showing you which applications hit *each specific port rule* and provides built-in tools to modify or clone the rules based on this.

29. What does the 'unknown-tcp' App-ID indicate?

The traffic is malware. The application is encrypted. The firewall saw TCP traffic but couldn't identify the application. The session is incomplete.

Correct Answer: c 'unknown-tcp' means the firewall saw TCP traffic but could not match it to a known or custom App-ID signature.

30. Which step is part of the "Validation, Refinement, and Cleanup" phase?

Monitoring logs for denied traffic after applying new rules. Identifying applications using ACC. Creating Application Groups. Defining Custom App-IDs.

Correct Answer: a Monitoring denied logs is crucial during validation to catch any legitimate traffic that might have been inadvertently blocked by the new App-ID rules.
