PAN-OS: Configuring Mixed Internal & External GlobalProtect Gateways

Introduction: Handling Different Connection Scenarios

In many GlobalProtect deployments, users might connect from both outside the corporate network (requiring VPN access) and inside the network (where consistent policy enforcement and posture checks are still desired). A mixed internal and external gateway configuration allows a single GlobalProtect infrastructure to cater to both scenarios effectively.

With this setup, the GlobalProtect app uses Internal Host Detection (IHD) to determine its location. Based on whether it can reach internal-only resources:

• If external , it connects to a designated External Gateway for secure VPN access.
• If internal , it connects to a designated Internal Gateway to enforce policy and posture checks without necessarily needing full VPN encryption.

This provides granular control over resource access and security posture enforcement regardless of the user's physical location.

Because security policies are defined separately for the zones associated with each gateway type, you can create distinct access rules for internal and external users connecting through GlobalProtect.

Example Deployment Scenario

Consider a scenario where:

• The GlobalProtect Portal is hosted on one firewall ( gp.acme.com ).
• An External Gateway ( gpvpn.acme.com ) on a separate firewall provides standard remote VPN access.
• Two Internal Gateways ( california.acme.com , newyork.acme.com ) on another firewall provide posture checking (HIP) and granular access to sensitive datacenter resources for users already inside the network.

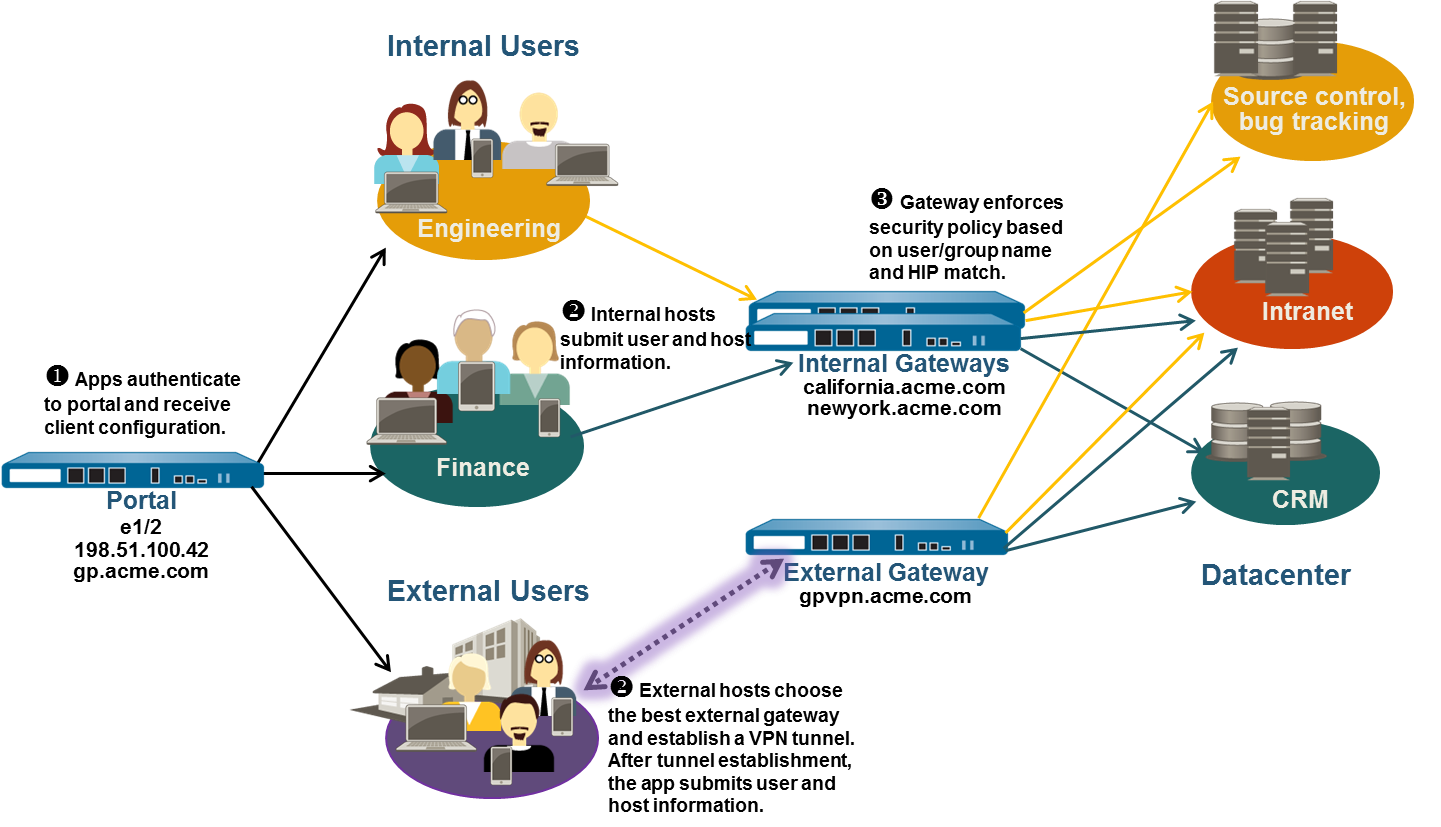

Diagram:

This setup allows consistent policy application and HIP checks whether a user is remote or physically present in an office connected to an internal gateway region.

Configuring a mixed gateway deployment involves several steps across the participating firewalls:

1. Create Interfaces and Zones

   Ensure appropriate Layer 3 interfaces, Tunnel interfaces, and Security Zones are configured on each firewall acting as a Portal or Gateway.

   • Portal Firewall (Example: gp.acme.com):
     • External Interface (e.g., ethernet1/2 , IP 198.51.100.42 ) in l3-untrust zone. (DNS A record points gp.acme.com here).
     • Note: Portal itself doesn't typically require a tunnel interface unless it also acts as a gateway.
   • External Gateway Firewall (Example: gpvpn.acme.com):
     • External Interface (e.g., ethernet1/5 , IP 192.0.2.4 ) in l3-untrust zone. (DNS A record points gpvpn.acme.com here).
     • Tunnel Interface (e.g., tunnel.3 ) in a dedicated VPN zone (e.g., corp-vpn ). Enable User-ID on this zone.
   • Internal Gateway Firewall (Example: Serving california.acme.com & newyork.acme.com):
     • Internal Interface(s) (e.g., ethernet1/1 , IP 10.1.1.1 ) in l3-trust zone. (DNS A records point FQDNs here).
     • Tunnel Interface (e.g., tunnel.10 ) in a dedicated internal VPN zone (e.g., GP-Internal-VPN ). Enable User-ID on the *internal user source zones* (like l3-trust ).

   Follow Administrative Access Best Practices . Do not enable management services (HTTP/S, SSH) on external-facing interfaces used for GlobalProtect.

2. Obtain GlobalProtect Licenses

   Ensure each firewall hosting a Gateway (both internal and external) has a valid GlobalProtect subscription activated ( Device > Licenses ). This is required for agent connections and HIP features.



   See About GlobalProtect Licenses for details.

3. Obtain/Generate and Deploy Certificates

   SSL/TLS Server Certificates are required for the Portal and all Gateways to secure communications.

   • Clients must trust the CA that issued the Portal certificate for the initial connection.
   • Using certificates from a trusted Public CA or a well-managed Internal Enterprise CA is recommended over self-signed certificates for production.
   • If using self-signed certificates generated on the firewall (e.g., using the firewall as a Root CA), the Root CA's public certificate must be deployed to clients for gateway connections (often via the Portal Agent config).
   • Consult the documentation for detailed steps on Enabling SSL Between GlobalProtect Components .

4. Configure Authentication

   Define Authentication Profiles ( Device > Authentication Profile ) and potentially Certificate Profiles ( Device > Certificate Management > Certificate Profile ) for authenticating users to the Portal and Gateways. Different profiles can be used for Portal vs. Gateway, or Internal vs. External Gateways.

   • Set Up External Authentication (LDAP, RADIUS, SAML, Kerberos, etc.)
   • Set Up Client Certificate Authentication
   • Set Up Two-Factor Authentication

5. Configure HIP Objects and Profiles (If Using HIP)

   If leveraging device posture checks:

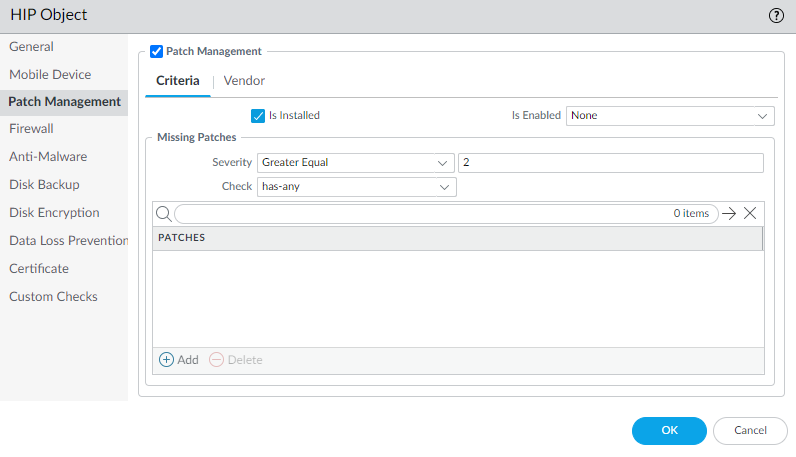

   • Define HIP Objects ( Objects > GlobalProtect > HIP Objects ) specifying attributes to check (OS, AV, Patch Mgmt, etc.).

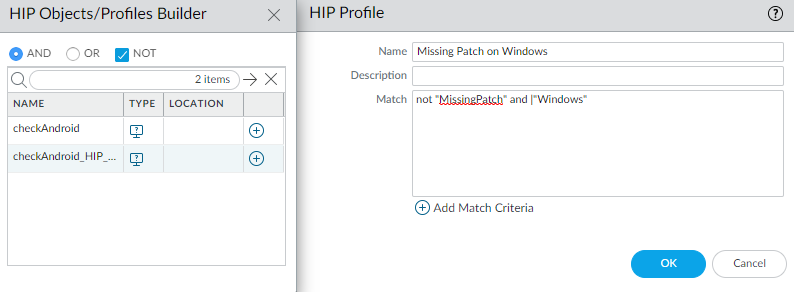

   • Define HIP Profiles ( Objects > GlobalProtect > HIP Profiles ) referencing the HIP Objects to define compliance states (e.g., `Compliant-Host`, `Missing-Patches`).


   See Host Information for details.

6. Configure Internal Gateways

   On the firewall(s) hosting Internal Gateways ( Network > GlobalProtect > Gateways ):

   • Configure the Gateway object(s), specifying internal listening Interface/IP, Server Certificate (via SSL/TLS Profile), and Authentication Profile(s).
   • Configure Agent settings, particularly Client Settings (IP Pool, DNS) and Split Tunnel rules appropriate for internal users.
   • Enable HIP collection in the Agent settings if required.

   See Configure a GlobalProtect Gateway .

   Client Authentication configuration on the Internal Gateway might rely on cookies (Authentication Modifier) from the Portal authentication or use methods like Kerberos for seamless internal connections, though standard profiles are also possible.

7. Configure External Gateway(s)

   On the firewall(s) hosting External Gateways ( Network > GlobalProtect > Gateways ):

   • Configure the Gateway object(s) similarly, but listening on the external Interface/IP.
   • Define Agent Client Settings appropriate for remote users (IP Pool, DNS, Split/Full Tunnel Access Routes).
   • Enable HIP collection if required.

8. Configure the GlobalProtect Portal

   On the firewall hosting the Portal ( Network > GlobalProtect > Portals ):

   1. Define Portal Access: Configure listening Interface/IP and the Portal's SSL/TLS Service Profile.
   2. Define Portal Authentication: Configure Client Authentication using appropriate Authentication Profile(s).
   3. Configure Agent Configuration(s):
      • Under the `Agent` tab, define one or more configurations.
      • Crucially, under the `External` tab list your External Gateway(s) (FQDNs recommended).
      • Under the `Internal` tab, list your Internal Gateway(s) AND configure Internal Host Detection (IHD) settings (IPs/FQDNs only reachable internally).
      • Configure Connect Method (e.g., `User-logon (Always On)`), HIP Data Collection, Trusted Root CA distribution (if using self-signed gateway certs), etc.
      • You can create multiple Agent Configurations assigned based on User/Group or OS if different settings are needed for different populations.

   See Configure a GlobalProtect Portal .

9. Deploy GlobalProtect Agent Software

   Make the agent software available to users. Common methods:

   • Host the software directly on the Portal for download ( Device > GlobalProtect Client ).
   • Use enterprise software deployment tools (SCCM, JAMF, Intune).
   • Provide users a download link.

   See Deploy the GlobalProtect App Software .

10. Configure Security Policy Rules

    On the gateway firewalls (both internal and external), create Security rules ( Policies > Security ) to control traffic coming from the respective VPN zones:

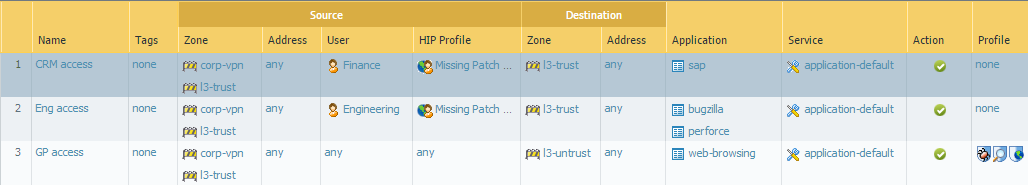

    • Allow traffic from the External VPN zone (e.g., `corp-vpn`) to internal zones (`l3-trust`, etc.) based on User/Group and HIP Profile.
    • Allow traffic from the Internal VPN zone (e.g., `GP-Internal-VPN`) to specific sensitive internal zones based on User/Group and HIP Profile.
    • Apply appropriate Security Profiles (Threat Prevention, URL Filtering, etc.) to inspect the traffic.


11. Commit Configuration

    Commit the changes on the Portal and all Gateway firewalls.
