PAN-OS: Panorama Master Device Configuration Impact

Introduction: Sourcing Template Variable Values

Panorama Templates allow standardized Network and Device configurations, while Template Variables provide placeholders for site-specific values (like IP addresses or hostnames). When a Template Stack containing variables is pushed to managed firewalls, Panorama needs a source for the actual values to substitute for these variables.

While values are typically defined directly within the Template Stack or overridden per device, Panorama offers two additional mechanisms involving designating specific firewalls as sources for these variable values:

Master Device (per Device Group): A designated firewall within a Device Group whose variable values can be used for other devices *in that same group*.
Primary Master Device (Global): A single firewall designated globally whose variable values can serve as a fallback source for *any* managed device if other sources fail.

Configuring a Master or Primary Master Device significantly impacts how variable values are resolved and pushed to firewalls.

Understanding Master Device and Primary Master Device

Master Device (Device Group Level)

Configuration: Set within the properties of a specific Device Group ( Panorama > Device Groups > [Select DG] > Edit Properties ). You select one firewall *managed by Panorama and belonging to that DG* to be the Master Device.
Function: When Panorama pushes configuration to a firewall in this Device Group (that is *not* the Master Device itself), it first checks if a specific variable value is defined for that target firewall directly (device-level override). If not, it then checks the configuration of the designated Master Device for that variable's value. If found on the Master Device, that value is used for the target firewall.
Scope: The Master Device's values only influence other firewalls within the same Device Group .
Purpose: To simplify variable management when multiple devices within a single functional group require the *exact same* variable values (e.g., all Branch firewalls in a region using the same regional DNS server IP defined by a variable $REGIONAL_DNS ). Define the value once on the Master Device instead of repeating it in the Template Stack for each device.

Primary Master Device (Global Level)

Configuration: Set globally under Panorama > Setup > Management > Template Variables . You select one specific firewall managed by Panorama to be the Primary Master Device.
Function: Acts as a global fallback source for Template Variable values. If Panorama cannot find a value for a variable through Device-Specific Override, the Device Group Master Device, or the Template Stack assignment, it will *then* check the configuration of the Primary Master Device.
Scope: Applies globally to all managed firewalls when other value sources are missing.
Purpose: To provide a last-resort source for common variable values, potentially reducing commit failures caused by undefined variables. However, its use is less common than Device Group Master Devices or direct Stack/Device overrides because it can lead to unexpected values being pushed if not carefully managed.

Variable Value Precedence Order

Understanding the strict order in which Panorama looks for a variable's value is critical when Master Devices are configured:

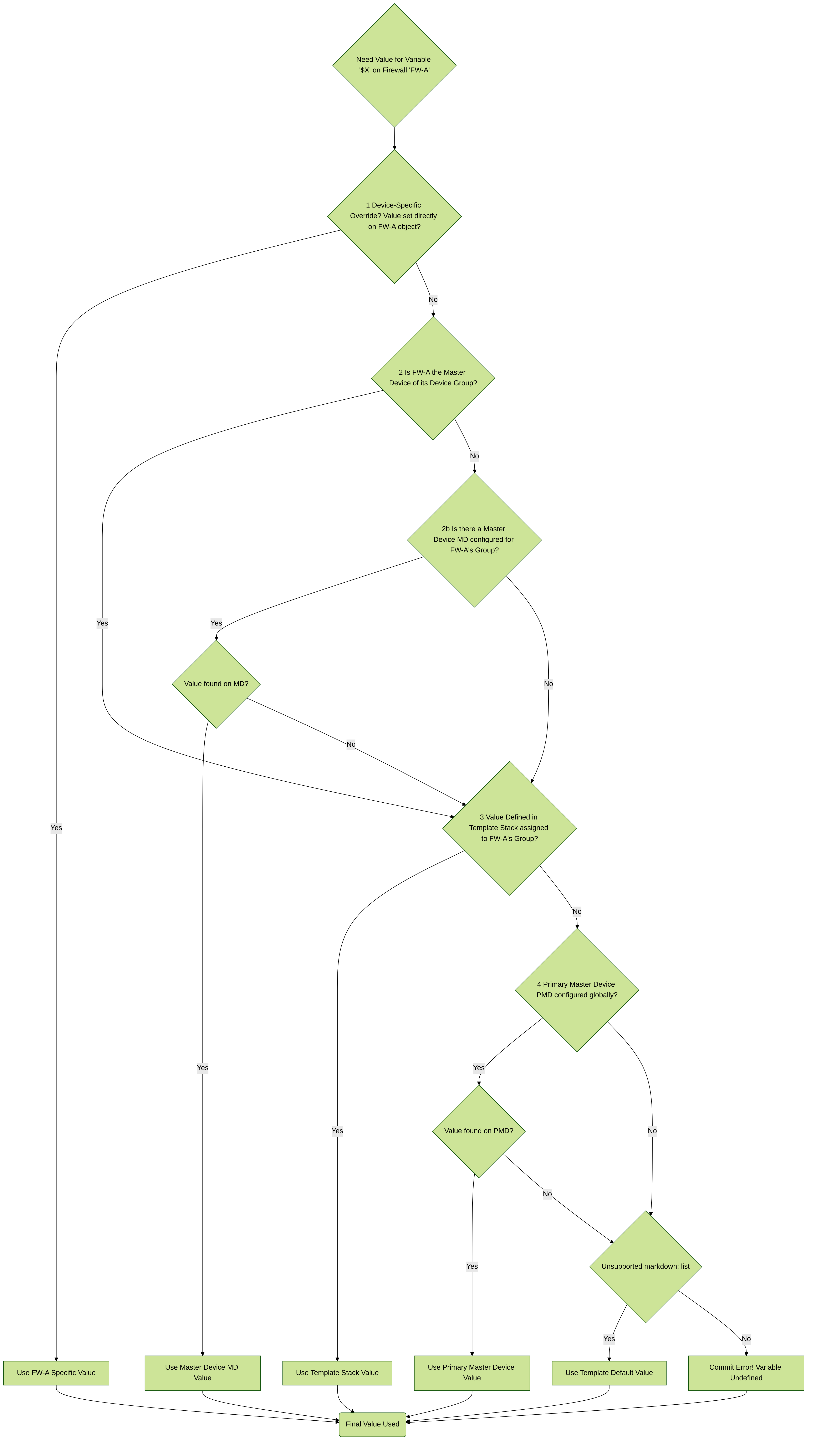

Template Variable Value Resolution Order.

Device-Specific Override: Value explicitly set for the variable on the specific firewall object in Panorama ( Panorama > Managed Devices > Summary > [Select FW] > Variables ). (Highest Priority)
Device Group Master Device: If the target firewall is *not* the Master Device for its group, the value configured on the designated Master Device for that group is checked.
Template Stack Value: The value explicitly defined for the variable within the Variables tab of the Template Stack assigned to the firewall's Device Group.
Primary Master Device: If configured globally, the value configured on the designated Primary Master Device is checked.
Template Variable Default Value: The default value (if any) specified when the variable was first defined within the Template itself. (Lowest Priority)
Failure: If no value is found through any of these steps, the commit/push will fail.

Important Distinction: Master Device vs. User-ID Mapping Functions

It's crucial to understand that the concept of a "Master Device" in Panorama is entirely separate from User-ID functions like Group Mapping or IP-Address-to-User Mapping .

Master Device (Device Group or Primary):
- Purpose: Acts solely as a source for Template Variable values .
- Configuration Scope: Defined in Device Group Properties (for DG Master) or Panorama Setup (for Primary Master).
- Function: Provides fallback values (like specific IP addresses, hostnames, interface names defined as variables) to populate Template configurations (Network and Device settings) for other firewalls during a Panorama push.
- Data Handled: Static configuration values defined as Template Variables.
- Does NOT handle or source User-ID mappings (IP-User or User-Group).

User-ID Mapping (IP-User & User-Group):
- Purpose: To associate dynamic IP addresses with specific usernames and determine group memberships for policy enforcement and visibility.
- Configuration Scope: Configured under Device > User Identification (or equivalent Panorama sections for central management). This includes Server Monitoring, Group Mapping Settings, User-ID Agent connections, etc.
- Function: Collects dynamic, real-time mapping information from sources like Domain Controllers (Server Monitoring), LDAP/AD servers (Group Mapping), GlobalProtect, Captive Portal, API, etc.
- Data Handled: Dynamic IP-to-Username mappings and Username-to-Group membership information.
- Is NOT sourced from or directly influenced by the Master Device designation used for Template Variables.

Key Takeaway:

Do not confuse the "Master Device" used for Template Variable resolution with any concept related to User-ID mapping collection or distribution. They are entirely separate features addressing different aspects of firewall configuration:

Master Device: Helps resolve static, pre-defined Template Variable values during configuration pushes.
User-ID Mapping: Deals with discovering and distributing dynamic User Identity information for runtime policy enforcement.

While a firewall designated as a Master Device *might* also be involved in User-ID (e.g., running the Integrated Agent), its role as a Master Device *only* relates to providing values for Template Variables, not for sourcing User-ID data for other firewalls.

Impact of Configuring Master Devices

Simplified Management (Potential): Reduces the need to enter the same variable value repeatedly in the Template Stack for multiple devices within a Device Group, *if* those devices truly share the same required value.
Centralized Value Source (Per Group): The Master Device becomes the single source of truth for specific variable values for other non-master devices *within that group*, assuming no device-specific overrides exist.
Risk of Unintended Overrides: If a device within the group *should* have a unique value but doesn't have a device-specific override configured, it will incorrectly inherit the value from the Master Device instead of potentially using a different value defined at the Template Stack level.
Dependency on Master Device: Panorama needs to be able to read the configuration from the Master Device during push operations to retrieve its variable values. If the Master Device is offline or unreachable by Panorama, pushes relying on its values might fail.
Change Management Impact: Modifying a variable's configured value directly on the Master Device and committing/pushing can potentially change the configuration for all other non-master devices in the group that inherit that variable's value.
Primary Master Device Impact: Configuring a Primary Master Device creates a global fallback. This can prevent commit errors due to missing values but might also mask configuration issues where a value *should* have been defined at the Stack or Device Group level, potentially leading to incorrect configurations being pushed.

Best Practices

Use Master Devices Intentionally: Only configure a Master Device within a Device Group if multiple devices within that group genuinely share the *same required values* for variables, and you want to manage that value centrally on one device.
Prefer Stack/Device Variables for Uniqueness: For values that are often unique per device (like IP addresses, hostnames), explicitly defining them in the Template Stack or using Device-Specific Overrides is generally clearer and less error-prone than relying on Master Device inheritance.
Document Master Devices: Clearly identify and document which device is the Master Device for each group where it's configured and which variables it is intended to provide values for.
Use Primary Master Device Cautiously: Only configure a global Primary Master Device if you have a clear strategy for its use as a fallback and understand the risk of potentially masking undefined variable errors.
Verify Precedence: Always be aware of the variable value precedence order when troubleshooting or planning configurations.
Preview Commits: Use Panorama's commit preview features to verify the final variable values that will be pushed to firewalls.

Caveats and Gotchas

Unintended Inheritance: The most common issue is a non-master device incorrectly inheriting a value from the Master Device because a necessary device-specific override or stack-level value was missing.
Master Device Availability: Panorama needs access to the Master Device during configuration generation for pushes.
Primary Master Device Masking Errors: Using a Primary Master can hide situations where variables *should* have been defined at a more specific level (Stack/Device Group Master), potentially leading to unexpected behavior if the Primary Master's value isn't appropriate everywhere.
Configuration Complexity: Adding Master/Primary Master layers increases the complexity of determining the final effective variable value compared to just using Stack and Device overrides.

PCNSE Exam Focus

For the PCNSE exam, understand:

The definition and purpose of a Master Device (per Device Group) and a Primary Master Device (Global).
That they act as sources for Template Variable values .
The specific order of precedence for resolving variable values (Device Override > DG Master > Stack Value > Primary Master > Template Default).
Where each type of Master Device is configured (DG Properties vs. Global Setup).
The impact of Master Devices on configuration pushes and variable management.
The potential risks and benefits compared to defining variables directly in the Template Stack or via device overrides.
