🛠️ Palo Alto Networks Interface Troubleshooting Guide

Interface issues are common starting points for network troubleshooting. A physical or logical problem with an interface can prevent traffic from flowing, cause packet loss, or lead to intermittent connectivity. This guide covers essential commands, parameters to monitor, and troubleshooting steps for Palo Alto Networks firewall interfaces.

🔬 Initial Interface Status Checks

Begin by checking the basic status and configuration of the interface(s) in question.

🔍 Show Interface Details

The show interface ethernet command is your primary tool for viewing the configuration and operational status of a specific physical interface.

show interface ethernet1/6

Key parameters to examine in the output:

• Link status: Indicates the physical link state (e.g., up, down, auto-negotiating). Should be 'up' for a functional link.
• State: The operational state of the interface (e.g., up, down). This can be 'down' even if the link is 'up' due to configuration issues or if disabled.
• Runtime link speed/duplex/state: Shows the actual negotiated or configured speed, duplex (half/full), and link state.
• Configured link speed/duplex/state: Displays the speed, duplex, and state settings manually configured or set to 'auto'.
• MAC address: The hardware address of the interface.
• Operation mode: How the interface is configured (e.g., layer3, layer2, virtual-wire, tap, aggregate-ethernet).
• Virtual router/Zone: The logical routing instance and security zone the interface belongs to (for Layer 3 interfaces).
• Interface IP address: The IP address and subnet mask assigned (for Layer 3).
• Interface MTU: Maximum Transmission Unit. Ensure this matches or is consistent with connecting devices to avoid fragmentation issues.
• Interface Management Profile: What services (ping, SSH, HTTP, etc.) are allowed to terminate on the interface's IP address.
• Counters: (Often included in this output or via specific counter commands) These are crucial for identifying errors and traffic patterns.

🔍 Inspect Interface State (System Level)

The show system state command provides detailed low-level information about the system, including the physical interface status and hardware details.

show system state filter sys.s .p .detail

Replace ` ` and ` ` with the actual slot and port numbers (e.g., `sys.s1.p6.detail`).

This command gives you deeper hardware information that might not be visible in `show interface`, particularly useful for troubleshooting physical layer problems or suspected hardware issues.

📉 Show Error Counters

Interface counters are vital for diagnosing packet loss, errors, and traffic anomalies. Incremented error counters are a strong indicator of physical layer issues, duplex mismatches, or input/output buffer problems.

Show counters for a specific interface:

show counter interface ethernet

Show system-wide counters, filterable for errors or specific conditions:

show counter global show counter global filter severity drop (Shows counters related to dropped packets) show counter global filter delta yes (Shows only counters that have incremented since the last time the command was run, useful for real-time monitoring)

📊 Common Interface Counters and Their Meaning

Understanding what specific counters mean is crucial for effective troubleshooting. Counter names can vary slightly depending on the firewall model and PAN-OS version, but here are common types:

• bytes received / bytes transmitted: Total bytes received/sent on the interface. Basic traffic volume indicators.
• packets received / packets transmitted: Total packets received/sent.
• receive errors: Packets received with errors that prevent them from being delivered to higher layers. Can include L2-L4 parsing errors (invalid MAC, VLAN, IP, port) or other issues. A high count indicates packets are arriving but are malformed or invalid.
• forwarding errors: Packets that encountered errors during the forwarding process.
• packets dropped: A general counter for various drop reasons not covered by specific error counters. Can include drops for non-IP packets (other than ARP), session setup failures, or packets matching a discarded route.
• packets dropped by flow state check: Packets dropped because they matched a session that was expired, inactive, or in a discard state.
• snmpIfInErrors (or similar): Number of inbound packets with errors preventing delivery to higher layers (per SNMP MIB).
• snmpDot3StatsFCSErrors (or similar): Frames received with a valid length but failing the Frame Check Sequence (CRC check).
• snmpEtherStatsCRCAlignErrors (or similar): Packets with bad FCS and either an integral or non-integral number of octets. Related to CRC/alignment issues.
• snmpDot3StatsInternalMacReceiveErrors (or similar): Frames failing reception due to internal MAC sublayer errors.
• snmpDot3StatsSymbolErrors (or similar): Errors related to invalid data symbols when a carrier signal is present, often seen with physical layer issues.
• no route: Packets dropped because no route was found to the destination network.
• arp not found: Packets dropped because the firewall needed to perform an ARP lookup for the next hop but did not have an entry.

Monitoring counters with `filter delta yes` is often the most effective way to see if errors are actively occurring. Check the peer device's interface counters as well.

🔗 Physical Layer Checks

Many interface issues stem from the physical connection. Always verify the basics.

• Cabling:
  • Check for physical damage to the cable.
  • Ensure the correct cable type (Cat5e/6/6a for copper, Single-mode/Multi-mode fiber for fiber) is used and meets distance specifications.
  • Try a known working cable.
  • Check patch panels if used.
• Transceivers (SFPs, SFP+, etc.):
  • Ensure they are properly seated. Reseat them if necessary.
  • Clean fiber optic connectors.
  • Verify transceiver compatibility with the firewall model and PAN-OS version.
  • Check optical power levels (Tx and Rx) using `show transceiver-detail`. Low Rx power is a common indicator of a bad cable or remote transmitter issue.
  • Try a known working transceiver.
• Speed and Duplex:
  • Verify that the speed and duplex settings (configured or auto-negotiated) match on both ends of the link.
  • Ideally, use auto-negotiation on both sides. If manual settings are required, ensure they are identical.
• Peer Device: Check the status and configuration of the interface on the directly connected device (switch, router, server).

📈 Interface Troubleshooting Flow

This flowchart outlines a systematic approach to troubleshooting interface problems.

Palo Alto Networks Interface Troubleshooting Flowchart

🔁 Debugging and Packet Analysis Sequence

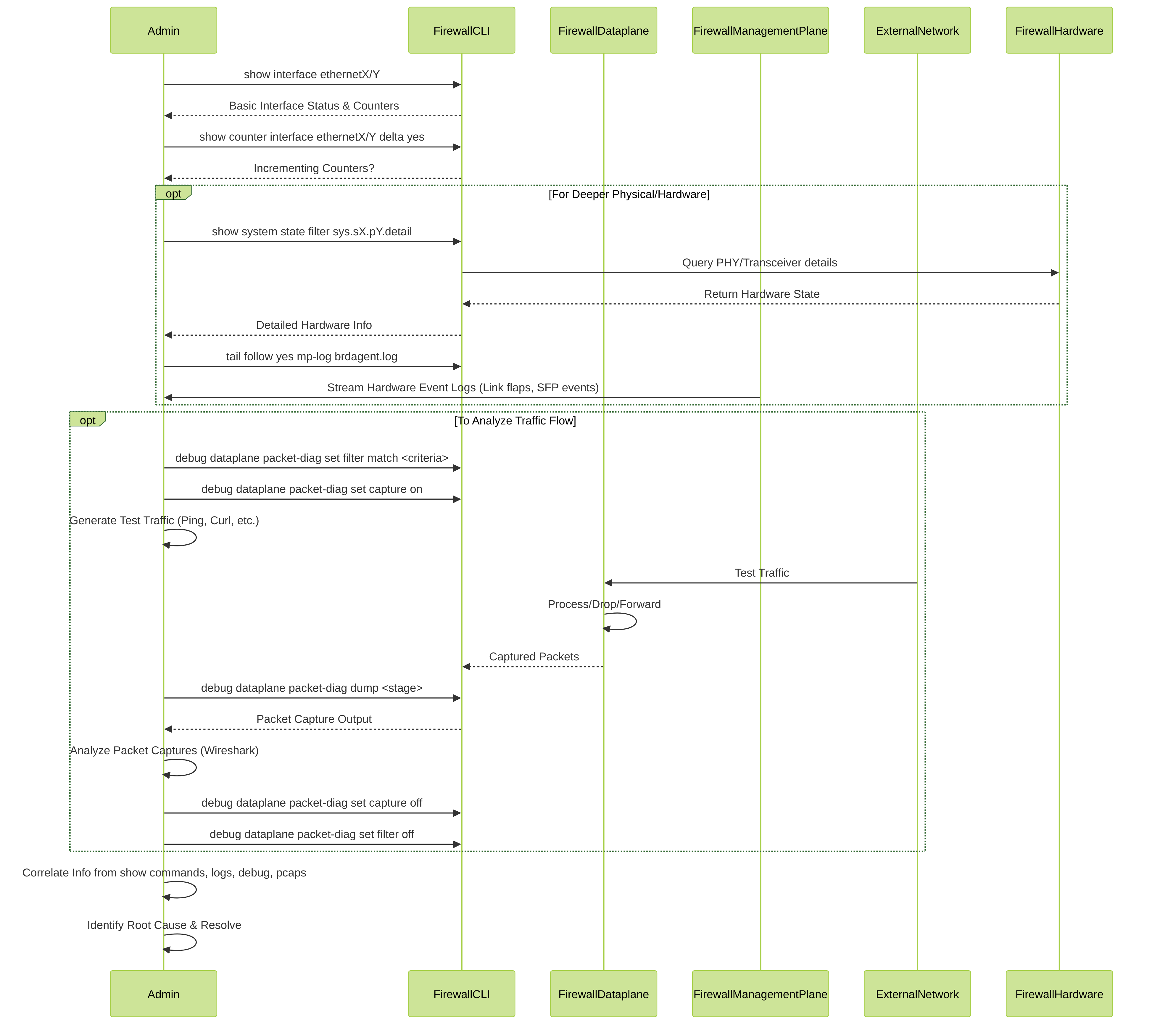

When standard checks aren't enough, leverage debugging and packet capture tools.

Interface Debugging and Packet Analysis Sequence
