PCNSE Route Monitoring & Troubleshooting Guide

1. Route Monitoring Overview

Route monitoring in Palo Alto Networks firewalls is a crucial feature for ensuring network reliability and high availability. It primarily involves two main areas: path monitoring for static routes and the monitoring of dynamic routing protocol states. Effective monitoring allows the firewall to detect reachability issues or protocol failures and take corrective actions, such as removing an invalid route or failing over to a redundant path. This ensures traffic continues to flow and minimizes network downtime. Understanding these mechanisms is vital for the PCNSE exam.

2. Static Route Path Monitoring In-Depth

Path monitoring is specifically used for static routes to verify the reachability of a next-hop or a specific destination IP address. If the monitored destination becomes unreachable, the firewall can automatically remove the associated static route from the routing table, allowing an alternative route (perhaps another static route with a higher metric or a dynamically learned route) to take over.

2.1. The Monitoring Process

The firewall sends ICMP (ping) echo requests to the specified monitored IP address at configurable intervals. If responses are not received within a certain threshold (defined by ping interval and count), the path is considered down. It's important that the monitored IP is a reliable indicator of the path's health. A single ping packet failure does not necessarily mean the path is down; it's typically based on a series of failed pings.

2.2. Failure Detection and Failover Action

When path monitoring determines that the monitored destination is unreachable, the static route is flagged as invalid and removed from the firewall's Routing Information Base (RIB). This triggers the routing engine to find an alternative path. If no other specific route exists, traffic destined for that network might use a default route or be dropped if no route is available.

You can configure whether "any" monitored IP or "all" monitored IPs in a group must fail for the route to be removed.

2.3. Wait Recover Time and Preemptive Hold Time

Once a monitored path goes down, the firewall continues to send pings to check for recovery. The Preemptive Hold Time (default is 2 minutes, configurable from 0 to 1,440 minutes) is a crucial setting. When the path becomes reachable again, the firewall waits for this hold time before reinstating the original static route. This delay prevents route flapping, where a route quickly alternates between up and down states due to an unstable link. If the Preemptive Hold Time is set to 0, the route is reinstalled immediately once the path is up.

The term "Wait Recover" is conceptually linked to this preemptive behavior. The firewall "waits" to "recover" the route by using the preemptive hold timer to ensure stability before making the route active again.

2.4. Logging Path Monitoring Events

Path monitoring events are logged in the System Log .

To find these logs:

You can also use the CLI command show routing path-monitor to check the current status of monitored paths.

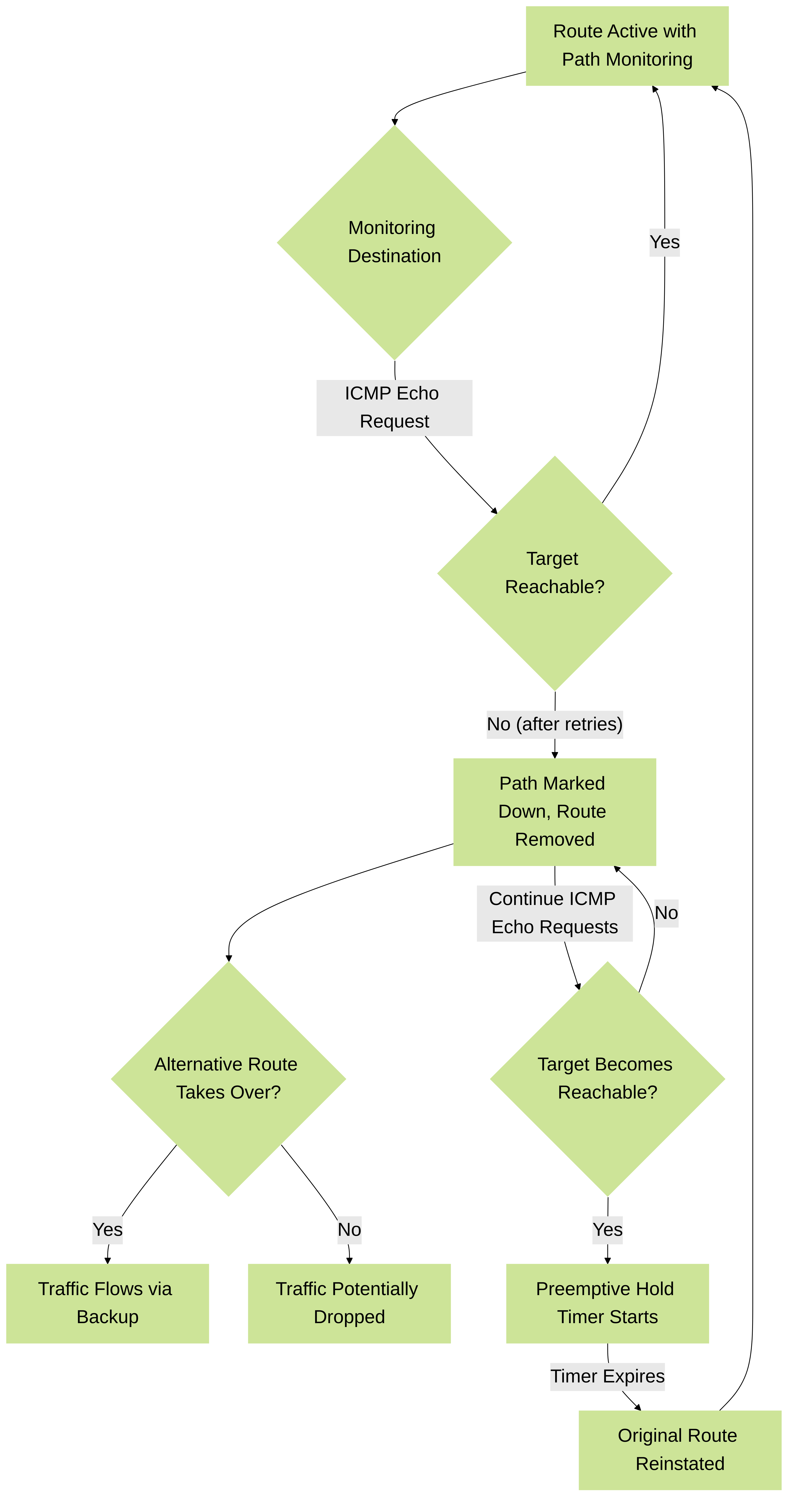

Detailed Path Monitoring Lifecycle

3. Dynamic Routing Protocol Monitoring

Palo Alto Networks firewalls support dynamic routing protocols such as OSPF and BGP. Monitoring their state, especially neighborship or peerings, is critical for network stability.

3.1. Importance of Neighborship/Adjacency

Dynamic routing protocols rely on forming neighborships (OSPF) or peerings (BGP) with adjacent routers to exchange routing information. If a neighborship fails, routes learned through that neighbor are withdrawn, potentially leading to routing black holes or suboptimal routing until convergence occurs via an alternate path.

3.2. Detecting Failures

Failures in dynamic routing protocols can be detected through several methods:

For OSPF, common reasons for adjacency issues include mismatched Area IDs, Hello/Dead timers, authentication, MTU sizes, or network type. For BGP, common issues include incorrect AS numbers, IP addresses, TCP port 179 being blocked, or authentication.

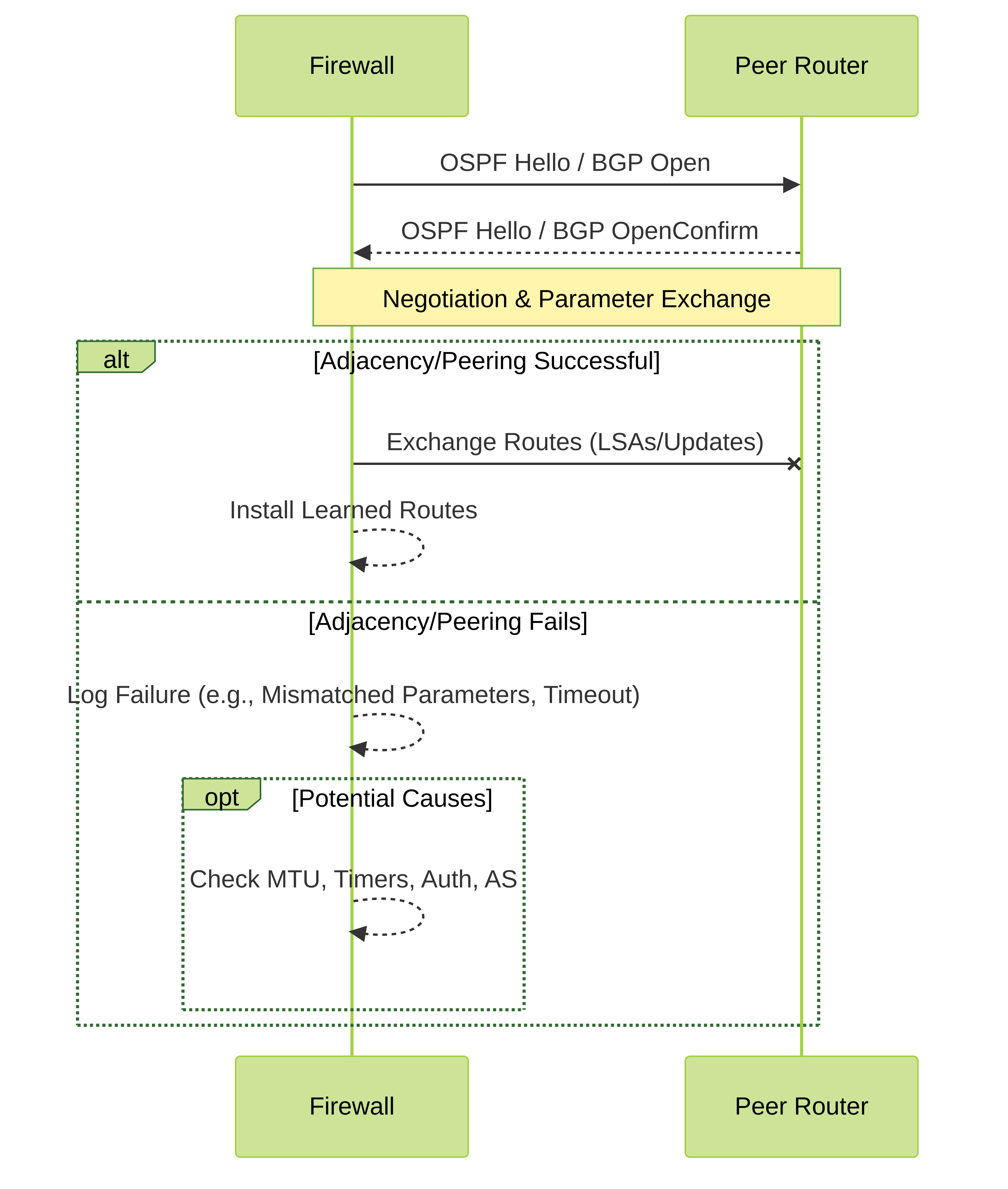

Dynamic Routing Adjacency/Peering Process

4. Tracking General Route Changes

Beyond specific path monitoring or protocol neighborships, general route additions, deletions, or modifications in the routing table are also logged.

Understanding Administrative Distance (AD) is crucial. If multiple protocols provide a route to the same destination, the route with the lowest AD is preferred. If ADs are equal, the protocol-specific metric is used.

5. Other Methods of Monitoring and Advanced Techniques

6. Troubleshooting Routes (Summary)

Effective troubleshooting involves a systematic approach:

  1. Verify Configuration: Double-check static route settings, path monitoring parameters, and dynamic routing protocol configurations (Area IDs, AS numbers, authentication, timers, network advertisements).
  2. Check Interface Status: Ensure physical and logical interfaces involved in routing are up and correctly configured. Use show interface .
  3. Examine Routing Tables: Use show routing route and show routing fib to understand what routes are present and active.
  4. Path Monitoring Status: For static routes, use show routing path-monitor .
  5. Dynamic Protocol Status:
    • OSPF: show routing protocol ospf neighbor , show routing protocol ospf interface .
    • BGP: show routing protocol bgp peer .
  6. Analyze Logs:
    • System Logs (Monitor > Logs > System): Filter for 'routing' subtype and keywords like 'path-monitor', 'OSPF', 'BGP', or specific event IDs.
    • routed.log (CLI: less mp-log routed.log or tail follow yes mp-log routed.log ): For detailed daemon-level messages.
  7. Test Connectivity: Use ping and traceroute from the firewall CLI (specifying source interface/IP if necessary) and from affected hosts.
  8. Packet Captures: If protocol issues are suspected (e.g., OSPF adjacency stuck, BGP messages not exchanged).

7. Common Pitfalls (Gotchas) for PCNSE Exam Takers

Test Your Comprehension

1. What is the primary purpose of Path Monitoring for static routes on a Palo Alto Networks firewall?

2. What happens when a Palo Alto Networks firewall, using path monitoring, detects that a monitored static route's next-hop is unreachable?

3. What is the role of the "Preemptive Hold Time" in static route path monitoring?

4. Which log on a Palo Alto Networks firewall would you primarily inspect for path monitoring failure and recovery events?

5. Which CLI command is used to view the current status of OSPF neighbors on a Palo Alto Networks firewall?

6. What is a common reason for BGP peering to fail between a Palo Alto Networks firewall and another router?

7. If a BGP peer goes down, where would you typically find log messages indicating this event on the Palo Alto Networks firewall?

8. Which CLI command provides a detailed view of the routing daemon's activities, including OSPF and BGP protocol messages and errors?

9. In Palo Alto Networks firewalls, if path monitoring is configured with a Preemptive Hold Time of 0 minutes, what is the behavior when the monitored path recovers?

10. When troubleshooting OSPF adjacency issues where the state is stuck (e.g., INIT, EXSTART), which of the following is a critical parameter to check for mismatches between neighbors?
