Advanced Routing Engine - BGP: How to configure outbound route filtering using Route-map with Prefix-list

Objective

• The information is explained with an example.

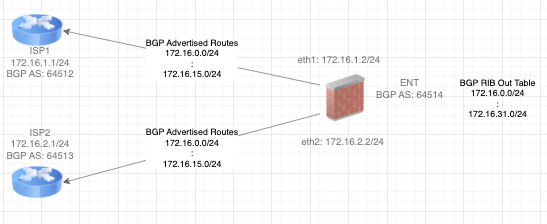

• In the network below, Filter out 172.16.17.0/24 to 172.16.31.0/24 being sent out the the ISPs

Environment

• Palo Alto Firewalls

• Supported PAN-OS

• Advanced Routing Engine

• BGP

• Route Redistribution

• Route Filtering

Procedure

1. Configure the basic redistribution without any filter:

   1. Use Advanced Routing Engine - BGP: How to configure route redistribution as a guide.

2. Configure the Prefix list:

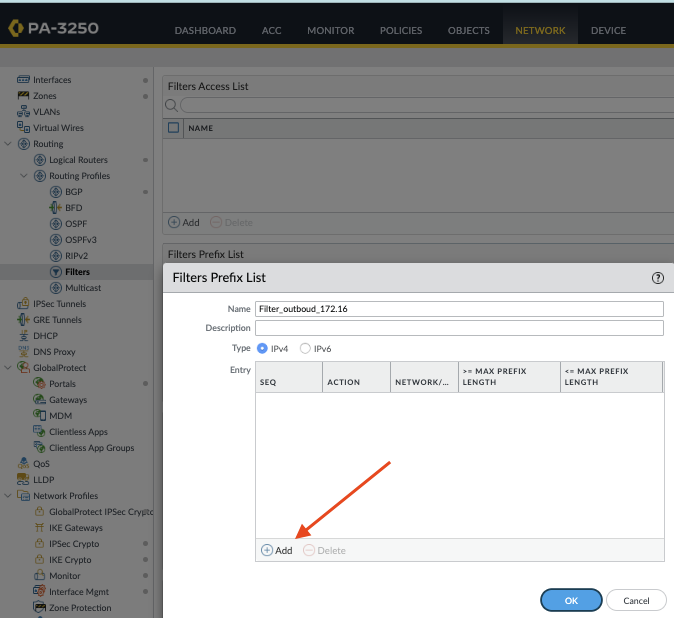

   1. To filter the routes that need to be advertised, navigate to Network > Routing > Routing Profiles > Filters > Filters Prefix List > Add , and in this sample we'll use Name: Filter_outbound_172.16

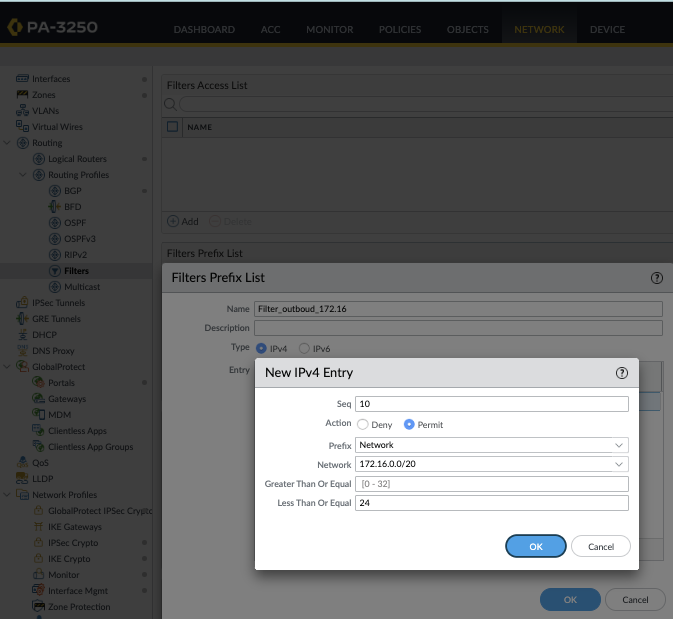

   2. Click Add as shown above, and configure the following parameters:

      1. Seq: 10

      2. Action: Permit

      3. Prefix: Network

      4. Network: 172.16.0.0/20

      5. Less Than Or Equal: 24



   3. Click OK twice to save

3. Configuring Route Map:

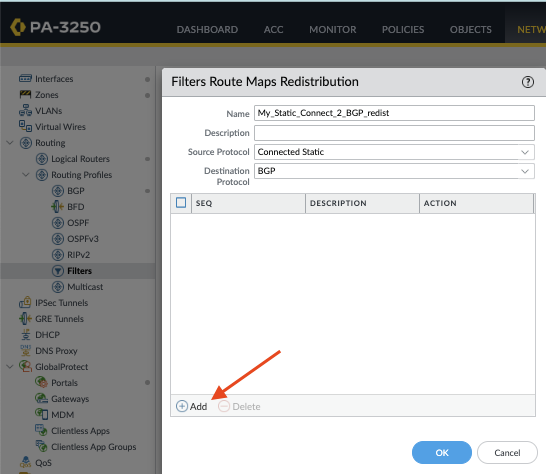

   1. Define the name of the route-map redistribution filter by going to Network > Routing > Routing Profiles > Filters > Filters Route Maps Redistribution > Add > Name, in this sample we'll be using the following parameters:

      1. Name: My_Static_Connect_2_BGP_redist

      2. Source Protocol: Connected Static

      3. Destination Protocol: BGP

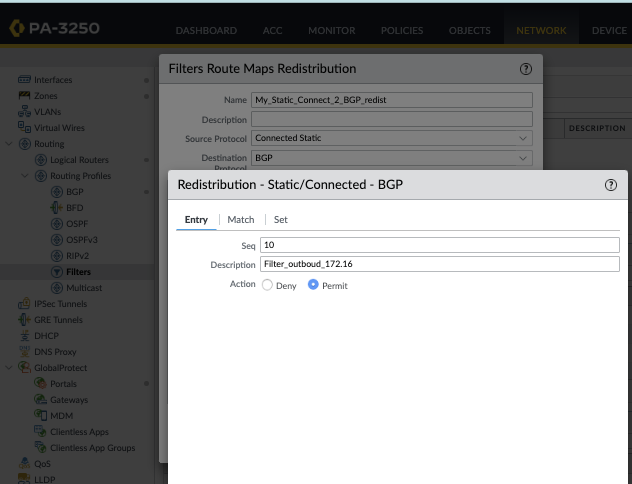

   2. Assign the Prefix-list to the route-map by clicking Add as highlighted above, and use the following parameters

      1. Entry (tab):

         1. Seq: 10

         2. Description: Filter_outboud_172.16

         3. Action: Permit

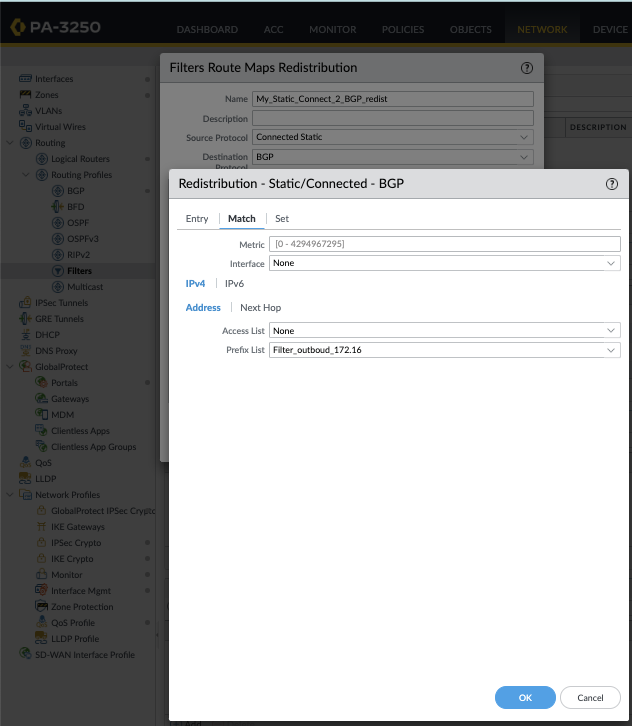

      2. Match (tab):

         1. Prefix List : Filter_outboud_172.16



   3. Click OK to save.

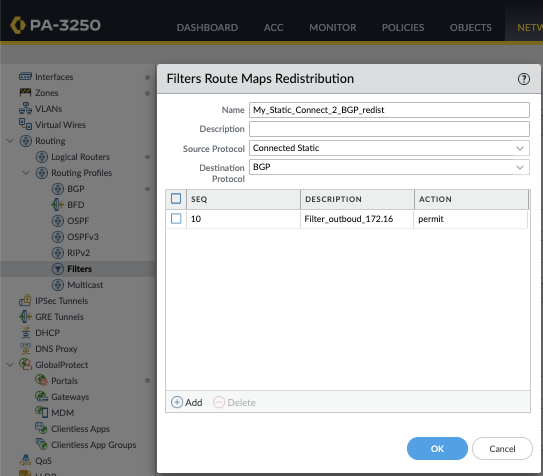

   4. Result will be as below



   5. Click OK to save

4. Assigning the Route Map to the Redistribution:

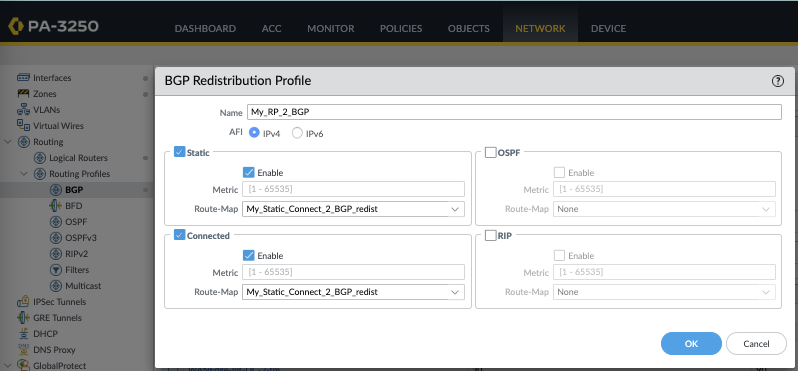

   1. Implement the Route map into the Redistribution by navigating to Network > Routing > Routing Profiles > BGP > BGP Redistribution Profiles > My_RP_2_BGP and use the following Parameters:

      1. Static > Route-Map : My_Static_Connect_2_BGP_redist

      2. Connected > Route-Map : My_Static_Connect_2_BGP_redist



   2. Click OK then Commit to save.

5. Confirming the results via CLI:

   1. Use the command below to view results

   admin@PA-3250-ENT> show advanced-routing bgp peer advertised-routes peer-name ISP1 Status codes: R removed, d damped, * valid, r ribFailure, S stale, = multipath, s suppressed, i internal, > best, h history Nexthop codes: @NNN nexthop's vrf id, < announce-nh-self Origin codes: e egp, i igp, ? incomplete Peer: ISP1 Logical router: ENT ---------------------------------------------------------------------------------- Network Next Hop Metric LocPrf Weight Path *> 172.16.0.0/24 172.16.1.254 10 100 32768 ? *> 172.16.1.0/24 0.0.0.0 0 100 32768 ? *> 172.16.2.0/24 0.0.0.0 0 100 32768 ? *> 172.16.3.0/24 172.16.1.254 10 100 32768 ? *> 172.16.4.0/24 172.16.1.254 10 100 32768 ? *> 172.16.5.0/24 172.16.1.254 10 100 32768 ? *> 172.16.6.0/24 172.16.1.254 10 100 32768 ? *> 172.16.7.0/24 172.16.1.254 10 100 32768 ? *> 172.16.8.0/24 172.16.1.254 10 100 32768 ? *> 172.16.9.0/24 172.16.1.254 10 100 32768 ? *> 172.16.10.0/24 172.16.1.254 10 100 32768 ? *> 172.16.11.0/24 172.16.1.254 10 100 32768 ? *> 172.16.12.0/24 172.16.1.254 10 100 32768 ? *> 172.16.13.0/24 172.16.1.254 10 100 32768 ? *> 172.16.14.0/24 172.16.1.254 10 100 32768 ? *> 172.16.15.0/24 172.16.1.254 10 100 32768 ? ---------------------------------------------------------------------------------- Total number of prefixes 16 admin@PA-3250-ENT>
