BGP: How to Aggregate a Supernet to multiple peers and to Advertise different Subset of specific Routes to each peer?
Objective
This KB article is to provide the procedure to aggregate a supernet to multiple peers and to advertise different subset of specific routes to each peer.

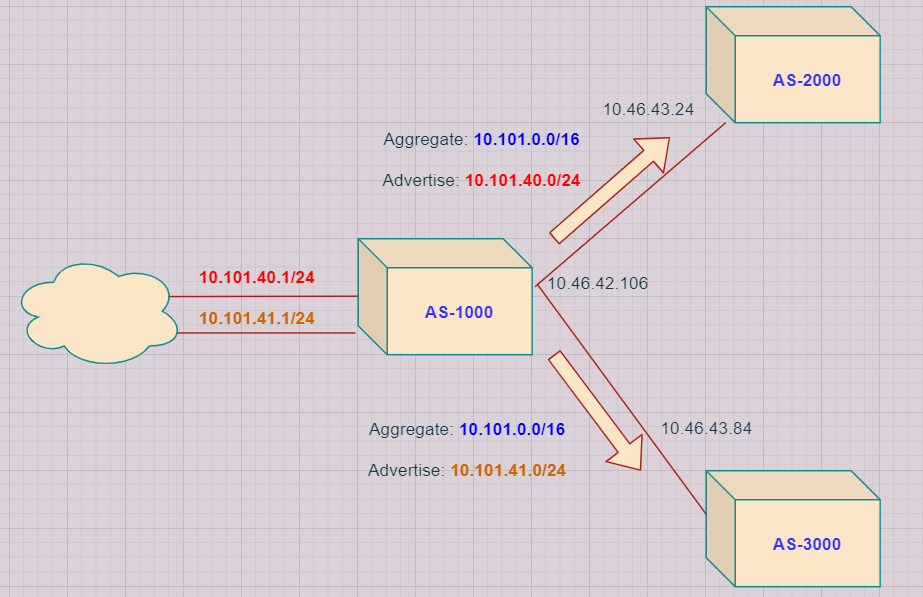

Example:
-
Aggregate: 10.101.0.0/16 to AS-2000 and AS-3000.
-
Advertise: 10.101.40.0/24 to AS-2000.
-
Advertise: 10.101.41.1/24 to AS-3000.
Environment
-
PAN OS versions: 8.1.x, 9.0.x, 9.1.x, 10.0.x.
Procedure
-

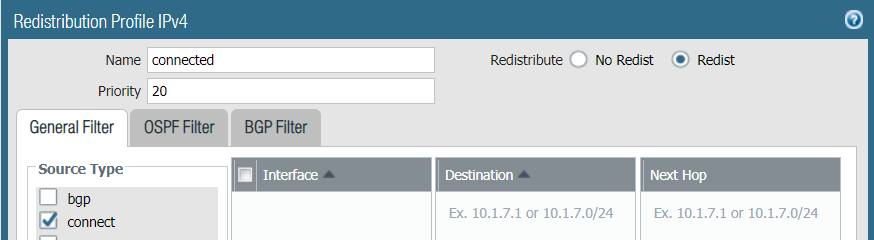

Create a Redistribution Profile (this example is using connect as source type ).
-

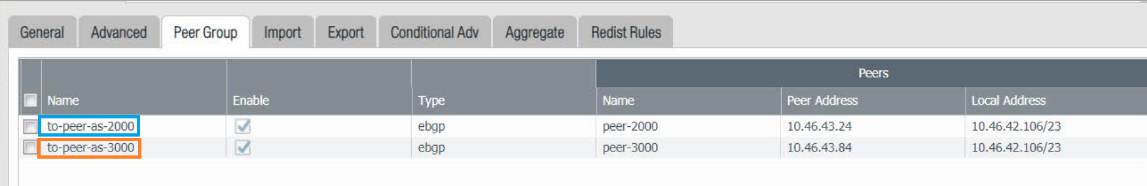

Create BGP Peer .
-

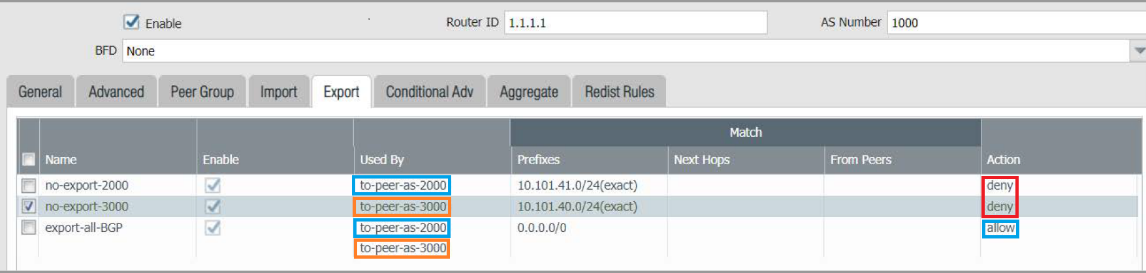

Create Export Rule to block and allow.
-

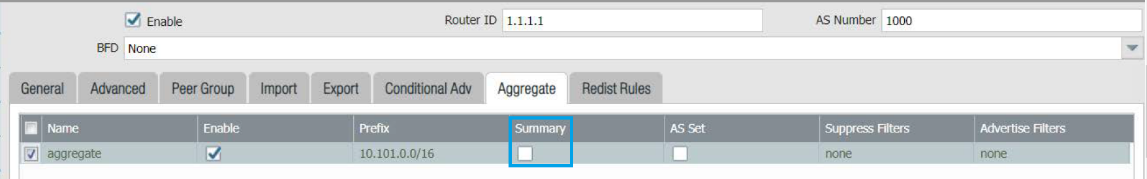

Enable Aggregate Rule with Summary checkbox is unchecked.
-

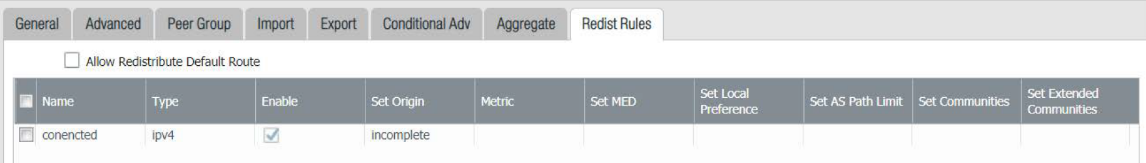

Apply Redistribution Profile to Redistribution Rule .
-

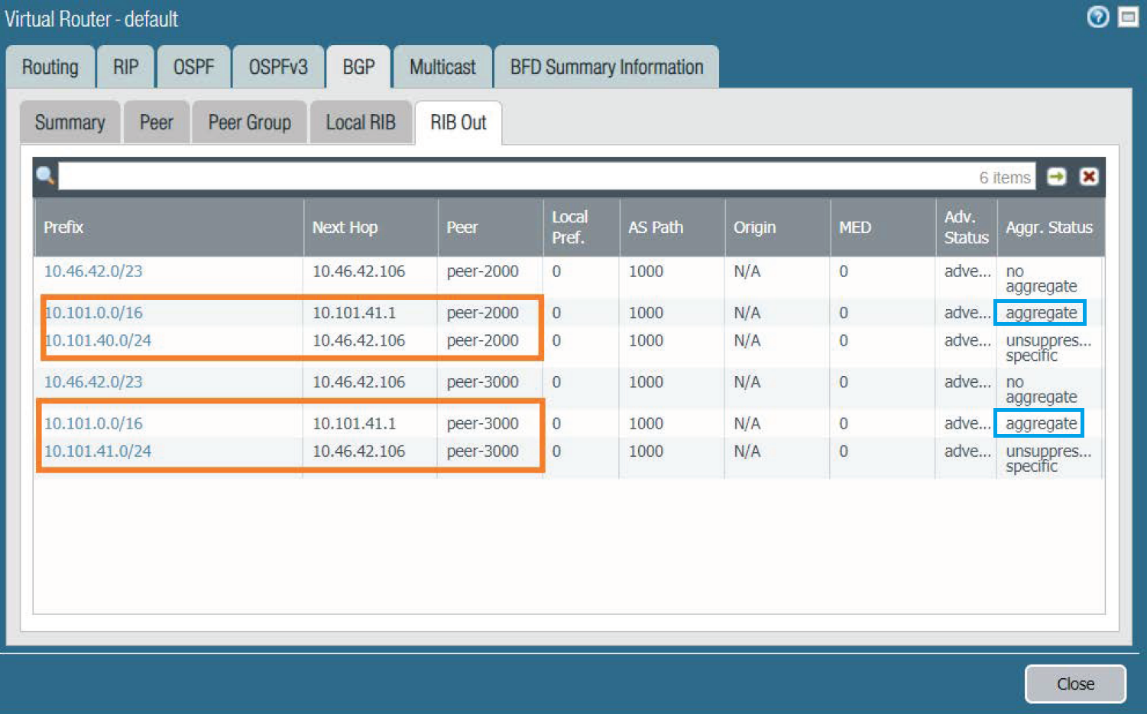

Result - Rib Out
