📘 OSPFv2 vs OSPFv3 Deep Dive & IPv6 Overview for PCNSE Exam

Open Shortest Path First (OSPF) is a widely deployed Interior Gateway Protocol (IGP) known for its scalability and fast convergence. Understanding the differences and similarities between them, along with core IPv6 concepts, is crucial for network engineers, especially those preparing for the Palo Alto Networks Certified Network Security Engineer (PCNSE) exam.

1. OSPFv2 vs OSPFv3: Key Differences and Enhancements

While OSPFv3 retains the core link-state principles of OSPFv2 (like areas, neighbor adjacencies, SPF algorithm, and metric calculation), it introduces significant changes to accommodate IPv6 and improve flexibility. Here's a more detailed comparison:

Feature OSPFv2 (RFC 2328) OSPFv3 (RFC 5340)
IP Version Support Exclusively IPv4. Primarily designed for IPv6. Can also support IPv4 using Address Families (AF - RFC 5838).
Transport Runs directly over IPv4 (Protocol 89). Runs directly over IPv6 (Protocol 89). Uses IPv6 link-local addresses for neighbor communication.
Addressing & Configuration Uses IPv4 addresses for neighbors and routing updates. Enabled using network commands under the OSPF process, associating networks/subnets with areas. Uses IPv6 link-local addresses (FE80::/10 range) for neighbor discovery and adjacency formation (except for virtual links).
Router ID (RID) 32-bit value (IPv4 address format). Can be automatically selected or manually configured. Still uses a 32-bit value (IPv4 address format). Must be manually configured as IPv6 addresses cannot be implicitly used.
Authentication Built-in methods: Null (None), Plain Text, MD5. No built-in authentication . Relies on IPv6's IPsec framework (Authentication Header - AH or Encapsulating Security Payload - ESP) for integrity and optionally encryption.
LSA Types Types 1-7. Type 1 (Router) and Type 2 (Network) LSAs contain both topology and IPv4 prefix information. Renamed/modified types (e.g., Type 3 is Inter-Area Prefix, Type 4 is Inter-Area Router). Two new LSA types : Type 8 (Link LSA) and Type 9 (Intra-Area Prefix LSA).
LSA Flooding Scope Implicit scope based on LSA type (Area or AS). Explicit flooding scope defined in LSA header: Link-Local (Type 8), Area (Types 1, 2, 3, 4, 7, 9), AS (Type 5).
Multiple Instances per Link Not supported. One OSPFv2 process per interface. Supported. Multiple OSPFv3 instances (distinguished by Instance ID) can run on the same link, useful for separating routing domains (e.g., different address families or VRFs).
Multicast Addresses Uses 224.0.0.5 (AllSPFRouters) and 224.0.0.6 (AllDRouters). Uses FF02::5 (AllSPFRouters) and FF02::6 (AllDRouters) - link-local scope.
Prefix Representation Network + Subnet Mask (e.g., 192.168.1.0 / 255.255.255.0). Prefix + Prefix Length (e.g., 2001:db8:abc::/64).
Key Takeaway: OSPFv3 decouples the core protocol mechanics from the network layer addressing. This is achieved by using link-local addresses for adjacencies and moving prefix information out of the fundamental topology LSAs (Type 1 & 2) into dedicated prefix LSAs (Type 9).

Mermaid Diagram: OSPFv2 vs OSPFv3 Adjacency

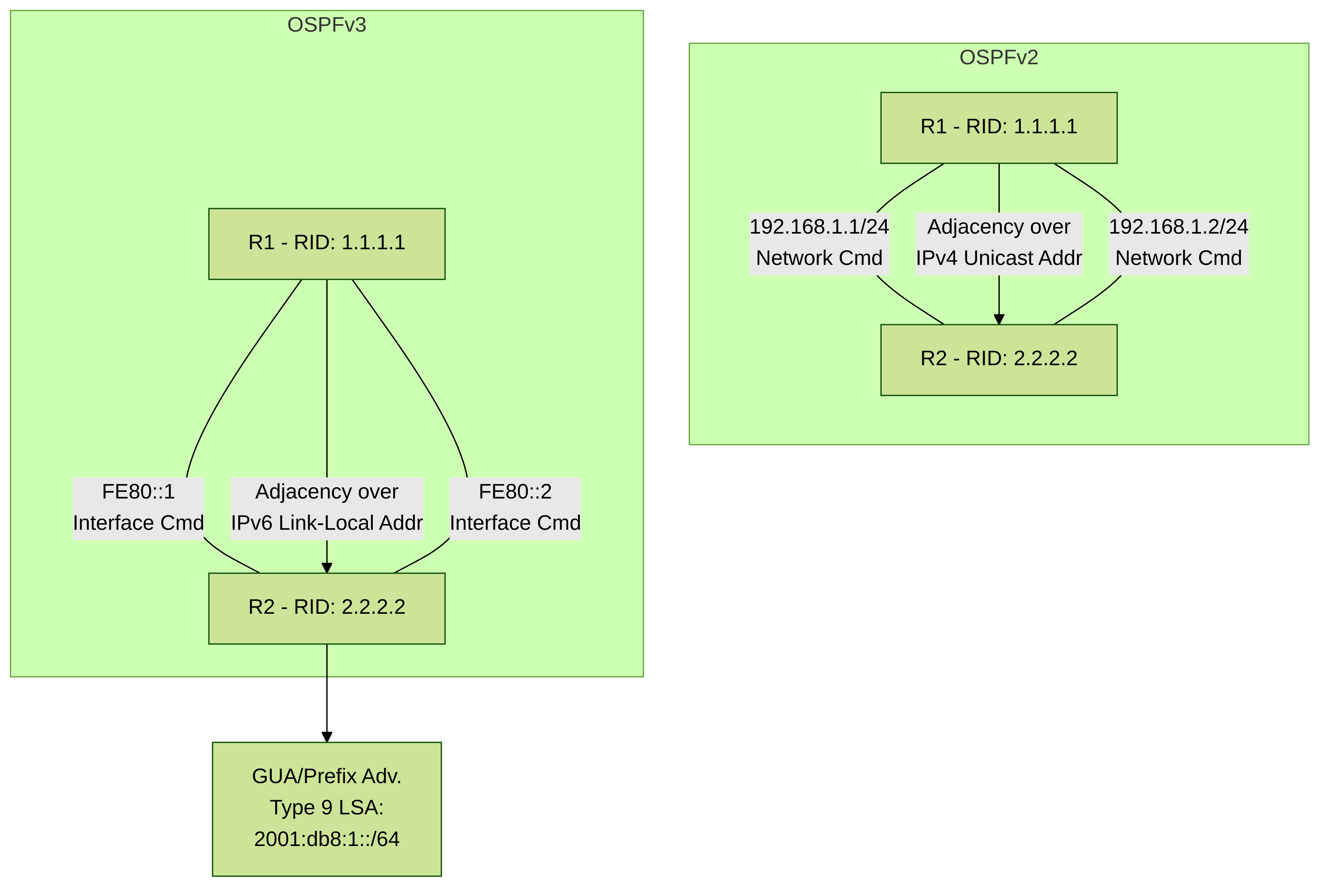

Conceptual difference in how OSPFv2 (subnet-based) and OSPFv3 (link-based with link-local addressing) establish adjacencies and advertise reachability.

2. IPv6 Overview - Essential Concepts

A basic understanding of IPv6 is necessary when working with OSPFv3:

3. PCNSE Exam Considerations & Palo Alto Networks Implementation

For the PCNSE exam, understanding how OSPFv2 and OSPFv3 are configured and operate on PAN-OS is critical:

PCNSE Tip: Be prepared for questions contrasting OSPFv2 and OSPFv3 configuration steps on PAN-OS, particularly regarding authentication methods (built-in vs. IPsec) and how OSPF is enabled (network commands vs. interface commands). Also, understand the security policy requirements for allowing OSPF protocol traffic.

Interactive Quiz: OSPFv2 vs OSPFv3 & PCNSE Concepts

1. What is the primary IP protocol version supported by OSPFv2?

Correct! OSPFv2 (RFC 2328) was designed specifically for IPv4 networks.
Incorrect. OSPFv3 is primarily for IPv6.
Incorrect. While OSPFv3 can carry IPv4 routes using Address Families, OSPFv2 is limited to IPv4.
Incorrect. IPX is a different network layer protocol.

2. How does OSPFv3 typically establish neighbor adjacencies?

Correct! OSPFv3 uses IPv6 link-local addresses (LLA) sourced from the interface for neighbor discovery and adjacency formation on most link types.
Incorrect. Global addresses are advertised, but LLAs are used for the adjacency itself.
Incorrect. OSPFv2 uses IPv4 addresses. OSPFv3 is designed for IPv6.
Incorrect. MAC addresses are Layer 2; OSPF operates at Layer 3, although LLAs can be derived from MACs.

3. Which authentication method is natively supported within the OSPFv2 protocol itself?

Correct! OSPFv2 includes built-in authentication methods like None, Plain Text, and MD5.
Incorrect. IPsec AH is used by OSPFv3 for authentication, not OSPFv2 natively.
Incorrect. IPsec ESP is used by OSPFv3 for authentication and encryption, not OSPFv2 natively.
Incorrect. Kerberos is a network authentication protocol, but not used natively within OSPF.

4. How is OSPFv3 typically enabled on an interface in modern network operating systems like PAN-OS?

Correct! OSPFv3 operates on a per-link basis and is typically enabled directly under the interface configuration, associating it with an OSPFv3 process and area.
Incorrect. The `network` command method is characteristic of OSPFv2 configuration.
Incorrect. IPsec is used for *authentication* in OSPFv3, not for enabling the protocol itself.
Incorrect. Enabling IPv6 is a prerequisite, but OSPFv3 requires explicit configuration on the interface.

5. What is the format of the Router ID (RID) in OSPFv3?

Correct! Despite running over IPv6, OSPFv3 retains the 32-bit RID in IPv4 address format used by OSPFv2. It must be manually configured.
Incorrect. The RID is 32-bit, not 128-bit.
Incorrect. MAC addresses are Layer 2 identifiers.
Incorrect. The RID must be a 32-bit value representable as an IPv4 address.

6. Which new LSA types were introduced in OSPFv3 compared to OSPFv2?

Correct! OSPFv3 introduced the Link LSA (Type 8) for link-local address information and options, and the Intra-Area Prefix LSA (Type 9) for advertising IPv6 prefixes within an area.
Incorrect. Type 1 and 2 exist in both, but their content changed in OSPFv3 (topology only).
Incorrect. Type 5 and 7 exist in both versions for external routes.
Incorrect. Type 3 and 4 exist in both versions but were renamed in OSPFv3 (Inter-Area Prefix LSA and Inter-Area Router LSA respectively).

7. In OSPFv3, where is IPv6 prefix information primarily advertised within an area?

Correct! OSPFv3 separates topology from prefixes. IPv6 prefix information within an area is carried in the Type 9 Intra-Area Prefix LSA.
Incorrect. Type 1 LSAs in OSPFv3 carry only topology information (links, metrics), not prefixes.
Incorrect. Type 2 LSAs in OSPFv3 carry only topology information for multi-access links.
Incorrect. Type 8 LSAs carry link-local addresses and interface options, not routable prefixes.

8. What feature allows OSPFv3 to run multiple, distinct OSPF processes on the same physical link, a capability absent in OSPFv2?

Correct! OSPFv3 introduces an Instance ID field in the header, allowing multiple protocol instances to run concurrently on a single link without interfering with each other.
Incorrect. Router ID must be unique within an OSPF domain but doesn't enable multiple instances on one link.
Incorrect. An interface belongs to one area per OSPF instance.
Incorrect. IPsec SAs relate to authentication, not running separate protocol instances.

9. On a Palo Alto Networks firewall, where would you configure MD5 authentication for an OSPFv2 interface?

Correct! OSPFv2 authentication (None, Simple, MD5) is configured within the OSPFv2 settings, specifically under the Area's Interface configuration tab in the Virtual Router settings.
Incorrect. IPsec Tunnels are for VPNs, not native OSPFv2 authentication.
Incorrect. Certificates are used for other forms of authentication/encryption, not OSPFv2 MD5.
Incorrect. This path is for OSPFv3 configuration, which uses IPsec, not MD5.

10. For OSPFv3 authentication on a PAN-OS firewall, what must be configured?

Correct! OSPFv3 relies on IPsec. On PAN-OS, this is configured under the OSPFv3 interface by selecting an IPsec Profile and providing the SPI and authentication/encryption keys.
Incorrect. MD5 is for OSPFv2. OSPFv3 does not have built-in MD5.
Incorrect. Simple password is for OSPFv2.
Incorrect. OSPFv3 does not have built-in authentication; this option doesn't exist.

11. What is the function of the OSPFv3 Link LSA (Type 8)?

Correct! The Link LSA (Type 8) has link-local scope and is used to inform neighbors on the same link about the originating router's link-local address and optionally, IPv6 prefixes associated directly with that link.
Incorrect. External routes are advertised using Type 5 (AS-External) or Type 7 (NSSA) LSAs.
Incorrect. Intra-area prefixes are advertised using Type 9 (Intra-Area Prefix) LSAs.
Incorrect. Inter-area routes are summarized using Type 3 (Inter-Area Prefix) LSAs.

12. What is the IPv6 multicast address used by OSPFv3 routers to send Hello packets to all OSPF routers on a link?

Correct! OSPFv3 uses the link-local scope multicast address FF02::5 to reach all OSPF routers on the local link.
Incorrect. 224.0.0.5 is the IPv4 multicast address used by OSPFv2.
Incorrect. FF02::1 is the all-nodes link-local multicast address.
Incorrect. FF02::9 is used by the Routing Information Protocol next generation (RIPng).

13. In the context of PAN-OS, what configuration object contains the OSPF routing process settings?

Correct! Routing protocols, including OSPFv2 and OSPFv3, are configured within a Virtual Router instance on a Palo Alto Networks firewall.
Incorrect. Interface Management Profiles define allowed management services on an interface.
Incorrect. Security Zones group interfaces for policy enforcement.
Incorrect. GlobalProtect Gateways are related to remote access VPNs.

14. An administrator needs to ensure OSPFv3 neighbor adjacency forms between two Palo Alto Networks firewalls in different security zones. What is essential besides correct OSPFv3 configuration?

Correct! Traffic between zones is denied by default. A Security Policy is required to explicitly permit the OSPFv3 protocol (IPv6 Protocol 89) and the relevant multicast addresses (FF02::5, FF02::6). If IPsec is used for authentication, AH (Protocol 51) or ESP (Protocol 50) must also be allowed.
Incorrect. NAT is generally not required or desired for routing protocol adjacencies between trusted devices.
Incorrect. Jumbo frames relate to MTU size and are not directly required for OSPF adjacency.
Incorrect. BFD (Bidirectional Forwarding Detection) provides faster failure detection but is not required for the initial adjacency formation.

15. What does the term "link-state" mean in the context of OSPF?

Correct! Link-state protocols like OSPF involve routers describing their local connections (links and their status/cost) via LSAs, flooding this information so all routers in an area build an identical topological database (LSDB).
Incorrect. This describes distance-vector protocols before full convergence.
Incorrect. This describes distance-vector protocols like RIP. OSPF exchanges LSAs describing link states, not full tables.
Incorrect. OSPF uses a cost metric, typically based on bandwidth, not just hop count.

16. Which OSPFv2 LSA type is generated by an Area Border Router (ABR) to advertise prefixes from one area into another?

Correct! ABRs generate Type 3 Summary LSAs (called Inter-Area Prefix LSAs in OSPFv3) to advertise intra-area routes learned in one area to other areas.
Incorrect. Type 1 LSAs describe a router's links within its own area.
Incorrect. Type 2 LSAs describe multi-access network segments within an area.
Incorrect. Type 5 LSAs advertise routes external to the OSPF domain, originated by an ASBR.

17. What is the purpose of an IPv6 link-local address (LLA)?

Correct! LLAs (FE80::/10) are designed for communication restricted to the local link, used for neighbor discovery (NDP) and routing protocol adjacencies like OSPFv3. They are not routable off-link.
Incorrect. This describes Global Unicast Addresses (GUAs).
Incorrect. This describes Multicast addresses (FF00::/8).
Incorrect. Unique Local Addresses (ULAs, FC00::/7) are used for private inter-network communication, similar to RFC1918 in IPv4.

18. On PAN-OS, which CLI command is used to view OSPFv3 neighbors?

Correct! The correct command structure on PAN-OS CLI to view OSPFv3 neighbor status is `show routing protocol ospfv3 neighbor`.
Incorrect. This command is for OSPFv2 neighbors.
Incorrect. While common on some other platforms (like Cisco IOS), PAN-OS uses the `show routing protocol ospfv3` structure.
Incorrect. `debug` commands are for real-time troubleshooting, not displaying current state.

19. Why might an organization choose to implement OSPFv3 even if they primarily use IPv4 today?

Correct! OSPFv3's design (especially with Address Families, RFC 5838) allows it to carry routing information for multiple protocols, including IPv4, making it a future-proofing choice for networks planning IPv6 migration.
Incorrect. While OSPFv3 has some efficiency improvements, a significant speed difference isn't the primary driver.
Incorrect. Both require resources; OSPFv3's added complexity might even slightly increase requirements in some scenarios.
Incorrect. OSPFv2 is still widely used and supported for IPv4 networks.

20. A PCNSE candidate notices OSPFv3 adjacency is stuck in the 'INIT' state on a PAN-OS firewall. What is a likely cause related to Security Policies?

Correct! The INIT state means Hello packets have been received from the neighbor, but bidirectional communication hasn't been established (the neighbor hasn't seen this router's Hello). A common cause on firewalls is an outbound Security Policy blocking the OSPFv3 Hello packets (destined for FF02::5 or unicast LLA).
Incorrect. Duplicate RIDs cause different problems, often preventing adjacencies from forming fully or causing routing instability, but INIT specifically implies one-way Hello reception.
Incorrect. Interface cost affects path selection, not initial adjacency formation states like INIT.
Incorrect. Area ID mismatch would prevent adjacency entirely; Hellos would likely be ignored.
.
